93vrfd_houston

iTrader: (10)

hello people, just like title says i would like to kow where the best place to buy a battery relocation kit is. also, what type should i get? thanks for any help

mark

moconnor

iTrader: (14)

Most of the so-called kits are just a minimal (and incomplete) set of parts that you could buy in any auto store.

You can put your own kit together fairly easily: link.

Smitter

pettitracing.com
i would just make your own kit as stated above.
all u need are the cables, a battery tray and a hold down.
save your self some cash

optionii

nicely done

Stix37867

iTrader: (1)

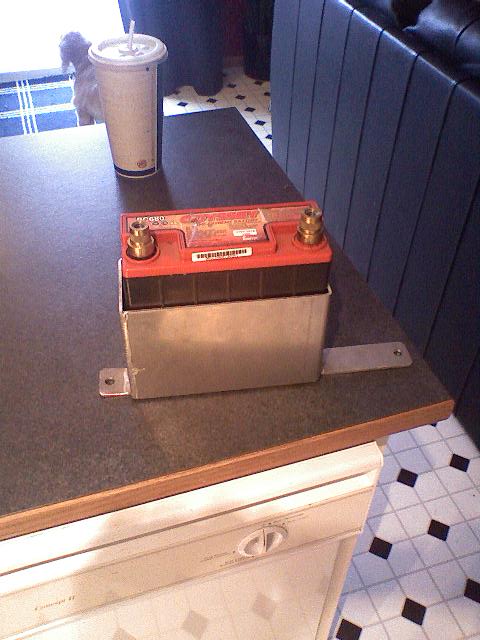

Summit racing relocation kit gives you everything you need. Here's my install...


https://www.rx7club.com/3rd-generation-specific-1993-2002-16/legal-trunk-mounted-battery-box-lots-pix-639965/

moconnor

iTrader: (14)

I don't see a breaker in the picture - or perhaps I missed it.

Running a battery power cable through the car without a breaker is incredibly dangerous. Even 24 AWG power wires should be fused.

Stix37867

iTrader: (1)

Only if it is ran incorrectly is it dangerous. I'll admit it is good insurance but not neccessarily required.

FD3S-K

iTrader: (6)

+1

I have the kit, works good!

4CN A1R

iTrader: (6)

mine: http://www.rx7.org/Robinette/secure_battery.htm

moconnor

iTrader: (14)

All automotive power wire should be fused. This applies 1000x for 0-4 gauge wire that goes from the battery to the opposite end of the car.

It is your car and you can do what you want with it but do not spread the idea that fuses or breakers are somehow optional components in a battery relocation. They are not. This is a very basic electrical wiring 101 principle - and is particularly important in automotive applications because of vibration and the fact that cars can crash and wiring can become damaged and ignite spilled fuel.

Stix37867

iTrader: (1)

Then please explain to me why mazda did not fuse the power wire to the starter?

And all i'm saying is a properly ran power cable should not need fused and this only would apply to the battery cable. I know that all others need fused to make sure devices do not overload the wires. And i would recommend a fuse. It's just that i have not done it and i get sick of people telling me that it's mandatory and i'm going to set my car on fire.

moconnor

iTrader: (14)

I don't think any manufacturers do because they are typically located very close to each other. This is an engineering compromise. There has been some research into crash-activated breakers for the battery to starter connection though I am not sure if any are in production.

It's not going to cause your car to burn down any more than not wearing a seat belt is going to result in a fatal accident. However, these puppies cost about $20-$30. There is no reason not to run one.

Smitter

what fuse size and type would u recommend. u got me thinkin i should have one spliced in my positive wire. got any pics of yours?

moconnor

iTrader: (14)

I used a 150 amp breaker. Lots of pictures here.

93vrfd_houston

iTrader: (10)

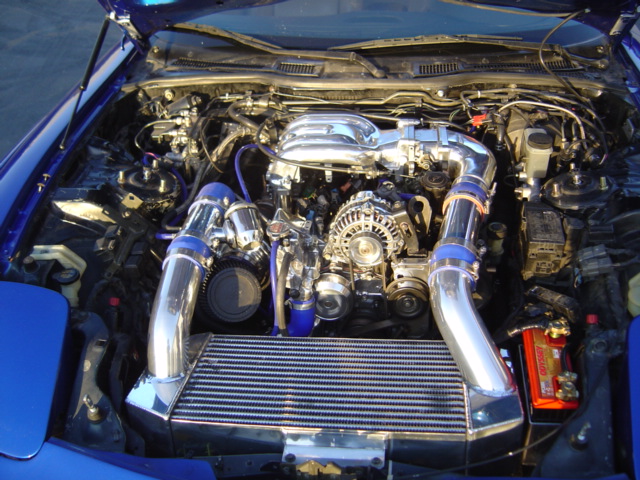

thanks for all the advise people...........maybe i asked the wrong question. i would like to keep it inside the engine bay, but would like to be able to fit a nice large intercooler or v-mount set up in it eventually! thanks again

Prometheus

iTrader: (2)

in that writ-up they are using "tamiya" connectors



switch those out for "Deans" connectors



that will give you a much better contact, with less corosion/ shorting risk.

moconnor

iTrader: (14)

Where can you buy these?

Prometheus

iTrader: (2)

I'd also try to solder as much as you can, instead of crimping.

shrink tubing is your friend (leave no copper exposed)

gracer7-rx7

iTrader: (16)

wait until you've selected the kit first. some new ones will be on the market soon and some will have provisions to use the stock battery in the stock location.

Smitter

i have a RE mini battery kit i am not using if u want.

moconnor

iTrader: (14)

There is no reason to solder. A proper crimp connector is superior in an automotive environment. MILSPEC standards for avionics connections have required crimped connectors since the 1970s.

93vrfd_houston

iTrader: (10)

hey smitter, how much you want for it? and where does it bolt to exactly?

shipping to 77065

thanks, mark

Smitter

this kit was 250 plus shipping new. as far as i know it is not available anymore do to rotary extreme closing down. i used it for less then a month so it is in like new condition. i can sell it for approximately 220 shipped (will arrive in 4-5 business days). there was the exact one post on here for 300 plus shipping.





i appologize to the mods for not posting in the for sale section, as it was not really my intention to sell this thing
if u would like it let me know asap, i will be going out of town as of tomorrow. unless u wanna wait a week or so till my return.
i ask any further requests b pm'd to me since this is not the 4 sale section
