VMount setup question (PIC)

Hey guys,

I'm building the bracketry for a v mount setup and am planning to eventually order an RE front bumper. Can anyone give me some input in terms of positioning the radiator?

In a nut shell, I need to know how far forward and how low the radiator bottom edge should be.

Pic for reference:



telram is offline
Old 02-05-19, 12:24 PM
  #2
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,158
Liked 270 Times in 230 Posts
Is this a custom setup or a kit?

It's really hard to say exactly where to put it with out the front bumper. You do want it up enough so the fans aren't in danger of scraping and you want the back of the radiator to seal up against the bottom of the intercooler.

It also helps getting some good ducting to keep air going where it should go.

Dale
DaleClark is offline
Old 02-05-19, 12:54 PM
  #3
Moderator
iTrader: (14)

FourtyOunce's Avatar

Join Date: Feb 2001
Location: Old Bridge, NJ
Posts: 1,790
Liked 59 Times in 45 Posts
I posted pictures of my custom vmount years ago. I think the thread is still up.
FourtyOunce is offline
Old 02-05-19, 12:55 PM
  #4
Moderator
iTrader: (14)

FourtyOunce's Avatar

Join Date: Feb 2001
Location: Old Bridge, NJ
Posts: 1,790
Liked 59 Times in 45 Posts
https://www.rx7club.com/3rd-generati...t-pics-670605/

Here you go, might be helpful. I did have to play around with the position of the radiation to find the balance between angle and clearance from the bottom.
FourtyOunce is offline
Old 02-05-19, 01:53 PM
  #5
Automotive Designer

RGHTBrainDesign's Avatar

Join Date: Aug 2012
Location: San Jose, CA
Posts: 1,444
Liked 40 Times in 37 Posts
Find a fabricator you trust and set aside thousands. None of this is easy to do correctly. Gotta pay to play.










RGHTBrainDesign is offline
Old 02-05-19, 01:57 PM
  #6
Automotive Designer

RGHTBrainDesign's Avatar

Join Date: Aug 2012
Location: San Jose, CA
Posts: 1,444
Liked 40 Times in 37 Posts




RGHTBrainDesign is offline
Old 02-11-19, 06:58 AM
  #7
Full Member
Thread Starter
iTrader: (1)

Join Date: Jun 2016
Location: Montreal
Posts: 84
Liked 0 Times in 0 Posts
Thanks for the replies guys.

This is a custom setup and since I don't have the bumper, I had to go by eye. After spending most of the weekend under the car, I think I might have attached the radiator a little too far out.I do like the space in the engine bay though.

Here are some pics, let me know what you guys think.





telram is offline
Old 02-11-19, 10:52 AM
  #8
Moderator
iTrader: (14)

FourtyOunce's Avatar

Join Date: Feb 2001
Location: Old Bridge, NJ
Posts: 1,790
Liked 59 Times in 45 Posts
Its hard to tell. It could be too far forward and a tad too low. The bottom of the radiator should be higher than the subrame/sway bar. If it sits too low, there is a higher risk of damage. Are you able to place the radiator further in? The Greddy Vmount and my custom set up place the radiator at the same plane as the front crossmember - yours is protruding out 2' or so.

Jehan
FourtyOunce is offline
Old 02-11-19, 11:49 AM
  #9
Boilermaker!
iTrader: (113)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,378
Liked 18 Times in 17 Posts
Best is to get the bumper then fit around it, looking at picture is guess at best, you might end up have to redo everything, why not just get the bumper first?
ZE Power MX6 is online now
Old 02-11-19, 12:49 PM
  #10
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,158
Liked 270 Times in 230 Posts
I notice you have the R1 second oil cooler hardlines, they can be in the way. I had to remove mine and go to braided lines, the hard lines were right where my radiator wanted to be.

But, I have a front mount setup, not a v-mount.

It does look like the radiator is pretty far forward, but again you are really going to need to have the nose to get everything fit properly.

Dale
DaleClark is offline
Old 02-11-19, 04:47 PM
  #11
half ass 2 or whole ass 1
iTrader: (110)

cr-rex's Avatar

Join Date: Nov 2011
Location: okinawa to tampa
Posts: 1,919
Liked 55 Times in 51 Posts
Without the bumper on, you're wasting your time. It's impossible to get it right without it, as others have already said.
cr-rex is online now
Old 02-12-19, 02:45 AM
  #12
Full Member
iTrader: (3)

Ricebox's Avatar

Join Date: Nov 2016
Location: Palm Beach, Florida
Posts: 194
Likes: 0
Liked 15 Times in 13 Posts

may be hard to tell but this is how my Koyo sits with custom brackets. fits great with the feed bumper, i also have the radiator modified for dual pass so the outlet is at the top and there is no outlet pipe/hose on the bottom. that requires extra clearance

Ricebox is offline
Old 02-13-19, 11:27 AM
  #13
Full Member
Thread Starter
iTrader: (1)

Join Date: Jun 2016
Location: Montreal
Posts: 84
Liked 0 Times in 0 Posts
Thanks guys great comments as usual.

Originally Posted by FourtyOunce View Post
Its hard to tell. It could be too far forward and a tad too low. The bottom of the radiator should be higher than the subrame/sway bar. If it sits too low, there is a higher risk of damage. Are you able to place the radiator further in? The Greddy Vmount and my custom set up place the radiator at the same plane as the front crossmember - yours is protruding out 2' or so.
Good eye, it is about 2" out compared to the crossmember plane. I could push it in a little further, but the oil cooler hard lines do start to be a problem like Dale mentioned.

Originally Posted by DaleClark View Post
I notice you have the R1 second oil cooler hardlines, they can be in the way. I had to remove mine and go to braided lines, the hard lines were right where my radiator wanted to be.
Dale
I think I can push it a little further back, but maybe I should just switch to braided lines now while keeping the stock oil coolers.

Originally Posted by Ricebox View Post
may be hard to tell but this is how my Koyo sits with custom brackets. fits great with the feed bumper, i also have the radiator modified for dual pass so the outlet is at the top and there is no outlet pipe/hose on the bottom. that requires extra clearance

Thanks Ricebox, do you have a photo with the bumper on where the radiator is visible?

Thanks guys
telram is offline
Old 02-14-19, 03:14 AM
  #14
Full Member
iTrader: (3)

Ricebox's Avatar

Join Date: Nov 2016
Location: Palm Beach, Florida
Posts: 194
Likes: 0
Liked 15 Times in 13 Posts
Originally Posted by telram View Post
Thanks Ricebox, do you have a photo with the bumper on where the radiator is visible?

Thanks guys
just enough clearance for an undertray as well

Ricebox is offline
Old 02-15-19, 05:27 PM
  #15
Full Member
Thread Starter
iTrader: (1)

Join Date: Jun 2016
Location: Montreal
Posts: 84
Liked 0 Times in 0 Posts
Thanks Ricebox

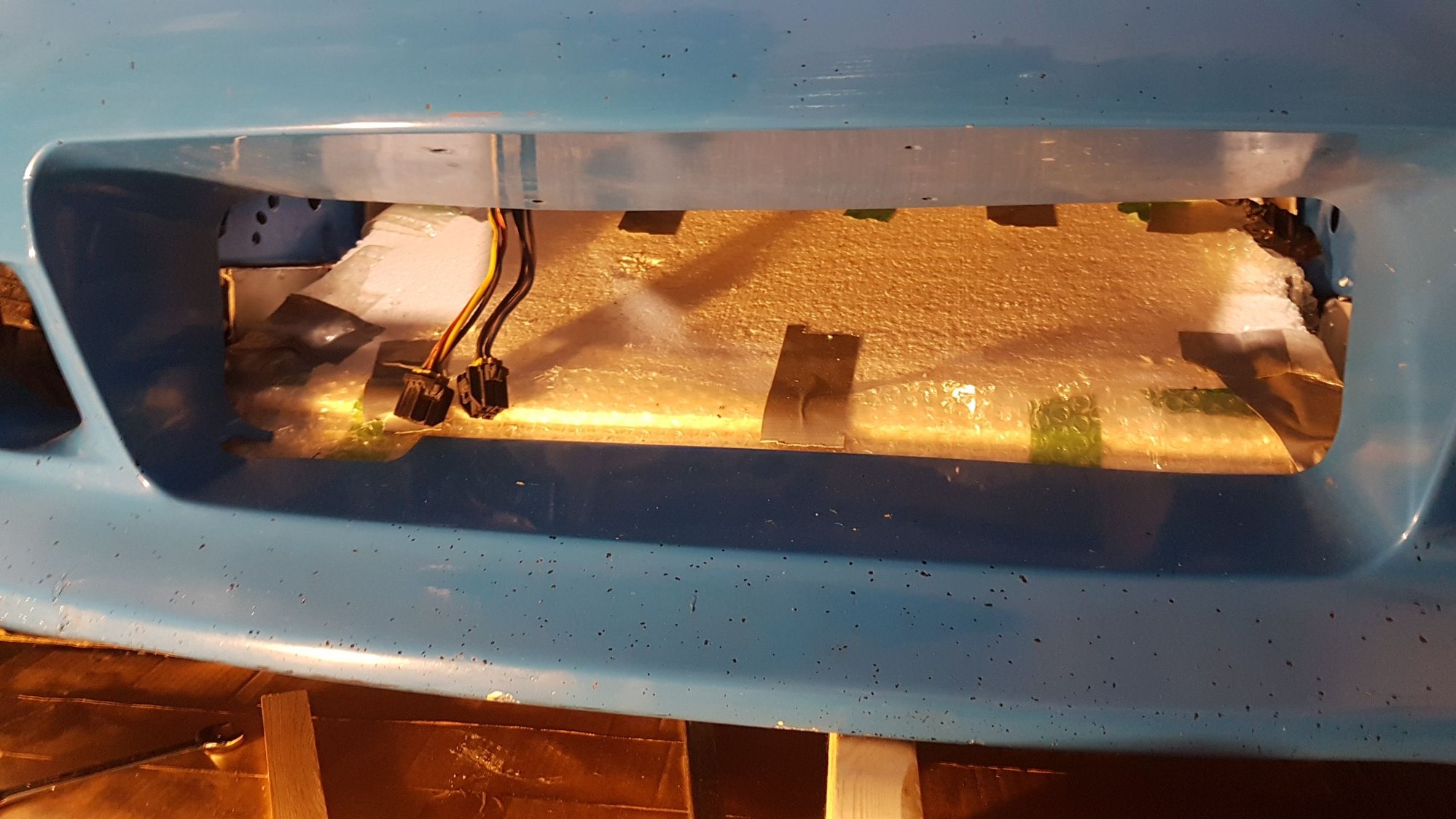

So I did a quick test fit with my unknown JDM bumper.and I think it came out pretty nice.





Basically the lower radiator reservoir is actually below the bumper opening. Looks like I'll get some better airflow onto the radiator fins themselves.

I'm thinking to leave it like this until I get my RE bumper and adjust it then if necessary. Will probably switch to braided oil coolant lines too at that point.

What do you guys think?

telram is offline
Old 02-15-19, 09:13 PM
  #16
Full Member
iTrader: (3)

Ricebox's Avatar

Join Date: Nov 2016
Location: Palm Beach, Florida
Posts: 194
Likes: 0
Liked 15 Times in 13 Posts
what thermofans are you using? if you are using the OEM fans make sure you have them on when test fitting, they take up a few inches behind the radiator, the last thing you want is the fan assembly hanging lower than the bumper.
Ricebox is offline
