Vacuum leaks with BRAND NEW silicone hoses
03-28-06, 01:55 AM
#1
Ferrari Red Hotness
Thread Starter
Join Date: Nov 2005
Location: Las Vegas
Posts: 964
Likes: 0
Received 0 Likes
on
0 Posts
Vacuum leaks with BRAND NEW silicone hoses
I can't believe this.... I just put my engine back together as anyone who has been following my threads know.

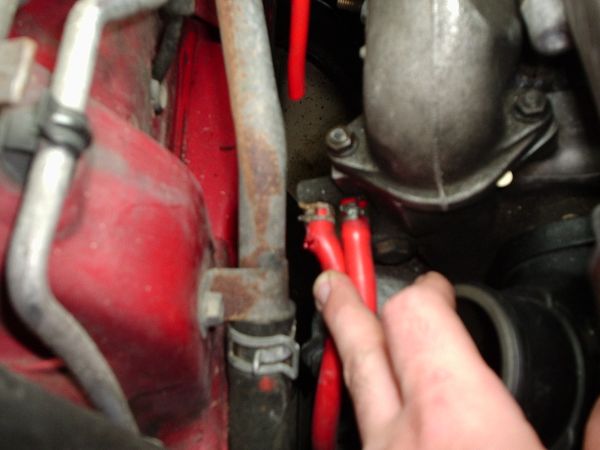

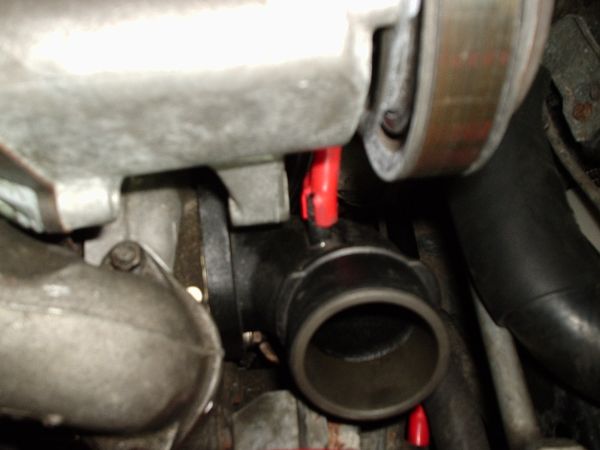

Anyway, I put all brand new silicone hoses on my engine, and I've only driven the car maybe a total of 5 times so far. To my absolute dis-belief after pulling it apart a little bit to start the vacuum simplification job, I've already found 3 leaks from hoses splitting.
I am shocked.....I've never seen hoses go this quickly. No wonder I was getting low vacuum and had the absolute worst emissions read out I've ever seen.
Guess I'm going back to regular high temp vacuum lines for these areas and maybe more once I take the UIM off and see what kind of damage is up there.
Anyway, I put all brand new silicone hoses on my engine, and I've only driven the car maybe a total of 5 times so far. To my absolute dis-belief after pulling it apart a little bit to start the vacuum simplification job, I've already found 3 leaks from hoses splitting.
I am shocked.....I've never seen hoses go this quickly. No wonder I was getting low vacuum and had the absolute worst emissions read out I've ever seen.
Guess I'm going back to regular high temp vacuum lines for these areas and maybe more once I take the UIM off and see what kind of damage is up there.
03-28-06, 07:43 AM
#5

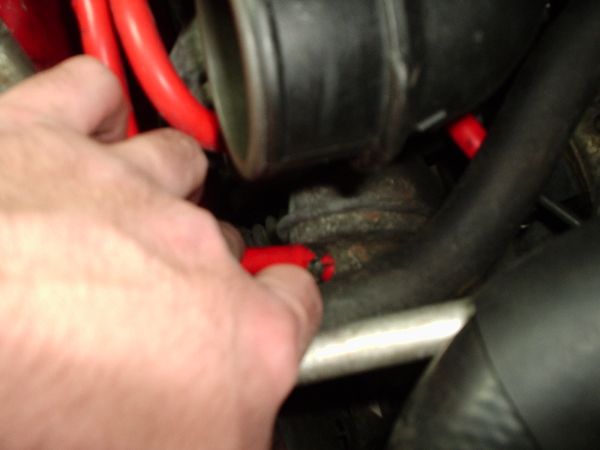

I think zip ties around your line ends would help a lot. It seems like theyre splitting because theyre able to and if you had a zip tie on them they would not be able to split like that. And at second glance at the second picture im pretty sure it was simply rubbing on that metal piping and thats why that one split.
03-28-06, 08:17 AM
#6
Racecar - Formula 2000
Check the HighTempSilicone site - they have really good stuff. A lot of silicone hoses are cheaply made and have very poor material specs.
www.hightempsilicone.com
Dave
www.hightempsilicone.com
Dave
03-28-06, 08:39 AM
#7
Banned. I got OWNED!!!
another one for www.hightempsilicone.com
you can also look at the Viton hoses if silicone is just too risky
you can also look at the Viton hoses if silicone is just too risky
Trending Topics
03-28-06, 11:10 AM
#10
I second the warning about nicking the silicone (or viton, for that matter). Each one will split easily if there is a scratch or shallow cut in them. Be careful working with them.
I used a dremel to smooth off all the edges and knurling on a pair of long needle nose pliers specifically for working with these hoses. It's a great tool.
Dave
I used a dremel to smooth off all the edges and knurling on a pair of long needle nose pliers specifically for working with these hoses. It's a great tool.
Dave
03-28-06, 01:26 PM
#11
Ferrari Red Hotness
Thread Starter
Join Date: Nov 2005
Location: Las Vegas
Posts: 964
Likes: 0
Received 0 Likes
on
0 Posts
All of my hoses are from hightempsilicone.... and all of the hoses down in that area are split.
They were cut with a large, very sharp wire cutting tool so they were cut clean with no nicks. Not sure why they broke, but I'm not even half way done with the car yet and I've found quite a few cracks in the vacuum lines.
I'm just going to replace these bottom lines that no one sees with thicker, stronger vacuum tubing from the auto parts store. The stuff they sell is a lot thicker and probably safer for those areas, but I just don't see how they rubbed on anything. They went on easy too, I didn't have to use needle nose pliers or anything else to slide the hose on.
On another note, I can't believe how fast I can have this car apart. It's pretty sad lol....I had all of the intake tubes, vacuum lines, and rats nest completely out the car within an hour. I've taken this stupid thing apart way too many times already and I've only had it 6 months lol
They were cut with a large, very sharp wire cutting tool so they were cut clean with no nicks. Not sure why they broke, but I'm not even half way done with the car yet and I've found quite a few cracks in the vacuum lines.
I'm just going to replace these bottom lines that no one sees with thicker, stronger vacuum tubing from the auto parts store. The stuff they sell is a lot thicker and probably safer for those areas, but I just don't see how they rubbed on anything. They went on easy too, I didn't have to use needle nose pliers or anything else to slide the hose on.
On another note, I can't believe how fast I can have this car apart. It's pretty sad lol....I had all of the intake tubes, vacuum lines, and rats nest completely out the car within an hour. I've taken this stupid thing apart way too many times already and I've only had it 6 months lol
03-28-06, 02:10 PM
#12
Racecar - Formula 2000
Originally Posted by xblazinlv
All of my hoses are from hightempsilicone.... and all of the hoses down in that area are split.
They were cut with a large, very sharp wire cutting tool so they were cut clean with no nicks. Not sure why they broke, but I'm not even half way done with the car yet and I've found quite a few cracks in the vacuum lines.
I'm just going to replace these bottom lines that no one sees with thicker, stronger vacuum tubing from the auto parts store. The stuff they sell is a lot thicker and probably safer for those areas, but I just don't see how they rubbed on anything. They went on easy too, I didn't have to use needle nose pliers or anything else to slide the hose on.
On another note, I can't believe how fast I can have this car apart. It's pretty sad lol....I had all of the intake tubes, vacuum lines, and rats nest completely out the car within an hour. I've taken this stupid thing apart way too many times already and I've only had it 6 months lol
They were cut with a large, very sharp wire cutting tool so they were cut clean with no nicks. Not sure why they broke, but I'm not even half way done with the car yet and I've found quite a few cracks in the vacuum lines.
I'm just going to replace these bottom lines that no one sees with thicker, stronger vacuum tubing from the auto parts store. The stuff they sell is a lot thicker and probably safer for those areas, but I just don't see how they rubbed on anything. They went on easy too, I didn't have to use needle nose pliers or anything else to slide the hose on.
On another note, I can't believe how fast I can have this car apart. It's pretty sad lol....I had all of the intake tubes, vacuum lines, and rats nest completely out the car within an hour. I've taken this stupid thing apart way too many times already and I've only had it 6 months lol
I actually used Viton on mine...
That's wierd that they cracked so badly.
Maybe you should contact HiTempSilicone and see what they think. I'll bet he will at least figure out why.
03-28-06, 02:16 PM
#13
Ferrari Red Hotness
Thread Starter
Join Date: Nov 2005
Location: Las Vegas
Posts: 964
Likes: 0
Received 0 Likes
on
0 Posts
I'm not really upset with them, they have the best prices for silicone hose kits out there. Really I'm just trying to figure out how those areas got so messed up already. I'm just going to go back with thicker hoses in those areas, no silicone. Probably a better idea seeing as they are closer to heat and obviously the silicone in these areas wasn't the best idea lol.
I'm just glad I DID have a vacuum leak, as it explains a lot of my problems I've been having recently. I'm still going to do the vacuum simplification though, since I already have everything out I might as well. I can't to have it all cleaned up, it should be a lot easier to deal with and look much better.
I'm just glad I DID have a vacuum leak, as it explains a lot of my problems I've been having recently. I'm still going to do the vacuum simplification though, since I already have everything out I might as well. I can't to have it all cleaned up, it should be a lot easier to deal with and look much better.
03-28-06, 02:35 PM
#15
Racecar - Formula 2000
Originally Posted by xblazinlv
Probably a better idea seeing as they are closer to heat and obviously the silicone in these areas wasn't the best idea lol.
03-28-06, 02:47 PM
#16
Ferrari Red Hotness
Thread Starter
Join Date: Nov 2005
Location: Las Vegas
Posts: 964
Likes: 0
Received 0 Likes
on
0 Posts
Not sure... but I'm going to replace them again, I'll give the high temp silicone stuff one more chance since it is atleast in a place that is easy to change. But if it breaks again, I'm gonig with something else.
03-28-06, 03:56 PM
#18
Sorry to hear about that. I know what you're going through since I'm in the middle of replacing all my vacuum lines. The only difference is that I'm using Viton from HTS. Hope I remember how everything goes back together since I have a track day on Thursday...
03-28-06, 04:15 PM
#19
Originally Posted by xblazinlv
Not sure... but I'm going to replace them again, I'll give the high temp silicone stuff one more chance since it is atleast in a place that is easy to change. But if it breaks again, I'm gonig with something else.
Dave
03-30-06, 12:37 PM
#21
R.I.P. GuitarJunkie28
Join Date: Jul 2002
Location: san francisco, ca
Posts: 184
Likes: 0
Received 0 Likes
on
0 Posts
u can try hoses from www.turbohoses.com or the akimoto ones...those have been in mine under high high temps and there aren't any problems. They are really durable, and don't rip easily at all.
