Updated alternator bracket
Hey guys -
So quite some time back I bought a '96+ JDM long block for parts. In '96 a lot of little things were changed - the black box instead of the rat's nest, different ECU wiring, etc. One of the small things I noticed was the alternator bracket.
On the 93-95 cars there's a bracket that bolts to the front iron on the engine with 2 bolts that has the engine lifting hook on it. Then, you have a separate bracket for the alternator adjustment. In '96 they combined the 2 brackets into one. I'm not sure how much weight it saves but it's probably a little bit and it's also just a lot cleaner looking.
I found this website with the later parts catalog, you can see it pictured -
https://mazda.epcdata.ru/rx-7/ajfa07...&part_grp=1800
Part number there is N3F1-18-360
Amayama shows it's not available, but I don't know if it's an updated number out there or something. Would be cool to find a good source for this!
Dale
So quite some time back I bought a '96+ JDM long block for parts. In '96 a lot of little things were changed - the black box instead of the rat's nest, different ECU wiring, etc. One of the small things I noticed was the alternator bracket.
On the 93-95 cars there's a bracket that bolts to the front iron on the engine with 2 bolts that has the engine lifting hook on it. Then, you have a separate bracket for the alternator adjustment. In '96 they combined the 2 brackets into one. I'm not sure how much weight it saves but it's probably a little bit and it's also just a lot cleaner looking.
I found this website with the later parts catalog, you can see it pictured -
https://mazda.epcdata.ru/rx-7/ajfa07...&part_grp=1800
Part number there is N3F1-18-360
Amayama shows it's not available, but I don't know if it's an updated number out there or something. Would be cool to find a good source for this!
Dale
05-22-20, 10:32 AM
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,900
Received 2,643 Likes
on
1,872 Posts
it looks like N3F1-18-360 is the right number, and it is NLA, maybe a good candidate for the aftermarket?
05-22-20, 11:03 AM
#3
RX-7 Bad Ass
Thread Starter
iTrader: (55)
I've thought the same thing, a stainless one would be killer
Dale
Dale
05-26-20, 09:37 AM
#5
Nengun shows it as available. I think that usually means someone has checked the price and stock recently. https://www.nengun.com/oem/parts/MTE...ljYWwgU3lzdGVt
05-26-20, 09:25 PM
#6
@garage alpha @JP3 Motorsports
You both make cool stuff like this. Seems like there is a good amount of interest. I'll buy one!
You both make cool stuff like this. Seems like there is a good amount of interest. I'll buy one!
Trending Topics
The following 6 users liked this post by Banzai-Racing:
cblake3 (01-20-21),
DaleClark (01-06-21),
gracer7-rx7 (01-08-21),
j9fd3s (01-06-21),
jza80 (01-06-21),
and 1 others liked this post.
01-06-21, 09:30 AM
#12
RX-7 Bad Ass
Thread Starter
iTrader: (55)

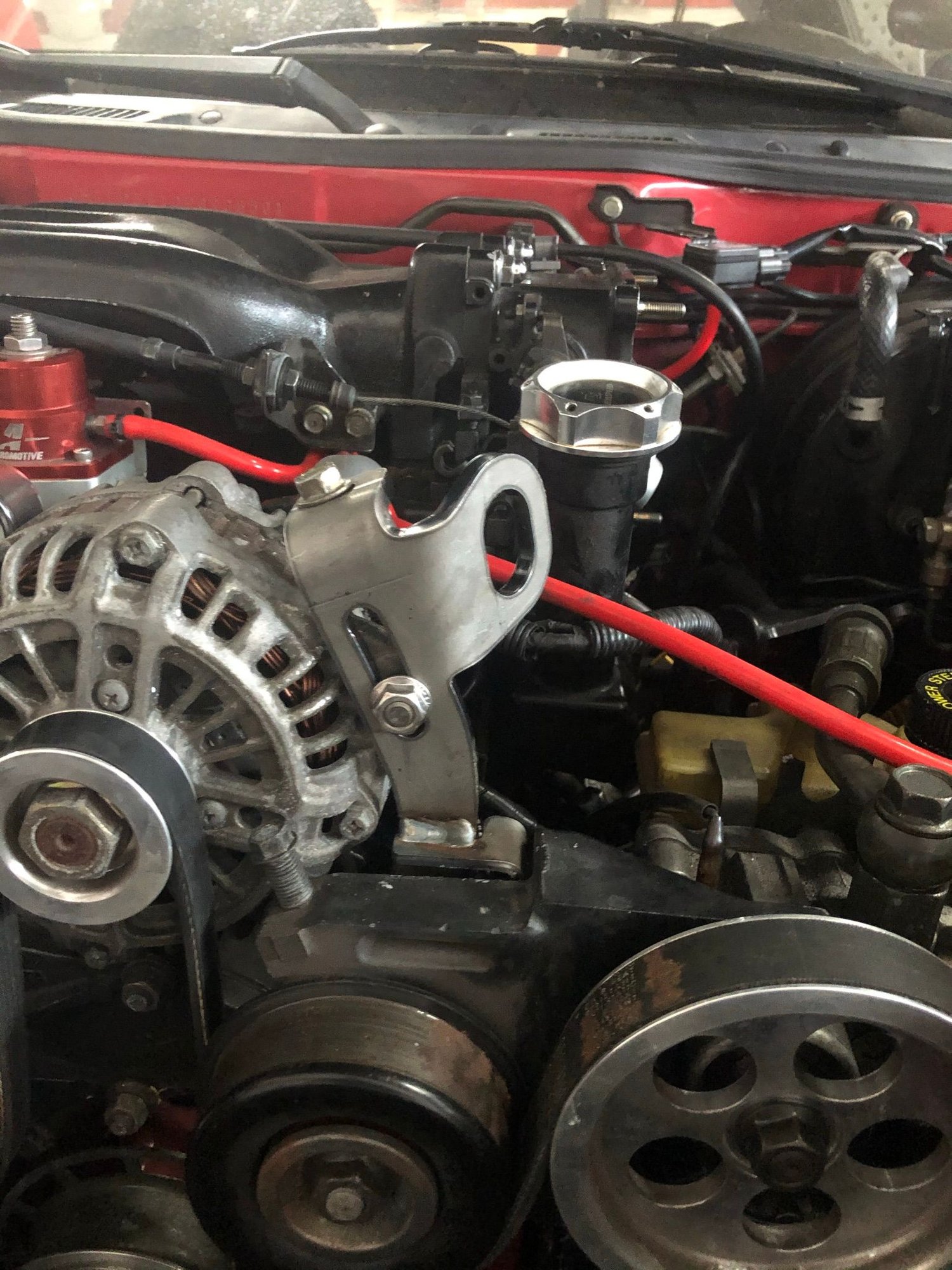

Awesome! Very stoked you guys did this, it's a cool part.
Dale
Dale
01-07-21, 09:28 AM
#14
RX-7 Bad Ass
Thread Starter
iTrader: (55)
Nope, that's a side mount bracket to move the alternator down where the AC compressor normally goes.
Dale
Dale
01-07-21, 12:15 PM
#15
Looks great! I have the stainless oil filler neck with a big -10 AN fitting in the front... it just barely fits with the existing engine mount bracket and it makes tightening/loosening that connection a big pain. Going to this all-in-one bracket would make things a lot easier!
Any idea yet on pricepoint or when it could be available?
Any idea yet on pricepoint or when it could be available?
01-07-21, 01:36 PM
#16
There will be 4 options, stock or no a/c p/s and then bracket only or with hardware. The OEM hardware is a direct swap or we can supply new stainless hardware. Price will be under $100. Parts are at the powder coated now so a couple weeks.
