damian

iTrader: (2)

weighed the track beast today, came in at:

2741 total (1/4 tank gas)

front 49%
rear 51%

winter plans:

- remove abs
- remove power steering
- carbon fiber rear hatch with lexan glass


ill post back as I get each mod completed and weight he part/car again.

Mr. Stock

Where are you sourcing the carbon fiber hatch from?

patfat

Damian, are you hiring? jk

Can't wait to see the updates

r0gu3

Is that weight with or without you in it?

damian

iTrader: (2)

dunno yet, gonna call vis directly...but with all the hoopla about them i am not sure who im getting it from yet :-) may end up making my own ;-)

damian

iTrader: (2)

heheh, not hiring right now :-) but ya never know when 'explosing growth' is gonna happen :-)

damian

iTrader: (2)

out...

rotoboy661

vis?

Mr. Stock

VIS Racing?
If so, I am trying to set up a group purchase on these.

damian

iTrader: (2)

yeah vis, ...

ok, hurry up then cuz im ready to buy right now :-) LOL

Mr. Stock

Have you checked out this thread?
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/carbon-fiber-rear-hatch-rx7-store-301850/

the_glass_man

iTrader: (2)

What kind of setup are you going with brake wise? Removing ABS is my next step, and wanted to see what others have done. It would be nice to clean up the engine bay, but I would still like a balanced braking system.

damian

iTrader: (2)

thanks, ill keep my eyes on it.... im definetly in on a group buy.

jimlab

There's always this option...

damian

iTrader: (2)

ill be installing a wilwood break bias ajuster, thats the only change, (other than removing the abs stuff)

scotty305

iTrader: (2)

Jimlab, what capacity are those AP cylinders? Have you tested them on your car? Is there any provision for adjusting them from inside the car? I'm assuming they're not power-assisted, what kind of pedal pressure is needed to lock the tires?

-scott-

damian

iTrader: (2)

hey jim, yeah i saw a car with that ap system (steve ciriani?), i may go that way eventually :-)

the_glass_man

iTrader: (2)

Jim is this the setup you went with on your beast?

jimlab

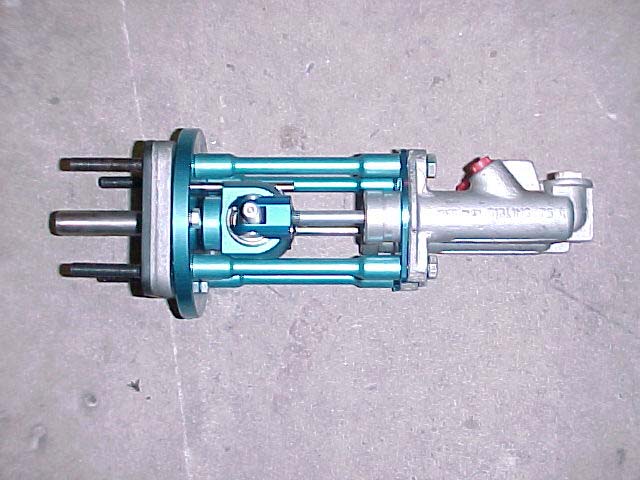

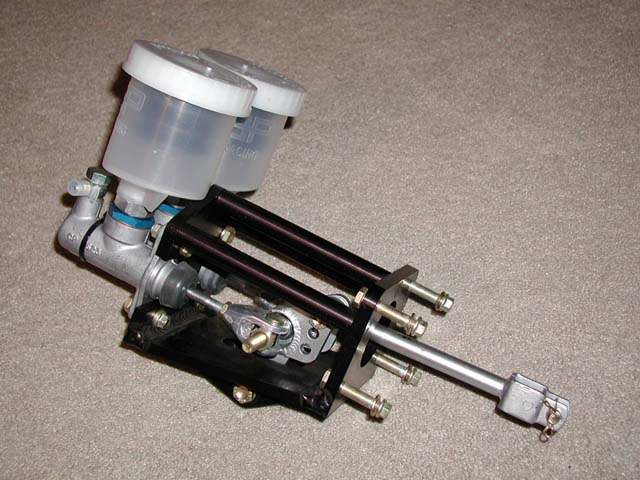

The one on top is Mark Valskis' setup which he sold a very limited number of through Crooked Willow. It came with dual AP short-throw 0.75" master cylinders and a balance bar, but I believe that some people (like Brad Barber) ended up increasing the size of the front brake master cylinder.

No. Like many of the parts I've bought over the last several years, I ended up selling without using.

One manufacturer makes a balance bar adjustment cable with a **** that mounts in the car so you can adjust on the fly, but once you've got the system dialed in, it should be left alone.

They're not power-assisted, and I don't think that pedal effort is increase substantially because of the increase in the volume of fluid being moved by the dual master cylinders. The stock FD MC has a 7/8" piston and the 929 upgrade is 1", but here you've got 1.5" (combined) or better, depending on how you choose to size the master cylinders.

jimlab

Almost. I thought about it, but I like having ABS, and I've already dropped enough weight.

BigIslandSevens

iTrader: (4)

Hey Jim, That was a nice toy. Is there a dealer for them anymore? Didn't CW go under? That is ultimately what i want. As of current i have the wilwwod setup with the pre-set 6 positions.Max 57% line reduction. But like you probably won't be happy on what i decide the first time around, and go this route.

jimlab

I believe that Crooked Willow is still in business, but that Duane is very difficult to get in touch with and that there have been some (ongoing) issues with delivery of product. However, there were only 6 or so dual master cylinder kits made and they were all sold almost immediately.

Mark Valskis is no longer in the FD community (he sold his CYM to Carlos Iglesias, I believe) and I haven't talked to him in years.

The blue setup was made by a "bloke" from the UK who is a track fanatic. His name escapes me at the moment, but he is (or was) on the big RX-7 list. I talked to him about his bracket prior to buying Mark's kit and he said it was a one-off and that he had no intention of making any more.

I do, however, have the dimensions for Mark's bracket, so I could probably duplicate the setup.
