wb123

Hello was just wondering where the stock Wastegate was located and when is it time to upgrade to an aftermarket wastegate?

where would a good location be to put an aftermarket wastegate.

Picture would be nice too see also =)

telum01

it's in there somewhere...

ObliqueFD

iTrader: (32)

You need to disassemble the turbo manifold to have access to the wastegate. Your only option is to port it bigger.

Go here for instructions. http://www.rotaryresurrection.com/3r...ov_nonseq.html

wb123

Ok then what is the use of an external wastegate?

Is there a need to have both ? or does it really depend on your set up.

cptpain

iTrader: (1)

the use of an external wastegate is used for aftermarket turbo setups.


you only use one wastegate per turbo.

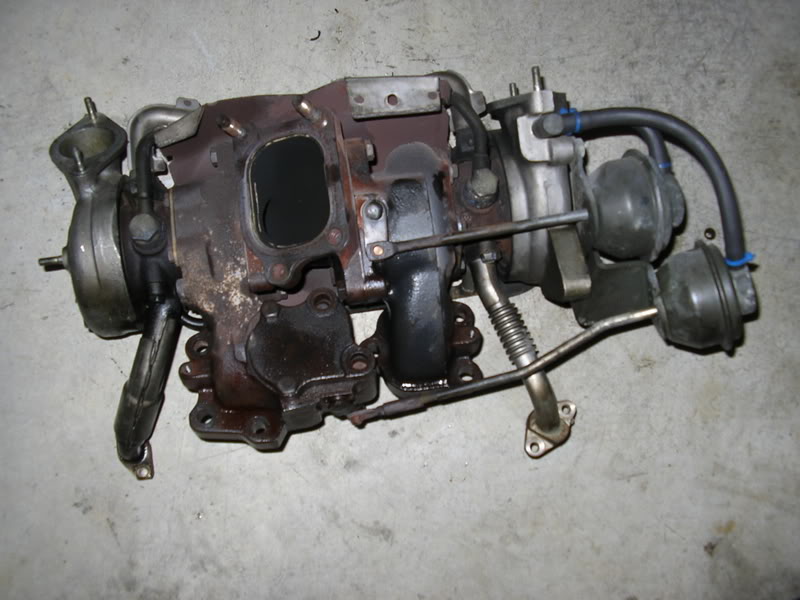

the stock FD wastegates are on the turbos themselves, the reason why theres two is because they are 2-way twin-turbos. basically they are attached to each other.
one is used for the primary turbo, another for the secondary.

the primary turbo(the one that points to the front of the engine bay) works at low-mid rpms for quick response and the secondary(points towards the back of the engine bay) works in conjunction with the primary to maintain boost at high rpms

Sgtblue

iTrader: (16)

If you staying with the stock twins, you shouldn't have to mess with the wastegate at all. One exception that I can think of would be if your having boost creep issues. And even that would probably be solved easier by adding a little back-pressure (back) into the exhaust.

Mahjik

iTrader: (1)

For reference:
http://www.autosportracetech.com/RX-...BigPicture.htm

CantGoStraight

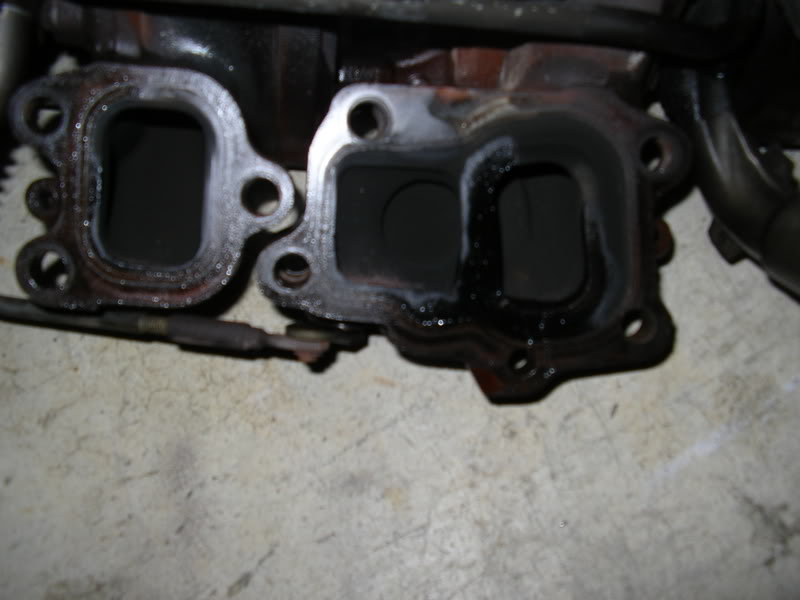

There's only one waste gate for both turbo's. The other one you may be thinking of is the pre spool door. You can't install an after market wastegate on the stock turbo's that I'm aware of.

GARCO MOTORWORKS

Cant go stright is correct , ,,if you think the stock set up has two wastegates then you should not give advice. Not to be harsh , but what is wb123 to read as correct .
