Show_off

iTrader: (9)

Looking for ideas on where to put them...keeping AC and cruise. I've only seen them in the cruise or ac bracket locations. Any body do anything different? I really don't want to put them on top of the engine again.

ZE Power MX6

iTrader: (157)

Garfinkle makes a bracket that relocate it to under the steering pinion.

Show_off

iTrader: (9)

Thanks. I'll research it.

DaleClark

iTrader: (55)

Any reason why? I have the original coils on my car with 130,000 miles, no problems.

Dale

Show_off

iTrader: (9)

Just cleaning up under the intake and reduce what heat I can to parts under there.

I was able to purchase a bracket from David Garfinkle, so I'm going that route.

AzEKnightz

iTrader: (24)

Ive used David's coil relocation bracket too! It looks so much cleaner! and away from the heat.

Love it!

-AzEKnightz

Show_off

iTrader: (9)

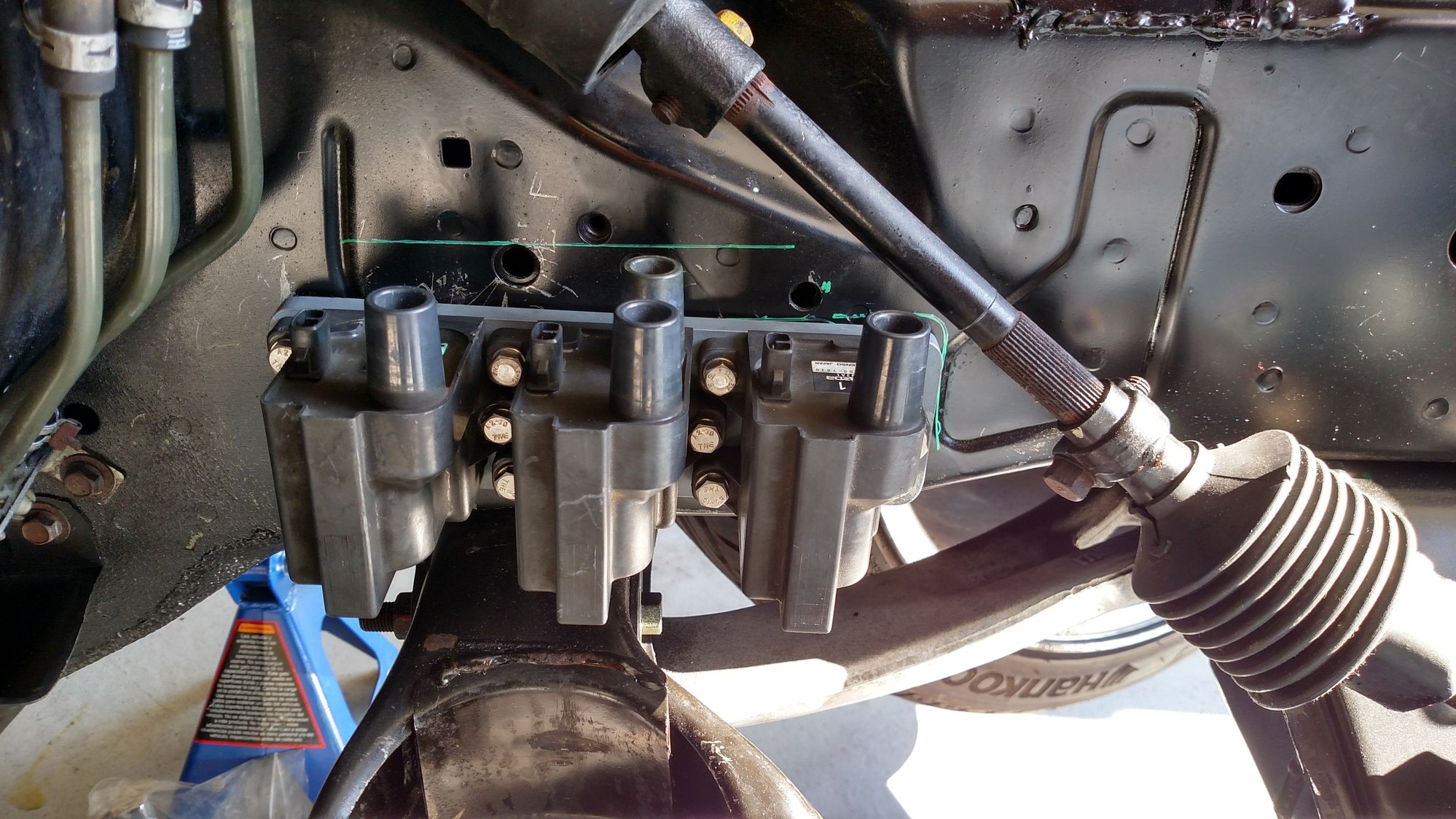

Had to pull the tranny out, which will probably be easier for the installation anyways...came out nice.

cr-rex

iTrader: (114)

how is that attached to the body?

Show_off

iTrader: (9)

You have to drill 4 holes (I had the engine out and had to pull the tranny) My 90 drill was still too big to do it. Then it is held by jack nuts and counter sunk allen head bolts.

cr-rex

iTrader: (114)

jack nuts? i had to look them up. theyre pretty cool. well nice install man. i wish i would of done something like this when my engine was out

Erix7rew

iTrader: (7)

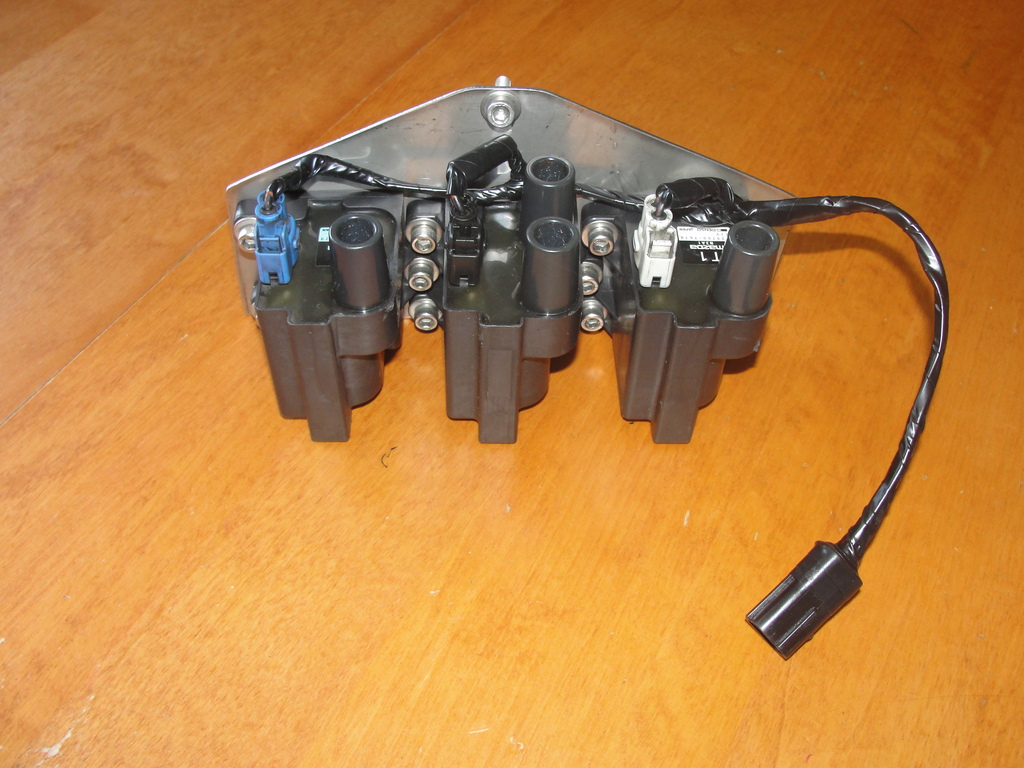

Here mine! I screw it une the steering pinion using the m6x1 thread hole that you can see in show off picture with some 3m double side tape for more safety!

cr-rex

iTrader: (114)

is water/dirt/dust not an issue when mounting them this low?

Erix7rew

iTrader: (7)

Not more than the spark plug! It's about the same height
