Replacing One Way Valves on gas tank

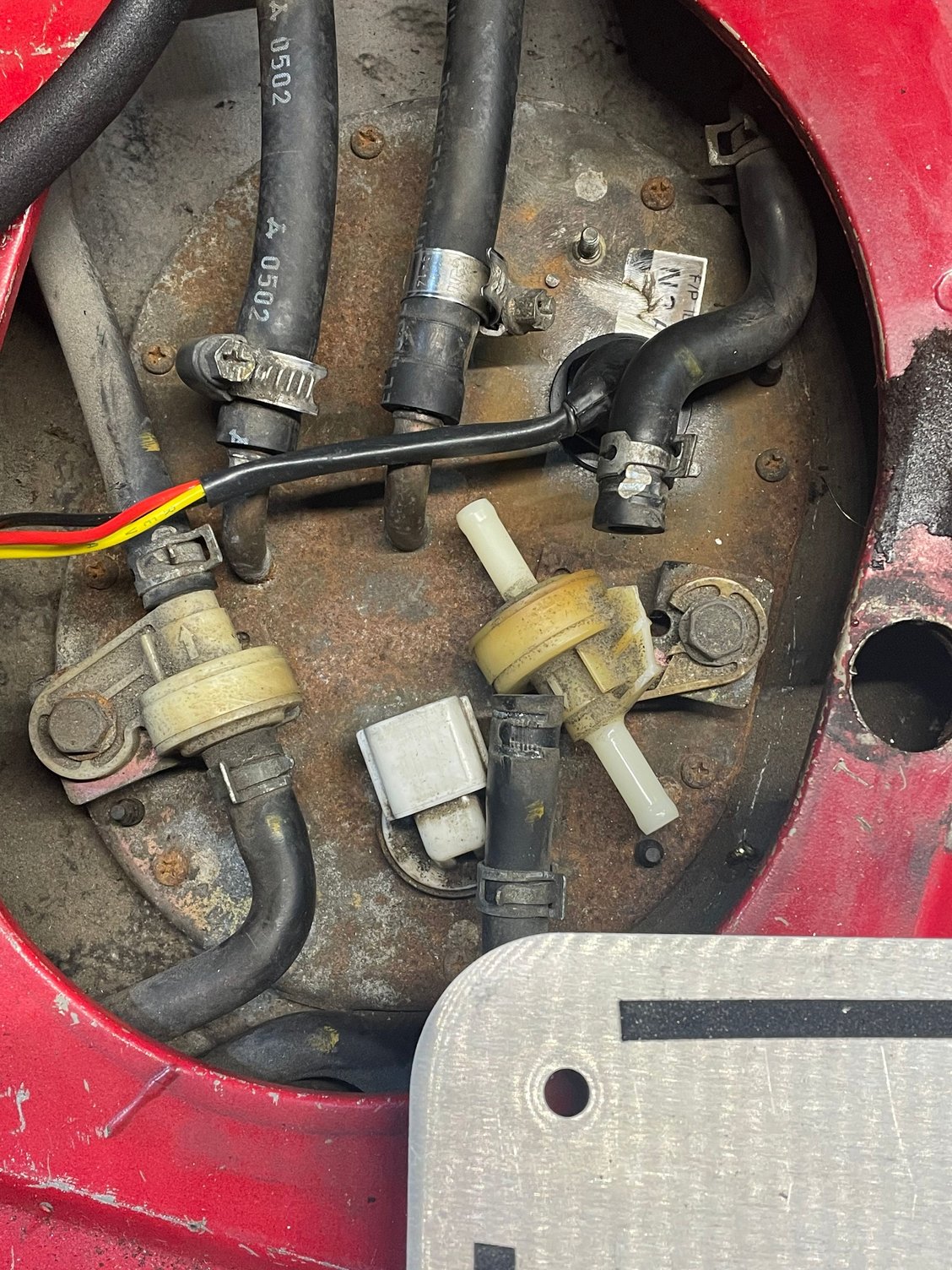

So the check valves on the gas tank (not sure if that’s proper name), can I replace them with a regular fuel one way valve? Mine have lost their “one wayness”. I saw some on Amazon for 5/16th hose but I think these are made for fuel vapors, so I didn’t know if they were the same. Thanks for any help!
Old 03-19-23, 09:09 AM
  #2
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,605 Likes on 1,848 Posts
part number is GA5R-42-910 might as well just buy the ones that will fit
The following users liked this post:
gracer7-rx7 (03-19-23)
Old 03-19-23, 09:47 AM
  #3
Senior Member
Thread Starter
iTrader: (7)

ecurbd02's Avatar

Join Date: Dec 2017
Location: ohio
Posts: 624
Received 48 Likes on 28 Posts
Originally Posted by j9fd3s
part number is GA5R-42-910 might as well just buy the ones that will fit
awesome thank you sir!

…..well. They’re about 90$ a piece. So that’s good news lolol I’ll take my chances first with the Amazon ones and see how that pans out. If it doesn’t work they’re only 10$

Last edited by ecurbd02; 03-19-23 at 09:49 AM.
The following users liked this post:
j9fd3s (03-19-23)
Old 03-19-23, 11:00 AM
  #4
Built Not Bought

iTrader: (14)

TwinCharged RX7's Avatar

Join Date: May 2008
Location: Stamford, CT
Posts: 4,250
Likes: 0
Received 852 Likes on 538 Posts
They are probably fine. But remember that if they don't work, a problem with fuel leakage can end up being way more than $10.
Old 03-19-23, 11:02 AM
  #5
Built Not Bought

iTrader: (14)

TwinCharged RX7's Avatar

Join Date: May 2008
Location: Stamford, CT
Posts: 4,250
Likes: 0
Received 852 Likes on 538 Posts
I also recommend getting rid of the worm drive clamps.
The following users liked this post:
gracer7-rx7 (03-19-23)
Old 03-19-23, 11:26 AM
  #6
needs more track time

iTrader: (16)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 9,194
Received 510 Likes on 351 Posts
Get the OE parts from Ray Crowe at Nucar
Old 03-19-23, 01:36 PM
  #7
Senior Member
Thread Starter
iTrader: (7)

ecurbd02's Avatar

Join Date: Dec 2017
Location: ohio
Posts: 624
Received 48 Likes on 28 Posts
Originally Posted by TwinCharged RX7
I also recommend getting rid of the worm drive clamps.
I thought the same thing when I saw them lol those are being swapped out for fuel injector hose clamps.

Originally Posted by gracer7-rx7
Get the OE parts from Ray Crowe at Nucar
i thought about that, I saw the valves on mazdatrix and atkins which usually is very close to ray’s prices as well.
Old 03-19-23, 07:47 PM
  #8
Senior Member

iTrader: (2)

antman0408's Avatar

Join Date: Mar 2004
Location: west chester Pa
Posts: 395
Received 9 Likes on 9 Posts
Originally Posted by ecurbd02
i thought about that, I saw the valves on mazdatrix and atkins which usually is very close to ray’s prices as well.
You can find everything cheaper than Atkins and mazdatrix. I found them for $68 each. Type the part number in google and a bunch of Mazda dealerships come up with the parts. Most are around Atkins price but others are much cheaper. Tascaparts and mazdaswag are what I usually use.
Old 03-20-23, 06:25 AM
  #9
Senior Member
Thread Starter
iTrader: (7)

ecurbd02's Avatar

Join Date: Dec 2017
Location: ohio
Posts: 624
Received 48 Likes on 28 Posts
Originally Posted by antman0408
You can find everything cheaper than Atkins and mazdatrix. I found them for $68 each. Type the part number in google and a bunch of Mazda dealerships come up with the parts. Most are around Atkins price but others are much cheaper. Tascaparts and mazdaswag are what I usually use.
thanks! I will definitely check that out.
Old 04-24-23, 05:33 AM
  #10
Junior Member


Jovic82's Avatar

Join Date: May 2003
Location: UK
Posts: 10
Received 1 Like on 1 Post
Hate to break it to you but these valves are actually 2 way. I.e they allow different pressures each way . Check the FSM. I wouldn't be replacing them with straight up one way valves
The following users liked this post:
thad (03-11-24)
Old 04-24-23, 05:43 AM
  #11
Senior Member
Thread Starter
iTrader: (7)

ecurbd02's Avatar

Join Date: Dec 2017
Location: ohio
Posts: 624
Received 48 Likes on 28 Posts
Originally Posted by Jovic82
Hate to break it to you but these valves are actually 2 way. I.e they allow different pressures each way . Check the FSM. I wouldn't be replacing them with straight up one way valves
that’s good to know haha I will be replacing them with OEM valves.
