Replace that old ignition switch!!

So over the 10+ years of ownership I have always had issues with the original ignition switch. I think I have replaced it at least 2 times with aftermarket switches that never seem to last. I've also resorted to cleaning the factory switch once or twice since the $160+ price tag for the OEM one was always a turn off....but recently I bought one online and for half price I received a factory sealed brand new Mazda part.

Just thought I'd share the info to save you guys some money. The entire electrical system on my car also seems to have stepped it's game up since I installed the new one. These things just fade slowly over time and I think anyone rocking an original switch might benefit from preemptively changing it out.

Beck Arnley Switches Ignition Switch 201-1858 - Newegg.com
Old 10-18-14, 03:45 PM
  #2
T3DoW

Thread Starter
iTrader: (10)

TpCpLaYa's Avatar

Join Date: Nov 2001
Location: Chicago - NW Burbs
Posts: 3,754
Received 5 Likes on 3 Posts
just saw this has been posted before but it's now a few years later and the price is cheaper!

plus it might be useful to refresh the info

https://www.rx7club.com/3rd-generati...0-less-964547/
Old 04-01-15, 03:47 PM
  #3
Spanking Pcars

iTrader: (4)

RedBaronII's Avatar

Join Date: Aug 2004
Location: DFW area
Posts: 1,084
Likes: 0
Received 0 Likes on 0 Posts
Cool

Thanks for the savings.
I was a little skeptic, but the part is OEM Mazda from Japan!!!
Old 04-06-15, 09:15 AM
  #4
RX-7 Bad Ass

iTrader: (55)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 15,399
Received 2,438 Likes on 1,509 Posts
Wow, first I've seen of this, that's a great deal!

Dale
Old 04-06-15, 10:22 AM
  #5
Full Member

iTrader: (8)

simronrx7's Avatar

Join Date: Sep 2012
Location: CA
Posts: 176
Likes: 0
Received 0 Likes on 0 Posts
Is this something you'd recommend doing even if the current ignition switch it working? I've never replaced it yet but my car has 140k
Old 04-06-15, 02:59 PM
  #6
Spanking Pcars

iTrader: (4)

RedBaronII's Avatar

Join Date: Aug 2004
Location: DFW area
Posts: 1,084
Likes: 0
Received 0 Likes on 0 Posts
Cool

Heard the expression: "If ain't broke don't fix it"?
Then don't until is dead or starts acting up.
Makes you feel good buy and save it for later, if you are for sure keeping your car for life.
Old 04-11-15, 01:31 AM
  #7
Feed me fake Feed

iTrader: (6)

RE-Mamamia's Avatar

Join Date: Dec 2006
Location: SoCal
Posts: 723
Likes: 0
Received 4 Likes on 1 Post
does this solve the click click no start issue?
Old 04-14-15, 06:10 PM
  #8
T3DoW

Thread Starter
iTrader: (10)

TpCpLaYa's Avatar

Join Date: Nov 2001
Location: Chicago - NW Burbs
Posts: 3,754
Received 5 Likes on 3 Posts
if all your grounds, clutch switch, immobilizer relay, and starter check out then it definitely can.
Old 08-07-20, 10:49 AM
  #9
Eats, Sleeps, Dreams Rotary

iTrader: (14)

moconnor's Avatar

Join Date: Jul 2003
Location: Bay Area, CA
Posts: 4,660
Received 82 Likes on 49 Posts
These switches have dropped even more in price and can now be ordered directly from a Mazda dealer for $37 or so. Part number is FD01-66-151A.

e.g., https://www.mazda-parts.com/oem-part...tch-fd0166151a

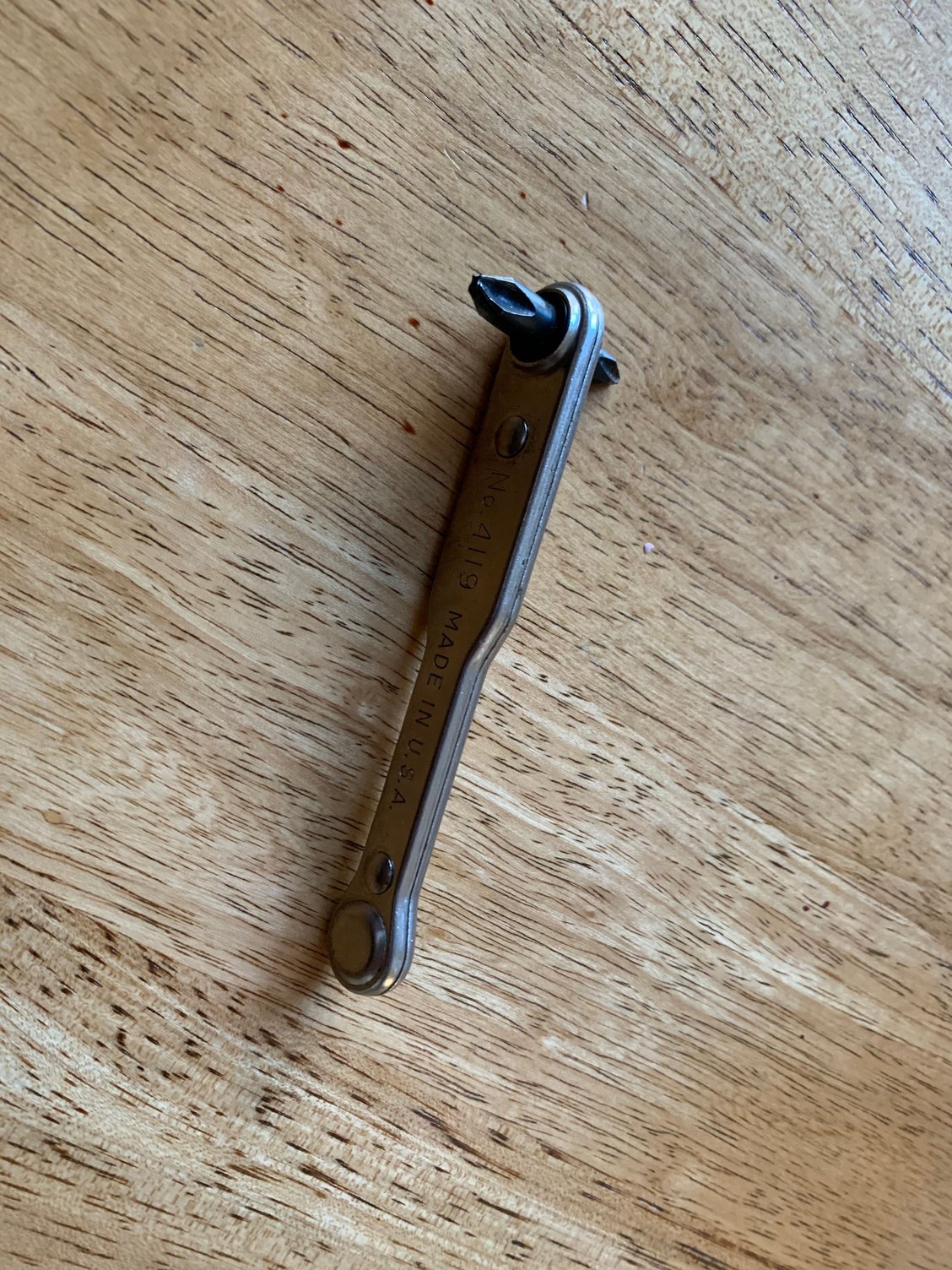

They are pretty easy to remove. Just remove the steering column covers and the switch will be visible on the left. It is attached to the ignition assembly with a single silver-coloured screw. With a right angle screwdriver this screw can be quickly removed. The switch will slide out and its electrical connector can then be unclipped.



The following 2 users liked this post by moconnor:
BloodyTomFlint (08-13-20), DaleClark (08-07-20)
