Question: What does these connect to?
01-12-06, 11:08 AM
#1
Senior Member
Thread Starter
iTrader: (4)
Join Date: Aug 2004
Location: Chicago
Posts: 516
Likes: 0
Received 0 Likes
on
0 Posts
Question: What does these connect to?
Hi Everyone:

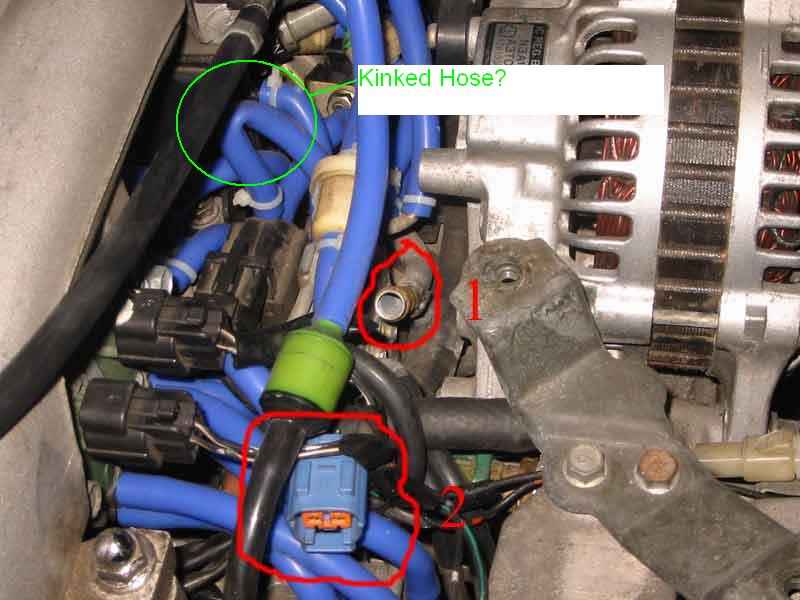

I removed the vaccum chamber (next to the UIM) in search of trying to figure out my low vaccum/boost leak issue and I noticed that there was a loose connector and a pipe w/o any vaccum hose connected to it. I looked at the vaccum diagram to see about the pipe and I think that its suppose to have nothing on it, but I just wanna be sure. Can someone tell me what where these things are suppose to be connect to? See attached pic.
I removed the vaccum chamber (next to the UIM) in search of trying to figure out my low vaccum/boost leak issue and I noticed that there was a loose connector and a pipe w/o any vaccum hose connected to it. I looked at the vaccum diagram to see about the pipe and I think that its suppose to have nothing on it, but I just wanna be sure. Can someone tell me what where these things are suppose to be connect to? See attached pic.
01-12-06, 11:16 AM
#2
1) goes to the coolant hose right there in the middle of the picture, unless someone has bypassed the throttle body coolant lines. (If there is no hose coming from below the throttle body, or going from the backside, it has been bypassed and #1 should be like it is).
2) EGR connector - 93 non-Calis and 95s do not have an EGR, so that connector goes nowhere.
Dave
2) EGR connector - 93 non-Calis and 95s do not have an EGR, so that connector goes nowhere.
Dave
01-12-06, 11:55 AM
#3
Senior Member
Thread Starter
iTrader: (4)
Join Date: Aug 2004
Location: Chicago
Posts: 516
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dgeesaman
1) goes to the coolant hose right there in the middle of the picture, unless someone has bypassed the throttle body coolant lines. (If there is no hose coming from below the throttle body, or going from the backside, it has been bypassed and #1 should be like it is).
2) EGR connector - 93 non-Calis and 95s do not have an EGR, so that connector goes nowhere.
Dave
2) EGR connector - 93 non-Calis and 95s do not have an EGR, so that connector goes nowhere.
Dave
I have a question, for item 1 in the picture, if it's bypassed what would be the adverse affects of doing this? Is there a purpose of doing this? Sorry for all the questions?
01-12-06, 11:59 AM
#4
Originally Posted by ranchan02
Hi Everyone:
I removed the vaccum chamber (next to the UIM) in search of trying to figure out my low vaccum/boost leak issue and I noticed that there was a loose connector and a pipe w/o any vaccum hose connected to it. I looked at the vaccum diagram to see about the pipe and I think that its suppose to have nothing on it, but I just wanna be sure. Can someone tell me what where these things are suppose to be connect to? See attached pic.
I removed the vaccum chamber (next to the UIM) in search of trying to figure out my low vaccum/boost leak issue and I noticed that there was a loose connector and a pipe w/o any vaccum hose connected to it. I looked at the vaccum diagram to see about the pipe and I think that its suppose to have nothing on it, but I just wanna be sure. Can someone tell me what where these things are suppose to be connect to? See attached pic.
01-12-06, 12:02 PM
#5
Senior Member
Thread Starter
iTrader: (4)
Join Date: Aug 2004
Location: Chicago
Posts: 516
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by nicad2
If you are having a vacuum problem, it may be due to this kinked hose.
Thread
