Hey guys -

Putting a project car back together, and I'm trying to re-install the stock fuel filter. It looks like there's supposed to be a bracket bolted to the frame that the fuel filter then bolts to. The car has no diff right now, so it's easy to get to, and I can't really see what I need to on my car without dropping the diff out .

Anyone have a pic in their archives or a car without a diff they can take a picture of? Parts diagrams and shop manual haven't been a help here.

Thanks!
Dale

scotty305

iTrader: (2)

Sorry this is the best I've got. The bracket bolts to a vertical section of the frame using a couple of 10mm bolts. When removing the filter, you've got to take the bracket and filter out as an assembly, and then remove the filter from the bracket to swap filters.







-s-

dgeesaman

iTrader: (7)

Specter328

iTrader: (2)

How much work is it to drop the diff to get to the fuel filter?

DaleClark

iTrader: (55)

Thanks guys! I still can't see what I think is there - I think there's a 90 degree bracket that bolts to the frame of the car, then the fuel pump (with the bracket that goes around it) bolts to it.

I think the bracket has just holes in it - the holes in the frame are threaded, as are the ones on the bracket. Also, I seem to remember it has a rubber isolator of some kind, not sure of that.

Specter - it is a BIG job to drop the diff. People make the fuel filter change to be a problem, but really if you have the right tools it takes about 30-45 minutes. An assortment of pliers to remove the clamps and hose pliers to pull the hoses off the fuel filter are the real secret. To remove the diff, you have to drop the main cat and cat-back, remove the powerplant frame, unbolt the driveshaft and axles, on and on. HUGE job.

If anyone knows more about this mystery bracket or has pics, please let me know!

Thanks

Dale

wstrohm

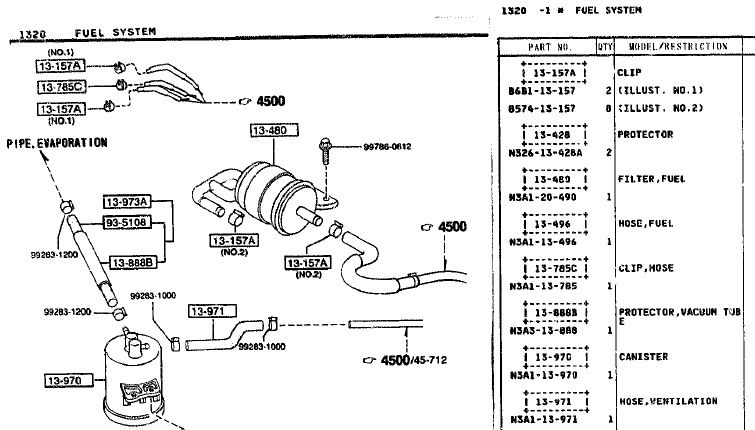

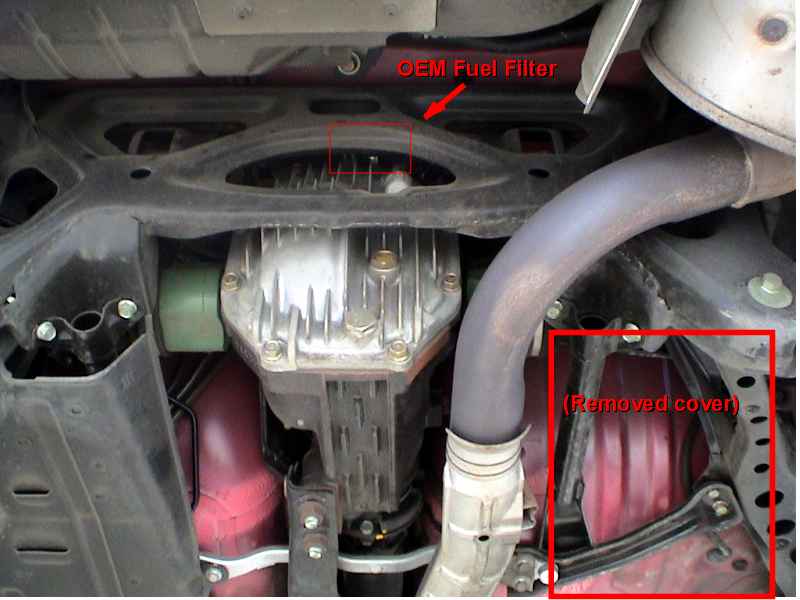

Does this help? (Note that the 1994 parts catalog does NOT show the 90° bracket, sorry!) Clearly this installation is not stock... I stole pics from an earlier thread!

dgeesaman

iTrader: (7)

I did not drop the diff to do the fuel filter. I was changing diff mounts. I do the fuel filter with everything else in place.

Dave

DaleClark

iTrader: (55)

YES! Thanks! That's definitely it - now I know I'm not crazy .

Time to see if Fritz has one handy

Thanks guys!

Dale

sevensheaven

iTrader: (1)

Hey Dale,
Wish I had the bracket for you, all I have is half of it. At least those are my pictures! I have more pictures if you need anymore.

Terry7

flunkysama

iTrader: (4)

It's a little late, but...

Before

(There's some penetrating oil on the filter's mounting bolts)

After

(I know, I know, Color balance is off.)

Let me know if you want the full sized ones.
