Need some Identification help....

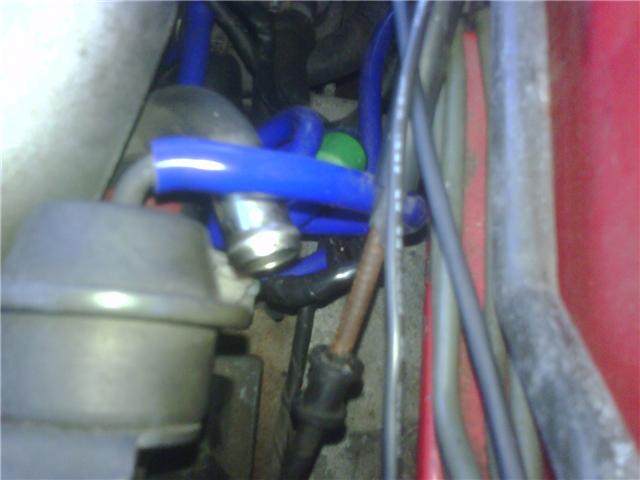

Whats this tube here for and what do i do with it? It was connected to the stock intake elbow, i just put a greddy coolcharge II on w/ a greddy elbow and had this piece left over.
Attached Thumbnails Need some Identification help....-pic-one.jpg   Need some Identification help....-pic-two.jpg
Reply
Old Oct 22, 2009 | 07:22 PM
  #2
RotaryRocket93's Avatar
Thread Starter
Senior Member
iTrader: (7)

Joined: Oct 2008
Posts: 499
Likes: 0
From: Tallahassee, FL

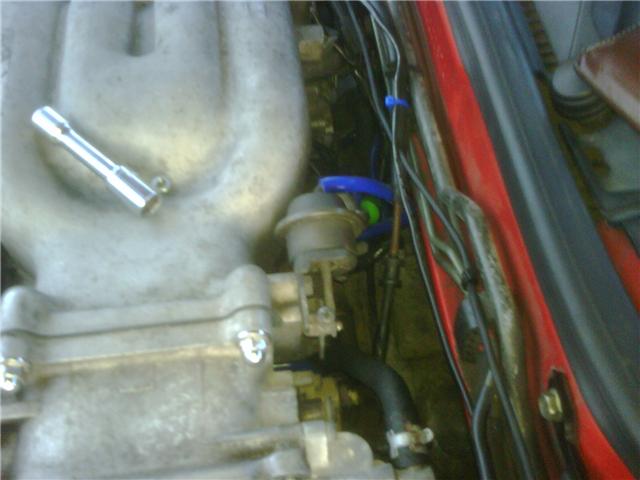

The first picture is to show what it is exactly the second is to help identify where around the manifold it is.
Reply
Old Oct 22, 2009 | 07:58 PM
  #3
wstrohm's Avatar
Recovering Miataholic
Tenured Member: 20 Years

Joined: Mar 2002
Posts: 1,561
Likes: 50
From: Fountain Valley, CA
The blue hose is the Double Throttle control line. The aluminum tube below it supplies the Accelerated Warmup System valve located under the UIM. If the valve is in place and is hooked up to its wiring harness, it will suck air when the engine is cold, and that air should be filtered. If the AWS electrical connector is disconnected, the valve will stay closed, and you can leave the tube alone.
Reply
Old Oct 22, 2009 | 08:07 PM
  #4
RotaryRocket93's Avatar
Thread Starter
Senior Member
iTrader: (7)

Joined: Oct 2008
Posts: 499
Likes: 0
From: Tallahassee, FL
Can i get rid of the accelerated warmup system valve? Or am i better off just putting a little filter on it?
