my wheels...
04-26-06, 04:21 AM
#1
Royale with cheese
Thread Starter
Join Date: Jan 2004
Location: Las Vegas, by way of Poulsbo, WA
Posts: 1,256
Likes: 0
Received 0 Likes
on
0 Posts
my wheels...
I got these wheels ( they came on the car), and Ive never seen them before. Theyre Mazdaspeed, hell I didnt even know they made wheels. The guy I bought it from said they were staggered, Id ont know the rim widht but Ive got 235s up fron and 255s out back. Theyre 17s. theyre two piece, made by rays. Anyone know about what my offset would be? Do they still make them? I need the special wrench thing to get my centercaps off. Anyone know what theyre worth?
Last edited by Tanjo; 04-26-06 at 04:26 AM.
04-26-06, 06:30 AM
#2
Tanjo,
It's impossible to say for sure what the width and offset is, as they came in many different variations. But you're most likely looking at 8 or 8.5 fronts, and 9 and 9.5 rears. Those are the variations I've seen for that specific wheel (there are a few different Mazdaspeed wheels). The offsets are usually +38 or +40. Your best bet is to jack the car up and look on the inside of the wheels. They have a Rays Wheels sticker that will say both the size (diameter & width) as well as the offset.

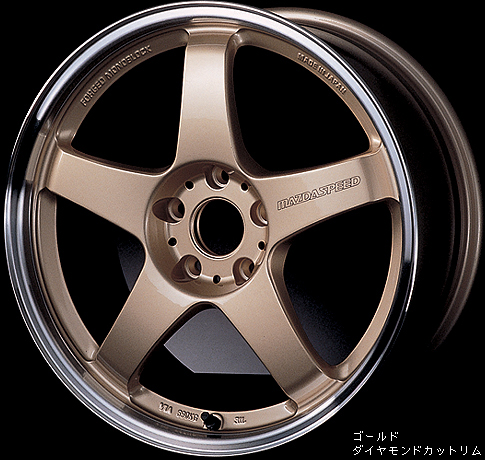

I don't think Mazdaspeed still makes that exact style, w/ the rivets on the edges and the thicker spokes. I think they're really selling this style now:
As for the wrench, I can try and get a price quote for ya on it if you'd like.
~Ramy
It's impossible to say for sure what the width and offset is, as they came in many different variations. But you're most likely looking at 8 or 8.5 fronts, and 9 and 9.5 rears. Those are the variations I've seen for that specific wheel (there are a few different Mazdaspeed wheels). The offsets are usually +38 or +40. Your best bet is to jack the car up and look on the inside of the wheels. They have a Rays Wheels sticker that will say both the size (diameter & width) as well as the offset.
I don't think Mazdaspeed still makes that exact style, w/ the rivets on the edges and the thicker spokes. I think they're really selling this style now:
As for the wrench, I can try and get a price quote for ya on it if you'd like.
~Ramy
04-26-06, 06:45 AM
#3
Royale with cheese
Thread Starter
Join Date: Jan 2004
Location: Las Vegas, by way of Poulsbo, WA
Posts: 1,256
Likes: 0
Received 0 Likes
on
0 Posts
ya thatd be great if you could, Im having to use an oil filter spider to get them off, and the soft aluminum doesnt like that very much...
04-26-06, 02:47 PM
#4
Rotary Enthusiast
Originally Posted by Tanjo
ya thatd be great if you could, Im having to use an oil filter spider to get them off, and the soft aluminum doesnt like that very much...
i got the same wheels
these are my wheel sizes:
front 17x8 +35
rear 17x9 +34
current tires are:
front 235/45
rear 255/40
take very good care of them. be carefull how and with what you clean them. mines are hit...
04-26-06, 03:00 PM
#5
Eats, Sleeps, Dreams Rotary
iTrader: (71)
Join Date: Mar 2004
Location: Northern VA
Posts: 4,230
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by FDNewbie
Tanjo,
It's impossible to say for sure what the width and offset is, as they came in many different variations. But you're most likely looking at 8 or 8.5 fronts, and 9 and 9.5 rears. Those are the variations I've seen for that specific wheel (there are a few different Mazdaspeed wheels). The offsets are usually +38 or +40. Your best bet is to jack the car up and look on the inside of the wheels. They have a Rays Wheels sticker that will say both the size (diameter & width) as well as the offset.
I don't think Mazdaspeed still makes that exact style, w/ the rivets on the edges and the thicker spokes. I think they're really selling this style now:
As for the wrench, I can try and get a price quote for ya on it if you'd like.
~Ramy
It's impossible to say for sure what the width and offset is, as they came in many different variations. But you're most likely looking at 8 or 8.5 fronts, and 9 and 9.5 rears. Those are the variations I've seen for that specific wheel (there are a few different Mazdaspeed wheels). The offsets are usually +38 or +40. Your best bet is to jack the car up and look on the inside of the wheels. They have a Rays Wheels sticker that will say both the size (diameter & width) as well as the offset.
I don't think Mazdaspeed still makes that exact style, w/ the rivets on the edges and the thicker spokes. I think they're really selling this style now:
As for the wrench, I can try and get a price quote for ya on it if you'd like.
~Ramy
04-26-06, 05:55 PM
#6
Senior Member
Join Date: Dec 2005
Location: Wisconsin, Milwaukee
Posts: 453
Likes: 0
Received 0 Likes
on
0 Posts
Dam, I think your rims are the old school MS01 wheels! All the older MazdaSpeed wheels were made in conjunction with Rays and are extremely rare......and uber sexy. I spent almost a year trying to track down a set of either the MS01, MS02 or MS03 wheels from MazdaSpeed, I came accross only one pair (the MS03's) and they were selling for $1800 per wheel, used.
The sizes should be 17x8.5F and 17x9.5r and you will need a special wrench to get them off. I dont think MS sells the wrench anymore since they havent made those wheels in like 10 years however, ADVAN still sells the wrench you will need, otherwise they go for sale on Ebay every once and a while. The wrench came with the wheels i bought, but i didnt need it since i keep the centercaps hand-tight. Now i wish i hadent sold it. Anyway, those are some nice rims!
The sizes should be 17x8.5F and 17x9.5r and you will need a special wrench to get them off. I dont think MS sells the wrench anymore since they havent made those wheels in like 10 years however, ADVAN still sells the wrench you will need, otherwise they go for sale on Ebay every once and a while. The wrench came with the wheels i bought, but i didnt need it since i keep the centercaps hand-tight. Now i wish i hadent sold it. Anyway, those are some nice rims!
04-26-06, 11:06 PM
#7
Originally Posted by RE-Amemiya7
Dam, I think your rims are the old school MS01 wheels! All the older MazdaSpeed wheels were made in conjunction with Rays and are extremely rare......and uber sexy. I spent almost a year trying to track down a set of either the MS01, MS02 or MS03 wheels from MazdaSpeed, I came accross only one pair (the MS03's) and they were selling for $1800 per wheel, used.
The sizes should be 17x8.5F and 17x9.5r and you will need a special wrench to get them off. I dont think MS sells the wrench anymore since they havent made those wheels in like 10 years however, ADVAN still sells the wrench you will need, otherwise they go for sale on Ebay every once and a while. The wrench came with the wheels i bought, but i didnt need it since i keep the centercaps hand-tight. Now i wish i hadent sold it. Anyway, those are some nice rims!
~Ramy
Trending Topics
04-27-06, 06:26 AM
#9
Royale with cheese
Thread Starter
Join Date: Jan 2004
Location: Las Vegas, by way of Poulsbo, WA
Posts: 1,256
Likes: 0
Received 0 Likes
on
0 Posts
Damn they have advans all over the place over here, Ill have to find a dealer and get me a tool. Sweet guys thanks alot for your help/info. And yes They are sweet wheels and I love them dearly. I think theyre my favorite part of the car, looks wise. Im gonna eventually get them redone in gold with a polished lip, or maybe black. I dont know, but Ive gotta find some way to find or salvage the mazdaspeed logos...
Last edited by Tanjo; 04-27-06 at 06:30 AM.
