My New Custom V-Mount Intercooler
#1
Full Member
Thread Starter
Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
My New Custom V-Mount Intercooler

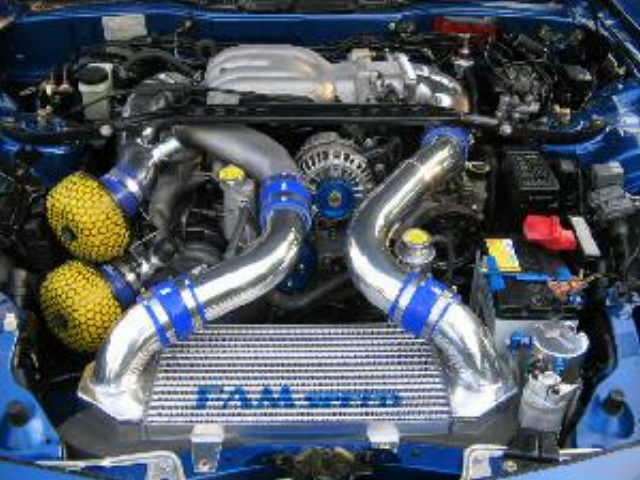

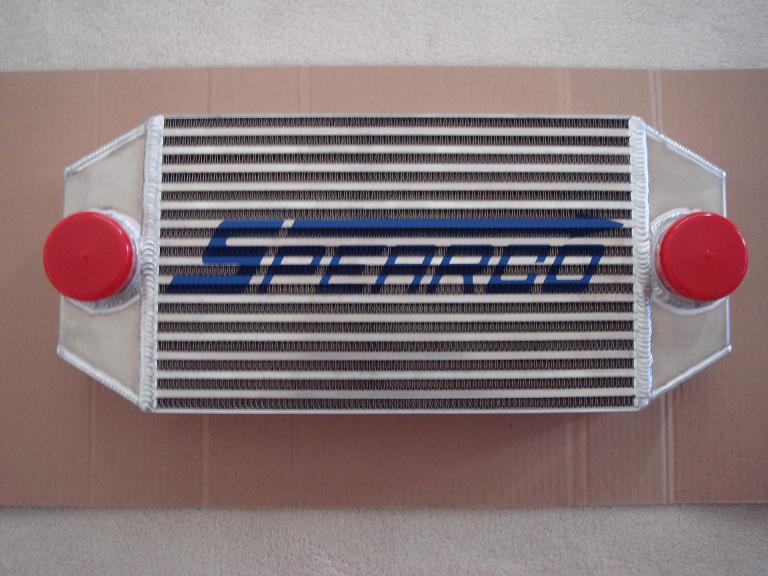

Just got my new intercooler delivered this morning for the V-Mount system I'm putting together. I had Spearco make it and I was trying to mimic the intercooler used in Famspeed's "divide air system". I think it's pretty close, minus a couple obvious differences: 1. Mine is a bar and plate design whereas the Famspeed one is a tube and fin design (Spearco only uses bar and plate) 2. My inlet and outlet pipe comes straight up whereas the Famspeed one has angled pipes for the inlet and outlet. I was originally going to mock up angled pipes for the inlet and outlet once I received the intercooler, and then have those welded in, but after looking at how pretty the welds are on this thing, I might change my mind and just use angled silicone hose connectors instead. As for my radiator, I should be receiving it next week from Ron Davis and it will be very similar to the Knight Sports V-Mount radiator. Here are pics of my new intercooler and a pic of Famspeed's intercooler for comparison.
#3
Full Member
Thread Starter
Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
Thanks, I'll post updates once I receive my radiator. And yes, I am planning to make some ducting as well.
Just a note to those that are planning to fab their own V-Mount, I am NOT saving loads of $$ by doing this myself compared to buying a V-Mount kit. The reason I wanted to do it myself is so that I can make it exactly how I wanted it. Of course there are cheaper ways of making a V-Mount system (i.e. ebay stuff) compared to Spearco Intercoolers and Ron Davis radiators, but the quality that those two companies produce has been proven many times.... or maybe I'm just a label-*****!
Just a note to those that are planning to fab their own V-Mount, I am NOT saving loads of $$ by doing this myself compared to buying a V-Mount kit. The reason I wanted to do it myself is so that I can make it exactly how I wanted it. Of course there are cheaper ways of making a V-Mount system (i.e. ebay stuff) compared to Spearco Intercoolers and Ron Davis radiators, but the quality that those two companies produce has been proven many times.... or maybe I'm just a label-*****!
#5
Full Member
Thread Starter
Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
The radiator itself was $695 plus shipping, but mine is going to be closer to the $1,100 range because they are also making a removable custom aluminum shroud with dual 11" Spal high performance fans. They need about 3-4 weeks to build a custom radiator, and I have 1 more week to go. I will post up all the specs and pictures once I receive it.
#6
Full Member
Thread Starter
Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts

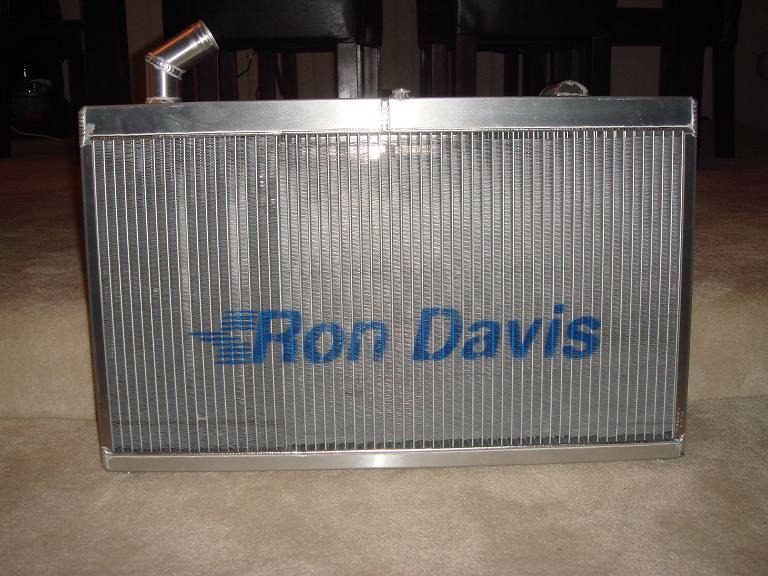

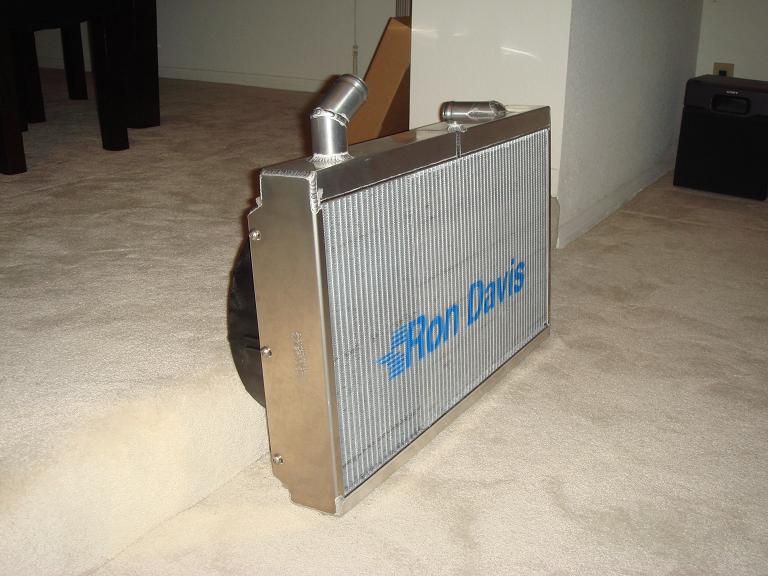

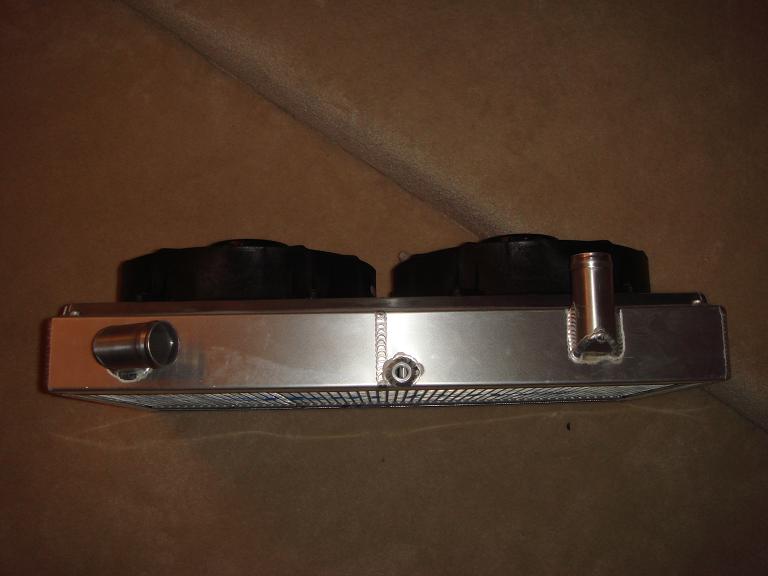

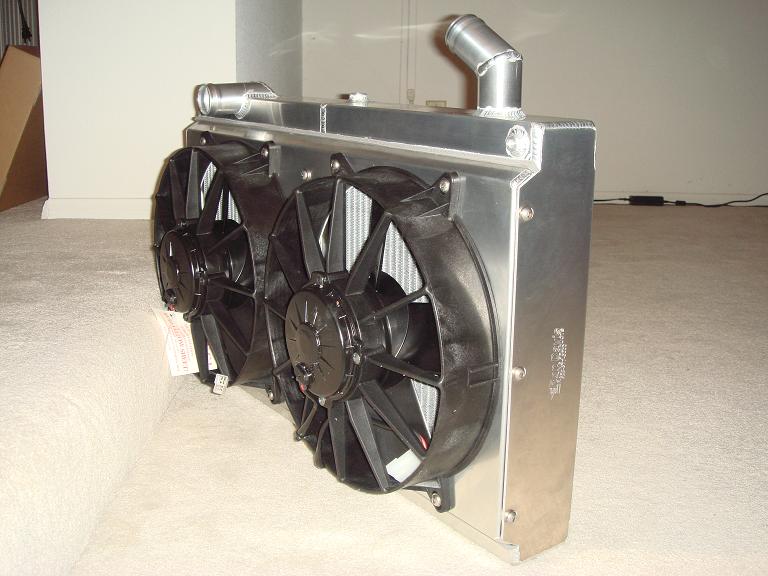

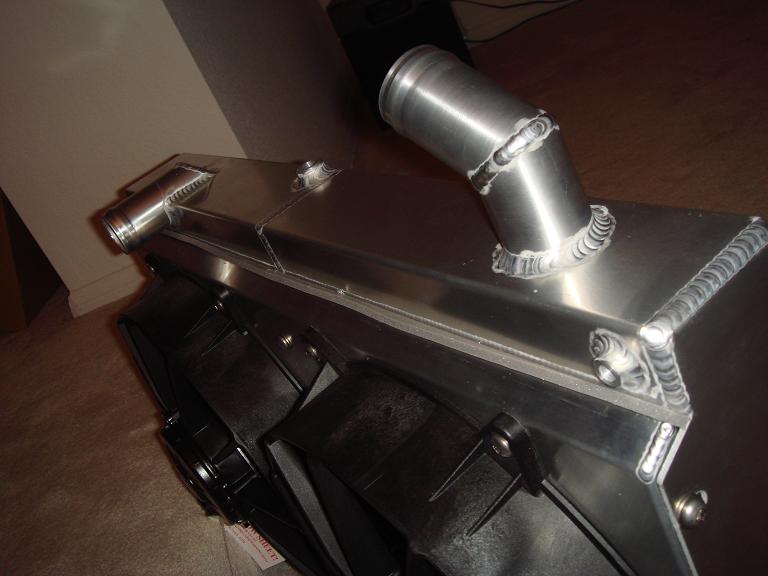

Received my radiator from Ron Davis today, and it is seriously a work of art. I'm very pleased. I had them custom shroud it and install 2 Spal 11" HP fans. Those Spal 11" HP's combined have a CFM rating of over 2700 at 0 static pressure, but the real test of their power is with some static pressure.... at 0.4" of H2O, they have a combined CFM of 2150. Unfortunately, I'm not going to have enough time before Sevenstock to make custom brackets and install it. I really wanted to take the FD, but I guess I'll be rollin' in the FC this Saturday.
Here's some pics.
Here's some pics.
Trending Topics
#8
Full Member
Thread Starter
Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
#12
needs more track time
iTrader: (16)
I wound up re-using my M2 Large IC re-routed for the IC portion since I got a good deal on the IC w/o piping.
#13
Full Member
Thread Starter
Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
Thanks, I contacted Speed of Light regarding the radiator subframe. I looked at an old post and it shows him lifting his car from the radiator support, that's how strong it is. I guess it would be smart to get one like his to protect my new radiator.
#14
Full Member
Thread Starter
Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
So I decided to make the radiator mounts myself. The upper mounts were pretty easy, but the lower mount/bar took some time, lot's of measuring, grinding, & drilling. I used 1" x 2" aluminum for the lower mount/bar and mounted it to 90 degree aluminum which I got from the local metal supply store (Industrial Metal Supply in Irvine, CA). None of the mounting points are hard mounted, I used the stock rubber mounts on the bottom and I found some rubber bushings for the top mounts. Now I need to get the seams welded, wish I knew how to TIG weld. This project has been taking way longer than I expected since I haven't had much time to work on the FD, but here are some pics.
#16
Newbie
iTrader: (9)
Join Date: Feb 2002
Location: MI
Posts: 1,171
Likes: 0
Received 0 Likes
on
0 Posts
Thanks, I'll post updates once I receive my radiator. And yes, I am planning to make some ducting as well.
Just a note to those that are planning to fab their own V-Mount, I am NOT saving loads of $$ by doing this myself compared to buying a V-Mount kit. The reason I wanted to do it myself is so that I can make it exactly how I wanted it. Of course there are cheaper ways of making a V-Mount system (i.e. ebay stuff) compared to Spearco Intercoolers and Ron Davis radiators, but the quality that those two companies produce has been proven many times.... or maybe I'm just a label-*****!
Just a note to those that are planning to fab their own V-Mount, I am NOT saving loads of $$ by doing this myself compared to buying a V-Mount kit. The reason I wanted to do it myself is so that I can make it exactly how I wanted it. Of course there are cheaper ways of making a V-Mount system (i.e. ebay stuff) compared to Spearco Intercoolers and Ron Davis radiators, but the quality that those two companies produce has been proven many times.... or maybe I'm just a label-*****!
Yours is looking really sharp though! Great work, what are you going to use for water hoses?
#18
Full Member
Thread Starter
Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
I made the brackets myself.
Do you say this only because of how expensive the particular rad/intercooler you're using ended up being? I've priced out fabricating my own V-mount a few times now and it has always come back cheaper than buying a kit, and that includes having a local shop modify a Koyo radiator for me, all the other fabrication I would do on my own.
#19
Full Member
Thread Starter
Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
#20
The one
iTrader: (5)
So I decided to make the radiator mounts myself. The upper mounts were pretty easy, but the lower mount/bar took some time, lot's of measuring, grinding, & drilling. I used 1" x 2" aluminum for the lower mount/bar and mounted it to 90 degree aluminum which I got from the local metal supply store (Industrial Metal Supply in Irvine, CA). None of the mounting points are hard mounted, I used the stock rubber mounts on the bottom and I found some rubber bushings for the top mounts. Now I need to get the seams welded, wish I knew how to TIG weld. This project has been taking way longer than I expected since I haven't had much time to work on the FD, but here are some pics.
#21
Full Member
Thread Starter
Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
Yup, I test fit the bumper and my bumper hangs down lower than the radiator (FEED replica bumper). But I know what you mean, and that's why I made the lower mount the way I did. Since it wraps around the bottom of the radiator, it also protects the radiator from any incidents.
#25
Full Member
Thread Starter
Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
Thanks! I've attached the diagram for the intercooler, I acutally ended up going with a height of around 10.1" as opposed to the 9.8" in the diagram. But in retrospect, 9.8" would have been fine, possibly even better for my purposes.
