DIY Dual Oil Coolers

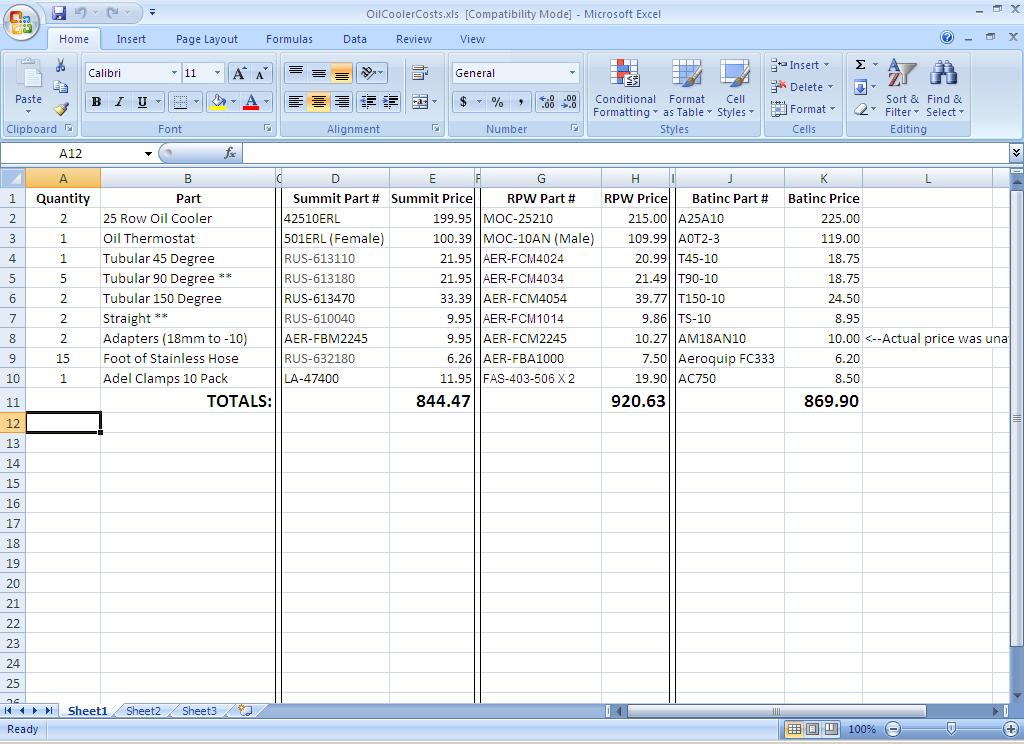

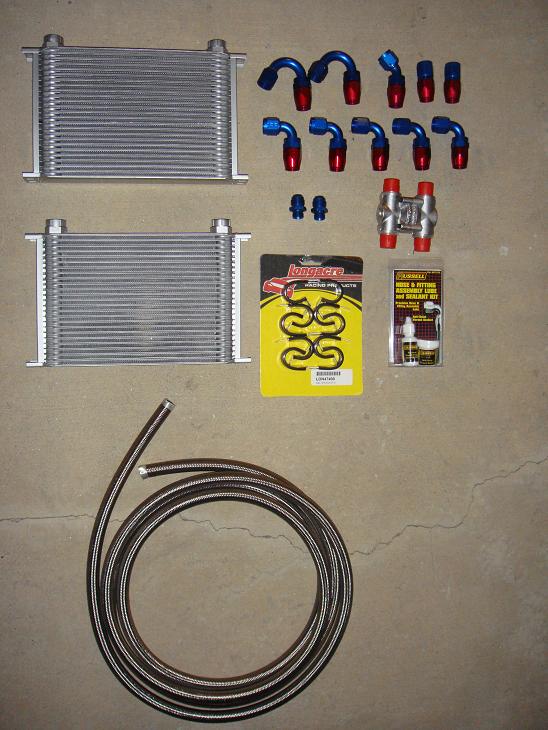

For those of you that want to put together a dual oil cooler setup yourself, here is a list of parts that I'm using:

2 x 25 row Earl's Oil Coolers -10AN
1 x Mocal 180 degree oil thermostat
1 x 45 degree hose end -10AN
5 x 90 degree hose end -10AN
2 x 150 degree hose end -10AN
2 x Straight hose end -10AN
2 x Adapters 18mm to -10AN
15 x Foot of stainless steel braided hose -10AN
1 x 10 pack of 15/16" adel clamps
1 x Hose lube and sealant
2 x Crush washers (not pictured below)
1 x 1" wide 36" long flat steel (to make brackets)

For the most part, that's it I believe. I chose Earl's oil coolers because they were a little cheaper than Mocal and as far as I can see, they are basically the same, they even have the exact same dimensions. Also, I'm using a Mocal oil thermostat instead of the Earl's oil thermostat because the Earl's has female ends and I wanted male ends on the thermostat, it makes it easier IMO. I made a spreadsheet with all of the part numbers and prices for most of the parts from Summit Racing, Racer Parts Wholesale, and Batinc. Here are some pictures, if anybody wants the actual Excel file, PM me with your email address and I'll email it to you.
Attached Thumbnails DIY Dual Oil Coolers-oilcoolerparts1.jpg   DIY Dual Oil Coolers-oilcoolerparts2.jpg   DIY Dual Oil Coolers-oilcoolercosts.jpg
pacman74 is offline
Reply With Quote
Old 08-09-09, 10:57 PM
  #2
Full Member
10 Year Member
Thread Starter

pacman74's Avatar

Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Thanks: 0
Thanked 0 Times in 0 Posts

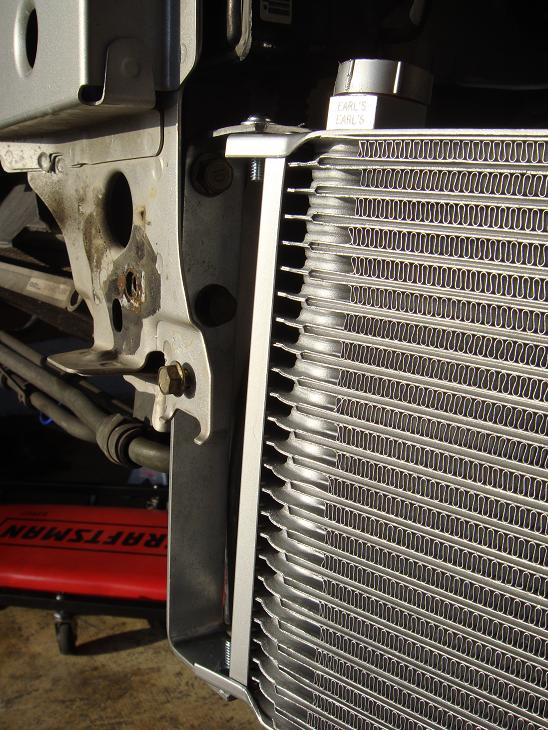

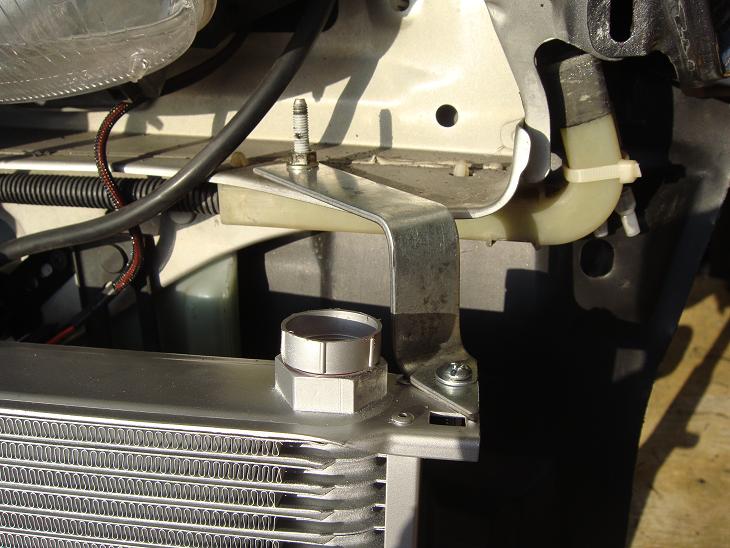

Here's a few pictures of the brackets I made from 1" wide flat steel.
Attached Thumbnails DIY Dual Oil Coolers-bracket1.jpg   DIY Dual Oil Coolers-bracket2.jpg   DIY Dual Oil Coolers-oilcoolersfitted.jpg
pacman74 is offline
Reply With Quote
Old 08-09-09, 11:02 PM
  #3
R.I.P. Icemark
10 Year Member
iTrader: (2)

staticguitar313's Avatar

Join Date: Sep 2004
Location: gilbert, arizona
Posts: 4,228
Thanks: 0
Thanked 0 Times in 0 Posts
Those prices aren't bad at all.
staticguitar313 is offline
Reply With Quote
Old 08-09-09, 11:02 PM
  #4
Full Member
10 Year Member
Thread Starter

pacman74's Avatar

Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Thanks: 0
Thanked 0 Times in 0 Posts
Also, I'd like to point out that I'm NOT saving HUGE amounts of money by putting this together myself as opposed to buying one of the dual oil kits offered out there, I just felt like doing it myself. And I realize that my pictures aren't the best so if you want to see better pics, let me know and I'll see what I can do.
pacman74 is offline
Reply With Quote
Old 08-09-09, 11:17 PM
  #5
Where has my $ gone?
10 Year Member
iTrader: (12)

MakoRacing's Avatar

Join Date: Feb 2004
Location: Bay Area, Cal/Phoenix, AZ
Posts: 1,640
Thanks: 0
Thanked 0 Times in 0 Posts
Great job
MakoRacing is offline
Reply With Quote
Old 08-10-09, 12:28 AM
  #6
Full Member
10 Year Member
Thread Starter

pacman74's Avatar

Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks.
pacman74 is offline
Reply With Quote
Old 08-10-09, 11:49 AM
  #7
AponOUT!?
iTrader: (31)

theorie's Avatar

Join Date: Nov 2002
Location: Sarasota, FL
Posts: 3,521
Thanks: 0
Thanked 5 Times in 5 Posts
great thread. i'm going to use this when i'm ready to build my own setup.

thanks!
theorie is offline
Reply With Quote
Old 08-10-09, 11:59 AM
  #8
Full Member
10 Year Member

Join Date: Apr 2004
Location: Atlanta
Posts: 196
Thanks: 0
Thanked 0 Times in 0 Posts

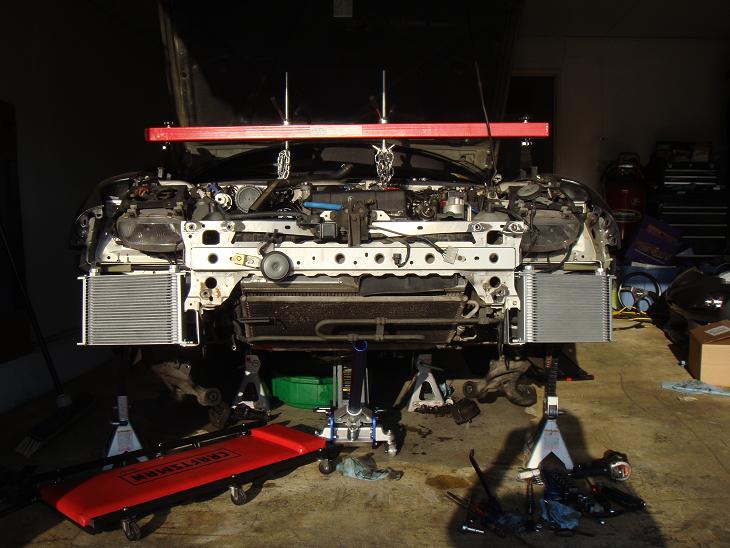

Nice clean install. If you wanted to save a few more bucks and had time to mess around....you could source some of the fittings, line and the oil coolers used.....gotta be careful on used oil coolers and clean everything really well on the inside...

That spread sheet is great for searching for used stuff...

There is several places that sell Nascar throw offs that seem to have good reputaions and I think they ultrasonically clean the coolers etc....sorry if thats already generally known.
Elombard is offline
Reply With Quote
Old 08-10-09, 06:06 PM
  #9
Rotor Head Extreme
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,694
Thanks: 0
Thanked 5 Times in 4 Posts
Man it's amazing how much money gets spent around here. I went with a 2nd gen oil cooler (properly ducted of course) and virticle mounted radiator for less than $200.00 for my NA 20b.
t-von is offline
Reply With Quote
Old 08-10-09, 06:22 PM
  #10
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,799
Thanked 9 Times in 8 Posts
Originally Posted by t-von View Post
Man it's amazing how much money gets spent around here. I went with a 2nd gen oil cooler (properly ducted of course) and virticle mounted radiator for less than $200.00 for my NA 20b.
And that is a good setup for an NA car. Problem with FDs is that we also have to account for an intercooler and related piping - along with the radiator, a/c and PS loop air intake etc. Packaging and effectiveness of those components becomes a challenge real quick.
gracer7-rx7 is offline
Reply With Quote
Old 08-10-09, 07:50 PM
  #11
Senior Member
iTrader: (7)

RotaryRocket93's Avatar

Join Date: Oct 2008
Location: Tallahassee, FL
Posts: 499
Thanks: 0
Thanked 0 Times in 0 Posts
Will these fit with the 99 spec bumper?
RotaryRocket93 is offline
Reply With Quote
Old 08-10-09, 08:30 PM
  #12
Rotary Freak
iTrader: (6)

moosejaw's Avatar

Join Date: Jun 2004
Location: Miami
Posts: 1,634
Thanks: 0
Thanked 0 Times in 0 Posts
i purchased this same setup with the 19 row Earls. You can also purchase the brackets too from Summit but you will have to custom cut the threaded rods as they are not custom sized like the bracket.

How did you mount your Oil Thermostat?
moosejaw is offline
Reply With Quote
Old 08-10-09, 08:30 PM
  #13
Full Member
10 Year Member
Thread Starter

pacman74's Avatar

Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by RotaryRocket93 View Post
Will these fit with the 99 spec bumper?
I checked clearances with my bumper, which is a replica FEED type II R bumper, and it cleared that fine. As for an OEM 99 spec bumper, I'm not too sure.
pacman74 is offline
Reply With Quote
Old 08-10-09, 08:35 PM
  #14
Senior Member
iTrader: (7)

RotaryRocket93's Avatar

Join Date: Oct 2008
Location: Tallahassee, FL
Posts: 499
Thanks: 0
Thanked 0 Times in 0 Posts
where did you get the replica feed type II at? I like that bumper and was considering getting one but they are expensive! Got any pics of it?
RotaryRocket93 is offline
Reply With Quote
Old 08-10-09, 08:50 PM
  #15
Full Member
10 Year Member
Thread Starter

pacman74's Avatar

Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by moosejaw View Post
i purchased this same setup with the 19 row Earls. You can also purchase the brackets too from Summit but you will have to custom cut the threaded rods as they are not custom sized like the bracket.

How did you mount your Oil Thermostat?
Actually, I haven't mounted the oil thermostat yet. Probably do it sometime this weekend, but I have an idea of how I'm going to do it. I'll post a picture after I do it.
pacman74 is offline
Reply With Quote
Old 08-10-09, 08:52 PM
  #16
Full Member
10 Year Member
Thread Starter

pacman74's Avatar

Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by t-von View Post
Man it's amazing how much money gets spent around here. I went with a 2nd gen oil cooler (properly ducted of course) and virticle mounted radiator for less than $200.00 for my NA 20b.
I agree, it's not cheap. This is just the way I wanted to do it.
pacman74 is offline
Reply With Quote
Old 08-10-09, 08:57 PM
  #17
Full Member
10 Year Member
Thread Starter

pacman74's Avatar

Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by RotaryRocket93 View Post
where did you get the replica feed type II at? I like that bumper and was considering getting one but they are expensive! Got any pics of it?
I got it from Shine Auto. Here's a couple pics.
Attached Thumbnails DIY Dual Oil Coolers-rides1.jpg   DIY Dual Oil Coolers-rides2.jpg
pacman74 is offline
Reply With Quote
Old 08-10-09, 09:07 PM
  #18
Senior Member
iTrader: (7)

RotaryRocket93's Avatar

Join Date: Oct 2008
Location: Tallahassee, FL
Posts: 499
Thanks: 0
Thanked 0 Times in 0 Posts
I need to find this shine auto....
RotaryRocket93 is offline
Reply With Quote
Old 08-10-09, 09:16 PM
  #19
Full Member
10 Year Member
Thread Starter

pacman74's Avatar

Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Thanks: 0
Thanked 0 Times in 0 Posts
They're in the Vendor section of this forum.
And their website is: http://www.shineautoproject.com/
pacman74 is offline
Reply With Quote
Old 08-10-09, 09:23 PM
  #20
Senior Member
iTrader: (7)

RotaryRocket93's Avatar

Join Date: Oct 2008
Location: Tallahassee, FL
Posts: 499
Thanks: 0
Thanked 0 Times in 0 Posts
I tried that site.... does not seem to want to work but ill try it again when i get back stateside... thanks for your help today
RotaryRocket93 is offline
Reply With Quote
Old 08-11-09, 12:08 AM
  #21
Rotor Head Extreme
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,694
Thanks: 0
Thanked 5 Times in 4 Posts
Originally Posted by gracer7-rx7 View Post
And that is a good setup for an NA car. Problem with FDs is that we also have to account for an intercooler and related piping - along with the radiator, a/c and PS loop air intake etc. Packaging and effectiveness of those components becomes a challenge real quick.

I know my comparo wasn't apples to apples. I eventually will turbo charge the beast and have already taken into consideration the changes I will have to make. It still wont cost me too much more since I know how to fabricate. It's just that my eyes get really big when I see the money being thrown around on certain projects. I guess myself and ADAM C have something in common.

Pacman 74 the set-up is nice though and is most definetly an improvement over stock.
t-von is offline
Reply With Quote
Old 08-12-09, 07:41 AM
  #22
Full Member

iTrader: (23)

Join Date: Apr 2003
Location: DFW
Posts: 174
Thanks: 0
Thanked 1 Time in 1 Post
wow... i love how you put this thread together
especially love the spreadsheet and the complete parts pictures

thanks
runyun is offline
Reply With Quote
Old 10-03-09, 02:49 PM
  #23
Senior Member
5 Year Member
iTrader: (2)

palsor1's Avatar

Join Date: Apr 2006
Location: Austin, TX
Posts: 355
Thanks: 0
Thanked 0 Times in 0 Posts
Hey,

Great job. Can I ask two quick questions?

1. Where'd you get the flat steel? Local metal supply?
2. How'd you bend the metal? Do you have a brake?

- andy
palsor1 is offline
Reply With Quote
Old 10-03-09, 06:58 PM
  #24
Full Member
10 Year Member
Thread Starter

pacman74's Avatar

Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by palsor1 View Post
Hey,

Great job. Can I ask two quick questions?

1. Where'd you get the flat steel? Local metal supply?
2. How'd you bend the metal? Do you have a brake?

- andy
1. It's just 1" wide zinc plated flat steel that I bought from Home Depot.
2. Nothing fancy, I just clamped it to a 2x4 and had the edge of the 2x4 exactly where I wanted the bend. Then I just hammered away.
pacman74 is offline
Reply With Quote
Old 10-03-09, 08:41 PM
  #25
Rotary Freak
iTrader: (6)

moosejaw's Avatar

Join Date: Jun 2004
Location: Miami
Posts: 1,634
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by pacman74 View Post
Actually, I haven't mounted the oil thermostat yet. Probably do it sometime this weekend, but I have an idea of how I'm going to do it. I'll post a picture after I do it.
DId you ever get around to doing this?Can you post pics?
