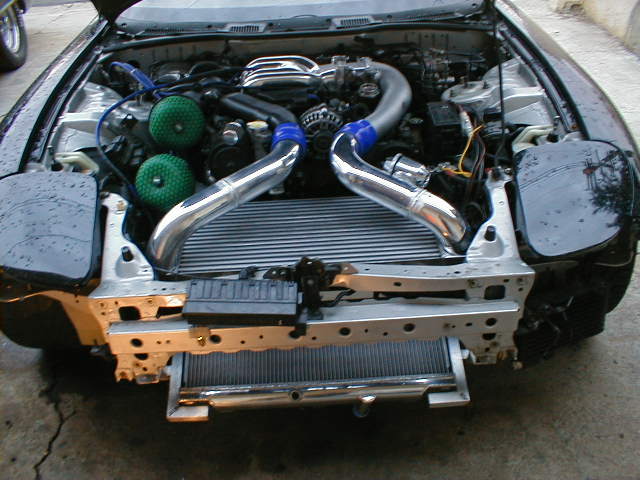

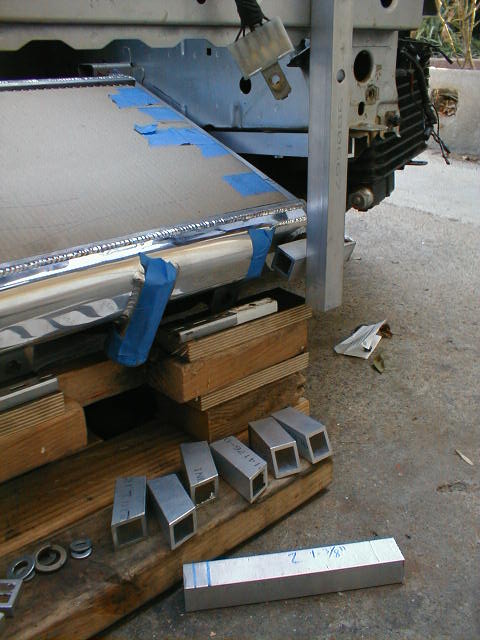

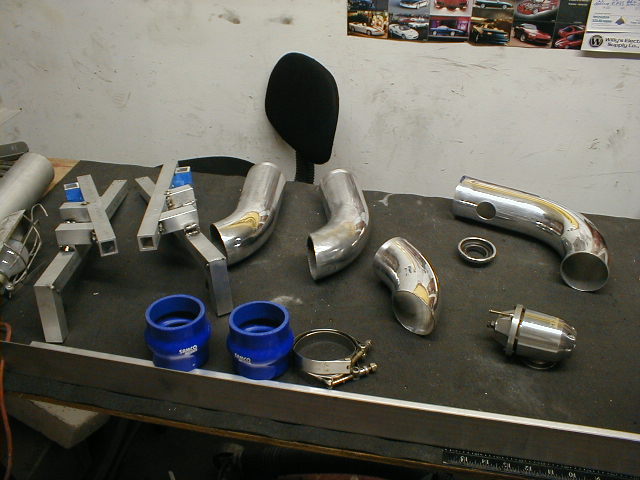

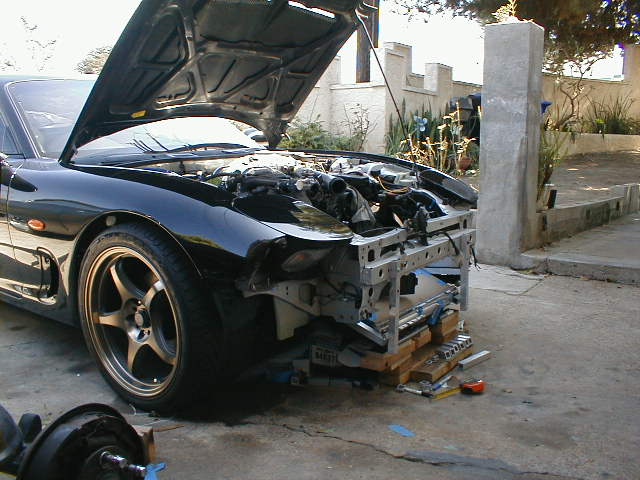

i just wanted to post a few pics of my project because a few members asked me for pics and also i wanted to know if i can use a heat sink tranny cooler as a power steering cooler.

pic of tranny cooler



good work...I love your project. Did you ever get all the interior pieces you needed?



At that angle will that really flow enough? Just curious?!?!?



thanks, yeah fd3s777 did me a huge favor of trading my left hand drive parts for his right hand drive parts i only need the glove box shift boot and the bracket that holds the buttons in the center console i still need to send him my dash



BTW should have mentioned very nice fab work.



toxic_d still need to make ducting and a spliter in the middle of the IC/RAD plus my feed bumper has a bigger opening than the stock bumper



Looking very good.



lookin good man! I gotta come check it out in person soon.



looks excellent....if you don't mind me asking what core did you use and what are the dimension if you have them....also do you know the flow rating for that core?

-Dan



thanks guys, i bought the intercooler on ebay its 24x12x4 i dont have the flow rate



sweet, will it be finished in time for sevenstock?



are you going to leave the bottom radiator neck like that or are you going to move it?



very nice! dont worry about the flow and angle comments...air doesn't decide not to flow just cuz they don't like the angle of the core fins.



Nice work. I'm thinking of going with the R.E. Vmount myself. I wonder if it would be possible to convert my M2 Large SMIC & my Koyo Radiator into a Vmount setup.



That tranny cooler should work for a ps cooler. I used a similar inline ps cooler with my v mount set up. I posted pics of it on nopistons if you want to search for it and take a look. It has worked out very well.



Looks like it is coming along nicely, good job.

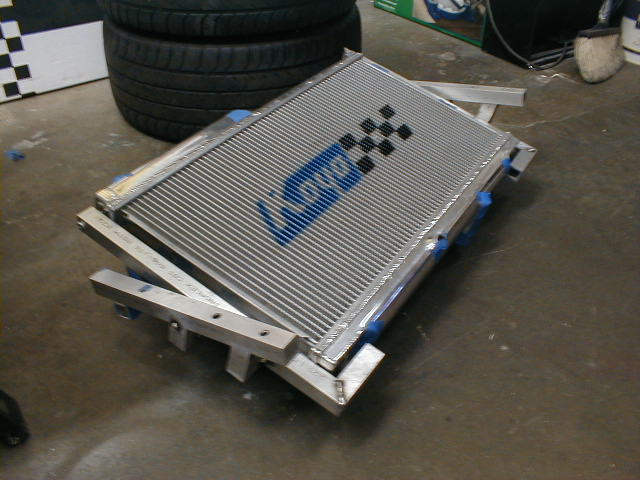

Why did you create a cradle around the rad instead of independent mounting points?
Is there a benefit to this, or is it simply to retain stock mounting points?

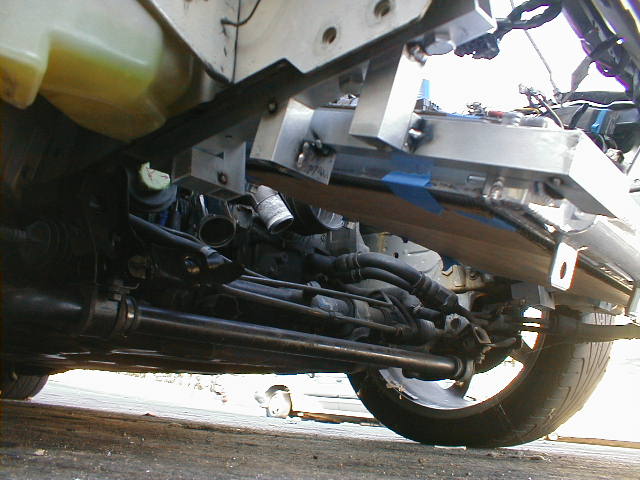

Do you have a pic of the “cradle” by itself, and maybe one looking up from below the car with radiator installed?



The dimensions comment I was asking is because I am thinking of getting a bigger IC for my setup and the flow rating actually does matter, but thats okay if you think it doesn't.



thanks guys,

was that at me,

RX7 RAGE, if everything gets welded by monday i will be at fusion tuesday with the 7

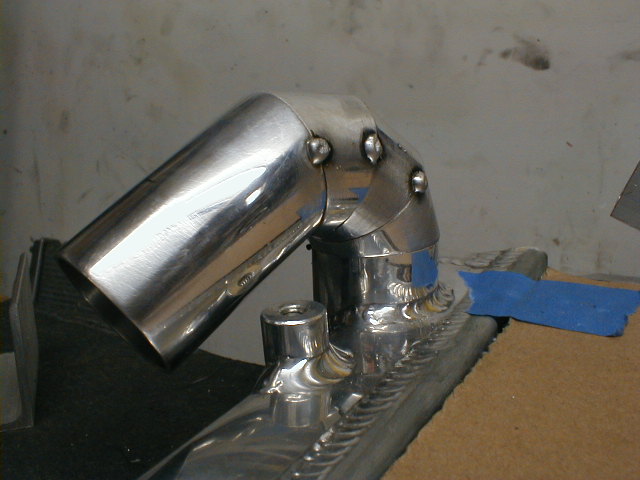

xxxtodxxx, the bottom outlet is going to be closed of and a new one will be placed on the new upper end tank

AgentSpeed, i saw that type of cooler in your pictures a while ago but did not remeber what the cooler was being used for thats why i asked thanks.

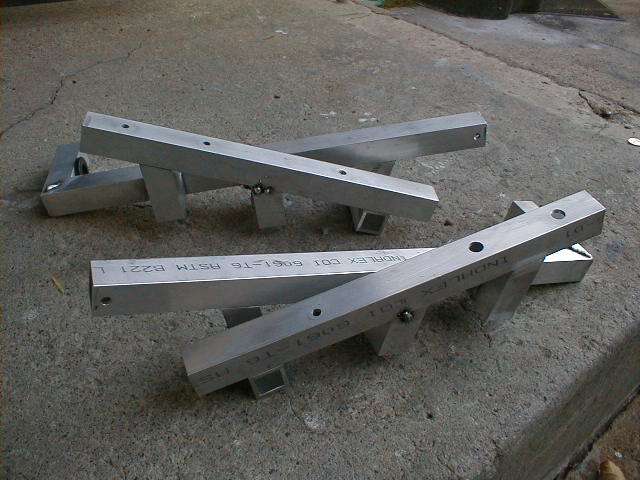

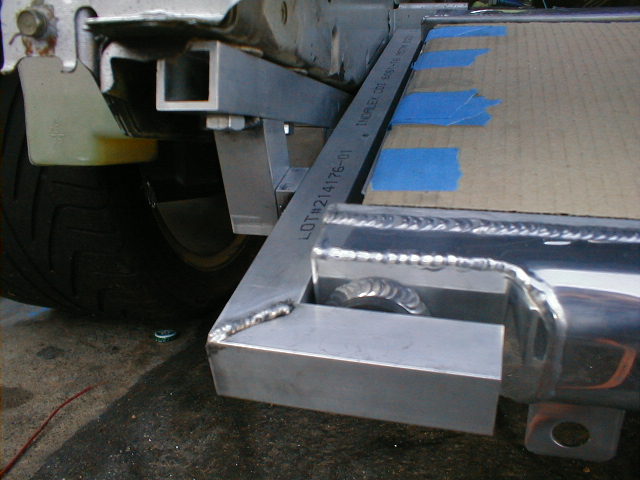

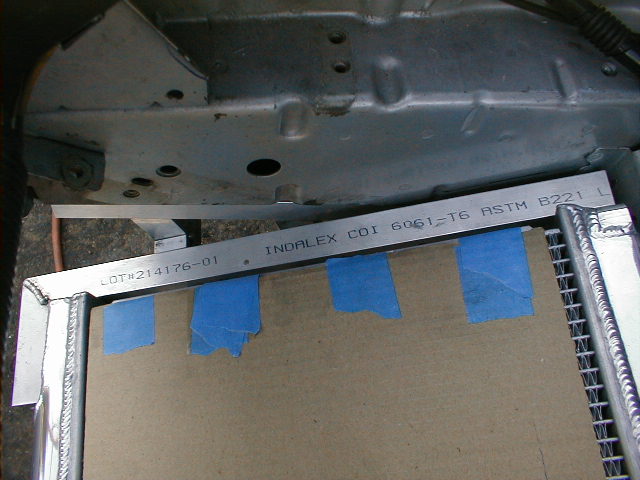

rotarypower101, i made the mounts that way because the radiator was sitting a little lower than stock and was not sure if it would scrape or hit anything so i wanted to make the mounts stronger, not in the pics but i have a piece of 2-1/2" angle aluminum thats going to connect the two mounts together.





very very nice man! it looks great! now you have me thinking... i might have to try something like that



Nice!



Sevenstock???? where and when?



Kinetik, the v mount looks great man, awesome work. Hope to see it at sevenstock.


Anemiya, its october 7,8, and 9 but check out the site for all the info.
http://www.sevenstock.org/



can you drive it over without the front bumper so we can see the work that was done?



Kinetic: remember to facilitate the ducting into your project; it is IMO the single most important part of the setup from experience. Big changes in air temps as well as high coolant temperature recovery.
