Yeah on the left :-D LOL

Fish

Thats the best side for the steering wheel, come on everyone knows that.

Fish

skim41

The right that is

Come on neal, you know whats best for ya

AndrewDevlin

Is there any reason why you put blow off valve after the intercooler rather than before?

drivelikejehu

any problems with bugs building up in the back?

1994FD408

looks good

KINETIK_FD3S

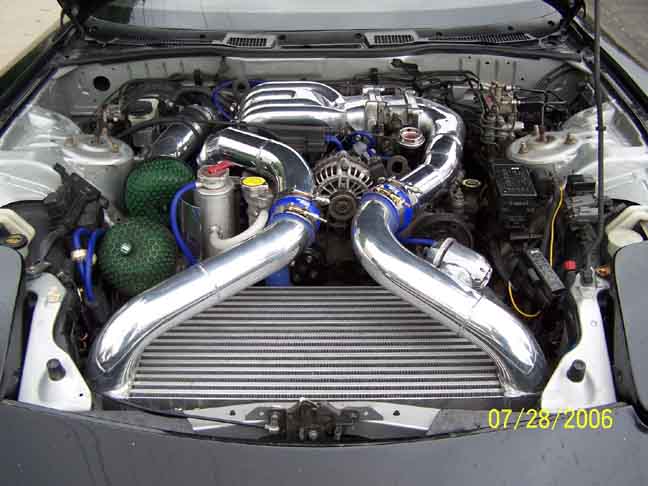

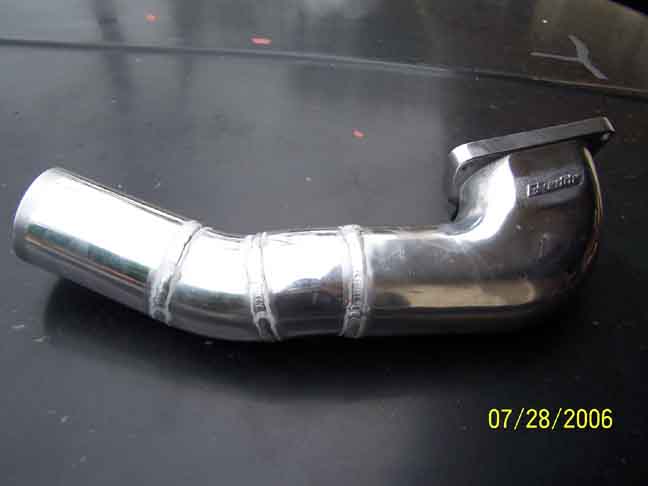

just put in my power fc so ill post air/water temps in a few, i had a mesh srcreen in front of the rad/oil coolers but i didnt like they way it looked so i took it off i have been running the like this since last october and there is only a few bugs and leaves, i put the bov after the intercooler because its closer to the TB but i dont think it makes a that much of a differance, just put in my greddy elbow and now the intercooler piping looks complete no more plastic!

FJDRX7

iTrader: (32)

nice, looks good

Fish

What turbo you using?

Fish

dubulup

^stock

dradon03

iTrader: (2)

This is what motivates me to make my custom Intake setup this winter.

Fu**ing nice installtion.

AndrewDevlin

Kinetik, thats a nice setup your running there, the fabrication is quality.

The only reason i asked about the BOV being after the intercooler is this,

Obviously the intercooler removes heat energy from the intake air, what your doing there with the BOV after it removes the cooled air. If you place it before the intercooler you reduce the amount of air the intercooler has to cool, increasing its efficiency and hence lower charge temps. You could test this and see, but im positive you would notice the difference which could be considerable.

Also, along with this the pressure drop across the core would be less (when the bov is open) because it has to flow less air, which means less air velocity. Pressure drop is proportional to the square of veloctiy. This increases charge density and hence more fuel can be injected increasing power.

Its up to you but i thought i would give you some tips. The pressure signal for the bov is still in the same place, just the bov isnt. Also the bov is closer to the turbo which will help reduce surge by related transport delays.

Once again, good work so far on the vmount setup

NeedFD

lookin good

scrubolio

iTrader: (8)

sorry to bring back from the dead, but i look at this thing just about every week, but how did you route your radiator hoses from all the way under there? and any updates on intake temps and coolant temps?

KINETIK_FD3S

lol, ill post pics of the radiator hoses soon i just have to resize them on my other computer, as for the water temp street driving, freeway and WOT is water temp is at 180F and at idle its at 180F for about 10mins then rises to 192F where the fans kick on (RX7RAGE set my fans with the DL for 89C), i cant remember my intake temps but will post on friday when i have the car put back together.

FD3S2005

iTrader: (11)

How hard is it to do a v mount?? i really want to get one of these

dradon03

iTrader: (2)

SO try and PM Chuck see if he has any left. If not ~3,000$ gets it shipped from Re Amemiya

KINETIK_FD3S

if you like fabricating its not hard but its as time consuming as you make it when you talk about detail, the v-mount that chuck sells is his own kit.

Monkman33

iTrader: (28)

Being an aluminum fabricator on the side (I build All aluminum airplanes as a side hobby) I must say something:


NICE!!!

BTW, I really like the adjustable splitter. Have you done any comparitive tests with the splitter in the different positions?

Gives me some ideas on different uses. adjust it to have more radiator flow on short, slow speed courses like autocrossing. have it more balanced for daily driving or freeway driving. These are just assumptions off the top of my head, so I don't know which would work more in actual use.

KINETIK_FD3S

thanks, haven't done any test with the splitter because i was not going to adjust it unless i had water temp issues but thats a good idea i could test when im done with other projects im working on.

we think alike just reading the bottom of you post gave me a idea witch i have to try tomorrow and post here.

rx7goomba

Have you thought about putting fans on the backside of the IC to help it out a lil bit?

scrubolio

iTrader: (8)

updates?

vudoodoodoo

quality work right there!

Heisenberg

iTrader: (3)

radiator hose pics?

scrubolio

iTrader: (8)
