characteristics85

My car is giving two codes. the fuel thermosensor and the fuel pump relay. How can I go about trying to fix the problem. The closest rotary shop is about 75 miles from me. So I would like to learn and fix it my self.

kevinlin22

do a little search on the forum and read the FAQ first, you might find something useful..........

characteristics85

Ok were is the fuel theromosensor located? Can I see it with out taking off the UIM?

Mahjik

iTrader: (1)

The fuel thermosensor is located in the secondary fuel rail.

characteristics85

If some one could take a picture I would greatly appreciate it. And the fuel pump relay is located close to the fender on the driver side correct?

Sgtblue

iTrader: (16)

Page F-170 in the FSM. You can't really see it. The UIM will have to come off.

Mahjik

iTrader: (1)

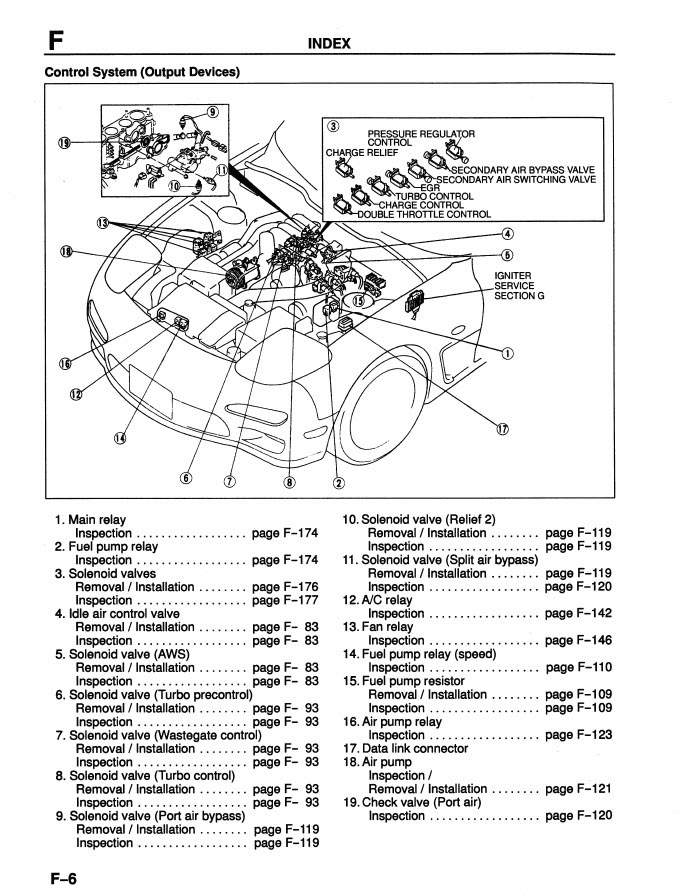

There are two fuel pump relays. You need to make sure which you are getting the code for (attached is the fuel relay locations).

Here's a picture for the fuel thermosensor:

https://www.rx7club.com/attachment.p...1&d=1155512371

Green topped sensor in the middle of the rail.

characteristics85

thanks man I think I am just gonna replace them all. Because I am not sure really how to check them.
