how to take..
hi all
quick one:
how to take the rev counter out? and then strip it down?
need to strip it down as the face is falling down...gotta glue it back or something...
quick one:
how to take the rev counter out? and then strip it down?
need to strip it down as the face is falling down...gotta glue it back or something...
#2
Lost You in the Rear View
Join Date: Jul 2007
Location: Rocky Hill, CT
Posts: 560
Likes: 0
Received 0 Likes
on
0 Posts
rev counter as in tach i'm assuming... pop off the steering column cover top and bottom. remove the center console and the A/C panel to expose the side of the guage hood. unscrew the screws holding in the hood and lift it up and over the steering wheel (you will have to unplug a few connectors from the back of it). All of the gauges are on the underside of the circuit board. i've never tried to disassemble the actual cluster but i know it can be done from this point. good luck lemme know how it goes
#3
Senior Member
Thread Starter
Join Date: Apr 2008
Location: Milton keynes,UK
Posts: 320
Likes: 0
Received 0 Likes
on
0 Posts
thats how it goes mate
big thx!
btw:
if someone wants to get to the actual counter:

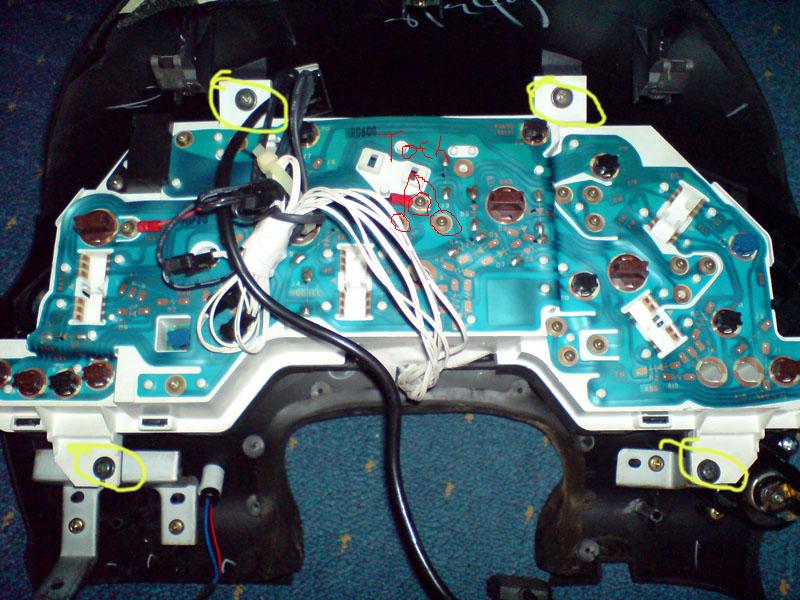

undo the 4 screws:
then two screws on the plastic cover and unclip these 6 clips:
jobs done
cheers mate
big thx!
btw:
if someone wants to get to the actual counter:
undo the 4 screws:
then two screws on the plastic cover and unclip these 6 clips:
jobs done
cheers mate
#4
Top's always down
iTrader: (5)
Sickboy, you'd have better luck getting at the tach if you removed the black plastic piece instead of the bezel.
In this picture I circled the screws that hold the tach in place. Undo those screws and remove that black plastic piece on the front and the whole tach will lift right out.
In this picture I circled the screws that hold the tach in place. Undo those screws and remove that black plastic piece on the front and the whole tach will lift right out.
#5
Senior Member
Thread Starter
Join Date: Apr 2008
Location: Milton keynes,UK
Posts: 320
Likes: 0
Received 0 Likes
on
0 Posts
thx!
in my case it worked anyway as i needed to get into the face itself as it was falling off...(it has them white-glowing-thingy-faces installed )
in my case it worked anyway as i needed to get into the face itself as it was falling off...(it has them white-glowing-thingy-faces installed )
