HKS intake
The following users liked this post:
808mlee94 (05-10-23)
#4
Rotary Enthusiast
Do not plug those hoses. They are vented for a reason. The CRV hose on the top vents boost from the secondary turbo before transition. They are fine left open, they just make more noise when they are vented to atmosphere, but I would not cap them off.
If you are still on factory ECM and factory main cat dont remove the air pump. Lots of information in old threads that talk about air pump removal on this forum.
Nice to see an FD in Hawaii though, that has to be a rare site. I'll be out there later this year.
If you are still on factory ECM and factory main cat dont remove the air pump. Lots of information in old threads that talk about air pump removal on this forum.
Nice to see an FD in Hawaii though, that has to be a rare site. I'll be out there later this year.
#5
Urban Combat Vet
iTrader: (16)
Open intakes aren’t really optimal.

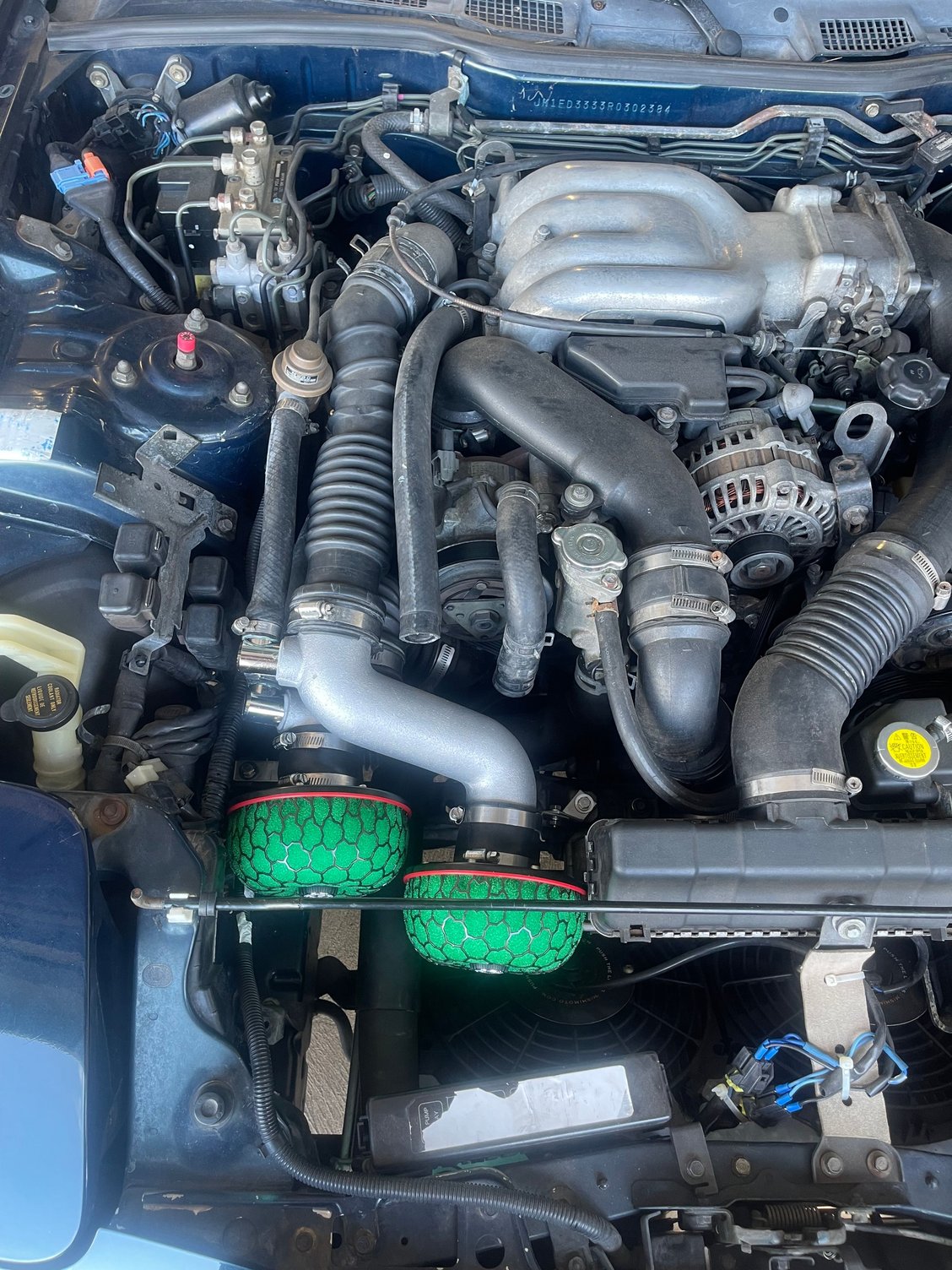

But a bigger issue is a missing intercooler duct. Right now the hot air from the radiator is feeding the IC…which is a bit dangerous to the engine.
Looks like someone has done some rewiring….maybe for what looks like non-stock fans. That may have something to do with the missing IC duct.
And the fine adjustment for the alternator belt is missing.
https://www.atkinsrotary.com/93-11-r...0-15-966-.html
But a bigger issue is a missing intercooler duct. Right now the hot air from the radiator is feeding the IC…which is a bit dangerous to the engine.
Looks like someone has done some rewiring….maybe for what looks like non-stock fans. That may have something to do with the missing IC duct.
And the fine adjustment for the alternator belt is missing.
https://www.atkinsrotary.com/93-11-r...0-15-966-.html
Last edited by Sgtblue; 05-10-23 at 06:26 AM.
The following 4 users liked this post by Sgtblue:
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,605 Likes
on
1,848 Posts
https://www.hks-power.co.jp/en/produ...ntake/db/18066
if you scroll down a bit, hose 9 goes from the air pump to the stock duct. hose 10 is the vent, so it goes to a silencer and then the stock hose, which goes nowhere
The following users liked this post:
808mlee94 (05-10-23)
#7
Martin S.
iTrader: (2)
Do not plug those hoses. They are vented for a reason. The CRV hose on the top vents boost from the secondary turbo before transition. They are fine left open, they just make more noise when they are vented to atmosphere, but I would not cap them off.
If you are still on factory ECM and factory main cat dont remove the air pump. Lots of information in old threads that talk about air pump removal on this forum.
Nice to see an FD in Hawaii though, that has to be a rare site. I'll be out there later this year.
If you are still on factory ECM and factory main cat dont remove the air pump. Lots of information in old threads that talk about air pump removal on this forum.
Nice to see an FD in Hawaii though, that has to be a rare site. I'll be out there later this year.
Trending Topics
#8
Rotary Enthusiast
#9
Martin S.
iTrader: (2)
Do not plug those hoses. They are vented for a reason. The CRV hose on the top vents boost from the secondary turbo before transition. They are fine left open, they just make more noise when they are vented to atmosphere, but I would not cap them off.
If you are still on factory ECM and factory main cat dont remove the air pump. Lots of information in old threads that talk about air pump removal on this forum.
Nice to see an FD in Hawaii though, that has to be a rare site. I'll be out there later this year.
If you are still on factory ECM and factory main cat dont remove the air pump. Lots of information in old threads that talk about air pump removal on this forum.
Nice to see an FD in Hawaii though, that has to be a rare site. I'll be out there later this year.
You know, I don't think we are talking about the same thing lol
Last edited by evo_koa; 05-16-23 at 07:26 PM.
#10
Rotary Enthusiast
CRV = charge relief valve. Vents the secondary turbo back into the airbox (or atmosphere if removed from airbox) during prespool just before it joins the primary at transition. It's not boost control but if you plug it, the secondary boost pressure has nowhere to go and will most likely result in some type of surging possibly damaging the secondary turbo or affecting proper sequential operation at minimum.
Last edited by boostin13b; 05-16-23 at 11:09 PM.
#11
Urban Combat Vet
iTrader: (16)
Originally Posted by evo_koa;[url=tel:12559693
12559693] You are not missing anything….You might as well remove the air pump….
Last edited by Sgtblue; 05-17-23 at 05:32 AM.
The following users liked this post:
boostin13b (05-17-23)
#12
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,605 Likes
on
1,848 Posts
pics of the missing stuff,
