Hissing under boost

So I had this problem of a weird hissing noise under boost. I just converted to simplified sequential and replaced all the vacuum lines hoping that this would solve the problem.

I took the car out last night for the first time, and the noise is still there. The weird part about this noise, is that it sounds like its rushing air out of the vent near the vents on the door. There is definitely no air coming out though. At first I thought it was a huge boost leak, but the area of the sound just makes no sense to me.

Is it possible that it's just turbo noise and the acoustics travel around the engine bay to that area? My passenger said he heard the same thing on his side in the same area.

The car is also maxing out ~6-7 psi. I did some searching and it looks like the "pills" inside some of the lines were the cause if they were missing. I found 2 while I was doing the conversion, and replaced them in the same orientation. Are there more than 2 or could this 7 psi max be something else?

Thanks in advance.
Old 10-10-13, 05:53 PM
  #2
Cheap Bastard

iTrader: (2)

adam c's Avatar

Join Date: Sep 2002
Location: San Luis Obispo, Ca
Posts: 8,370
Received 50 Likes on 42 Posts
There are only 2 pills. Sounds like a boost leak to me
Old 10-10-13, 06:01 PM
  #3
Urban Combat Vet

iTrader: (16)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 12,022
Received 866 Likes on 615 Posts
^I agree. Check you plumbing and couplers, especially at the 'Y' pipe to crossover.
Old 10-10-13, 08:31 PM
  #4
Rotary Freak

iTrader: (5)

Tem120's Avatar

Join Date: Sep 2011
Location: Miami
Posts: 2,824
Likes: 0
Received 5 Likes on 5 Posts
you Probably Have a boost leak , Like stated above you should recheck everything
Old 10-10-13, 08:34 PM
  #5
brapbrapbrap

Thread Starter
iTrader: (8)

airjordan223's Avatar

Join Date: Dec 2012
Location: Ohio
Posts: 386
Likes: 0
Received 1 Like on 1 Post
Already replaced the Y pipe coupler. I guess I'll have to pressurize the system and try to find the leak.
Old 10-10-13, 08:45 PM
  #6
Rotary Freak

iTrader: (5)

Tem120's Avatar

Join Date: Sep 2011
Location: Miami
Posts: 2,824
Likes: 0
Received 5 Likes on 5 Posts
Originally Posted by airjordan223
Already replaced the Y pipe coupler. I guess I'll have to pressurize the system and try to find the leak.
check all the vacume joses , check the upper intake manifold for loose hoses or caps

Checck the interccooler couplers for cracks or loose clamps
Old 10-11-13, 07:30 AM
  #7
brapbrapbrap

Thread Starter
iTrader: (8)

airjordan223's Avatar

Join Date: Dec 2012
Location: Ohio
Posts: 386
Likes: 0
Received 1 Like on 1 Post
Hmmm. I did notice the hose at this location seemed to have a lot of movement when I was putting the intake box back on. Perhaps the rubber has worn/stretched and it isn't sealing properly.
Attached Thumbnails Hissing under boost-leak.jpg
Old 10-11-13, 07:46 AM
  #8
Rotary Freak

iTrader: (5)

Tem120's Avatar

Join Date: Sep 2011
Location: Miami
Posts: 2,824
Likes: 0
Received 5 Likes on 5 Posts
Originally Posted by airjordan223
Hmmm. I did notice the hose at this location seemed to have a lot of movement when I was putting the intake box back on. Perhaps the rubber has worn/stretched and it isn't sealing properly.
replace it if you think it may be the issue you can get I think its like 3/4 inch hose it will be a very snug fit but it will go on .
Old 10-11-13, 11:25 AM
  #9
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,832
Received 2,602 Likes on 1,846 Posts
Originally Posted by airjordan223
Hmmm. I did notice the hose at this location seemed to have a lot of movement when I was putting the intake box back on. Perhaps the rubber has worn/stretched and it isn't sealing properly.
its probably split on the bottom, it could totally be your problem
Old 10-11-13, 11:31 AM
  #10
brapbrapbrap

Thread Starter
iTrader: (8)

airjordan223's Avatar

Join Date: Dec 2012
Location: Ohio
Posts: 386
Likes: 0
Received 1 Like on 1 Post
I'm hoping that it is. It was just really odd how the noise sounded like it was coming in from the cabin by the brake booster.
Old 10-11-13, 12:27 PM
  #11
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,832
Received 2,602 Likes on 1,846 Posts
Originally Posted by airjordan223
I'm hoping that it is. It was just really odd how the noise sounded like it was coming in from the cabin by the brake booster.
noise is funny, vibrations transmit. my FCD (FC with REW) has a bad booster, and it does make a hissing noise
Old 10-14-13, 08:54 PM
  #12
brapbrapbrap

Thread Starter
iTrader: (8)

airjordan223's Avatar

Join Date: Dec 2012
Location: Ohio
Posts: 386
Likes: 0
Received 1 Like on 1 Post
Well I replaced that hose, and boost still peaked at 5.

Then I did some inspecting and found a tear in the coupler from the y pipe to the intercooler.

Replaced it with a silicone one, no hissing and full boost!

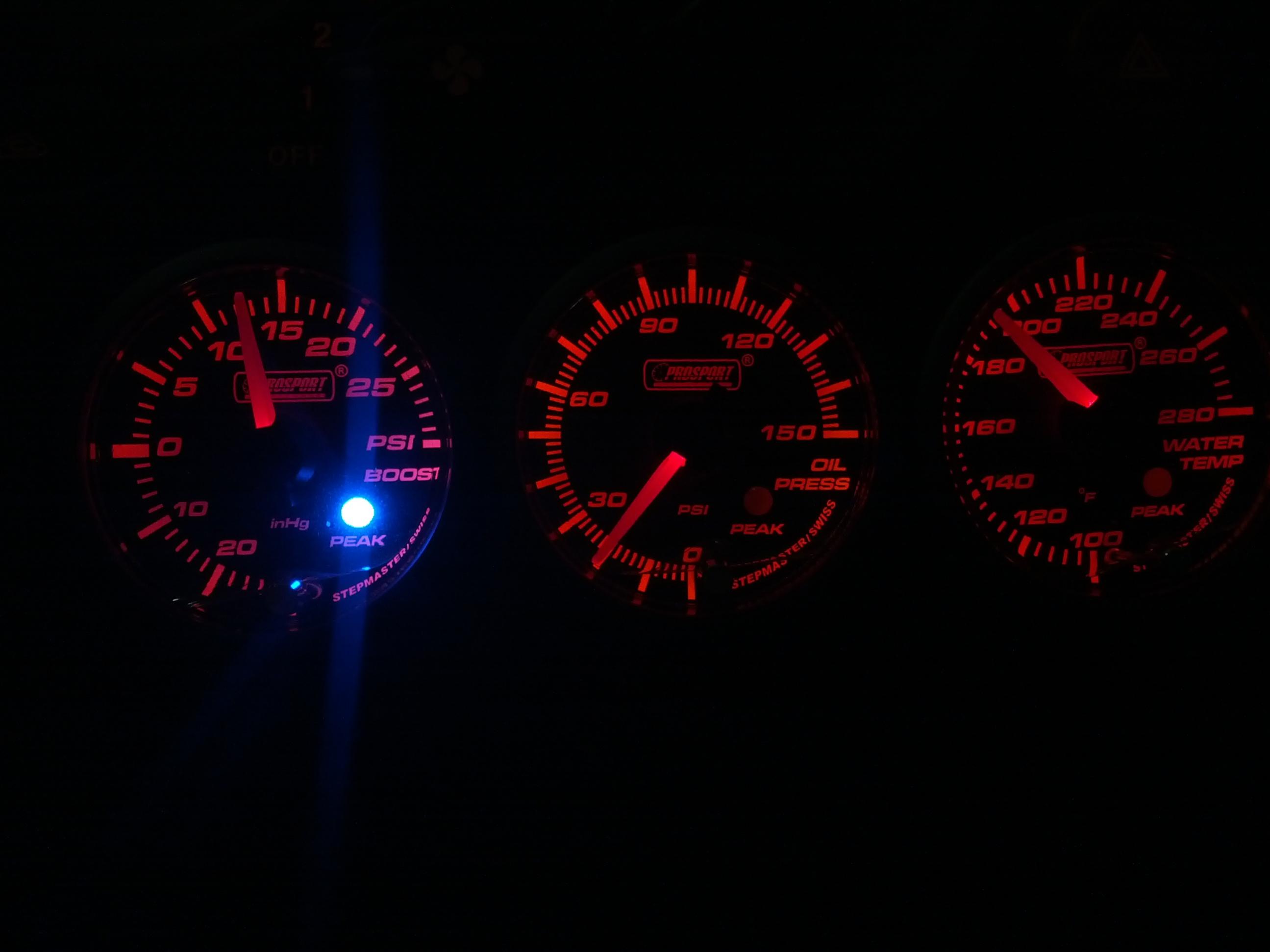

Attached Thumbnails Hissing under boost-2013-10-14-21.21.18.jpg
Old 10-14-13, 09:19 PM
  #13
Cheap Bastard

iTrader: (2)

adam c's Avatar

Join Date: Sep 2002
Location: San Luis Obispo, Ca
Posts: 8,370
Received 50 Likes on 42 Posts
Congrats
