help: front wire harness?
#1
help: front wire harness?
this will be my last post on wiring for awhile, i promise
i believe these wires are from the front harness
i cant seem to find anything in the manual for them and
i cant figure out where theyre supposed to go
i have a 93, and i noticed 94+ have passenger side are bags, are these airbag wires?

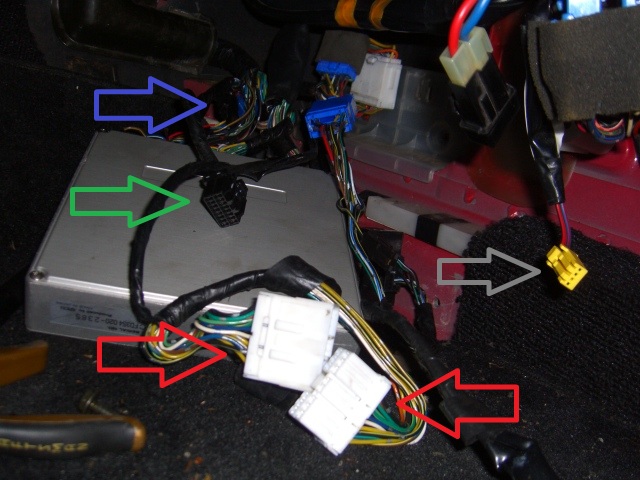

the ones with the red arrows fit into each other perfectly but theyre on the same wire so that cant be right?
i believe these wires are from the front harness
i cant seem to find anything in the manual for them and
i cant figure out where theyre supposed to go
i have a 93, and i noticed 94+ have passenger side are bags, are these airbag wires?
the ones with the red arrows fit into each other perfectly but theyre on the same wire so that cant be right?
#4
Turd Ferguson
iTrader: (1)
Join Date: Jul 2006
Location: Sherman Oaks, California
Posts: 2,047
Likes: 0
Received 1 Like
on
1 Post
if you'll list the plug wire colors I could try and help you figure them out.
did you look through the wiring diagram manual AND the body wiring manual? you mention "manual" but did you specifically look through both of them?
did you look through the wiring diagram manual AND the body wiring manual? you mention "manual" but did you specifically look through both of them?
#6
red arrow on the left
[ O | R/Y | LG | | | Y/W | Br/Y | * ]
[ B | G | G/Y | L | W | B/Y | L/G | Y ]
red arrow on the right
[ B | G | G/Y | L | W | B/Y | L/G | Y |
[ O | R/Y | LG | | | Y | Br/Y | * |
grey arrow
[ L/R | R | * | R/B ]

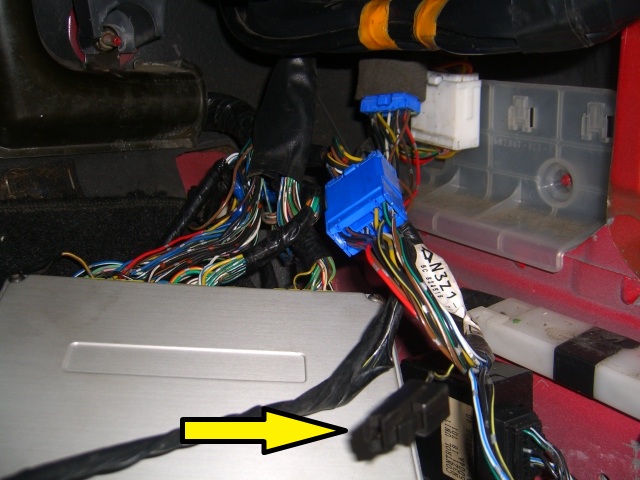

yellow/black arrow
[ B/Y ]
purple arrow
[ B/R ]
green arrow
[ B/W | * | * | * | * | W/L | B/R | * ]
[ B/G | * | * | B | * | * | * | * ]
[ O | R/Y | LG | | | Y/W | Br/Y | * ]
[ B | G | G/Y | L | W | B/Y | L/G | Y ]
red arrow on the right
[ B | G | G/Y | L | W | B/Y | L/G | Y |
[ O | R/Y | LG | | | Y | Br/Y | * |
grey arrow
[ L/R | R | * | R/B ]
yellow/black arrow
[ B/Y ]
purple arrow
[ B/R ]
green arrow
[ B/W | * | * | * | * | W/L | B/R | * ]
[ B/G | * | * | B | * | * | * | * ]
Trending Topics
#9
01000101
I'm trying to figure out that yellow / black arrow one too. I can't find another connector for it. :p
I'll take a look and see if I can figure out the other ones.
93 Manual Touring
I'll take a look and see if I can figure out the other ones.
93 Manual Touring
