Well, it seems like a year ago that I was posting "What gauges should i get?" (it was). Here is the result of a year of selection, discrimination, frustration, and (for one fine man) molding.

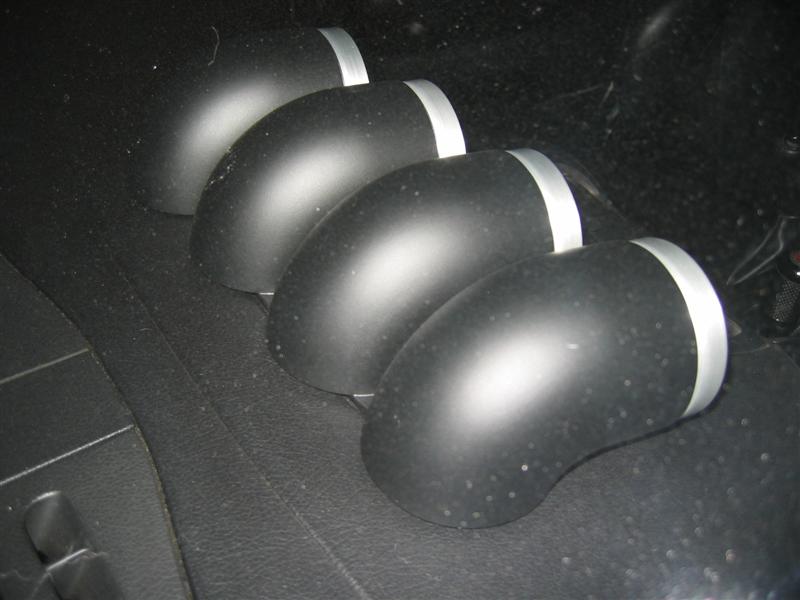

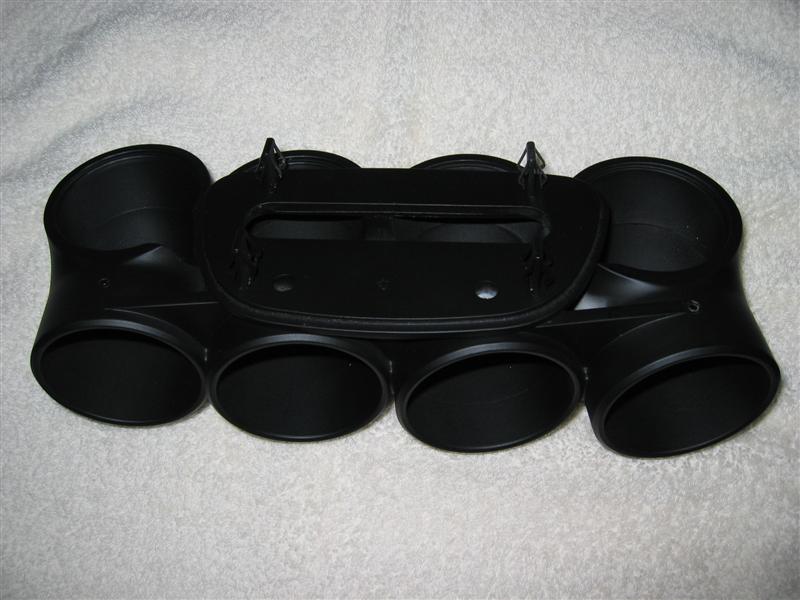

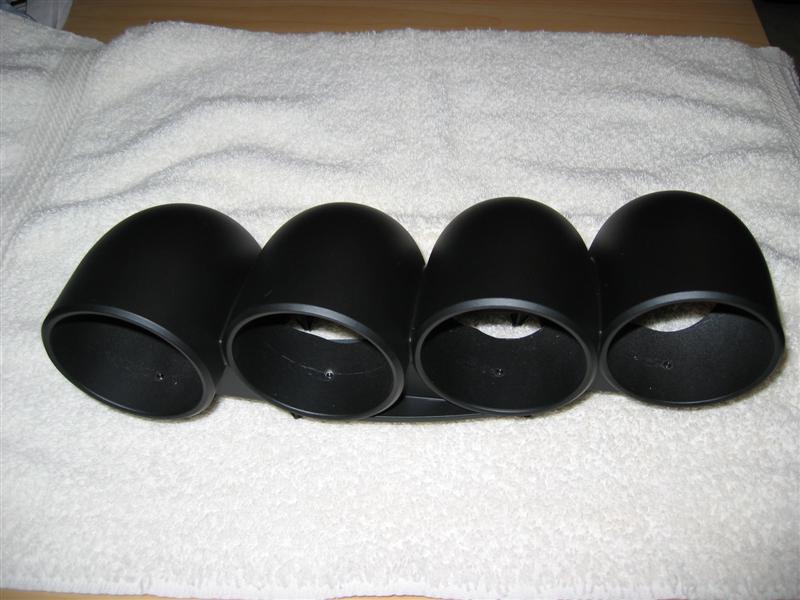

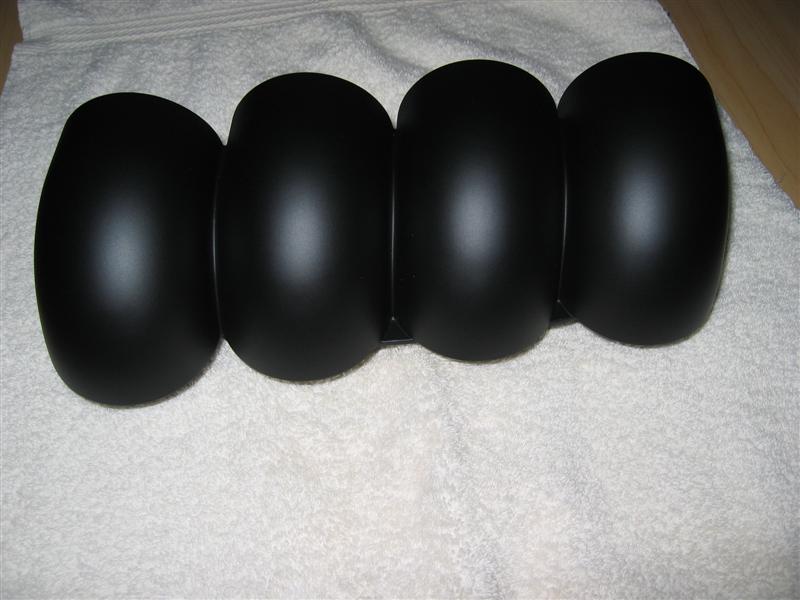

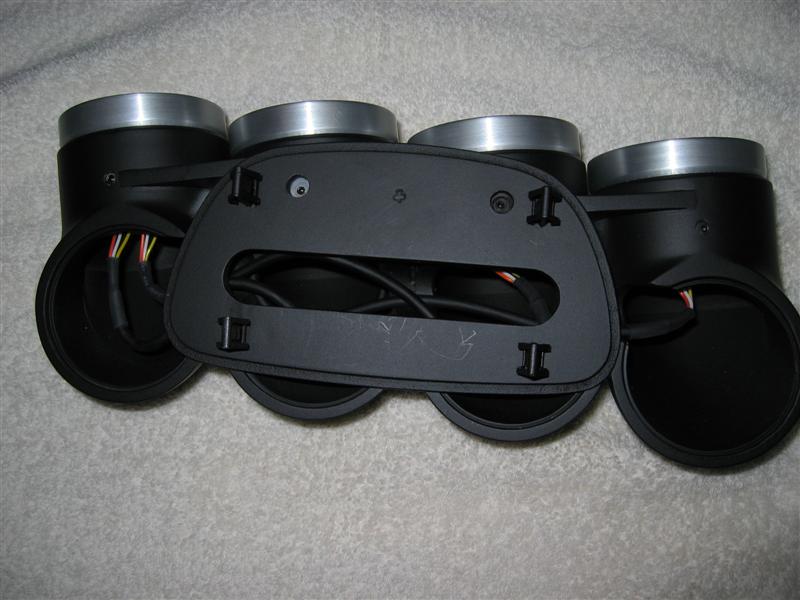

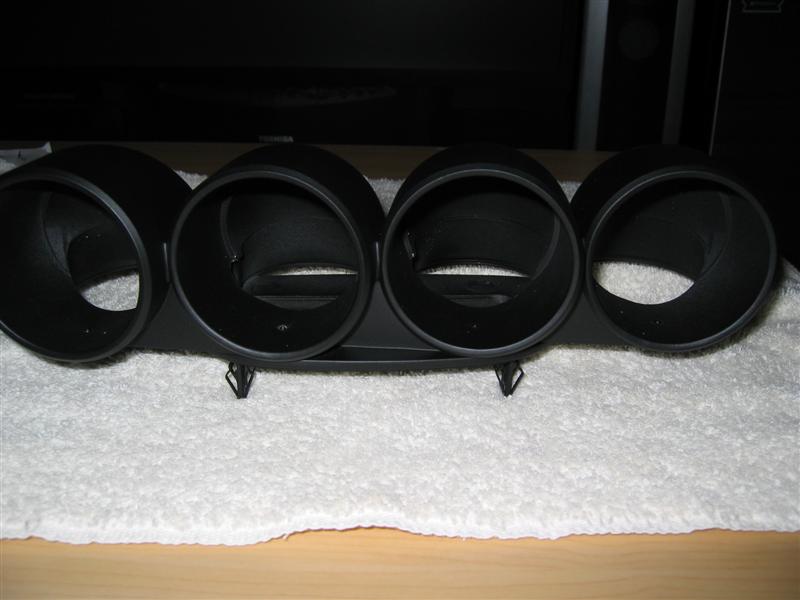

Mr. Frank Lee Junior. I am forever in his debt (just kidding, I paid him ). Most of you know of his gauge pods. They resemble the intake manifold on a V6 and hold gauges where the center speaker was. Well, I asked him to do something he'd never done: Make me a quad gauge 60mm pod (old thread here).

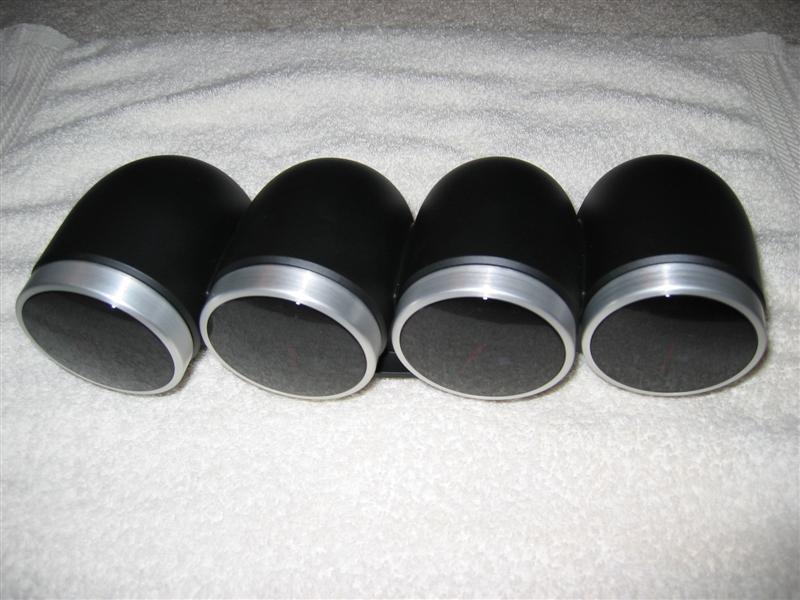

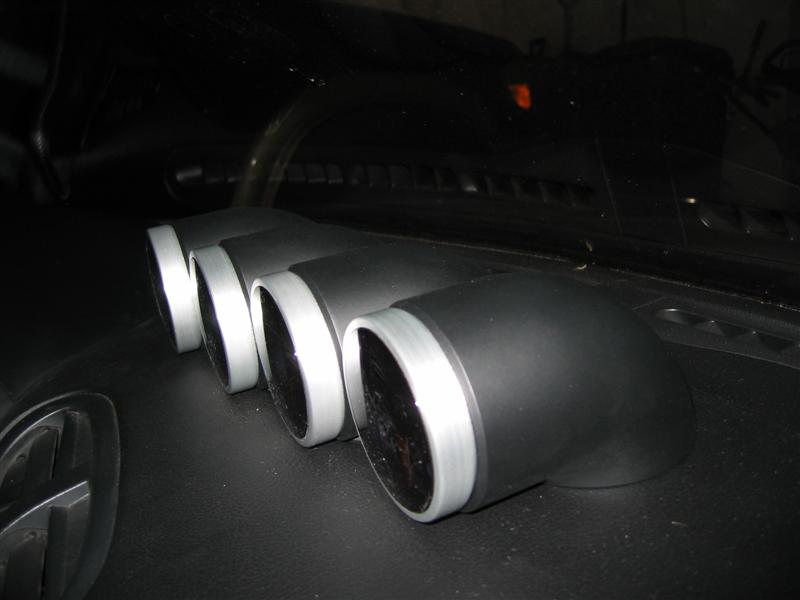

He did it, it's beautiful. Here's the results.

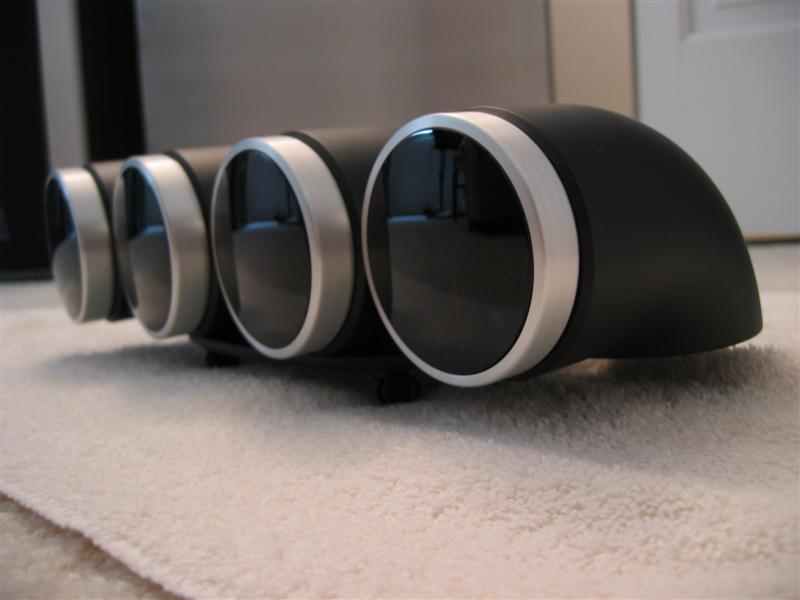

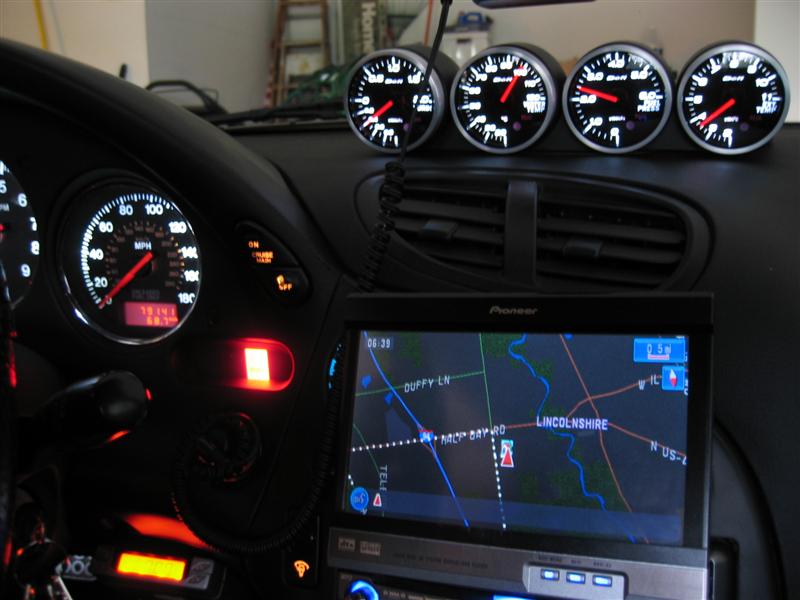

Yep, pretty nice isn't it Anyway, I decided on the Defi BF series gauges. Beautiful gauges, Defi accuracy, and a perfect fit for my new quad-60mm pod.

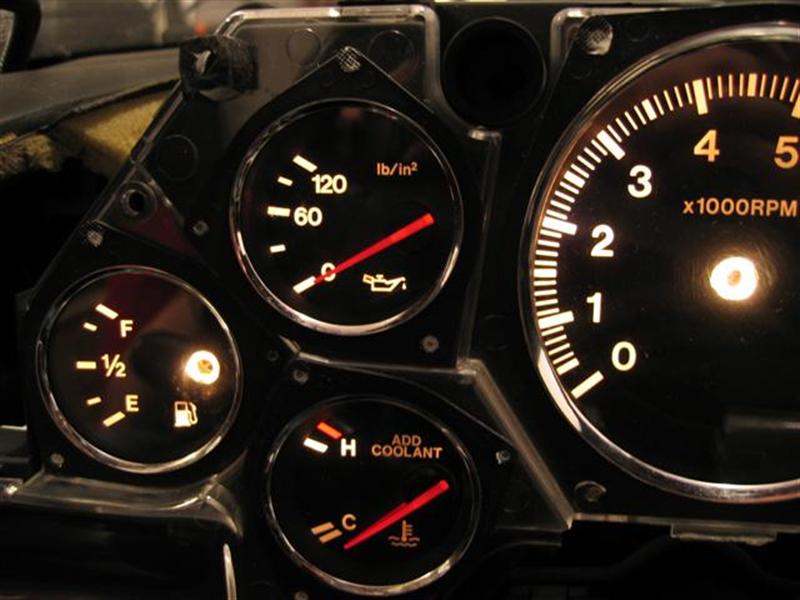

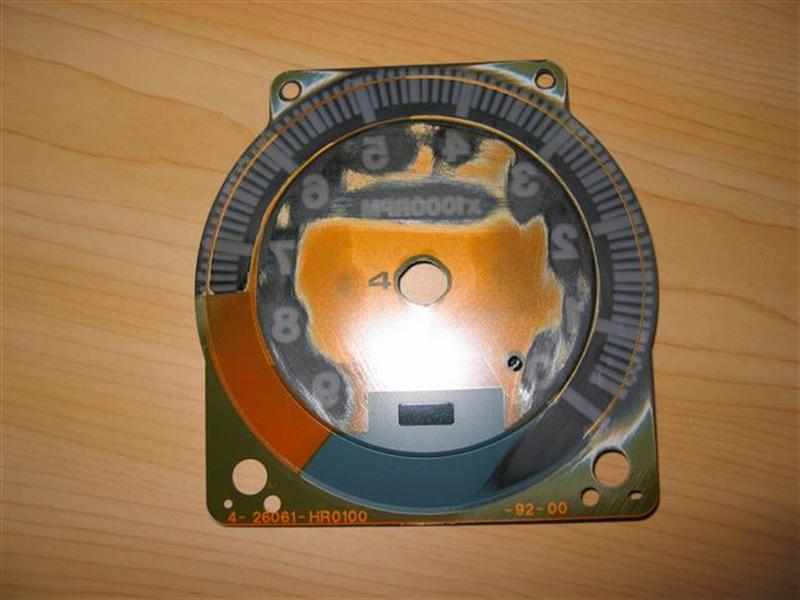

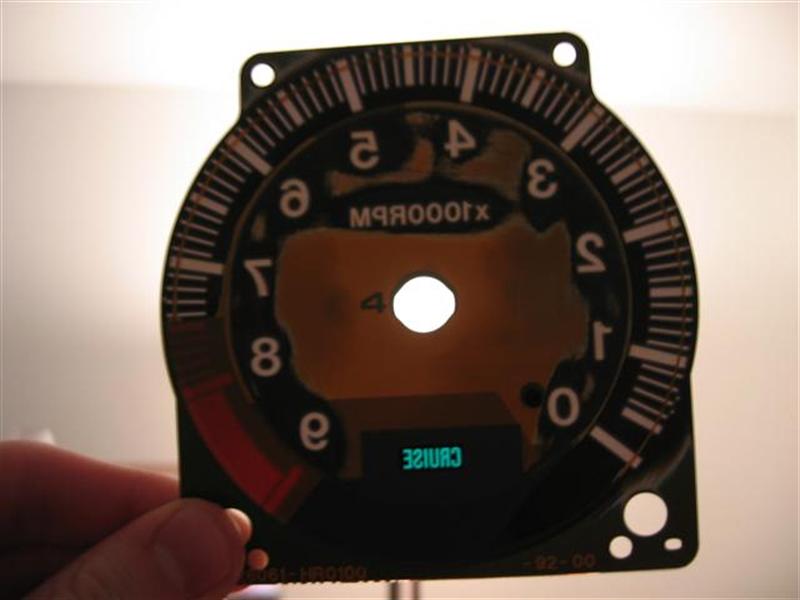

Anyway, to make a long story short, these gauges have a white backlight (available in red, but i didn't like how they looked). I didn't want a mis-matched cluster of gauges, so I had to get some white lit faces for my main gauges (thread here: here ). That was taking too long, so I made them myself from the stock gauges. Painstakingly removed the faces, and SANDED the red film from the face.

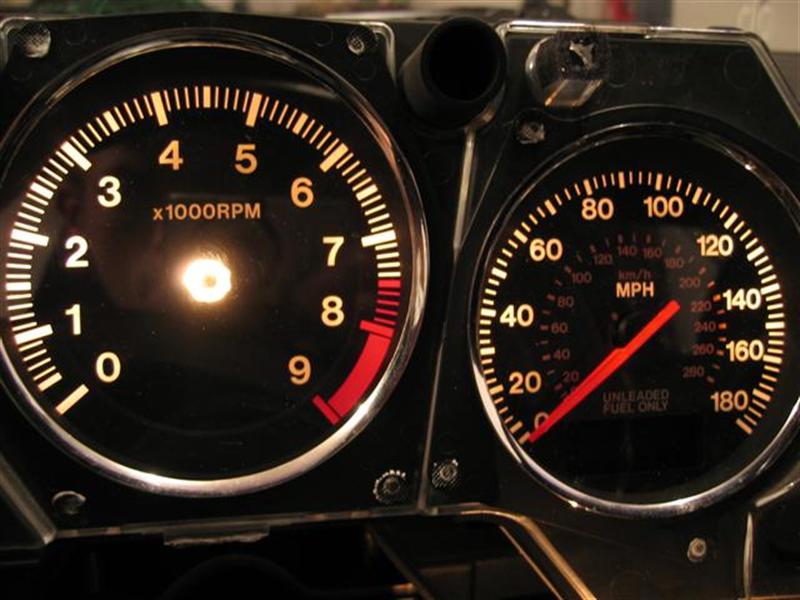

This proved to be difficult, and even worse was that the stock lights are incandescent, thus yellowish. Not satisfactory.

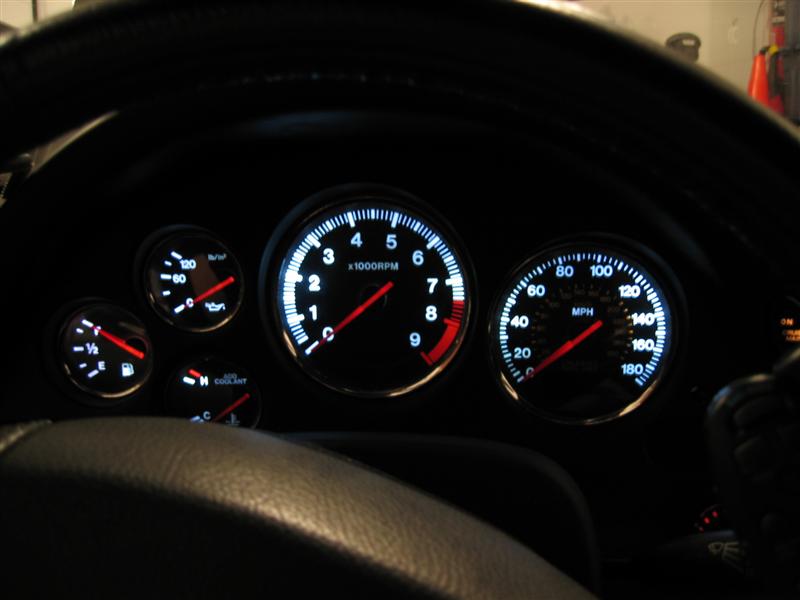

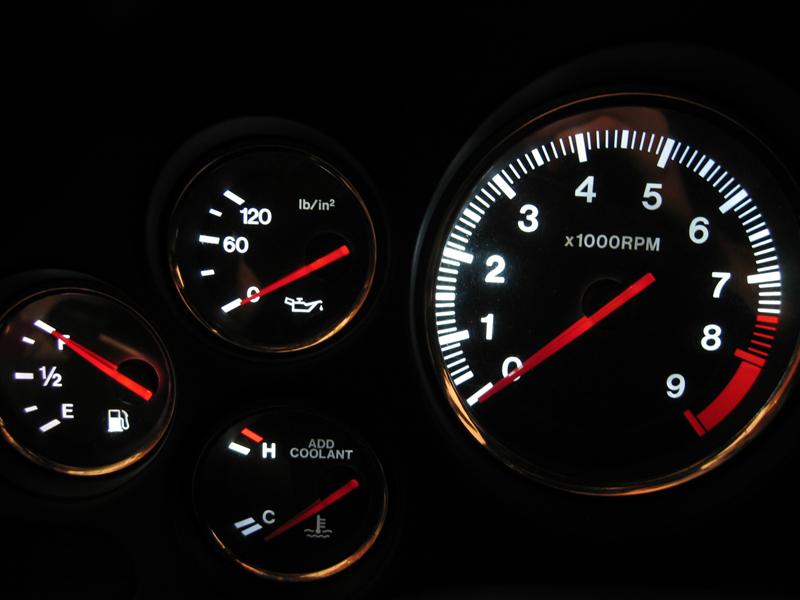

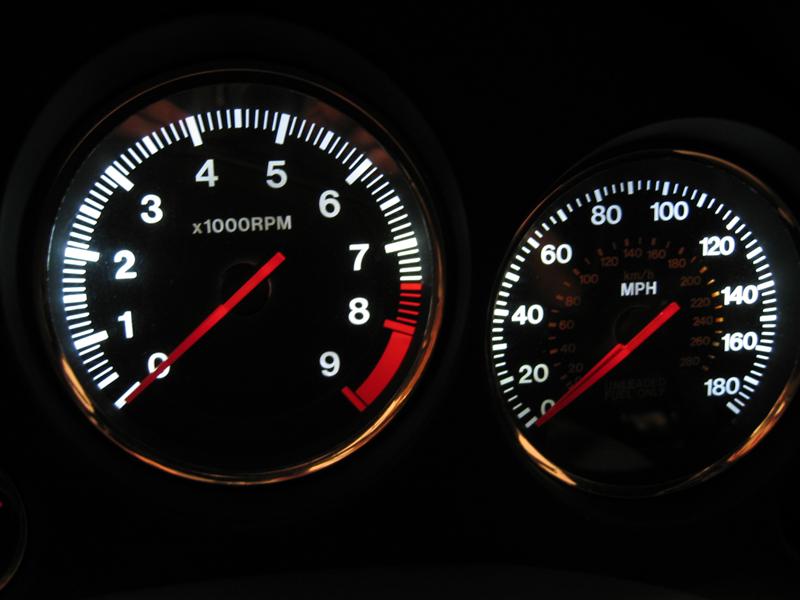

Grabbed some white LED bulbs from superbrightleds.com and the result is pretty good I am going to add 2 or 3 more LEDs the next time I remove my cluster, there is some unevenness that I'd like to eliminate.

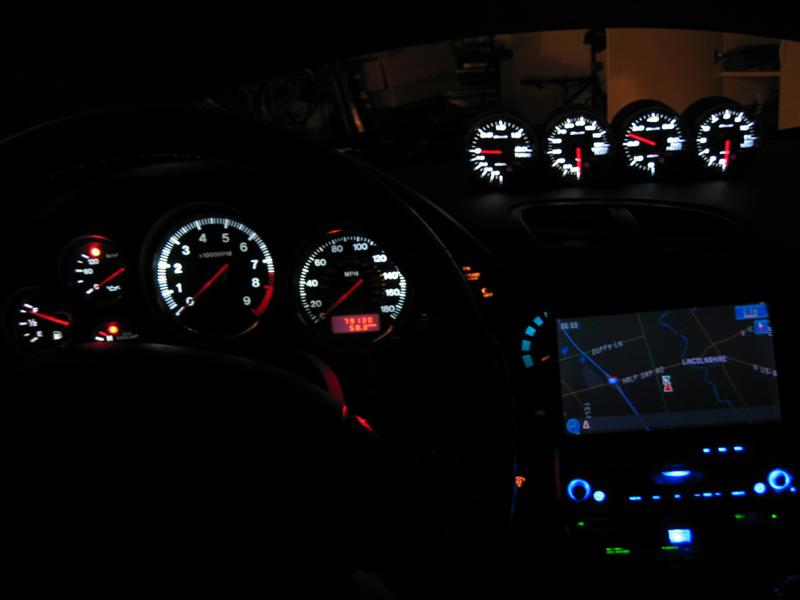

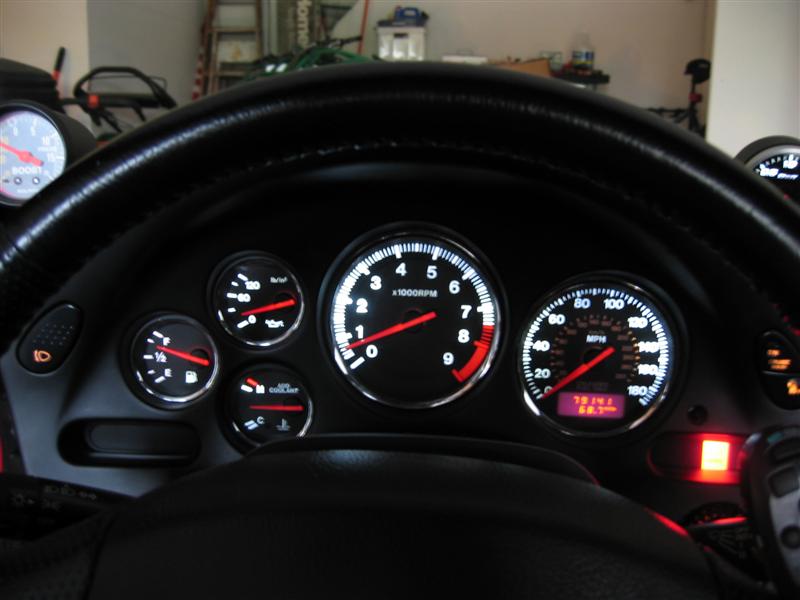

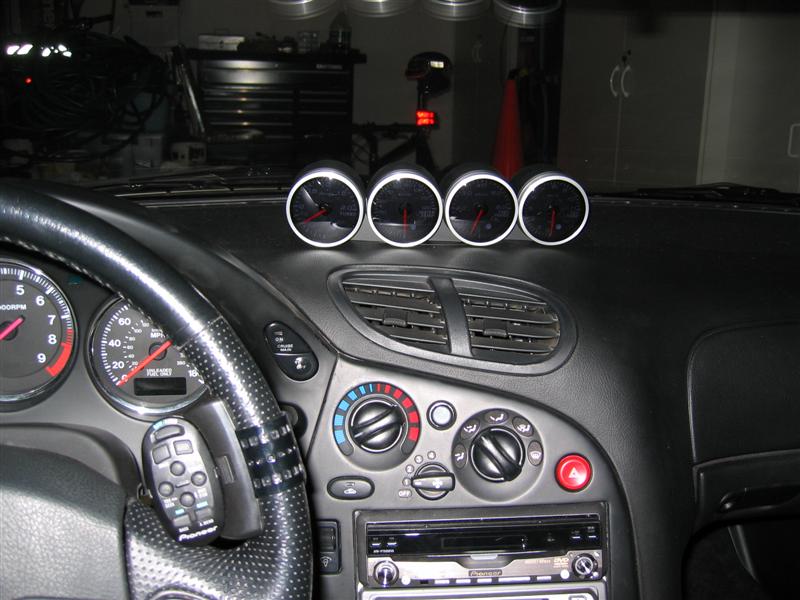

And, put it all together, and what do you get???? PERFECTION!





Part II coming soon.... Defi D-series A/F gauge

Questions and comments welcome



Damn, I have the exact same setup with the tri-pod cluster. Why the hell didn't he start making the quad when I bought mine? Damn you Frank!!! (just kidding, of course - I love my pod).

Very nice, very nice. What gauges (meaning what they monitor) did you chose? I have the BF series for EGT, Fuel Pressure, and Oil Temp. I kept the red on the stock cluster, and frankly it still blends in - not sure I'd have gone as far as you did with the sanding, but you setup will blend perfectly, but lots of work on your part.

Car guys are nuts, plain and simple.

Beast

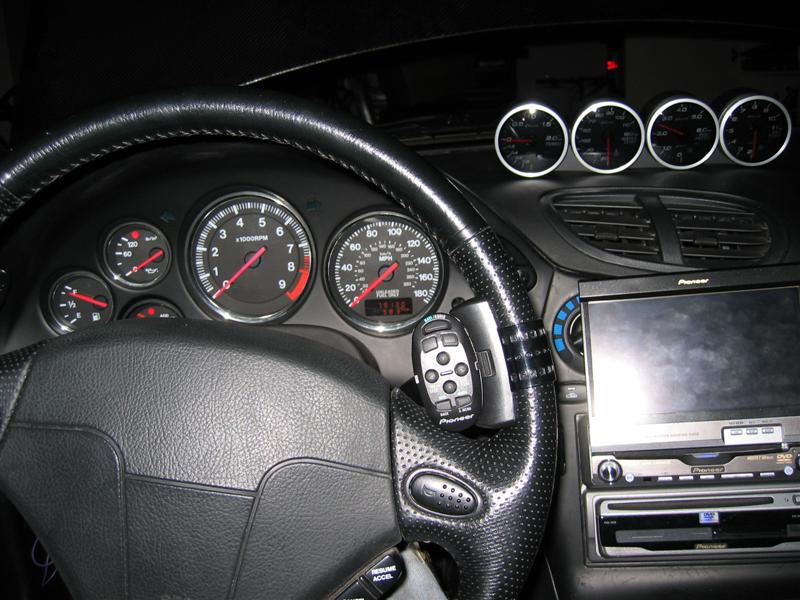

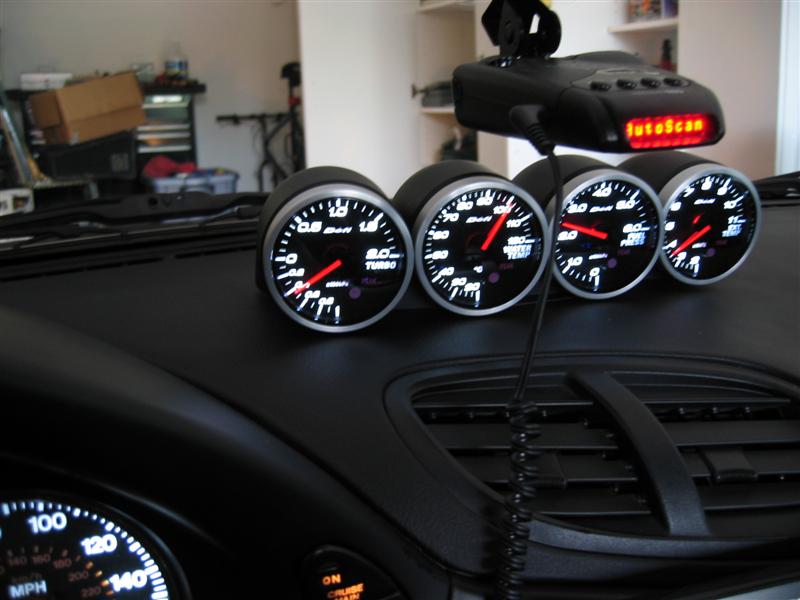

Those gauges are (from left to right) Boost Pressure, Water Temp, Fuel Pressure, Exhaust Temperature. A/F will be going on the A-pillar
