Harness Bar Options
03-14-06, 10:48 PM
#2
Eats, Sleeps, Dreams Rotary
There is the Rotaryextreme harness bar and the Raceshop harness bar.
You just missed the GB on the Raceshop roll cage bar....
You can also see the rotary extreme one sold used in the forsale section.
here is some pics of my Raceshop rollbar/harness bar
https://www.rx7club.com/forum/showth...=1#post5269183
here is a link to the groupbuy....if you want just the harnessbar you might want to pm Larry to see if he has just that laying around:
https://www.rx7club.com/forum/showth...2&page=1&pp=15
You just missed the GB on the Raceshop roll cage bar....
You can also see the rotary extreme one sold used in the forsale section.
here is some pics of my Raceshop rollbar/harness bar
https://www.rx7club.com/forum/showth...=1#post5269183
here is a link to the groupbuy....if you want just the harnessbar you might want to pm Larry to see if he has just that laying around:
https://www.rx7club.com/forum/showth...2&page=1&pp=15
03-15-06, 11:46 AM
#5
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
"race season"? What does that mean? If you really "racing", you would have a full rollbar or a cage.
There is no reason to rely on a harness for SAFETY in a car without a rollbar IMO. You can use a harness in conjunction with the factory seatbelt for track events. The harness will hold you in place while the seatbelt will be the actual safety device.
All that said, the Raceshop bar is a good piece.
There is no reason to rely on a harness for SAFETY in a car without a rollbar IMO. You can use a harness in conjunction with the factory seatbelt for track events. The harness will hold you in place while the seatbelt will be the actual safety device.
All that said, the Raceshop bar is a good piece.
03-15-06, 08:21 PM
#6
Originally Posted by rynberg
"race season"? What does that mean? If you really "racing", you would have a full rollbar or a cage.
There is no reason to rely on a harness for SAFETY in a car without a rollbar IMO. You can use a harness in conjunction with the factory seatbelt for track events. The harness will hold you in place while the seatbelt will be the actual safety device.
All that said, the Raceshop bar is a good piece.
There is no reason to rely on a harness for SAFETY in a car without a rollbar IMO. You can use a harness in conjunction with the factory seatbelt for track events. The harness will hold you in place while the seatbelt will be the actual safety device.
All that said, the Raceshop bar is a good piece.
Race season means solo1. I am well aware of the issue with using a harness and no rollover protection however my rules dont call for it and im not in the mood to "trim" the interior.
03-15-06, 09:07 PM
#7
rynberg, in regards to using the seatbelt inconjunction with the harness would you feel the factory strut brace is strong enough for this? Basically im thinking if the seatbelt turns into my primary safety restraint then is there real reason to reinforce the strutbar?
Trending Topics
03-15-06, 09:26 PM
#8
Eats, Sleeps, Dreams Rotary
Originally Posted by fd_neal
rynberg, in regards to using the seatbelt inconjunction with the harness would you feel the factory strut brace is strong enough for this? Basically im thinking if the seatbelt turns into my primary safety restraint then is there real reason to reinforce the strutbar?
neal, you might want to do a search as MANY feel that the factory strut bar is not suitable to support the harness.
03-15-06, 11:39 PM
#9
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by 7racer
neal, you might want to do a search as MANY feel that the factory strut bar is not suitable to support the harness.
03-16-06, 05:21 AM
#10
Full Member
Join Date: Jul 2004
Location: Brentwood, Ca
Posts: 113
Likes: 0
Received 0 Likes
on
0 Posts

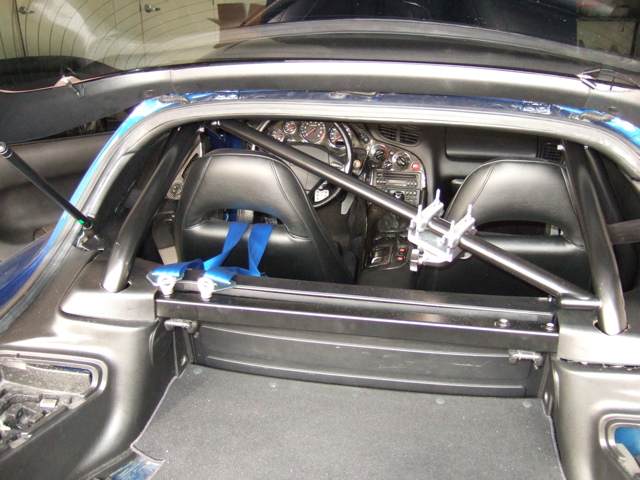

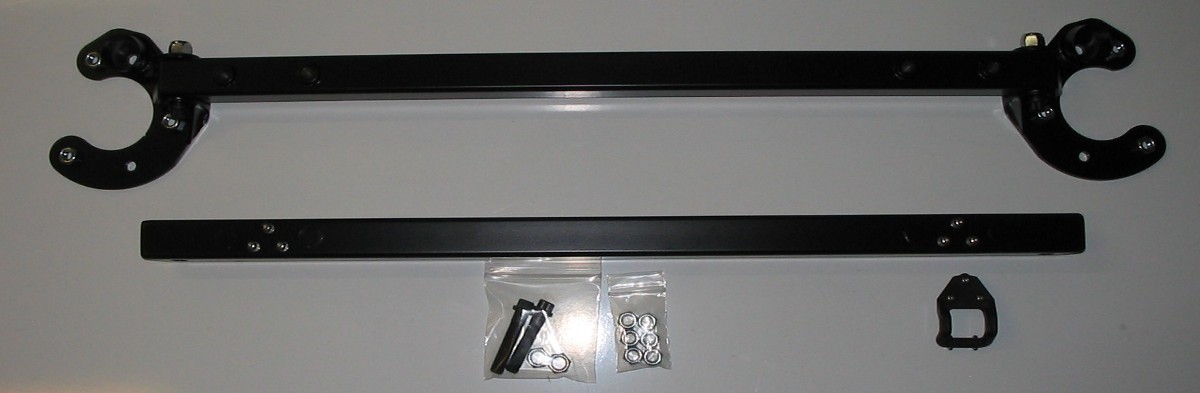

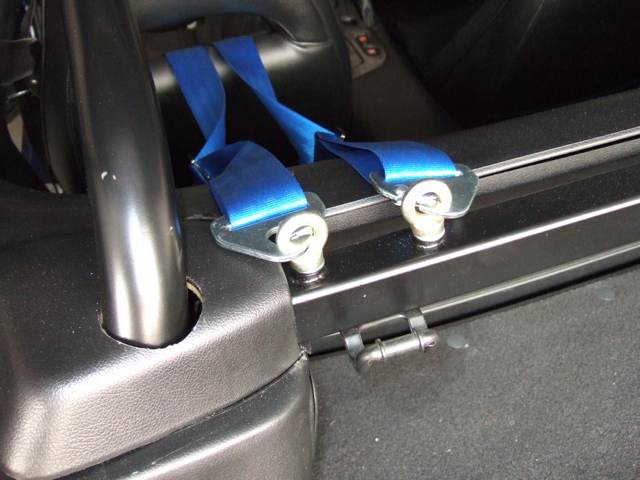

Here is a few pics of the harness bar that I offer.
It includes :
1.500" X 1.500" X .120" wall strut brace
.250" thick laser cut mounting plates
.500" 12 point bolts with lock nuts
10 mm locknuts for strut studs
10-32 thread inserts and stainless allen head screws for cargo cover
4 7/16-20 threaded bungs for seatbelt mounting points
Tig welded
Powdercoated Satin black

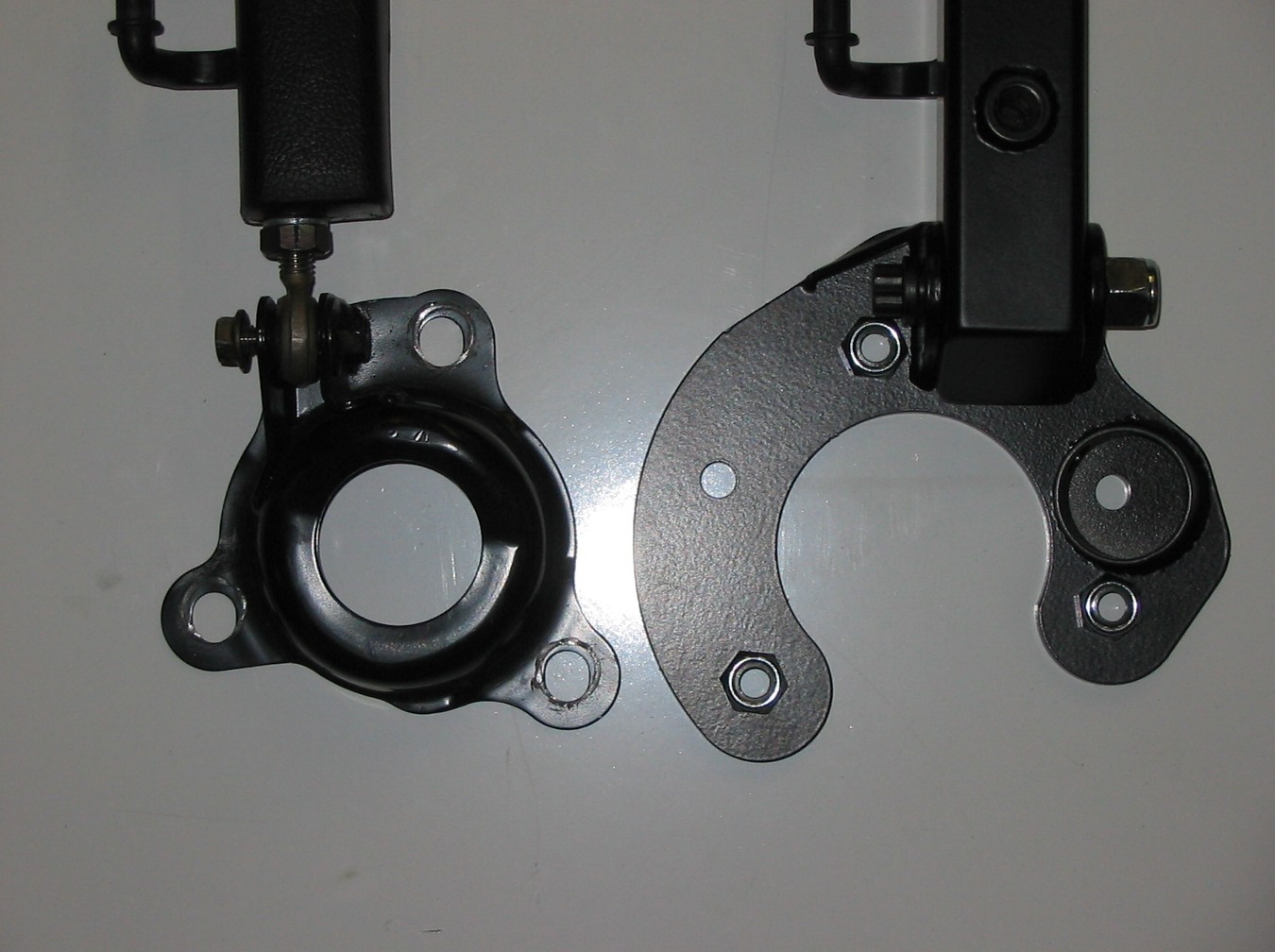

The third picture shows a side by side comparison. (stock one on the left )
Larry
It includes :
1.500" X 1.500" X .120" wall strut brace
.250" thick laser cut mounting plates
.500" 12 point bolts with lock nuts
10 mm locknuts for strut studs
10-32 thread inserts and stainless allen head screws for cargo cover
4 7/16-20 threaded bungs for seatbelt mounting points
Tig welded
Powdercoated Satin black
The third picture shows a side by side comparison. (stock one on the left
)Larry
Last edited by Raceshop; 03-16-06 at 05:41 AM.
