Grounding 101 "why so many?"
Ok this may sound stupid
And as I have been looking over all of the grounding diagrams and how to's I just have 1 question left...
Is it necessarry to have 6-7 grounds for an Rx7 ? Usually for many cars 1 ground from battery to body is good enough..
Now i know the performance of rx7's yada yada but is there any explanation for this or is this just a "monkey see. monkey doo.. type approach" to grounding...?
I am making a home made grounding kit, any suggestions or tips welcome...
Also I was just wondering what is not "good" to ground, like something that would blow your engine.
And also i hear people grounding their Downpipe and Catback.. why would this benefit?
And also, to those who grounded their ECU, how did you go about doing this ?
Please leave comments and suggestions.
THanks!
And as I have been looking over all of the grounding diagrams and how to's I just have 1 question left...
Is it necessarry to have 6-7 grounds for an Rx7 ? Usually for many cars 1 ground from battery to body is good enough..
Now i know the performance of rx7's yada yada but is there any explanation for this or is this just a "monkey see. monkey doo.. type approach" to grounding...?
I am making a home made grounding kit, any suggestions or tips welcome...
Also I was just wondering what is not "good" to ground, like something that would blow your engine.
And also i hear people grounding their Downpipe and Catback.. why would this benefit?
And also, to those who grounded their ECU, how did you go about doing this ?
Please leave comments and suggestions.
THanks!
#3
Banned. I got OWNED!!!
Join Date: May 2007
Location: IL
Posts: 60
Likes: 0
Received 0 Likes
on
0 Posts
yuichiror: thanks for the links. I wasn't even looking to do anything with my grounds but now I have another reliability mod to do! lol honestly though thanks cause that walkthrough is quick and easy.
#5
Original Gangster/Rotary!
iTrader: (213)
https://www.rx7club.com/bad-fugly-members-185/issues-me-seller-chitownr1-midwestbest-mwb-drifted7-tyrant-tt-615307/page7/
#6
Chris, if you're going to keep posting, how about you update this debacle of a thread?
https://www.rx7club.com/showthread.php?t=615307&page=7
https://www.rx7club.com/showthread.php?t=615307&page=7
looks like someone needs to make good!
#7
Rotary Enthusiast
Thread Starter
Join Date: Jul 2003
Location: Toronto
Posts: 823
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
#9
~17 MPG
iTrader: (2)
Don't think of it as multiple grounds. Think of the chassis as the largest wire on the car. All the grounds connect to it eventually. Using five or six small (and short) wires to connect to the chassis is usually a better idea than using one or two large (and long) wires that connect directly to the battery's negative terminal (which would be heavy, expensive and difficult to route).
-s-
-s-
#11
Rotary Enthusiast
Thread Starter
Join Date: Jul 2003
Location: Toronto
Posts: 823
Likes: 0
Received 0 Likes
on
0 Posts
Awesome great explenation scotty!
Ok just 2 more clarifications please... When connecting ground wires to the DP and Cat back, how do i go about doing this so the wiring doesn melt?
Also,
If i want to ground the eCU would i have to dril any holes through the fire wall? and do i put the ground on the actual ecu and connect that to the chasis?
Ok just 2 more clarifications please... When connecting ground wires to the DP and Cat back, how do i go about doing this so the wiring doesn melt?
Also,
If i want to ground the eCU would i have to dril any holes through the fire wall? and do i put the ground on the actual ecu and connect that to the chasis?
#15
Racecar - Formula 2000
"Ground Loops"
The FD electrical system, including the ECU and the engine sensors, is (apparently) particularly sensitive to minute voltage variations. This means that a couple of millivolts lost in bad connections can throw off the very sensitive calibrations that keep the fuel mixtures in tune with the throttle opening, intake-air temperature, intake manifold pressure, O2 sensor reading, etc., all sent via voltage values to the ECU.
"Ground loop" voltage is a way for electronic whiz kids to describe voltage variations between one ground point and another. If these voltage variations between ground points become large enough to exceed the tolerance built into the system, bad things can start to happen. In the FD's case it is usually the 3K (or other) hesitation, but it can be much worse if the voltage discrepancy is large enough.
In our fatigue-test lab, we have multiple heavy gauge grounds between the various parts of (especially) control systems to try to eliminate voltage spikes and other problems that can cause a test machine to shut down, or, even worse, go out of control and break expensive, irreplaceable, stuff.
One can never have too many or too heavy-gauge ground paths, but you can certainly have too few.
"Ground loop" voltage is a way for electronic whiz kids to describe voltage variations between one ground point and another. If these voltage variations between ground points become large enough to exceed the tolerance built into the system, bad things can start to happen. In the FD's case it is usually the 3K (or other) hesitation, but it can be much worse if the voltage discrepancy is large enough.
In our fatigue-test lab, we have multiple heavy gauge grounds between the various parts of (especially) control systems to try to eliminate voltage spikes and other problems that can cause a test machine to shut down, or, even worse, go out of control and break expensive, irreplaceable, stuff.
One can never have too many or too heavy-gauge ground paths, but you can certainly have too few.
Last edited by DaveW; 07-11-07 at 02:59 PM.
#16
Rotary Freak
iTrader: (8)
My 1993 Mercedes 500E has over 4-major ground points, and over seventy grounds total from the factory!

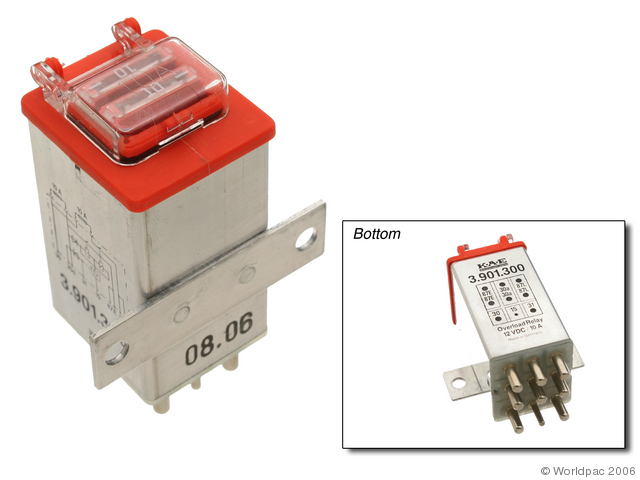

It even has an over-voltage/surge-protector module, that I'm thinking about integrating into the engine ECU of the FD . . .
:-) neil
It even has an over-voltage/surge-protector module, that I'm thinking about integrating into the engine ECU of the FD . . .
:-) neil
Last edited by M104-AMG; 07-11-07 at 09:37 PM.
