wb123

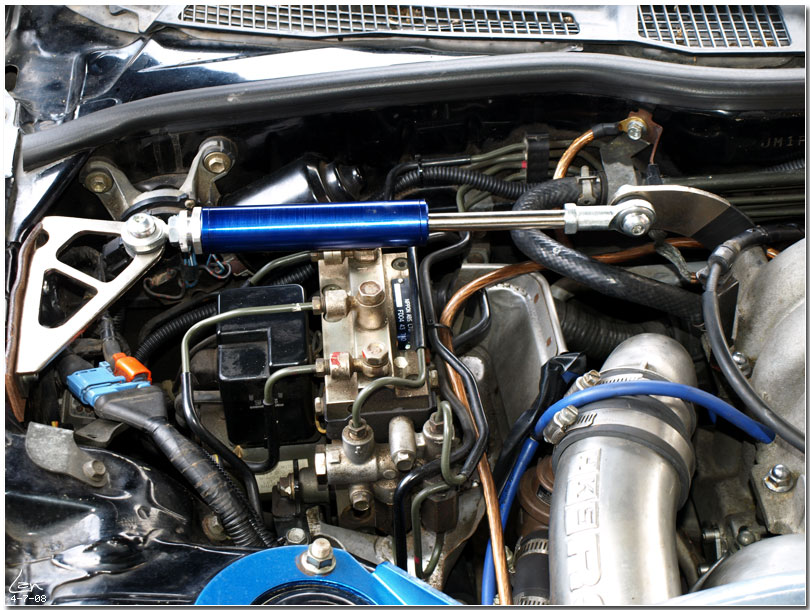

I just purchased an ebay torque damper, and I am aware that it will not fit and needs some fine tunning.

When i drill new holes do I have to tap them?

Smitter

dont drill any holes, just trim the narrow end off the bracket and use 2 bolts to mount it.

4CN A1R

iTrader: (6)

mine fit fine...it is touching the hood though. all i did was piece it together, hooked up the uim end first, then followed with the bracket end. as the screws tightened it pulled tight.

Azcamel

iTrader: (1)

trim the edge that is near the fire wall, about 1/3 inch, make a square notch pretty much, I just did mine last week.

wb123

Could someone post me a pic of this please?

just so i know I am doing it right.

theorie

iTrader: (31)

if you search, there are several threads about the ebay torque damper

btw, Azcamel that sig is wayyyyy too big.

grimple1

iTrader: (1)

+1

Sgtblue

iTrader: (16)

Something else that's too big is the list of threads started by the OP (170 total...6 or 7 so far this month). Almost every one he could have answered himself if he would only search.

LAN

iTrader: (1)

Get rubber bushings and insert them everywhere you can.
and use some rubber pad or something similar for the side wall.
This should miminise the vibrations.
Also use both holes of the bracket that attaches to the UIM., there are 2 holes there.

wb123

GOd dam broke a bolt on the back of my UIM.

ANyone have experience or know how to take the rest of the bolt off?

i dont wanna have to take off the UIM if i dont have too. =(

IRPerformance

iTrader: (41)

You will most likely have to pull the uim off. Don't see a way you're going to get an easy out or something in there to drill it out. Maybe if the bolt didn't break off flush you can try grabbing it with vice grips.

wb123

does it take long to get the UIM off?

wb123

also, i need 2 new bolts.

the ones on the bracket that connects to the back of the UIM where can i get the same thread pattern?

Rollogic

iTrader: (1)

About 5 minutes or less if you have done it many times! Its easier if you are running single turbo though, not as many vacuum lines to pull.

I have a torque damper from Ebay on mine and it worked perfectly.

Now here's a guy with a good idea!

wb123

How many bolts are there to unscrew?

anyone have pics of the bolts circled?

i may just do it myself tommorow

wb123

Is there a gasket? and does it need to be replaced when you remove the UIM?

Smitter

I thought i was the only one who noticed, He's got some real classics!

Rollogic

iTrader: (1)

Do you not have your RX7 around at the moment? To find out how many bolts you have go pop your hood. Yes, there is a gasket between the uim and lim, it should be made of metal and could be reused (at least I know that I have without any issues)

4CN A1R

iTrader: (6)

5min!!?? you have mad skills if you can get the uim off in such little time. it takes me about 20-30min since it has to be contorted out of its spot between the intakes and the tb.

plus labeling all the vac lines, putting aside the pressure chamber, and the throttle cable takes some time.

there are "from memory" around 10-15 bolts that need to be removed to take the uim off. make sure you tape off the LIM top that way nothing drops into the intake track.

good luck!
