Easy fix for broken clutch switch.
Ok well this morning being mothers day I treated the mum to a cruise up the coast and coffee at a local coffee shop. 26 degrees C, not a cloud in the blue sky, awesome weather for a morning cruise.
So my baby decides to start playing up. (That's my car, not my mum, you sickos). Idles great in neutral, stalls when in gear with the clutch depressed. Searched on here and found this can be caused by a failed clutch switch. Go to check it out and sure enough, when the clutch is depressed the rod only springs out about half way.

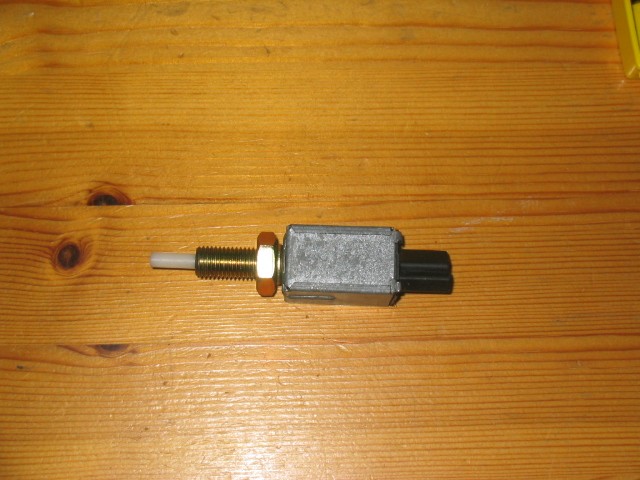

I bring the switch inside and test it with a multimeter - it is stuck open circuit, as if the clutch pedal was always up. IF I pull the rod out, I can get the contacts to close, so it's half working. Just the rod isn't being pushed out far enough to close the contacts, looks like the spring might be dead.

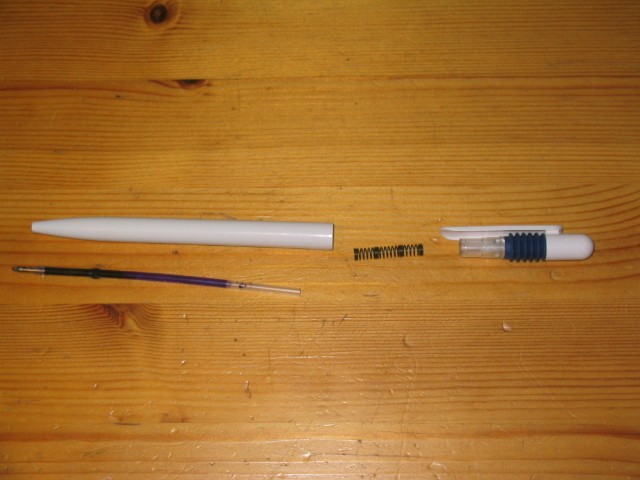

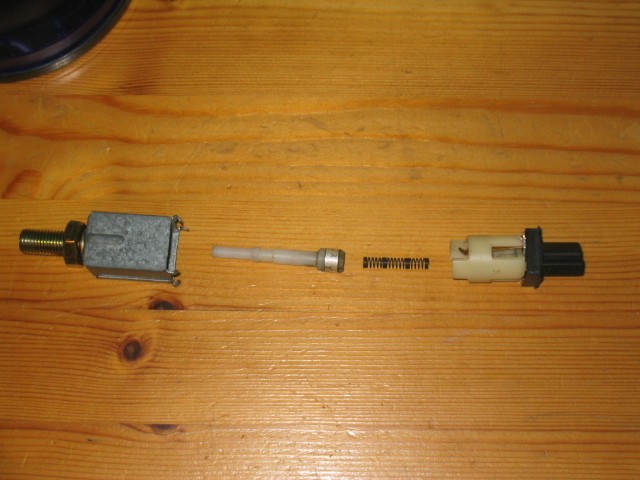

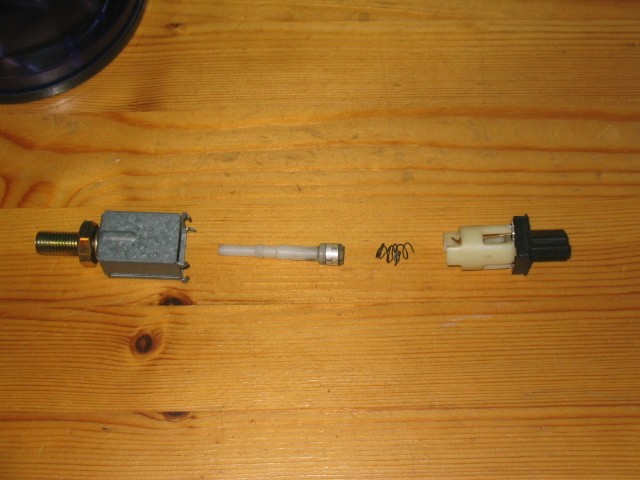

Pull the thing apart and sure enough, one very dead spring. Rather than go to the hardware store to search for a similar spring, I decided to take apart a pen to see what sort of spring I could find, as I figured they would be similar size. The first pen I found had a spring that fit and works great!
For those that might ask about the spring size - the diameter of the spring is smaller but it seems to fit perfectly, and the length/stiffness appear to suit the purpose well. Hell, it works. I didn't even pay for the pen I stole it off my brother who got it from his last job......sure beats paying for a new one. As for the durability of the spring - who knows, but it will be damn easy to replace if it breaks again.
Huge props to this damn fine website - I spent a total of 30 minutes pulling, testing, and fixing this clutch switch. And a good part of that would have been trying to take decent photos that weren't blurry.
So my baby decides to start playing up. (That's my car, not my mum, you sickos). Idles great in neutral, stalls when in gear with the clutch depressed. Searched on here and found this can be caused by a failed clutch switch. Go to check it out and sure enough, when the clutch is depressed the rod only springs out about half way.
I bring the switch inside and test it with a multimeter - it is stuck open circuit, as if the clutch pedal was always up. IF I pull the rod out, I can get the contacts to close, so it's half working. Just the rod isn't being pushed out far enough to close the contacts, looks like the spring might be dead.
Pull the thing apart and sure enough, one very dead spring. Rather than go to the hardware store to search for a similar spring, I decided to take apart a pen to see what sort of spring I could find, as I figured they would be similar size. The first pen I found had a spring that fit and works great!
For those that might ask about the spring size - the diameter of the spring is smaller but it seems to fit perfectly, and the length/stiffness appear to suit the purpose well. Hell, it works. I didn't even pay for the pen I stole it off my brother who got it from his last job......sure beats paying for a new one. As for the durability of the spring - who knows, but it will be damn easy to replace if it breaks again.
Huge props to this damn fine website - I spent a total of 30 minutes pulling, testing, and fixing this clutch switch. And a good part of that would have been trying to take decent photos that weren't blurry.
#3
The Man
Nicely done! This also causes the cruise control to not disengage when the clutch is depressed. I've done this to several cars including my own. The pen spring is also easier to find a replacement for when needed!
Art
Art
#4
Full Member
Join Date: Feb 2002
Location: NEW JERSEY
Posts: 194
Likes: 0
Received 0 Likes
on
0 Posts
Thanks Jeff. Your post just made those hot jesey days alot easier for me. My car USED to stall with the clutch all the way in, but with your help and a BIC pen I no longer have that problem. Now i just have to hook up the a/c back to my PFC so i can adjust the load for when the A/C is on and i am good to go. Thanks to You.
#6
Rotary Enthusiast
Join Date: Jul 2003
Location: Toronto
Posts: 823
Likes: 0
Received 0 Likes
on
0 Posts
Would a bad clutch switch cause a "squeek" sound
Squeek sound when you push the clutch in??
my car does idle a bit high when its cold, and sometimes it will hunt when at idle...
my car does idle a bit high when its cold, and sometimes it will hunt when at idle...
Trending Topics
#8
If it's fast I'm There
iTrader: (24)
Join Date: Nov 2005
Location: Waxhaw, NC
Posts: 852
Likes: 0
Received 0 Likes
on
0 Posts
Thank you Ray from Malloy Mazda
I was bored and Ray wasn't in today so I tried the fix and sure enough, it worked like a charm. I just saved myself $12.00 plus shipping.
Notice where I got the spring from
Notice where I got the spring from
