Bodyshop

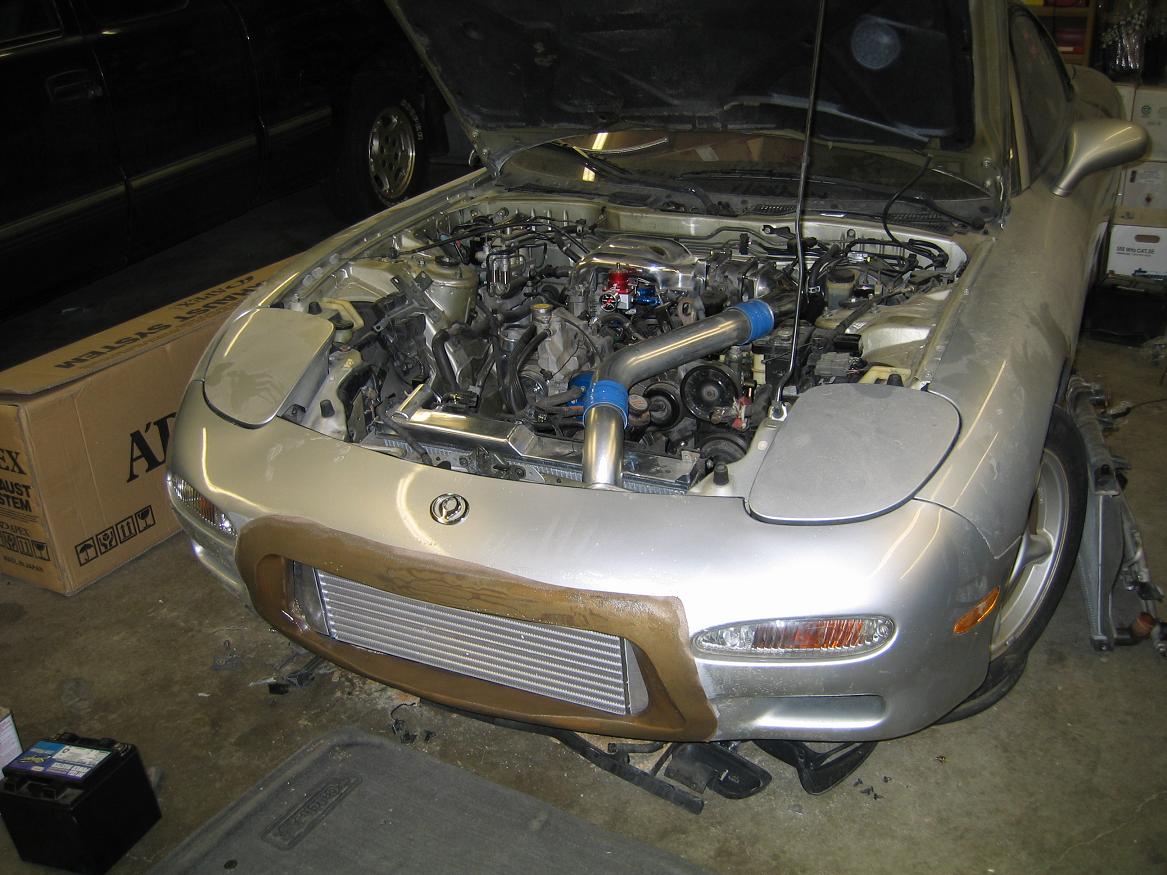

Here's what I was working on today. I am working on my GT35R single turbo setup up and running. Along with the turbo, I went with a Greddy 2 row FMIC. After bolting it up and fitting the front bumper I noticed that there isn't much room for air to get in to the FMIC. I decided to make a larger opening. Originally I wanted to go with all '99 spec parts. We'll see how this turns out before I commit to the '99 spec stuff.

Bodyshop

What do you think?

Mahjik

iTrader: (1)

Since you asked.....

1sicsol

Very interesting. I've been waiting for someone to do this for a while. I want to do the same with mine, but I only to open it up only a couple of inches, to let more air flow for the 3 row.

Narfle

iTrader: (16)

i think it will look a lot better painted. its definitely unique. i kindof like it. actually. i flat out like it.

scratchjunkie

i think it will look cool after you paint your bumper

weaklink

I think you need to put a screen or some sort of protection there. At best you have a nice bug catcher, at worst your IC is going to eat a big rock.

1sicsol

Use some black screen form a screen door, it will help keep the bugs out.

drivenfast788

looks good that is one big *** intercooler

rotorbrain

is it effective??? yes. . . nice???. . . somewhat. . . i dont think its necessarily marketable. . . i think its good for drag racing and thats about it. other than that. . . i would like to see the painted bumper first.

paul

BlueRex

Get that thing back in the bodyshop and put that bumper back to stock.

SiKoPaThX

iTrader: (2)

Honestly, I don't even think it would be fair for me to comment on th form of this. This is obviously 100% about function, so with that in mind, I say good job. Add a screen as other people have said.

This reminds me of an Eclipse that was in the USC Challenge a few years ago.

Bodyshop

Thanks for the input so far. I'm not sure if I'm going to like it either. It just seems like such a waste to have big front mount and no way for air to get through it. I can't believe how small the stock opening is.

I wonder if this will help get more air to the radiator too.

I'll post up some more pics after I get it painted.

By the way. Does anyone have any pics of a front mount with this screen people are talking about?

13BNUT

iTrader: (8)

That is one huge intercooler!!
Nice

FDHayce

Seen this done on a couple of FD's in NZ and aus. Workmanship looks pretty good but Id go with `99 front instead.. my $0.02

rotorbrain

the 99 front isnt that much bigger if i remember correctly. . . id assum hed STILL have satisfaction issues with it. . . based on what he did to the stocker.

paul

apex_sideway

It doesn't look cool but everything that is functional doesn't look awesome; cool idea man.

weaklink

to get air, custom fab a duct. You obviously have the skills. There's not even room for a screen with your design. I'll look around to see if I can find cars with screens. You should know, however, that there is a lot of controversy surrounding reduction of airflow through screens.

weaklink

https://www.rx7club.com/3rd-generation-specific-1993-2002-16/track-car-back-together-few-pics-406126/

thanks Damian, I didn't have to look too far.

BigIslandSevens

iTrader: (4)

looks very functional. I bet if Chuck @ RE was copying this people would LOVE it!! Gotta love the clicky nature of the forum.

Get it painted and repost pics. If you duct the bottom and side of the IC to the Rad you will dramaticaly DROP water temps. I dropped them by 20 degrees across the board when i put a 2 row on a customers car and fabbed a duct.

Nice work.

widebody2

Bigisland what would you recommend using for the ducting between the IC and rad. I've been wanting to do this but can't think of a good material to use.

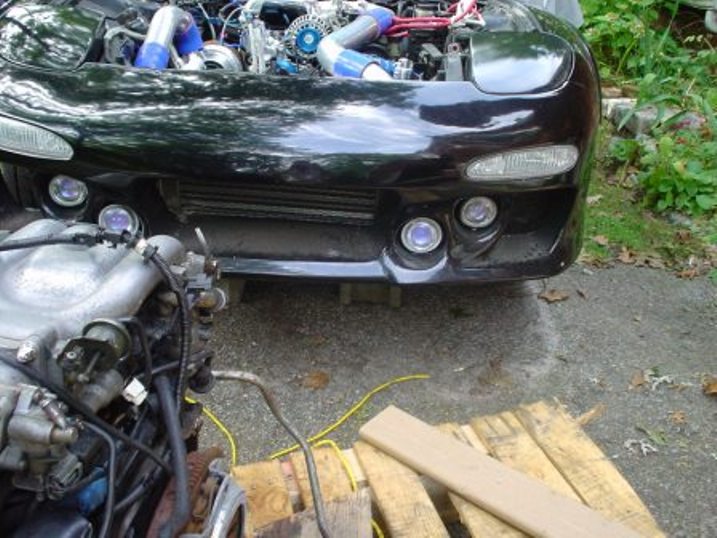

This is the best I could do with the picture...I know it sucks but its the only one I had on my computer. In person you don't see the mesh much from more than a couple of feet away. I think I'd recommend getting a different aftermarket bumper than the 99 because obiously you are looking for a large opening. I don't think this is going to come out looking all to good even when its painted. I mean the 7 is a sexy looking car...you can't ruin that just for a little bit of functionality, unless you're an all out race car guy.

Typhoon33

I like it. form following function is almost always cool. love to see it painted.

bolo_fd

iTrader: (2)

i'm guessing u havn't seen damian's car

BigIslandSevens

iTrader: (4)

I used a 16 or 18 gauge metal. Made blocking plates for the sides and a mounting surface for the bumper lip. I attached it to the radiator mounting tab bolts that are present after standing the rad. upright.

Pm me your email and i will see if i can find a good shot of it off the car and on.
I also made a top plate to seal the gap of the bumper to radiator.

The owner has since turned the car into a rolling POS of mismatched spray paint and lens tint spray. he backed into a rock wall in his driveway that had only been in that place for the last 15 years kinda hard to forget about I would think. Soo that being the case the car has not been in for the "final edition" of the scoop. Buut, it works and looks OK. I was going to make it cleaner, espeacially the top cover. But since he is hell bent on destroying the car i don't feel that motivated to do it. espeacially since he NEVER paid me for the first edition...Why am i moving again?haha!!

let me know and i will get some shots to you.

Dave

the_glass_man

iTrader: (2)

I've seen a few people do this and I think it looks awesome, especially if it's done the right way!
