Clutch identification
#1
Clutch identification
I’m in the process of changing my clutch for the first time and was wondering if this is an OEM clutch disk. Car only has about 90k on it so it could possibly be original. Just never seen one before so I’m not sure.
I never liked the feel of the clutch as the engagement was too quick. Feels very different from my previous FD. Still need to pull the flywheel and see if I can identify it as well.
when all is said and done I’m looking for an OEM feel as the car is basically stock so I’m probably going to get an exedy OEM kit. Just going to take my time and go through everything so I don’t have to do this again
Thanks!
I never liked the feel of the clutch as the engagement was too quick. Feels very different from my previous FD. Still need to pull the flywheel and see if I can identify it as well.
when all is said and done I’m looking for an OEM feel as the car is basically stock so I’m probably going to get an exedy OEM kit. Just going to take my time and go through everything so I don’t have to do this again
Thanks!
#2
Rotary Freak
Rivet pattern on the disc is certainly OEM - or a good copy. What you can see of the pressure plate would seem to confirm that's stock too.
Unless removing the flywheel for grinding and seal leaks, no need to do much investigation - the integral counterweight on the back gives the game away for an original installation!
Unless removing the flywheel for grinding and seal leaks, no need to do much investigation - the integral counterweight on the back gives the game away for an original installation!
The following users liked this post:
nmoffatt (09-28-22)
#3
Urban Combat Vet
iTrader: (16)
Been a long time since I saw one but looks stock to me too.
Going “through everything“ can be a big list. In addition to a new clutch and PP…resurface FW, rear main seal, pilot bearing, clutch fork, release collar, rear transmission seal…and even front transmission seal…grease and fluids.
Going “through everything“ can be a big list. In addition to a new clutch and PP…resurface FW, rear main seal, pilot bearing, clutch fork, release collar, rear transmission seal…and even front transmission seal…grease and fluids.
Last edited by Sgtblue; 09-28-22 at 07:14 AM.
The following users liked this post:
nmoffatt (09-28-22)
#4
Senior Member
iTrader: (16)
I’ll echo what’s been said here already. That looks like the oem one to me. If you do take the flywheel off to be resurfaced, which you should. Do yourself a favor and re-torque the tension bolts. Most people with stock or slightly modified cars run the act kit zx6-Hdss.
~ GW
~ GW
#5
RX-7 Bad Ass
iTrader: (55)
The stock-type Exedy clutch is the way to go on a stock or near-stock car. It will drive like the stock clutch and have OEM-quality.
If you are making more power and want to handle it, get the Exedy Stage 1. That's what I have. Just a little more pedal pressure than stock and I've had ZERO problems or slipping, making probably 320-340hp to the ground. Very easy to drive.
Dale
If you are making more power and want to handle it, get the Exedy Stage 1. That's what I have. Just a little more pedal pressure than stock and I've had ZERO problems or slipping, making probably 320-340hp to the ground. Very easy to drive.
Dale
The following users liked this post:
nmoffatt (09-28-22)
#6
Rivet pattern on the disc is certainly OEM - or a good copy. What you can see of the pressure plate would seem to confirm that's stock too.
Unless removing the flywheel for grinding and seal leaks, no need to do much investigation - the integral counterweight on the back gives the game away for an original installation!
Unless removing the flywheel for grinding and seal leaks, no need to do much investigation - the integral counterweight on the back gives the game away for an original installation!
I chalk up the feel in the clutch being due to worn/old parts.
#7
Been a long time since I saw one but looks stock to me too.
Going “through everything“ can be a big list. In addition to a new clutch and PP…resurface FW, rear main seal, pilot bearing, clutch fork, release collar, rear transmission seal…and even front transmission seal…grease and fluids.
Going “through everything“ can be a big list. In addition to a new clutch and PP…resurface FW, rear main seal, pilot bearing, clutch fork, release collar, rear transmission seal…and even front transmission seal…grease and fluids.
Hopefully will get my shopping list together in the next couple of days
The following users liked this post:
Sgtblue (09-28-22)
Trending Topics
#8
Urban Combat Vet
iTrader: (16)
The only reason I mentioned the front seal/input shaft seal is because a year or so ago I had to drop the transmission when mine started leaking. Like the rear tail housing seal, it’s cheap and really easy to do.
FWIW I did some reading on Racing Beat’s site and they suggested that R &R’ing the transmission tends to stress the seals…probably especially true on older ones. So…
FWIW I did some reading on Racing Beat’s site and they suggested that R &R’ing the transmission tends to stress the seals…probably especially true on older ones. So…
#9
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,603 Likes
on
1,847 Posts

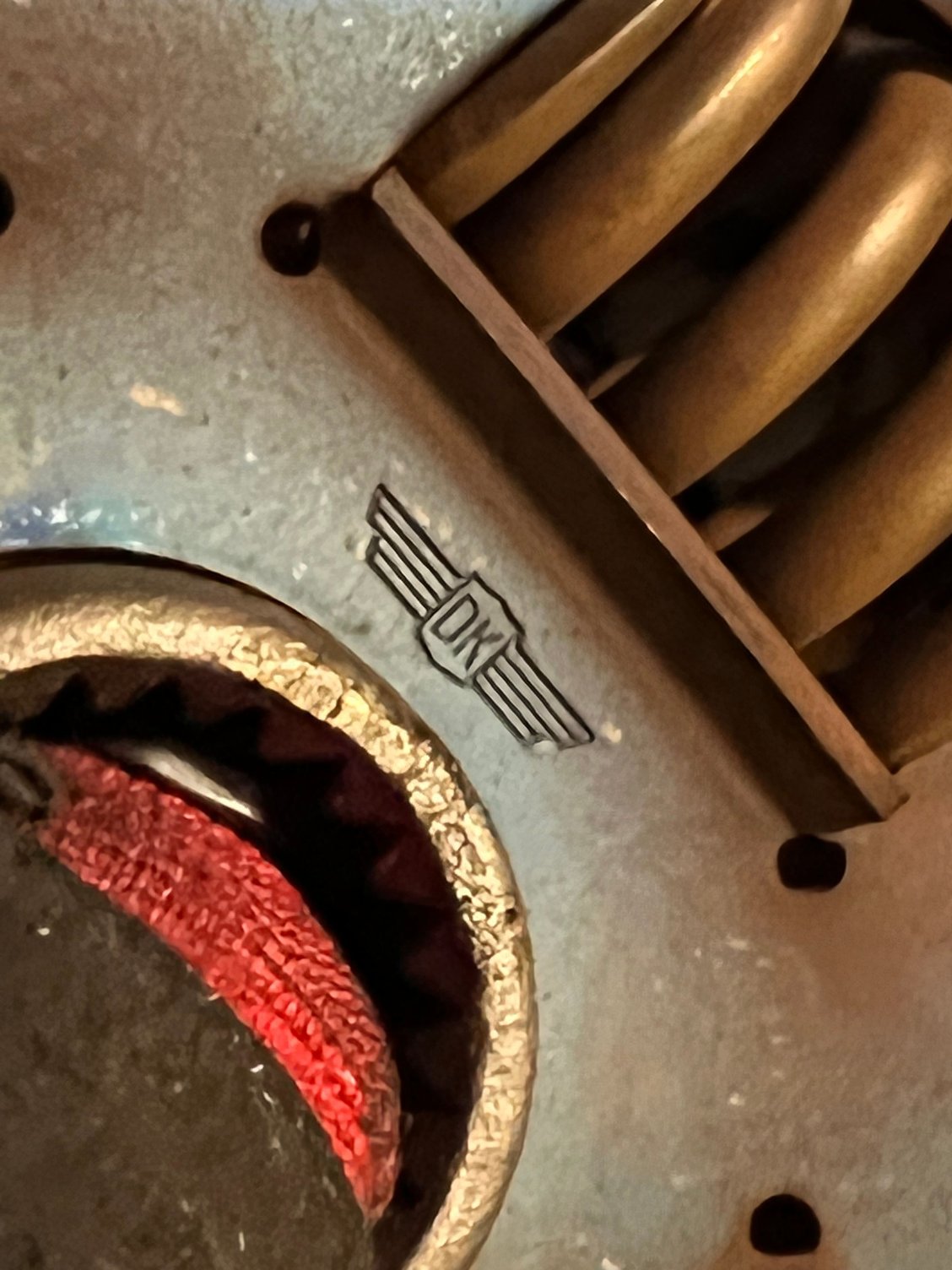

Mazda uses a Daiken/Exedy clutch, so look for the symbol, it'll be on the disc
The following users liked this post:
nashman69g (09-29-22)
#11
RX-7 Bad Ass
iTrader: (55)
You can use digital calipers to measure how thick the clutch disc is, shop manual has a wear spec.
Rock Auto has stock Exedy kits, I think Amazon does too.
Dale
Rock Auto has stock Exedy kits, I think Amazon does too.
Dale
#12
Racecar - Formula 2000
Yup - seals harden as they age, and expanding an old one more than normal due to designed-in play in the input shaft, etc., is very likely to leave it too loose to seal.
The following users liked this post:
Sgtblue (09-29-22)
#14
Coincidently on the way home from work yesterday the clutch started to slip on my 8. Looks like I'm going to get pretty good at this...
#15
RX-7 Bad Ass
iTrader: (55)
The FD and the 8 are both relatively easy cars to do clutch jobs on.
Dale
Dale
