Changing oil on lowered 7's

Thread Tools

Search this Thread

Old 07-20-06, 04:26 PM
  #1
Rotary Freak

Thread Starter

chinaman's Avatar

Join Date: Dec 2001
Location: Macungie, Pennsylvania
Posts: 1,802
Likes: 0
Received 0 Likes on 0 Posts
Tool for changing oil on lowered 7's

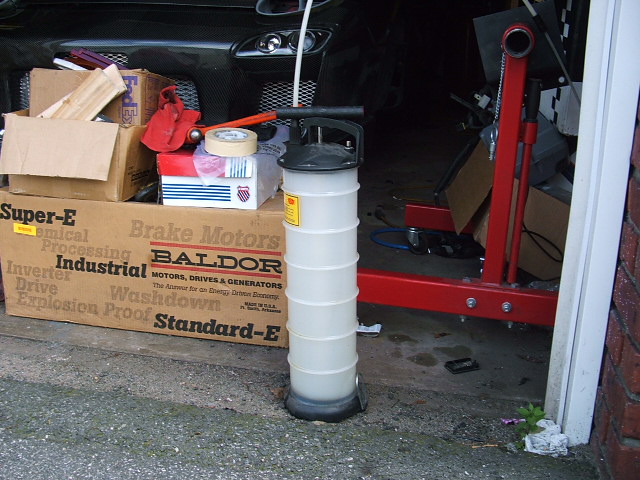

Don't know if anyone posted this before but been using this for years at the job and, I have one for my car. All you need to do is stick the tube down the dipstick tube and suck the oil out. Change your filter, add oil and you're on your way! This thing will obviously suck the oil better if it's warmed up. It holds about 7 quarts of oil. I got this from one of the tool guys that come to the shop. If you don't have access to one, you can get it from The Eastwood Company, www.eastwood.com
Attached Thumbnails Changing oil on lowered 7's-rx-7-pics-666.jpg

Last edited by chinaman; 07-20-06 at 04:52 PM.
Old 07-20-06, 04:51 PM
  #2
Rotary Freak

Thread Starter

chinaman's Avatar

Join Date: Dec 2001
Location: Macungie, Pennsylvania
Posts: 1,802
Likes: 0
Received 0 Likes on 0 Posts
bump for a helpful tool
Old 07-20-06, 05:01 PM
  #3
No more G6

iTrader: (19)

Force13B's Avatar

Join Date: May 2005
Location: Nipomo, California
Posts: 1,935
Likes: 0
Received 1 Like on 1 Post
I just drive my car up on ramps.
Old 07-20-06, 05:07 PM
  #4
Full Member


cbf246's Avatar

Join Date: Jul 2005
Location: Texas
Posts: 181
Likes: 0
Received 0 Likes on 0 Posts
very good site for tools.
Old 07-20-06, 05:22 PM
  #5
Original Gangster/Rotary!


iTrader: (213)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 30,529
Received 539 Likes on 326 Posts
Thumbs up

I am going to purchase one of those rat bastards

Edit: That radiator fin rake is something we can all use on our stock oil coolers......

Last edited by GoodfellaFD3S; 07-20-06 at 05:26 PM.
Old 07-20-06, 05:51 PM
  #6
reliable performance


JConn2299's Avatar

Join Date: Feb 2001
Location: MA, USA
Posts: 383
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by chinaman
Don't know if anyone posted this before but been using this for years at the job and, I have one for my car. All you need to do is stick the tube down the dipstick tube and suck the oil out. Change your filter, add oil and you're on your way! This thing will obviously suck the oil better if it's warmed up. It holds about 7 quarts of oil. I got this from one of the tool guys that come to the shop. If you don't have access to one, you can get it from The Eastwood Company, www.eastwood.com

...and does it work well for you? I have a similar pump and it only gets about 1 qt of oil out of my FD. I can't get the tube to go all the way to the bottom of the oil pan....it's blocked from getting through. It works better on my other car, which is a V8, but even on that car the way the oil pan is designed there's a little bit left in a depression by the drain plug that forces me to remove the plug to empty it out.

If you've got a trick for getting the tube to the lowest point of the oil pan on your RX-7 I'd be happy to hear it.

Last edited by JConn2299; 07-20-06 at 05:53 PM.
Old 07-20-06, 07:49 PM
  #7
Rotary Freak

Thread Starter

chinaman's Avatar

Join Date: Dec 2001
Location: Macungie, Pennsylvania
Posts: 1,802
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by JConn2299
...and does it work well for you? I have a similar pump and it only gets about 1 qt of oil out of my FD. I can't get the tube to go all the way to the bottom of the oil pan....it's blocked from getting through. It works better on my other car, which is a V8, but even on that car the way the oil pan is designed there's a little bit left in a depression by the drain plug that forces me to remove the plug to empty it out.

If you've got a trick for getting the tube to the lowest point of the oil pan on your RX-7 I'd be happy to hear it.
Did yours come with a small tube? If not, you need that one to go all the way down into the oil pan.
Old 07-20-06, 07:55 PM
  #8
Sponsor
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts
The problem with those is they won't get all the metal shavings or other contaminants that would settle at the bottom of the pan.
Old 07-20-06, 07:56 PM
  #9
Don't worry be happy...

iTrader: (1)

Montego's Avatar

Join Date: Apr 2001
Location: San Diego, CA
Posts: 6,846
Received 787 Likes on 463 Posts
great product... thanks
Old 07-20-06, 10:41 PM
  #10
reliable performance


JConn2299's Avatar

Join Date: Feb 2001
Location: MA, USA
Posts: 383
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by chinaman
Did yours come with a small tube? If not, you need that one to go all the way down into the oil pan.

Small enough to fit easily inside the dipstick tube. It goes down that tube and then hits an obstruction no amount of manipulation can seem to get it around.
I've never had the oil pan off the car, but the service manual shows an anti slosh type plate above the oil pickup. It appears this is what the suction tube is hitting.
That's why I'm surprised you say your device works so well.
Old 07-21-06, 12:02 AM
  #11
Rx7 Wagon

iTrader: (16)

Narfle's Avatar

Join Date: Nov 2002
Location: California
Posts: 6,988
Received 875 Likes on 548 Posts
"Get a jack and a wrench", said the old fogey.

That thing is a gem if you put too much oil in. Otherwise its a hack job. IMHO of course.
Old 07-21-06, 12:12 AM
  #12
Derwin

iTrader: (2)

dradon03's Avatar

Join Date: Apr 2005
Location: MTL, QC
Posts: 2,888
Likes: 0
Received 0 Likes on 0 Posts
I know this is a little off topic but wasn't there something like this that did coolant and brake fluid or maybe just coolant I dont remember...
Old 07-21-06, 06:38 AM
  #13
Rotary Freak

Thread Starter

chinaman's Avatar

Join Date: Dec 2001
Location: Macungie, Pennsylvania
Posts: 1,802
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Rotary Experiment Seven
The problem with those is they won't get all the metal shavings or other contaminants that would settle at the bottom of the pan.
You won't get all the shavings by draining from the oil plug eigher! I do agree that the best way is to drain from the plug and, I would recommend a magnetic plug to solve the shaving problem. It's just a pain getting your lowered car up far enough to get under there without scraping up your front bumper or sideskirts.
Old 07-21-06, 09:05 AM
  #14
HDP
A Fistfull of Dollars!

iTrader: (2)

HDP's Avatar

Join Date: Nov 2002
Location: HuntsVEGAS, AL
Posts: 5,321
Received 3 Likes on 3 Posts
Originally Posted by dradon03
I know this is a little off topic but wasn't there something like this that did coolant and brake fluid or maybe just coolant I dont remember...
Power Bleeder... pumps brake fluid into the reservoir so you can bleed off the air at the bleeder screws.
Old 07-21-06, 10:07 AM
  #15
Rotary Freak

iTrader: (8)

Cgotto6's Avatar

Join Date: Nov 2003
Location: Bothell, Washington
Posts: 1,893
Received 2 Likes on 2 Posts
The power bleeder and the fin rake are the two best tools mentioned yet. I think im gonna have to get one of those oil pumps though, sounds pretty nice to not have to go through the ordeal of jacking the car...Good find.
