Broken wire on coil harness?
Broken wire on coil harness?

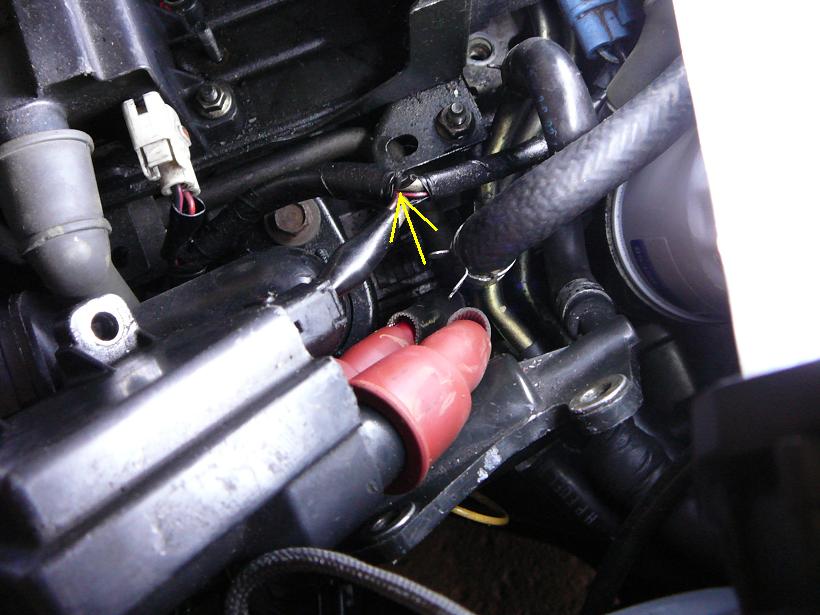

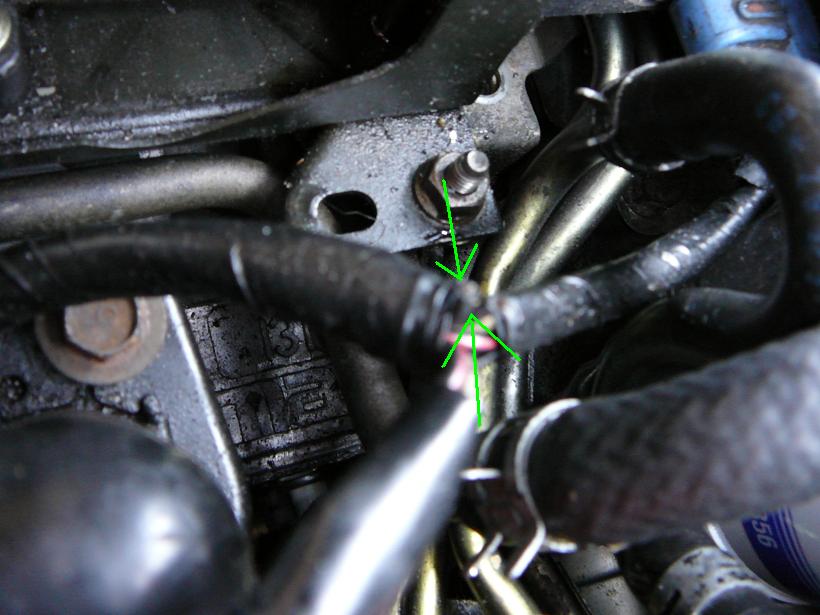

What do you guys think about this broken wire on one of the coils harness? Should I solder it back together? Its the black wire in my pick its cut in two.
You could but that harness is less than $80. They get old ad brittle from heat and soaked with oil, and compromise your ignition system. There was also an update performed to the faulty ground.
So thats what it is a ground how did it hook up? Did it have to different grounds one per broken end or what? Thanks
Joined: Mar 2001
Posts: 30,804
Likes: 646
From: FL-->NJ/NYC again!
Replace the harness. It's as old as your car is, and over time they degrade and can fail. Having a robust ignition system is pretty important on a turbo rotary, don't you think
?
?
Trending Topics
Joined: Mar 2001
Posts: 30,804
Likes: 646
From: FL-->NJ/NYC again!
That ground runs about 2-3 inches to one of the 8mm head nuts in between the coils. As Ihor mentioned, the replacement harness have the ground integrated into the harness itself. Do you have a bracket to mount that 2nd gen leading coil?
Also looks like evidence of a bad oil leak in that first picture, possibly from the oil filter pedestal.
Also looks like evidence of a bad oil leak in that first picture, possibly from the oil filter pedestal.
^ like he said. It runs to a nut in between the coils. The wire itself should have an 0-ring type fitting on one side.
They updated this in the later models (I forget but want to say 94+).
80 bucks for that? Mazda should be slapped on the cost of their wiring components. It's seriously not worth anywhere near that.
They updated this in the later models (I forget but want to say 94+).
80 bucks for that? Mazda should be slapped on the cost of their wiring components. It's seriously not worth anywhere near that.
^ like he said. It runs to a nut in between the coils. The wire itself should have an 0-ring type fitting on one side.
They updated this in the later models (I forget but want to say 94+).
80 bucks for that? Mazda should be slapped on the cost of their wiring components. It's seriously not worth anywhere near that.
They updated this in the later models (I forget but want to say 94+).
80 bucks for that? Mazda should be slapped on the cost of their wiring components. It's seriously not worth anywhere near that.
I just checked the complete ignition wiring harness and its perfect no brittle wires just this. So both ends should be grounded to a bolt?
Last edited by GoodfellaFD3S; Mar 20, 2010 at 08:31 AM. Reason: this isn't the GG/BG section.
Joined: Mar 2001
Posts: 30,804
Likes: 646
From: FL-->NJ/NYC again!
How can you possibly blame a thin 17 year old broken wire on a shop that presumably worked on your car how long ago.....?
If you don't want to listen to the good advice given you in this thread that's fine. But if you have an axe to grind, start a bad guy thread in the appropriate section. Potshots and snipes arent needed in the tech section.
If you don't want to listen to the good advice given you in this thread that's fine. But if you have an axe to grind, start a bad guy thread in the appropriate section. Potshots and snipes arent needed in the tech section.
How can you possibly blame a thin 17 year old broken wire on a shop that presumably worked on your car how long ago.....?
If you don't want to listen to the good advice given you in this thread that's fine. But if you have an axe to grind, start a bad guy thread in the appropriate section. Potshots and snipes arent needed in the tech section.
If you don't want to listen to the good advice given you in this thread that's fine. But if you have an axe to grind, start a bad guy thread in the appropriate section. Potshots and snipes arent needed in the tech section.
