anti-detonation device revealed
#26
Mack of the Universe
Join Date: May 2003
Location: Herndon, Va
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Anti Det
How long ago did the customer get that put in? I have the "anti-det"and it doesn't look like that. Haven't took them out to look at the end, but they are a lot larger, looks like 2 hex bolt heads on the side of my motor. Maybe there was some type of redesign or something. As far as gaining or loosing power with the device, my car put down 239hp 213 tq @10PSI. I think those are some decent numbers for my setup (in my sig). Runs really smooth too. I can't say I gained horsepower, maybe a little torque. Car is running strong, we will see how it goes. I am getting better gas mileage though, which is a plus. We see how it continues to perform as time goes on.
#27
Adrenaline
Join Date: Feb 2001
Location: Long Island, NY
Posts: 1,261
Likes: 0
Received 0 Likes
on
0 Posts
At 5000 miles what happened to the warranty? Any explanations were given to the original owner from KDR views on why the engine blew? Also, do you know his maps on his ECU?
#28
Super Snuggles
Originally Posted by bfeito
I have the "anti-det"and it doesn't look like that. Haven't took them out to look at the end, but they are a lot larger, looks like 2 hex bolt heads on the side of my motor. Maybe there was some type of redesign or something.
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/anti-det-installed-319196/

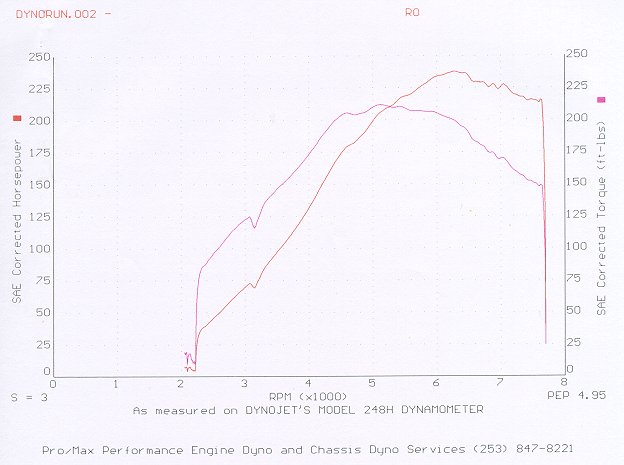

As far as gaining or loosing power with the device, my car put down 239hp 213 tq @10PSI.
#29
Originally Posted by DaleClark
Cool - thanks, Kevin!
Can you tell what they're made of - stainless, aluminum, etc.? If they were ferrous, you could use a magnet to extract them. I would guess aluminum, as that's the same as the rotor housing and would have the same coefficient of expansion.
IMHO, there isn't and will never be a "fix" for detonation. It's simple - tune the motor properly or get too greedy for power, and the motor WILL go. Horsepower is unfortunately inversely proportional to engine life. Not to mention I've seen a LOT of motors go from stupid stuff - big favorite is the vacuum line to the MAP sensor for a Haltech resting on the turbine housing, burning a hole - the ECU sees less boost, injects less fuel, and kablow. TWO motors locally have gone due to that simple oversight.
Personally, I've overcome the desire for huge amounts of power. I plan on refinining the stock setup, and having a lot of fun driving my FD instead of watching it sit in the garage. If insane power and straight-line acceleration is all you want, the FD isn't the car for you. If you want a balanced package that can handle, brake, and accelerate well and look phenomenal while doing it, that's the FD.
Dale
Can you tell what they're made of - stainless, aluminum, etc.? If they were ferrous, you could use a magnet to extract them. I would guess aluminum, as that's the same as the rotor housing and would have the same coefficient of expansion.
IMHO, there isn't and will never be a "fix" for detonation. It's simple - tune the motor properly or get too greedy for power, and the motor WILL go. Horsepower is unfortunately inversely proportional to engine life. Not to mention I've seen a LOT of motors go from stupid stuff - big favorite is the vacuum line to the MAP sensor for a Haltech resting on the turbine housing, burning a hole - the ECU sees less boost, injects less fuel, and kablow. TWO motors locally have gone due to that simple oversight.
Personally, I've overcome the desire for huge amounts of power. I plan on refinining the stock setup, and having a lot of fun driving my FD instead of watching it sit in the garage. If insane power and straight-line acceleration is all you want, the FD isn't the car for you. If you want a balanced package that can handle, brake, and accelerate well and look phenomenal while doing it, that's the FD.
Dale
Reliability and driving my FD > Gobs of power and blown motors left and right
#30
WTB** Very Low Miles 94-95
Join Date: Jul 2001
Location: Tejas
Posts: 3,298
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by bfeito
How long ago did the customer get that put in? I have the "anti-det"and it doesn't look like that. Haven't took them out to look at the end, but they are a lot larger, looks like 2 hex bolt heads on the side of my motor. Maybe there was some type of redesign or something. As far as gaining or loosing power with the device, my car put down 239hp 213 tq @10PSI. I think those are some decent numbers for my setup (in my sig). Runs really smooth too. I can't say I gained horsepower, maybe a little torque. Car is running strong, we will see how it goes. I am getting better gas mileage though, which is a plus. We see how it continues to perform as time goes on.
should have picked up water injection instead. youve been had.
#31
Originally Posted by jimlab
Mine put down 237.6 RWHP and 211.8 lb-ft. with a blown engine (both rotors) at the same boost level through a stock intercooler and stock cat-back. You didn't gain anything.
#32
Super Snuggles
Originally Posted by FDNewbie
Besides not holding idle, what's the problem then w/ a blown engine if it still makes constant power??
With a Tri-Point downpipe and mid-pipe with a Borla XR-1 and M2 ECU, I should have made more than 238 RWHP horsepower @ 10 psi, even with the stock intercooler and cat-back. The car was backfiring and running like ****. The idle wasn't that bad, but the engine could go at any time and leave you stranded. The only reason I dyno'd the car was because I figured it would be good for a laugh, and because it reduced the price for the rest of the club members.
#33
RX-7 Bad Ass
iTrader: (55)
I've actually driven my old TII for MONTHS with a blown motor. Made around 10" of vacuum, idled a bit rough, and frequently flooded at hot-starts. But, it made great power and drove fine.
A blown motor isn't a black-and-white propositiion. My motor had a chipped apex seal - it could still seal OK at high RPM, so it made good power. Also, the motor wasn't that old either, so the apex seals weren't worn way down from high mileage.
Anyhow, I can fully understand Jim making that kind of power with a blown motor - I'm sure the motor wasn't too old, so it was "lightly" blown.
Did I mention it's just REALLY weird seeing a pic of Jim's car back when it was RUNNING!
Dale
A blown motor isn't a black-and-white propositiion. My motor had a chipped apex seal - it could still seal OK at high RPM, so it made good power. Also, the motor wasn't that old either, so the apex seals weren't worn way down from high mileage.
Anyhow, I can fully understand Jim making that kind of power with a blown motor - I'm sure the motor wasn't too old, so it was "lightly" blown.
Did I mention it's just REALLY weird seeing a pic of Jim's car back when it was RUNNING!
Dale
#34
Full Member
Join Date: Jul 2002
Location: Lakewood, NJ
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
This is an interesting thread. I currently have this mod. Now, before I had it installed my car put down 334 RWHP and around 301-305 TQ. At the time, around 2 years ago, my car had 45,XXX miles and the hp mods were: M2 intake, M2 large IC, UR full pulley kit, 8.5 lb flywheel, Pettit Unlimited ECU, DP and catback running at 15psi. Original engine and turbos FWIW.
Then I had a HF cat installed plus a Profec Spec II boost controller. Couldnt get the damn thing to hold past 12psi, but the power was smooth. So I went back to the shop and had them take out the profec and they installed a TurboXS manual controller. I also had it dyno'd because I wanted to see the gains with the HF cat. They did the anti-det mod at the same time. The car was breaking up real bad on the dyno and I was told I would need an ingnition amp. So I put down 321.7hp and 325.8 TQ. I was impressed with the torque. Figured the igntion amp was the reason why my HP went down.
Went home and ordered an HKS twin power, while driving even at 10psi on top end would have me breaking up!!! Got the twin power installed and dyno'd again, but only yielded a 1hp gain and 2 TQ gain!
Didnt think to much of this until I stumbled upon this thread(I have to start reading the forum more often). But it looks as though those spaces in the plug holes must be the cause of the backfiring I was getting.
I agree wholeheartdly with Dale Clarks previous post on enjoying the car and refining the things the car was built for(handling, track use). I have a Yamaha R1 so that quenches my straight line thirst.
What I'd like to know is if its better for me to get rid of the anti-det mod? I would like to keep my FD as long as possible AND on the original motor and turbos. If the car is running richer with this mod, then that cant be too go for the longevity of the motor then, right???
All and any help/suggestions are greatly appreciated.
Thank-you
Then I had a HF cat installed plus a Profec Spec II boost controller. Couldnt get the damn thing to hold past 12psi, but the power was smooth. So I went back to the shop and had them take out the profec and they installed a TurboXS manual controller. I also had it dyno'd because I wanted to see the gains with the HF cat. They did the anti-det mod at the same time. The car was breaking up real bad on the dyno and I was told I would need an ingnition amp. So I put down 321.7hp and 325.8 TQ. I was impressed with the torque. Figured the igntion amp was the reason why my HP went down.
Went home and ordered an HKS twin power, while driving even at 10psi on top end would have me breaking up!!! Got the twin power installed and dyno'd again, but only yielded a 1hp gain and 2 TQ gain!
Didnt think to much of this until I stumbled upon this thread(I have to start reading the forum more often). But it looks as though those spaces in the plug holes must be the cause of the backfiring I was getting.
I agree wholeheartdly with Dale Clarks previous post on enjoying the car and refining the things the car was built for(handling, track use). I have a Yamaha R1 so that quenches my straight line thirst.
What I'd like to know is if its better for me to get rid of the anti-det mod? I would like to keep my FD as long as possible AND on the original motor and turbos. If the car is running richer with this mod, then that cant be too go for the longevity of the motor then, right???
All and any help/suggestions are greatly appreciated.
Thank-you
#35
WTB** Very Low Miles 94-95
Join Date: Jul 2001
Location: Tejas
Posts: 3,298
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Don-94BB R2(NJ)
This is an interesting thread. I currently have this mod. Now, before I had it installed my car put down 334 RWHP and around 301-305 TQ. At the time, around 2 years ago, my car had 45,XXX miles and the hp mods were: M2 intake, M2 large IC, UR full pulley kit, 8.5 lb flywheel, Pettit Unlimited ECU, DP and catback running at 15psi. Original engine and turbos FWIW.
Then I had a HF cat installed plus a Profec Spec II boost controller. Couldnt get the damn thing to hold past 12psi, but the power was smooth. So I went back to the shop and had them take out the profec and they installed a TurboXS manual controller. I also had it dyno'd because I wanted to see the gains with the HF cat. They did the anti-det mod at the same time. The car was breaking up real bad on the dyno and I was told I would need an ingnition amp. So I put down 321.7hp and 325.8 TQ. I was impressed with the torque. Figured the igntion amp was the reason why my HP went down.
Went home and ordered an HKS twin power, while driving even at 10psi on top end would have me breaking up!!! Got the twin power installed and dyno'd again, but only yielded a 1hp gain and 2 TQ gain!
Didnt think to much of this until I stumbled upon this thread(I have to start reading the forum more often). But it looks as though those spaces in the plug holes must be the cause of the backfiring I was getting.
I agree wholeheartdly with Dale Clarks previous post on enjoying the car and refining the things the car was built for(handling, track use). I have a Yamaha R1 so that quenches my straight line thirst.
What I'd like to know is if its better for me to get rid of the anti-det mod? I would like to keep my FD as long as possible AND on the original motor and turbos. If the car is running richer with this mod, then that cant be too go for the longevity of the motor then, right???
All and any help/suggestions are greatly appreciated.
Thank-you
Then I had a HF cat installed plus a Profec Spec II boost controller. Couldnt get the damn thing to hold past 12psi, but the power was smooth. So I went back to the shop and had them take out the profec and they installed a TurboXS manual controller. I also had it dyno'd because I wanted to see the gains with the HF cat. They did the anti-det mod at the same time. The car was breaking up real bad on the dyno and I was told I would need an ingnition amp. So I put down 321.7hp and 325.8 TQ. I was impressed with the torque. Figured the igntion amp was the reason why my HP went down.
Went home and ordered an HKS twin power, while driving even at 10psi on top end would have me breaking up!!! Got the twin power installed and dyno'd again, but only yielded a 1hp gain and 2 TQ gain!
Didnt think to much of this until I stumbled upon this thread(I have to start reading the forum more often). But it looks as though those spaces in the plug holes must be the cause of the backfiring I was getting.
I agree wholeheartdly with Dale Clarks previous post on enjoying the car and refining the things the car was built for(handling, track use). I have a Yamaha R1 so that quenches my straight line thirst.
What I'd like to know is if its better for me to get rid of the anti-det mod? I would like to keep my FD as long as possible AND on the original motor and turbos. If the car is running richer with this mod, then that cant be too go for the longevity of the motor then, right???
All and any help/suggestions are greatly appreciated.
Thank-you
if u pull the plug caps out then be sure you do a tuning session to clean it up properly. there is no substitute for good tuning. right?
Jason
#36
Originally Posted by Don-94BB R2(NJ)
If the car is running richer with this mod, then that cant be too go for the longevity of the motor then, right???
Jake
#37
Originally Posted by ntegravtec
I thought that a lot of the detonation problems were caused by running too lean. Wouldn't it be better for the engine to run richer?
Jake
Jake
#39
Lives on the Forum
iTrader: (9)
I believe someone dubbed these the "butt plugs"
Originally Posted by jimlab
I don't think so. A guy named Steve was apparently trying to rip off KDR (and everyone else) by selling an "anti-det" knock-off that consisted of two plugs (shown below... look familiar?) for $500. He was also using animations from Blake Qualley's site without asking. After people (myself included) told him to go **** himself and a couple threads were locked, the only updates on those plugs was Jason's short review (link below).
https://www.rx7club.com/showthread.php?t=319196
Mine put down 237.6 RWHP and 211.8 lb-ft. with a blown engine (both rotors) at the same boost level through a stock intercooler and stock cat-back. You didn't gain anything.
https://www.rx7club.com/showthread.php?t=319196
Mine put down 237.6 RWHP and 211.8 lb-ft. with a blown engine (both rotors) at the same boost level through a stock intercooler and stock cat-back. You didn't gain anything.
#42
Full Member
Join Date: Jul 2002
Location: Lakewood, NJ
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
Yeah, cant tune with the Pettit ECU. In my rush to get to work I forgot to mention the first dyno I did which resulted in 334hp, it was at different shop. Same kind of dynojet, I just figured the one in PA was set up more accurately for our cars?!? I know...dumb.
Also, if I half-throttle it up to redline, I get some break-up. But never with full boost and WOT.
FDNewbie----thats what I was referring to..the carbon deposits from running rich. Thank-you!
Also, if I half-throttle it up to redline, I get some break-up. But never with full boost and WOT.
FDNewbie----thats what I was referring to..the carbon deposits from running rich. Thank-you!
#43
Super Snuggles
Originally Posted by Don-94BB R2(NJ)
it looks as though those spaces in the plug holes must be the cause of the backfiring I was getting.
The reason rotary engines have multiple spark plugs per "cylinder" is because of the shape of the combustion chamber. You want to promote an even, controlled burn, and a long, semi-oval combustion chamber doesn't lend itself easily to that with just one plug.
The 13G 3-rotor and 26B 4-rotor engines both used 3 plugs per rotor but have the same size rotors as the 13B-REW. The Renesis has 2 per rotor, just like the 13B-REW. If one plug per rotor was the answer to everything, Mazda probably would have arrived at that conclusion long before KDR did. Something to think about.
Originally Posted by ntegravtec
Wouldn't it be better for the engine to run richer?
#44
Cheap Bastard
iTrader: (2)
Originally Posted by FDNewbie
Besides not holding idle, what's the problem then w/ a blown engine if it still makes constant power??
I had a CSP FB with a stock 12A. It had really bad apex seals (blown engine ). They were so bad that every time I let off (after hard acceleration), the car would disappear in a cloud of dark smoke. The car still ran good, but the people at races didn't like it very much. Right before pulling it out, we decided to see how high it would rev. We too it up to about 75 mph in second gear, and it pulled pretty hard. that was about 11k rpm. It wasn't too happy after that .
Last edited by adam c; 04-21-05 at 04:08 PM.
#45
Senior Member
iTrader: (1)
"If one plug per rotor was the answer to everything, Mazda probably would have arrived at that conclusion long before KDR did. Something to think about. "
I was under the impression that rotaries originally had 1 plug, and the 2nd plug was to reduce emissions, not to increase power. Am I misinformed?
I was under the impression that rotaries originally had 1 plug, and the 2nd plug was to reduce emissions, not to increase power. Am I misinformed?
#46
Super Snuggles
Originally Posted by rallimike
I was under the impression that rotaries originally had 1 plug, and the 2nd plug was to reduce emissions, not to increase power. Am I misinformed?
However, the 2nd plug does both... it reduces the amount of unburned fuel that goes into the exhaust, and by burning more fuel while it's still in the engine (where it can still do work instead of just making noise and fireballs) you get more power.
#47
Full Member
Join Date: Jul 2002
Location: Lakewood, NJ
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
OK, so if I have this 'device' taken out then, there would really be no need for my HKS ingnition amp?!? My one little concern is after I had this mod installed, the shop called me a few days later and informed me I had to cut a green wire in the engine bay. Did anyone else here with the mod have to do that? Im guessing its one of the ignition wires or something, because I remember a similar green wire further from it that was used as an ignition source when my car was being dyno'd. I hope that's an easy, inexpensive fix. I guess it must be for the trailing plugs not to fire with the 'device' installed???
Forgive my lack of automotive knowledge.
Forgive my lack of automotive knowledge.
#48
2/4 wheel cornering fiend
Originally Posted by jimlab
However, the 2nd plug does both... it reduces the amount of unburned fuel that goes into the exhaust, and by burning more fuel while it's still in the engine (where it can still do work instead of just making noise and fireballs) you get more power.
#49
Hey, where did my $$$ go?
Join Date: Feb 2001
Location: Bimingham, AL
Posts: 4,413
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Don-94BB R2(NJ)
OK, so if I have this 'device' taken out then, there would really be no need for my HKS ingnition amp?!? My one little concern is after I had this mod installed, the shop called me a few days later and informed me I had to cut a green wire in the engine bay. Did anyone else here with the mod have to do that? Im guessing its one of the ignition wires or something, because I remember a similar green wire further from it that was used as an ignition source when my car was being dyno'd. I hope that's an easy, inexpensive fix. I guess it must be for the trailing plugs not to fire with the 'device' installed???
Forgive my lack of automotive knowledge.
Forgive my lack of automotive knowledge.
If you have it installed on your car and your car was tuned that way I would leave it alone. Your car has been tuned specifically for no trailing. If you want to remove it take it back and have it redone with the trailing back in place and retuned.
At LEASE call whoever installed it (KD I assume) and ask them if hooking the trailing back up will effect your tuning.
Stephen
