Hi I have a 94 rx7 with stock twins, and the car has a frount mount intercooler for the time being until I get a stock mount intercooler but were do I plumb the air pump lines that would go to the smic.
Thanks
Richard



The air pump line goes to the intake.



What I wanted to know is how do II hook up the two lines to the intake it I have a fmic.



I'm not understanding what you're saying. Do you have a pic of what you're talking about?
I'm running the same set up, but I just recently eliminated my air pump.



So the lines that run to air pump front line regularly goes to the stock mount intercooler since I have a fmic there is no bungs to plumb to so I can not hook up the air pump line, so how do I hook it up.
Thanks
Richard

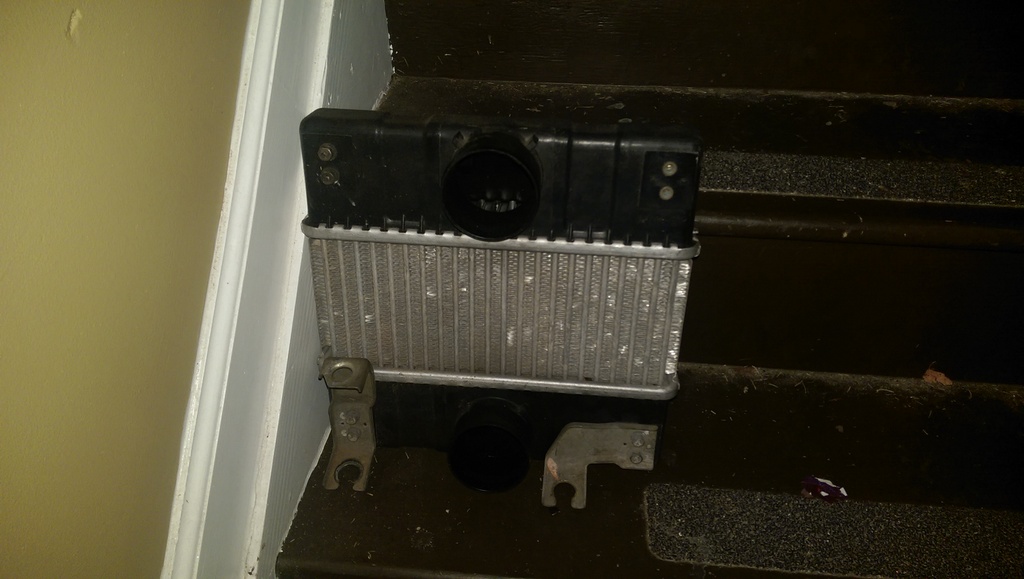

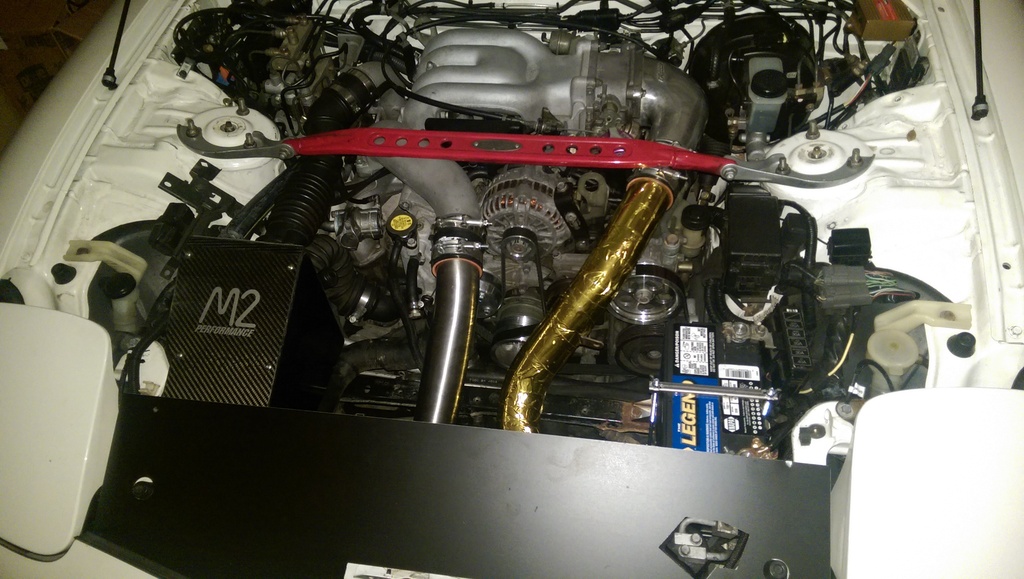

No air pump lines go to the SMIC. See pics for ref.



Ok it looks like I got it mixed up, I just can't seem to find were the air pump plumbs to



There are 2 hoses for the air pump, both about 3/4" ID or so. One is the inlet that goes to the top of the air pump to suck air in, and one is the waste dump that comes around the back of the intake manifold.

Both normally go into the stock airbox.

The intake on the air pump needs a filter of some kind, there are clamp-on mini filters you can get to filter the air going in to it. The outlet doesn't really need a filter, but it will make a "moo" noise if it's vented to air. Search on this, you can get a chair cap, drill some holes in it, and clamp it on the pipe to shut it up.

If that's not what you're thinking about, post up some pics.

Dale



here is the parts catalog pic. 20-751 is the inlet to the air pump, and 13-751E is the vent/relief hose from the air control valve.

the air pump just gets filtered air, and the vent just gets muffled.



Thanks everyone , that's exactely what I was looking for. I am picking up some apexi intakes today so that will aidbin helping me hook everything up.
Thanks
Richard
