AEM IGN-1A Mercury Marine ignition coil info/install
01-18-13, 05:34 PM
#102

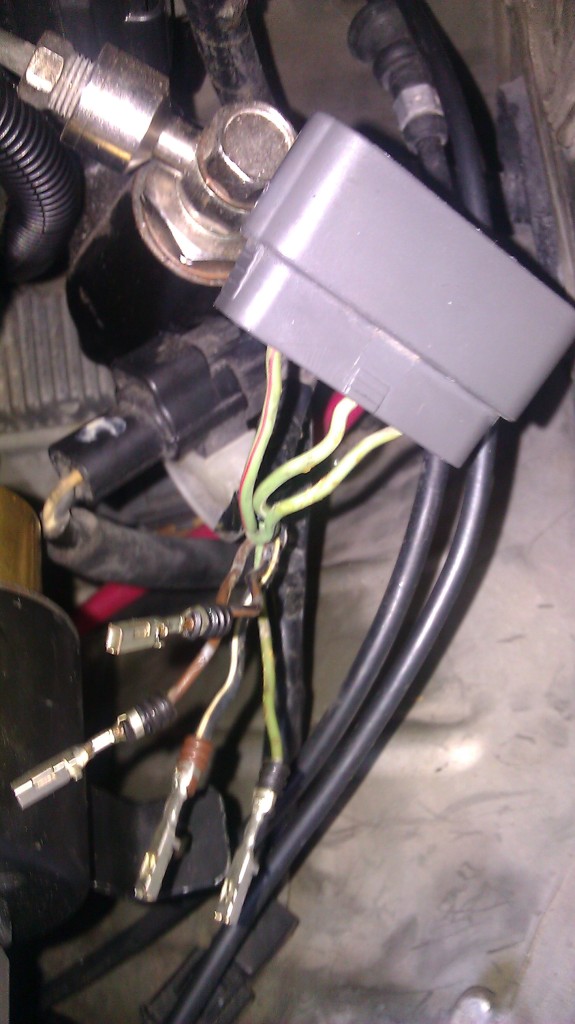

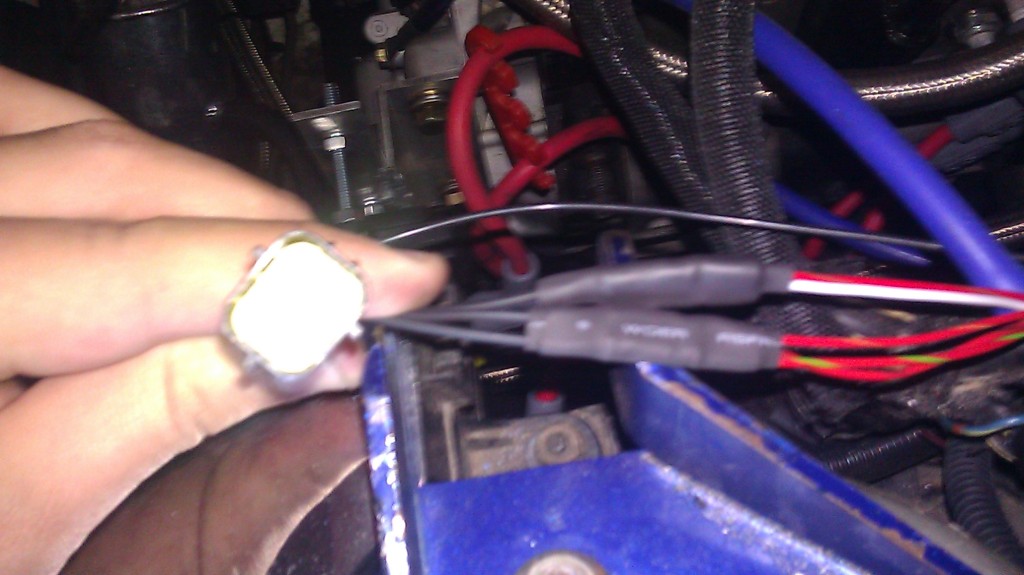

This is how I connected the harness.

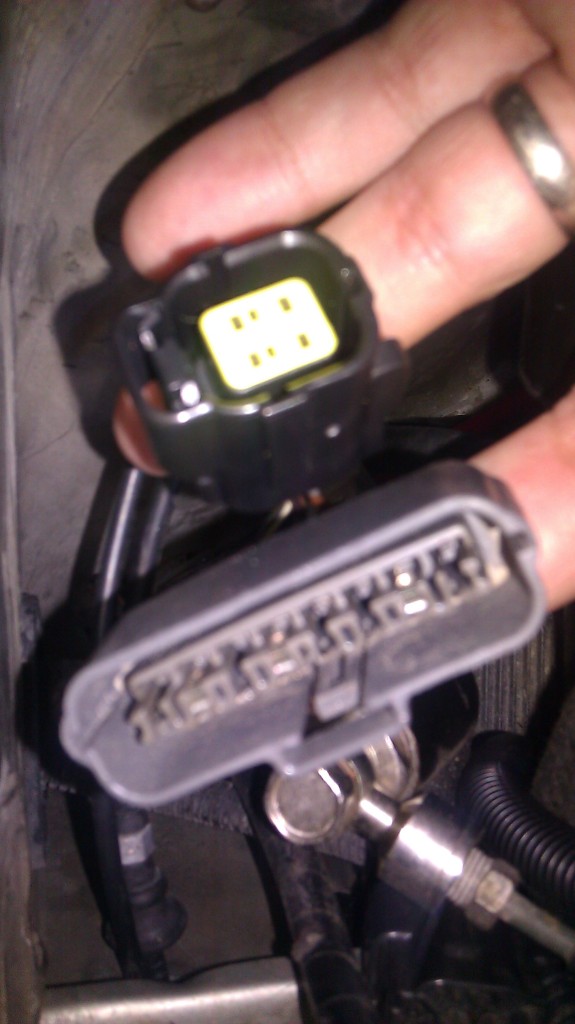

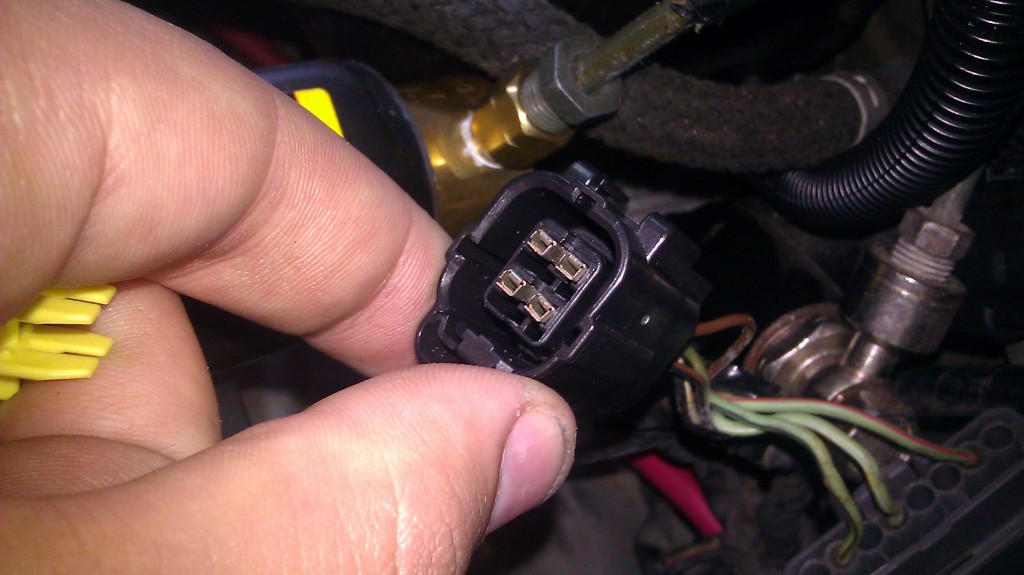

First take the wires out with the connector pins
Slide them into 4 way connector
Splice female end to harness
Here is what you need:
CONN-100147 4 - Way Econoseal J Series Plug Assembly, Black $8.99 1 x $8.99
CONN-85702 4 - Way Econoseal J Series Receptacle Pigtail, Black $8.99 1 x $8.99
Source: Ballenger Motorsports - High Performance Electronics
Totally reversible
First take the wires out with the connector pins
Slide them into 4 way connector
Splice female end to harness
Here is what you need:
CONN-100147 4 - Way Econoseal J Series Plug Assembly, Black $8.99 1 x $8.99
CONN-85702 4 - Way Econoseal J Series Receptacle Pigtail, Black $8.99 1 x $8.99
Source: Ballenger Motorsports - High Performance Electronics
Totally reversible
02-03-13, 05:15 PM
#104
Junior Member
iTrader: (2)
Join Date: Jun 2012
Location: Trinidad
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Installed these in my RHD, placed her in the location of the ABS pump, she fired up in one, these coils are brilliant.... Installation was a breeze thanks to Chris.
Can't compromise high boost and tuning on the Haltech Ignition tables with Wasted Spark and stock coils..
02-04-13, 03:18 PM
#109

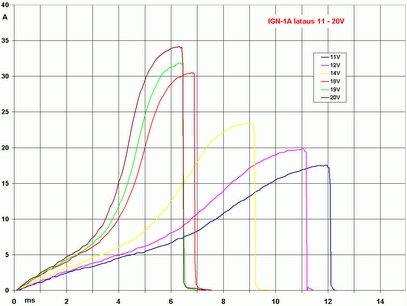

it's not just dwell, but also the dwell vs voltage mapping
this is especially important. On the GM truck coil it will auto-trigger if a specific energy level is reached/exceeded; at 14V this occurs just under 5mS dwell. On the Mercury coil it will also pull some serious amp draw
not a fan of waste spark configuration either
this is especially important. On the GM truck coil it will auto-trigger if a specific energy level is reached/exceeded; at 14V this occurs just under 5mS dwell. On the Mercury coil it will also pull some serious amp draw
not a fan of waste spark configuration either
02-04-13, 03:47 PM
#110
Turbo Lover
iTrader: (6)
Join Date: Feb 2003
Location: Cleveland
Posts: 783
Likes: 0
Received 0 Likes
on
0 Posts
it's not just dwell, but also the dwell vs voltage mapping
this is especially important. On the GM truck coil it will auto-trigger if a specific energy level is reached/exceeded; at 14V this occurs just under 5mS dwell. On the Mercury coil it will also pull some serious amp draw
not a fan of waste spark configuration either
this is especially important. On the GM truck coil it will auto-trigger if a specific energy level is reached/exceeded; at 14V this occurs just under 5mS dwell. On the Mercury coil it will also pull some serious amp draw
not a fan of waste spark configuration either
02-08-13, 02:25 PM
#112
Comment on?

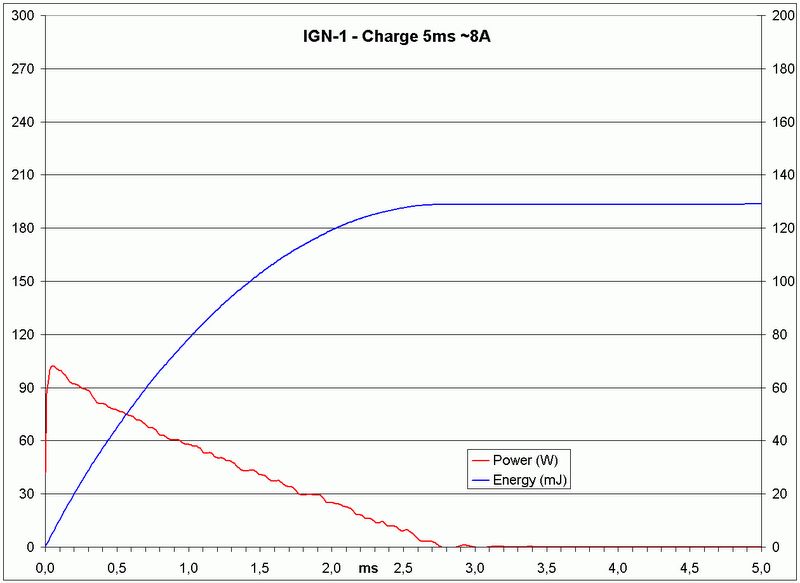

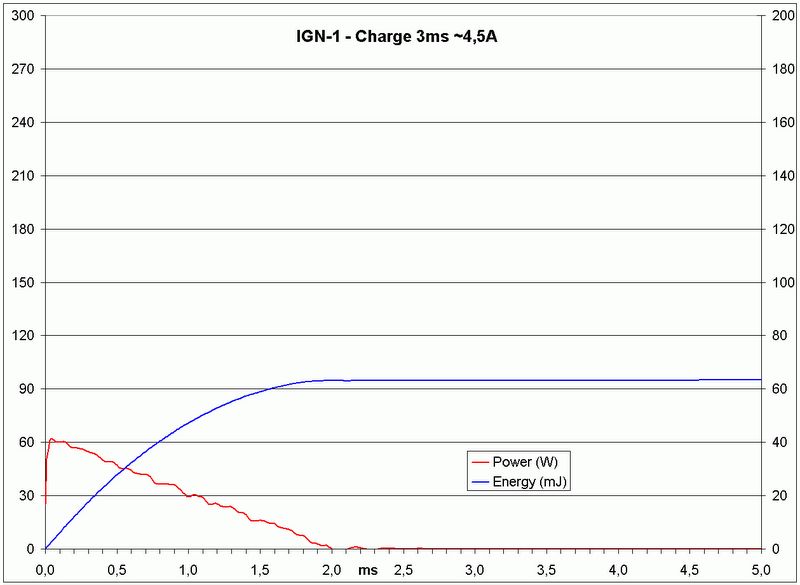

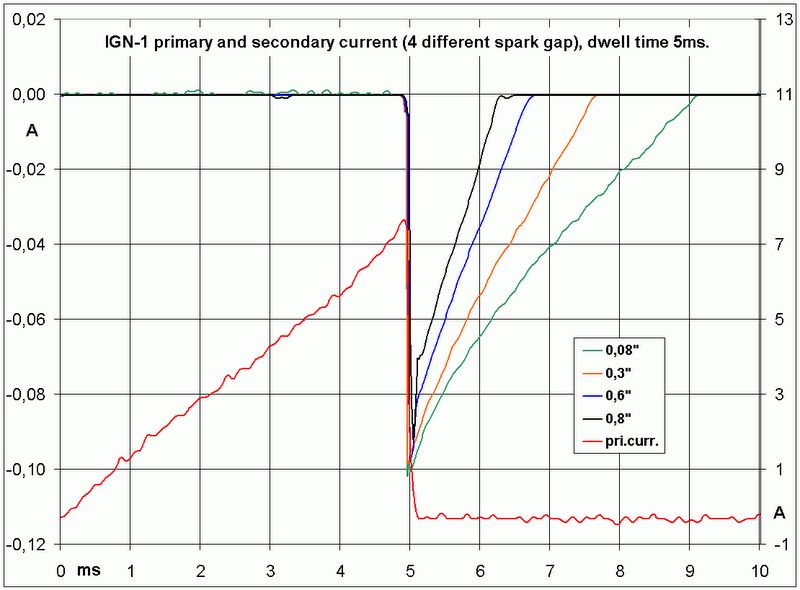

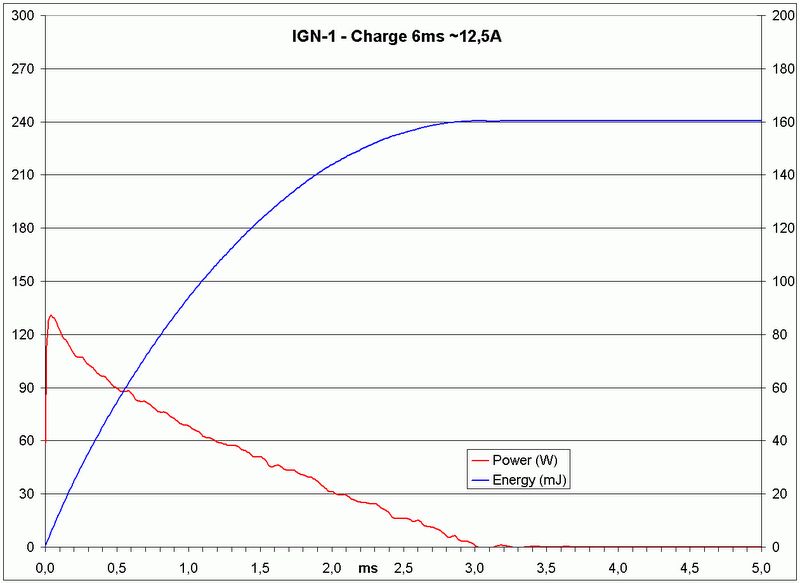

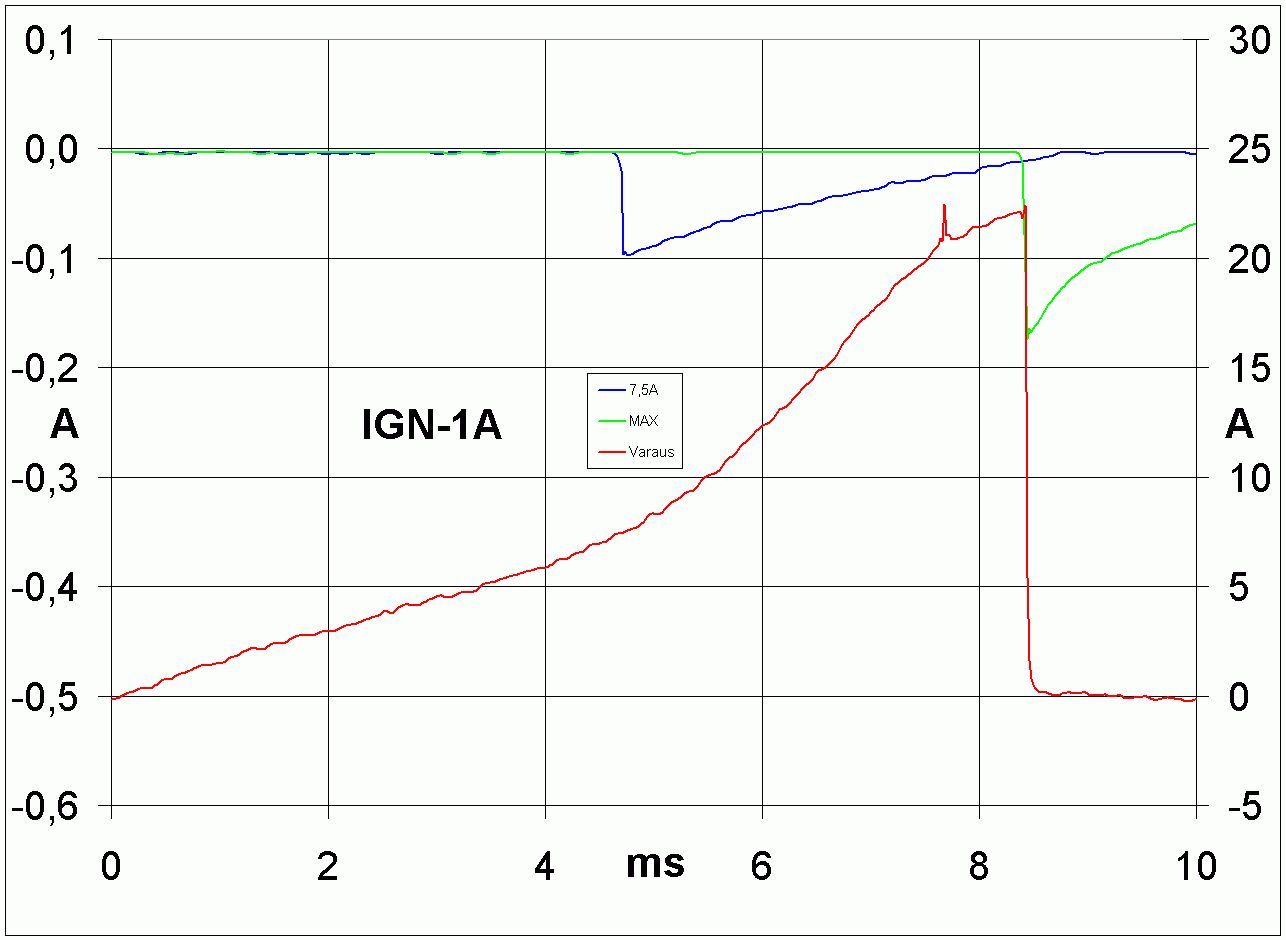

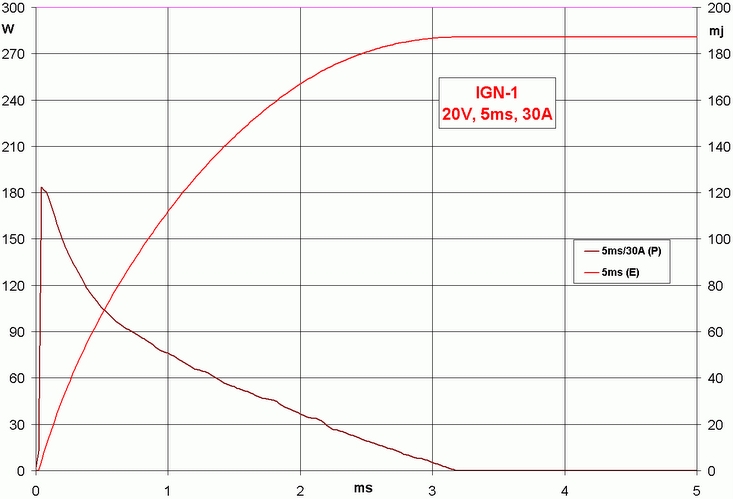

This guy has tested a ton of coils and his info is very interesting. His reading for the 3ms charge time is lower than what I would expect. The 5ms a little higher than I would expect. In the end, if you run the coil at the 4.5ms I recommend in direct-fire or wastespark, you get an ignition system that's putting out well over 100mJ of energy, easy to assemble, relatively inexpensive, and likely to last the life of the car.
This guy has tested a ton of coils and his info is very interesting. His reading for the 3ms charge time is lower than what I would expect. The 5ms a little higher than I would expect. In the end, if you run the coil at the 4.5ms I recommend in direct-fire or wastespark, you get an ignition system that's putting out well over 100mJ of energy, easy to assemble, relatively inexpensive, and likely to last the life of the car.
02-20-13, 07:38 PM
#121
We've been working on an AEM coil package and it's nearly complete. Below is a link to the information/interest thread. https://www.rx7club.com/group-buy-pr...erest-1026958/
-Dan
02-21-13, 02:11 AM
#122
I OWN THE BEST CAR EVER
Join Date: Oct 2005
Location: CYPRUS
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Thank you for the diagram cohbra.
Hey SBGarage nice Autocad desighn you make there
it must took several hours to Finish.
But does it worth it afterall?
The basic thoughts of mine are : out of heat, space between each other, connectors must been easy to see so to see clearly the L1 L2 T1 T2 sighns on the wiring.
Thank you ALL
Hey SBGarage nice Autocad desighn you make there
it must took several hours to Finish.But does it worth it afterall?
The basic thoughts of mine are : out of heat, space between each other, connectors must been easy to see so to see clearly the L1 L2 T1 T2 sighns on the wiring.
Thank you ALL
02-23-13, 06:12 AM
#124
We're now shipping the semi-plug-in harness. No more splicing. Just as VRX8 shows in his post a few posts up, all you need to do is depin four terminals from the ignitor connector and insert them into a new connector (provided) that plugs into the new harness. The connector VRX8 used is from AMP and isn't from the same manufacturer or series as the OE Mazda ignitor connector and terminals. We're using the matching manufacturer and series for perfect fitment. We'd love to use the actual mating connector for the existing OE connector for true PnP installs, but it simply doesn't exist in the manufacturer's catalog.
We're also now offering plug-in harnesses for FCs which have been converted to run the PFC, AEM, Haltech, etc. with plug-in or patch loom connected ECUs. In addition, we've done quite a number of custom harnesses for FD and FC owners that are not running a PFC and want to take advantage of 4-channel ignition capability of their AEMs, Haltechs, Adaptronics, etc. with 4-channel output. As always, tell us what you have and we build something specifically for you.
The innovator, not the imitator.
We're also now offering plug-in harnesses for FCs which have been converted to run the PFC, AEM, Haltech, etc. with plug-in or patch loom connected ECUs. In addition, we've done quite a number of custom harnesses for FD and FC owners that are not running a PFC and want to take advantage of 4-channel ignition capability of their AEMs, Haltechs, Adaptronics, etc. with 4-channel output. As always, tell us what you have and we build something specifically for you.
The innovator, not the imitator.
02-23-13, 10:49 AM
#125
Turbo Lover
iTrader: (6)
Join Date: Feb 2003
Location: Cleveland
Posts: 783
Likes: 0
Received 0 Likes
on
0 Posts

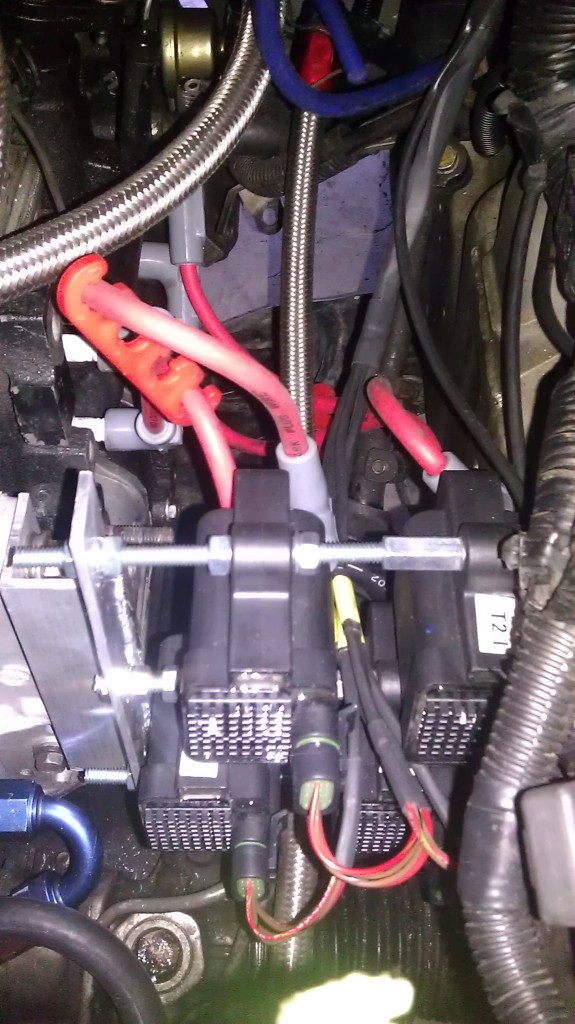

Just wanted to give a big thanks to C Ludwig for the harness and the other forum members for the bracket ideas. I mounted mine in the V pattern shown in prior posts and just to warn other members, it is a VERY tight fit and the bracket must be made precisely so that the boots do not contact the hood.

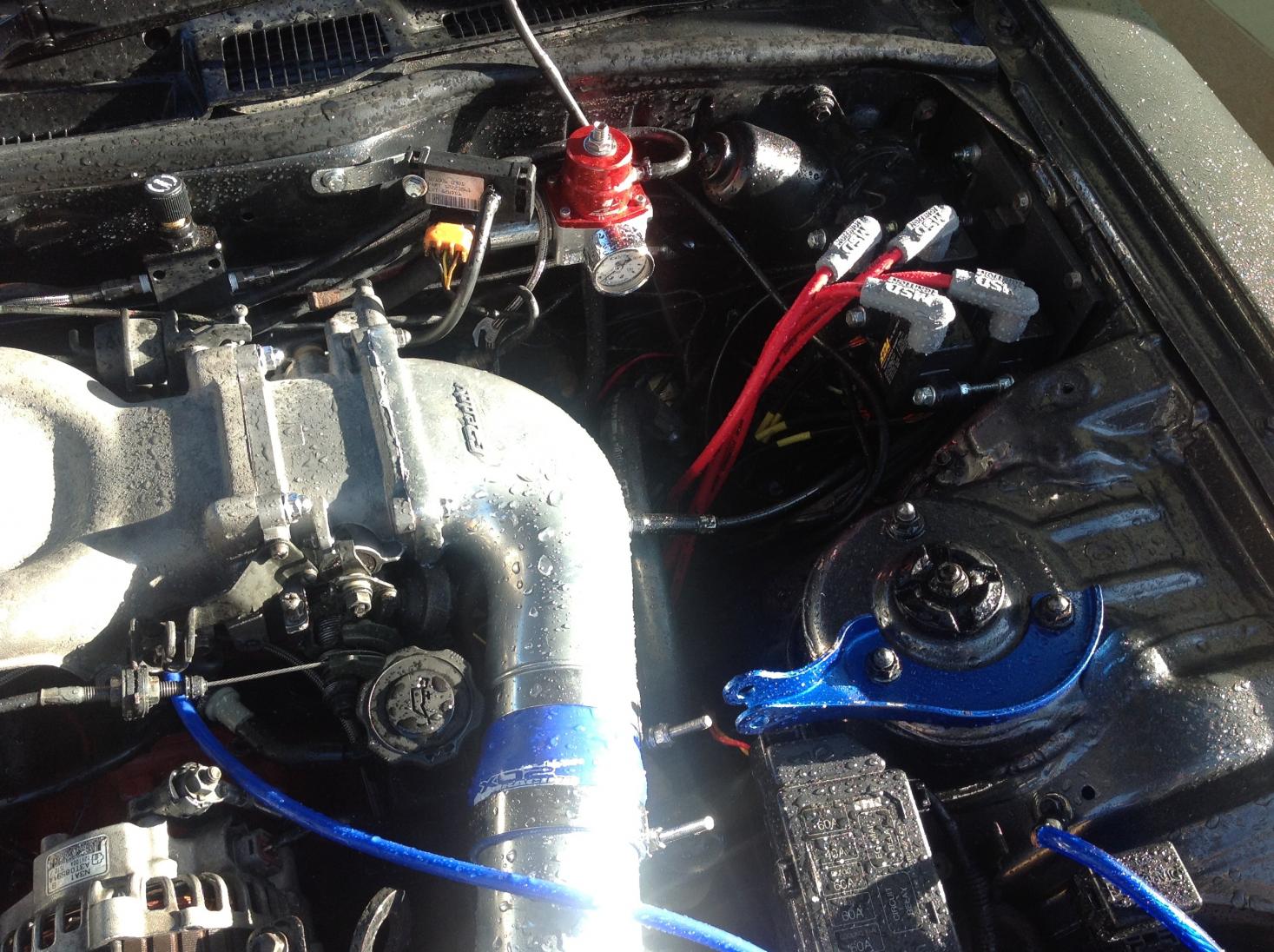

I don't have a direct pic of the coils but here's a engine bay pic and you can see them in the top right.
I don't have a direct pic of the coils but here's a engine bay pic and you can see them in the top right.
