Found this inside my gauge cluster 93 FD3S
#1
Found this inside my gauge cluster 93 FD3S

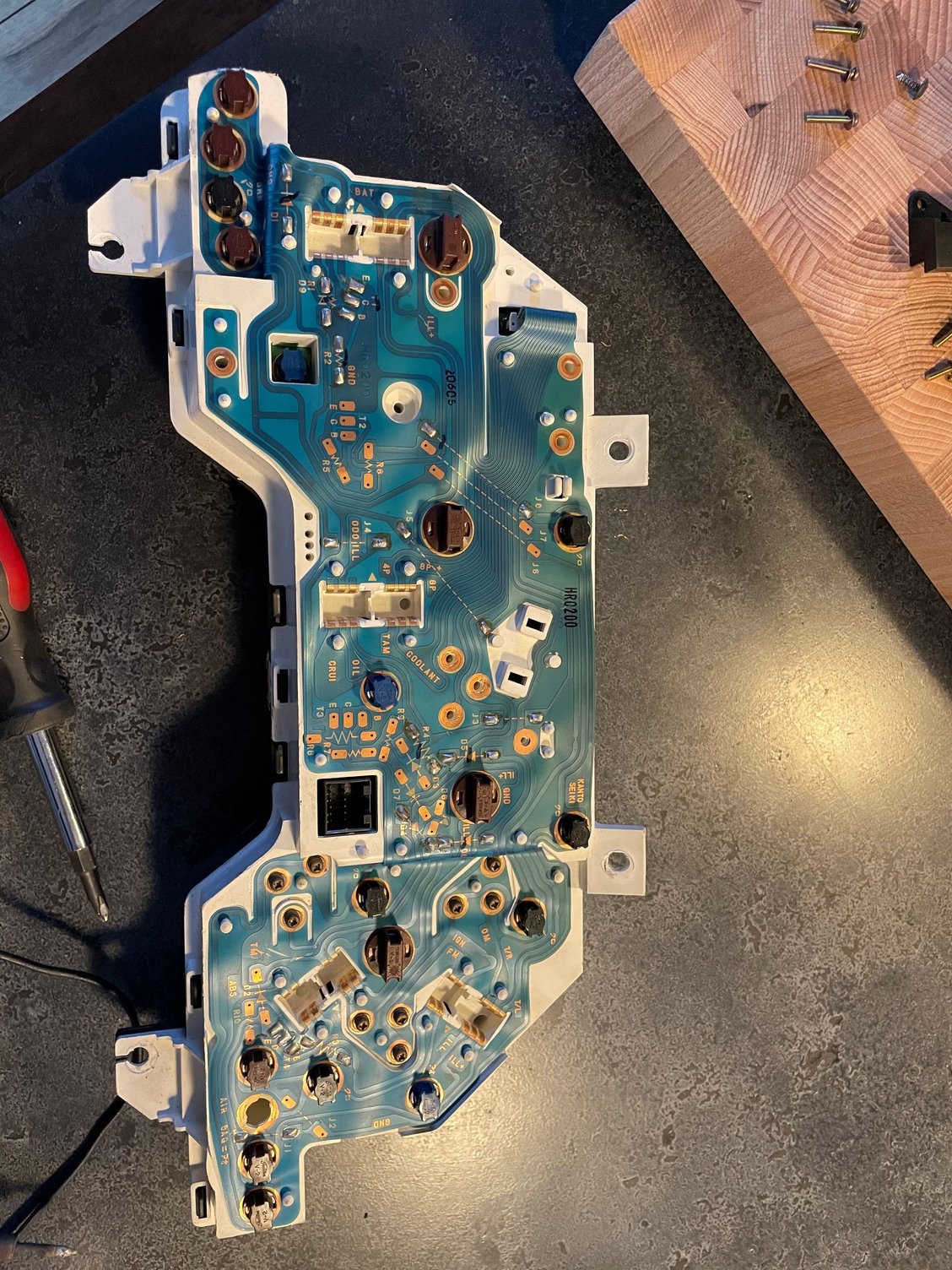

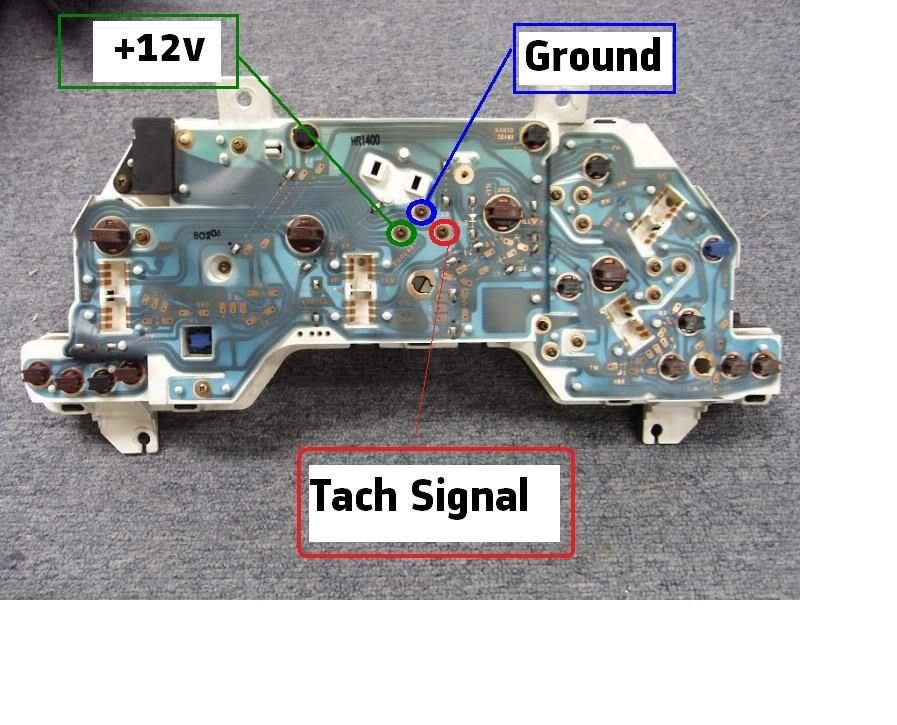

The tach isn’t working in this car after a manual swap. I did the trick where you connect power, tach signal, and ground to the screws on the back of the pod (see photo) and this didn’t help. I started to notice an electrical smell so I took the cluster apart and found this piece floating around. I don’t see where it came from. I really didn’t notice anything else that looked bad on the electrical components.
#2
RX-7 Bad Ass
iTrader: (55)

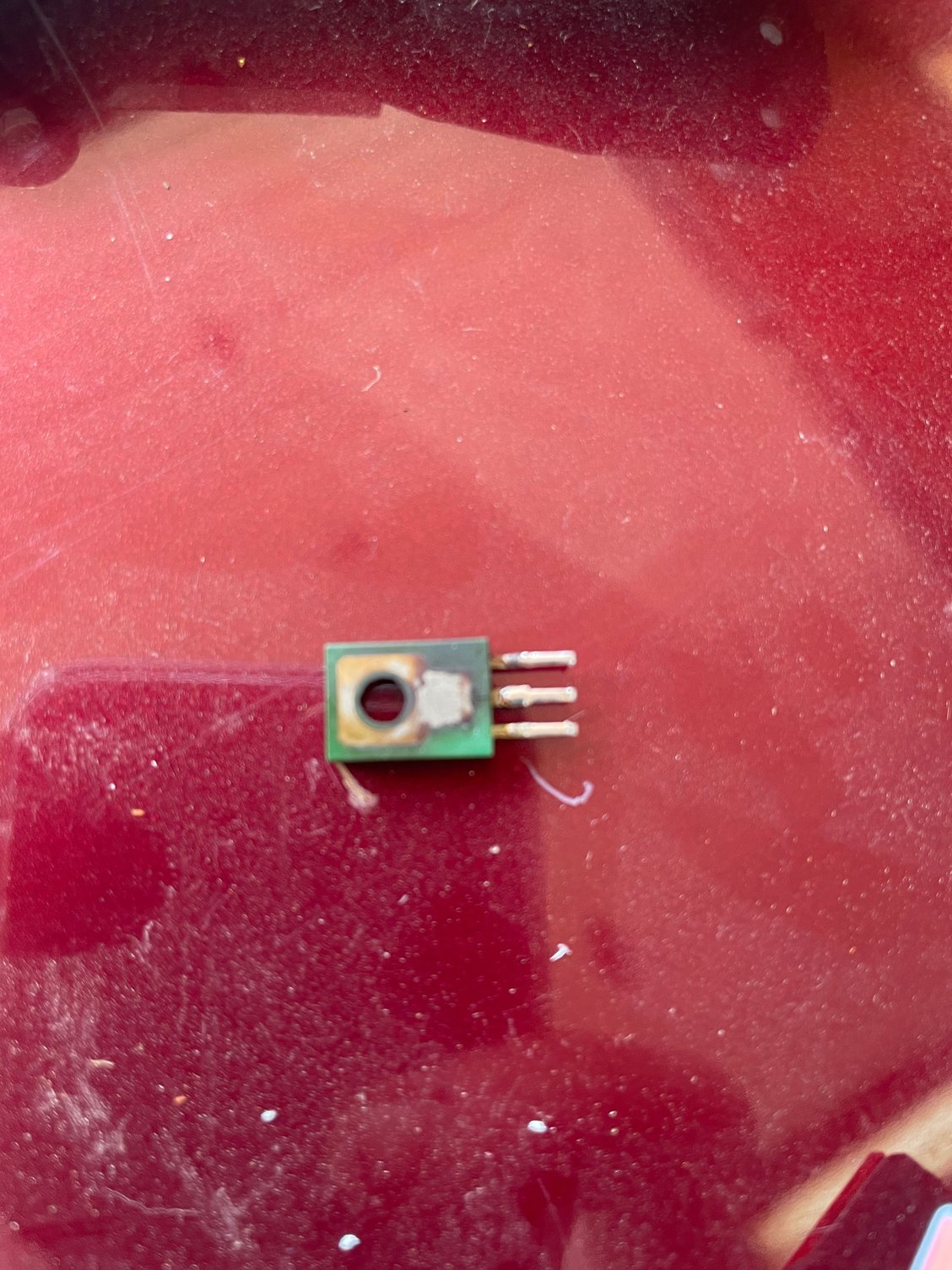

That's a transistor. It's definitely something the cluster will be needing .
Send the cluster to Michael Gagne for a full go-through. He'll get it 100% for you.
Dale
Send the cluster to Michael Gagne for a full go-through. He'll get it 100% for you.
Dale
The following 2 users liked this post by DaleClark:
Redbul (03-24-21),
Venom13132 (03-24-21)
#3
I did think it looked important! haha. I have heard very good things about Michael Gagne. I was hoping this would be something I could fix myself. Finding that transistor may be a challenge. I am a little confused as to where it came from though. Maybe I need to take the gauges further apart and see if I can tell where it came from.
#4
RX-7 Bad Ass
iTrader: (55)
They don't just come off spontaneously - if it came off, something went wrong. I'd have him check the cluster out and get it 100%, quite possible you have other failed components.
Dale
Dale
The following users liked this post:
Venom13132 (03-24-21)
#6

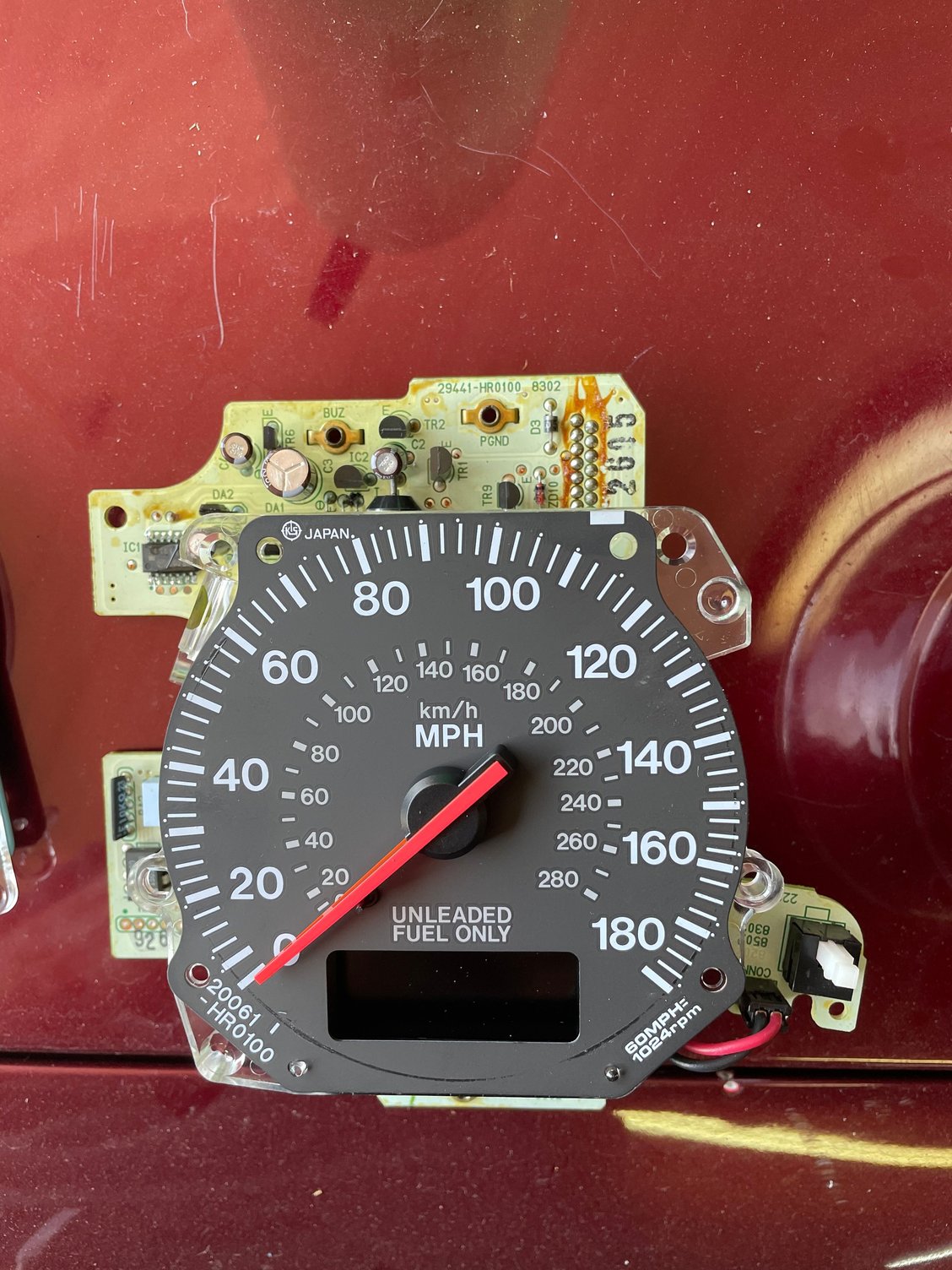

I just spoke with him on FB messenger. That Transistor is from the Speedo it is TR4. he said he has never seen one go bad before. haha so that's a thing. He gave me some advice on what to check out. This is not my car, its for a friend so not sure he wants to send the gauges out. Prices seem very reasonable from Michael though.
I have done lots of soldering work for aerospace companies so I am confident in my abilities to do any fixes on this thing. Just nice to have someone who has been there done that pointing in the right direction.
I have done lots of soldering work for aerospace companies so I am confident in my abilities to do any fixes on this thing. Just nice to have someone who has been there done that pointing in the right direction.
#7
RX-7 Bad Ass
iTrader: (55)
I would strongly recommend having your friend send it in. Michael knows these clusters backwards and forwards and has a proper test rig to fully test all functionality out. He also knows what to replace to keep them being reliable for the long term.
Dale
Dale
The following users liked this post:
Venom13132 (03-25-21)
Trending Topics
#8
Lives on the Forum
iTrader: (26)
I am the guy that had Michael recently work up 9 clusters for me, as reported on his Facebook page.
He saved seven out of nine.
Some looked ok but had certain damage that could not be repaired.
The more you DIY, the more chance you might break something unintentionally.
(Standard occurrance for most FD plastic parts.)
He saved seven out of nine.
Some looked ok but had certain damage that could not be repaired.
The more you DIY, the more chance you might break something unintentionally.
(Standard occurrance for most FD plastic parts.)
The following users liked this post:
Venom13132 (03-25-21)
#9
Stock boost FTW!
iTrader: (22)
Mike just fixed 2 clusters for me and his turn around time was less than 24 hours and he messaged me throughout the process with pictures of his findings.
Super reasonable price and he has a test rig to properly calibrate the gauges as well.
I'll just say this: I'm the first guy to do everything myself because I'm cheap (broke). However his service is so cheap compared to a new(used) cluster that it wasn't even worth my time to attempt this myself.
I can solder and I fix old game boys as a hobby, but using Mike was a much better option.
Vince
Super reasonable price and he has a test rig to properly calibrate the gauges as well.
I'll just say this: I'm the first guy to do everything myself because I'm cheap (broke). However his service is so cheap compared to a new(used) cluster that it wasn't even worth my time to attempt this myself.
I can solder and I fix old game boys as a hobby, but using Mike was a much better option.
Vince
The following 2 users liked this post by Project88Turbo:
Venom13132 (03-25-21),
ZE Power MX6 (04-01-21)
#10
half ass 2 or whole ass 1
iTrader: (114)
mike did 3 clusters for me recently and as mentioned, updated me AS HE WAS DOING THEM. hes the man with these and theres no reason to send them anywhere else.
also, you need to share where you got those faces from. i dont think its legal for you to post that and not share
also, you need to share where you got those faces from. i dont think its legal for you to post that and not share
#11
mike did 3 clusters for me recently and as mentioned, updated me AS HE WAS DOING THEM. hes the man with these and theres no reason to send them anywhere else.
also, you need to share where you got those faces from. I don't think its legal for you to post that and not share
also, you need to share where you got those faces from. I don't think its legal for you to post that and not share
#12
Stock boost FTW!
iTrader: (22)
mike did 3 clusters for me recently and as mentioned, updated me AS HE WAS DOING THEM. hes the man with these and theres no reason to send them anywhere else.
also, you need to share where you got those faces from. i dont think its legal for you to post that and not share
also, you need to share where you got those faces from. i dont think its legal for you to post that and not share
He also makes them for the Miata and Cappuccino.
Vince
#13
Full Member
iTrader: (1)
Funny thing is i received one yesterday with that exact issue, turns out the transistor shorted internally and cracked/burnt. I replaced it with a known working one and no more issue. Made it run on the test rig to be 100% sure.
So if you order a replacement and solder it in place, if nothing else is shorted on the board you should be good to go!
Michael
So if you order a replacement and solder it in place, if nothing else is shorted on the board you should be good to go!
Michael
The following 3 users liked this post by Str3atWarrior:
#14
Funny thing is i received one yesterday with that exact issue, turns out the transistor shorted internally and cracked/burnt. I replaced it with a known working one and no more issue. Made it run on the test rig to be 100% sure.
So if you order a replacement and solder it in place, if nothing else is shorted on the board you should be good to go!
Michael
So if you order a replacement and solder it in place, if nothing else is shorted on the board you should be good to go!
Michael
The following 2 users liked this post by Project88Turbo:
Redbul (04-02-21),
ZE Power MX6 (04-02-21)
