Wiring mess with pics
10-16-13, 12:29 PM
#1
Senior Member
Thread Starter
Wiring mess with pics

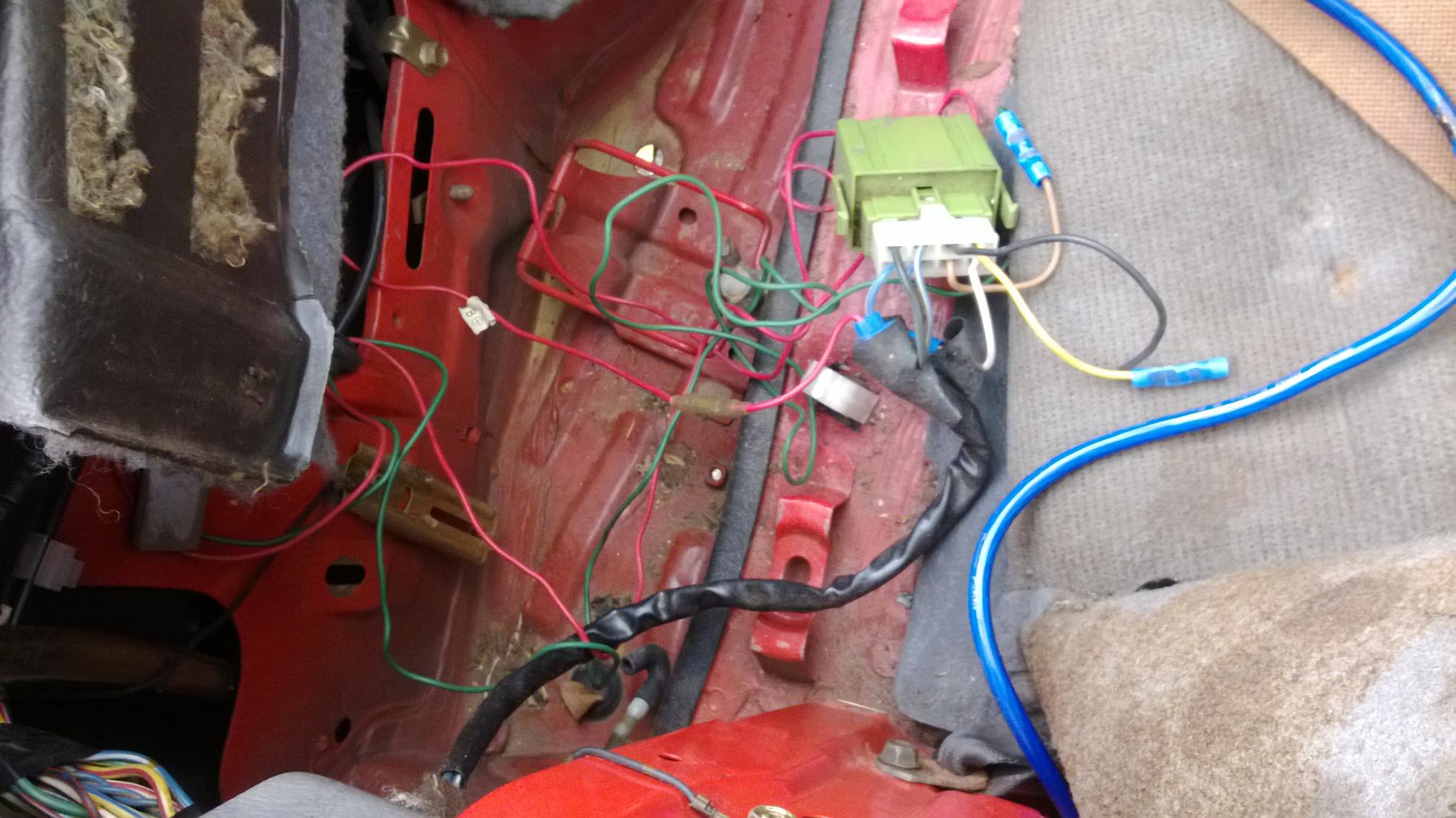

Car is an 86 gxl na. I was removing my jack when I found this clump of wires in behind the jack. Why are the white yellow and black wires cut on the connector? Any ideas on this mess would be helpful.
10-16-13, 08:59 PM
#3
Senior Member
iTrader: (1)
Join Date: Oct 2012
Location: Ontario
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts

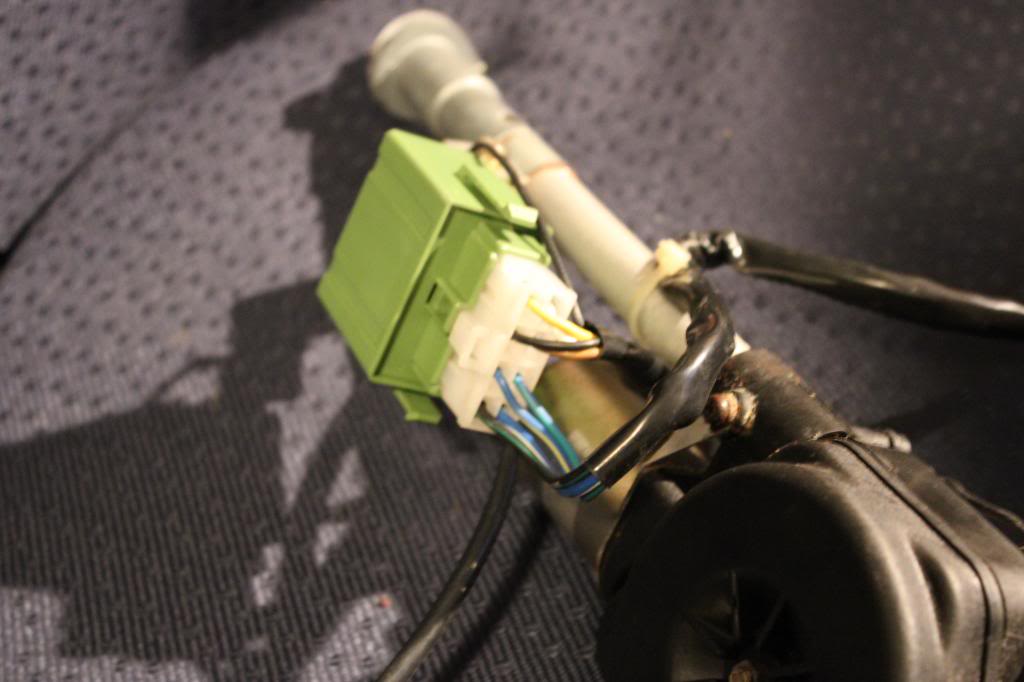

looks like the connector for the stock power antenna to me, maybe some other members will chime in as well
bingo
sorry for crappy photo
bingo
sorry for crappy photo
Last edited by ibeljin; 10-16-13 at 09:07 PM.
10-16-13, 09:15 PM
#4
Senior Member
iTrader: (3)
Join Date: Oct 2008
Location: Glenwood, Iowa
Posts: 447
Likes: 0
Received 0 Likes
on
0 Posts
I'm thinking that's the power antenna relay. Forgive me if I'm wrong but, I'm going to assume by the, what looks like, 8 gauge power wire, that there is/was an audio system in there. I will also hazard to guess that there was an aftermarket stereo installed and the negative switched power antenna wasn't properly "activated" behind the radio and this is what was thought up to get the antenna to work when the radio was turned on.
This is all stipulation, but I know when I did my radio install, the negative switch antenna threw me for a loop. Most cars are positive switched. In order to run 2 amps and the back asswards antenna I had to tuck two relays in behind my radio.
If I'm completely off base, let me know, I'd like to figure out what that wiring mess is as well.
Edit: Haha, ibeljin jumped in right before I hit post lol.
This is all stipulation, but I know when I did my radio install, the negative switch antenna threw me for a loop. Most cars are positive switched. In order to run 2 amps and the back asswards antenna I had to tuck two relays in behind my radio.
If I'm completely off base, let me know, I'd like to figure out what that wiring mess is as well.
Edit: Haha, ibeljin jumped in right before I hit post lol.
10-16-13, 09:27 PM
#6
Senior Member
iTrader: (3)
Join Date: Oct 2008
Location: Glenwood, Iowa
Posts: 447
Likes: 0
Received 0 Likes
on
0 Posts
I just decided to dig through threads and see where I could help. It was a bit confusing trying to determine as the Haynes and FSM don't exactly show an 8 pin connector in the wiring diagrams, and the Body Electrical FSM doesn't give wiring or colors but shows an 8 pin connector.
10-16-13, 09:38 PM
#7
Senior Member
iTrader: (1)
Join Date: Oct 2012
Location: Ontario
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts
i think buying a simple $10 antenna from walmart in favor of messing around with 20+ year old hacked wiring is just easier. None of that wiring is needed other than the actual antenna jack which is tucked away in the back. however thats just my opinion
Trending Topics
10-16-13, 11:40 PM
#8
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
I took out the stock antenna and tossed in a short rubber 12 inch mast antenna from..YEP..the world reknowned Car parts Store..Walmart!.cost?.14 bucks.
10-17-13, 04:21 AM
#9
Senior Member
iTrader: (3)
Join Date: Oct 2008
Location: Glenwood, Iowa
Posts: 447
Likes: 0
Received 0 Likes
on
0 Posts
I personally like my power antenna and it hasn't given me any reason not to like it. Plus, I don't run the risk of some asshat coming along and knocking it off for ***** and giggles. It used to happen a lot a few years back in my town. $14 would start to add up rather quickly versus the price of a couple relays, though crutchfield sent one with the wiring kit and I have tons laying around.
10-17-13, 08:07 AM
#10
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
I personally like my power antenna and it hasn't given me any reason not to like it. Plus, I don't run the risk of some asshat coming along and knocking it off for ***** and giggles. It used to happen a lot a few years back in my town. $14 would start to add up rather quickly versus the price of a couple relays, though crutchfield sent one with the wiring kit and I have tons laying around.
Hook the car's antenna cable to the RUBBER antenna and it works.
If someone "asshat" is standing by your car trying to knock off a Limp piece of rubber then they have more time on their hands than they know what to do with.
You'd have more people breaking your extended antenna.Honestly that is why I got the rubber one.
I am just giving you a fast and easy option.Plug in and go..but it's your car,so I'll leave you to your spaghetti in the trunk..lol..(that looks nasty!)
10-17-13, 10:44 AM
#11
Senior Member
Thread Starter
Lol thanks for the replies, it does look like spaghetti lol. The antenna is broken too so I'll have to add this to my repair list. The past owners didnt take very good care of this 7. Slowly but surely she is getting better.
10-17-13, 10:52 AM
#12
Senior Member
Thread Starter
I'm thinking that's the power antenna relay. Forgive me if I'm wrong but, I'm going to assume by the, what looks like, 8 gauge power wire, that there is/was an audio system in there. I will also hazard to guess that there was an aftermarket stereo installed and the negative switched power antenna wasn't properly "activated" behind the radio and this is what was thought up to get the antenna to work when the radio was turned on.
This is all stipulation, but I know when I did my radio install, the negative switch antenna threw me for a loop. Most cars are positive switched. In order to run 2 amps and the back asswards antenna I had to tuck two relays in behind my radio.
If I'm completely off base, let me know, I'd like to figure out what that wiring mess is as well.
Edit: Haha, ibeljin jumped in right before I hit post lol.
This is all stipulation, but I know when I did my radio install, the negative switch antenna threw me for a loop. Most cars are positive switched. In order to run 2 amps and the back asswards antenna I had to tuck two relays in behind my radio.
If I'm completely off base, let me know, I'd like to figure out what that wiring mess is as well.
Edit: Haha, ibeljin jumped in right before I hit post lol.
10-17-13, 01:54 PM
#13
Senior Member
Thread Starter

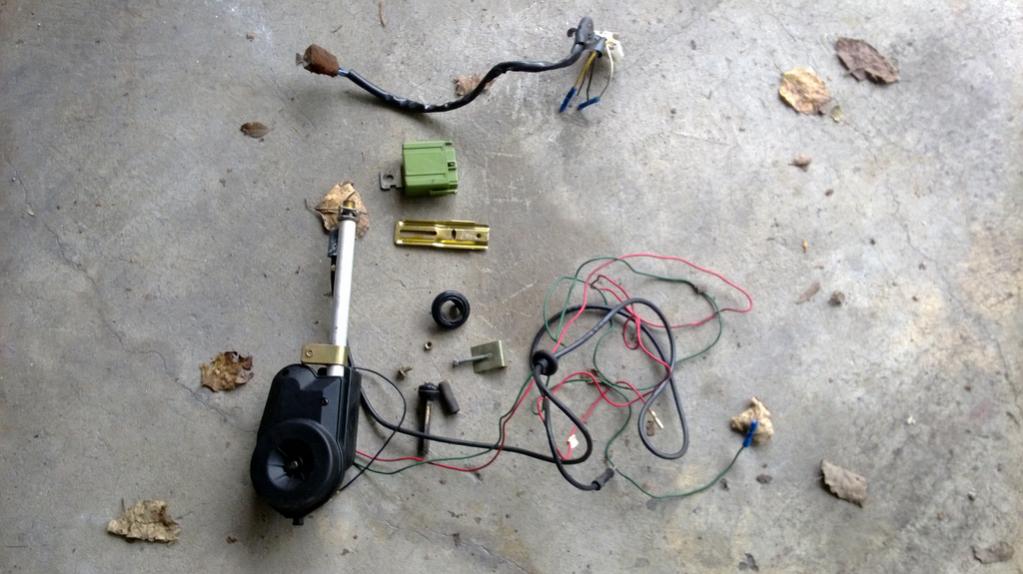

So i unburied my other 86 and got the antenna out of it. It was nice in one piece like it should be. Is there anything salvagable out of this mess I removed? Thanks for all the help guys.
