wiring 02 sensor help please
10-04-09, 09:05 PM
#1
Full Member
Thread Starter
Join Date: Nov 2008
Location: tn,clinton
Posts: 145
Likes: 0
Received 0 Likes
on
0 Posts
wiring 02 sensor help please
i have a 87 t2 and i need help wiring up the 02 ....the wiring diagram say it com from the ecu from a gray wire well i followed it out and right out the fire wall and then there becomes two gray wire... just need help to find it and wire the damn thing up
10-04-09, 09:49 PM
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
the O2 sensor wire should be near the Throttlebody and be a single Wire that has Braiding on it.With a Square type connector(male spade inside)..
10-05-09, 10:07 AM
#4
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
On a TurboII car there are two grey in color shielded cables in the EM harness.
The O2 sensor is one of these. It has a black center conductor that terminates on one end at pin 2D and the other end at the connector for the 02 sensor.
The other grey cable is for the knock sensor. It terminates at the knock sensor bolted to the right hand side of the passengers foot well.
Are you saying you can't find the end of the 02 sensors cable the is NOT at the ECU? Probably. On my car the other end comes out the EM harness near the water thermostat neck.
The O2 sensor is one of these. It has a black center conductor that terminates on one end at pin 2D and the other end at the connector for the 02 sensor.
The other grey cable is for the knock sensor. It terminates at the knock sensor bolted to the right hand side of the passengers foot well.
Are you saying you can't find the end of the 02 sensors cable the is NOT at the ECU? Probably. On my car the other end comes out the EM harness near the water thermostat neck.
10-05-09, 10:16 AM
#5
Full Member
Thread Starter
Join Date: Nov 2008
Location: tn,clinton
Posts: 145
Likes: 0
Received 0 Likes
on
0 Posts
if i send you pic maybe you can tell me more bout i know that it comes out of 2d from the ecu go up one gray but oustside the firewall two gray i dont know man confusin me
10-05-09, 10:45 AM
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Yeah, attach a jpg of it. But I kinda know that if you unwrap the harness trunk of the harness at where it comes out of the interior to the engine bay, there WILL be two grey, somewhat thick cables. One is for 02 the other is for the knock sensor. No way I can tell which is which.
You need to find the other end of the 02 sensor wire. It come out of the harness near the water thermostat area on MY CAR. Non turbo is different I believe. On non turbo it runs under the intake manifold/throttle body and exists near the top, right rear side of the engine. NOT that way on a turbo is my belief.
You need to find the other end of the 02 sensor wire. It come out of the harness near the water thermostat area on MY CAR. Non turbo is different I believe. On non turbo it runs under the intake manifold/throttle body and exists near the top, right rear side of the engine. NOT that way on a turbo is my belief.
Trending Topics
10-06-09, 01:13 AM
#9
I've got a S5 N/A harness I'm using for a TII swap. Mine is of course a little bastardized with the swap, but mine is coming out around the same spot as Hailers...near the water thermostat. Coincidentally I'm getting ready to do some work on my O2 sensor and can take a pic in the AM.
10-06-09, 01:07 PM
#11

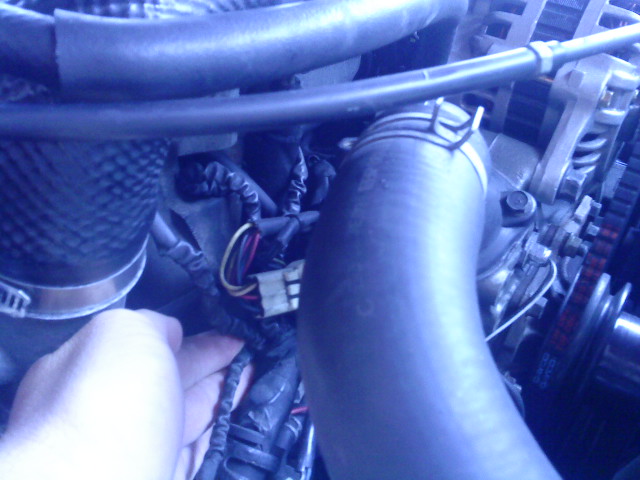

Ok here's what I have. I hope it's usefull. My O2 wire comes out from the main harness right where Hailers said his does, by the water thermostat and upper radiator hose. I put my first and second finger behind the O2 wire. I was hoping it would stand out better.

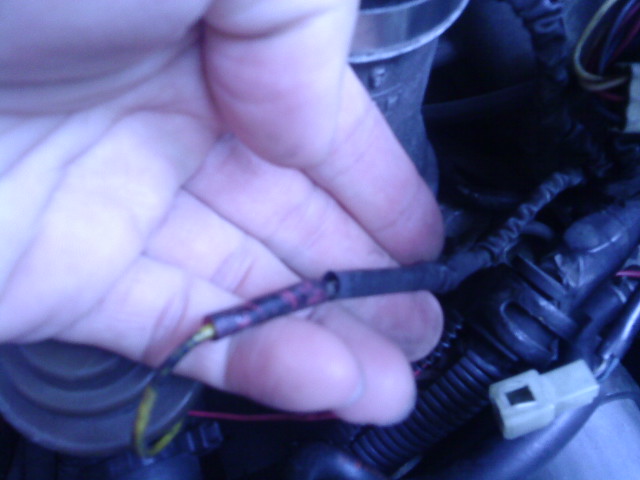

The last picture is of the end of my O2 which got pinched off when the wire got bolted down between my UIM and my LIM. I'm going to start my own thread about my O2 wire getting pinched off and the shielding getting ruined. Hailers I'd love your input on that thread once I start it.
The last picture is of the end of my O2 which got pinched off when the wire got bolted down between my UIM and my LIM. I'm going to start my own thread about my O2 wire getting pinched off and the shielding getting ruined. Hailers I'd love your input on that thread once I start it.
10-06-09, 01:23 PM
#12
Here's some pics for comparison from a S5 N/A. It's my father's car that I'm driving while mine is needing work done. I may buy it from him as a daily driver while mine gets all the attention it needs.

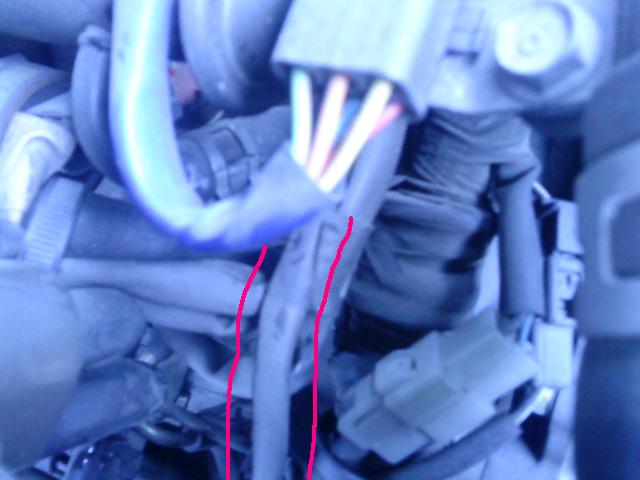

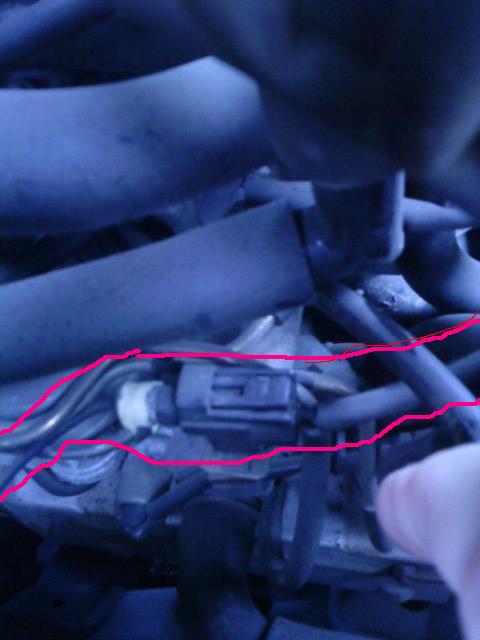

I put some red marks on these pics to make the O2 wires and harness stick out more. The first pic the harness attaches just above the ACV. The second...IIRC shows the O2 wire coming out of the engine harness near the water thermostat and by the TPS.
I put some red marks on these pics to make the O2 wires and harness stick out more. The first pic the harness attaches just above the ACV. The second...IIRC shows the O2 wire coming out of the engine harness near the water thermostat and by the TPS.
10-06-09, 05:32 PM
#13
Only mildly related, but I'm hoping Hailers could offer some help on this one. Here's a link to my thread on my own O2 wiring problems and a CEL
https://www.rx7club.com/showthread.p...31#post9545531
https://www.rx7club.com/showthread.p...31#post9545531
