wipers only work on low speed: bought new switch same thing
#1
Full Member
Thread Starter
Join Date: Apr 2007
Location: raleigh
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
wipers only work on low speed: bought new switch same thing
my front windshield wipers only work on setting I
they dont work on intermittent, mist, or II
the front spray works and the back spray works
but the back wiper doesnt work at all
same exact behavior in BOTH full switches
the guy that sold me the recent switch array says its 100% fully working
anything i should check before i snail mail him a pipe bomb for being a nefarious lying sack of donkey ****?
they dont work on intermittent, mist, or II
the front spray works and the back spray works
but the back wiper doesnt work at all
same exact behavior in BOTH full switches
the guy that sold me the recent switch array says its 100% fully working
anything i should check before i snail mail him a pipe bomb for being a nefarious lying sack of donkey ****?
#2
Full Member
Join Date: Mar 2007
Location: Richmond, VA
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
on the back wipers, if its not the switch check on the drivers side trunk strut. it has the connectors to the motor. mine are broken off and out of place so my rear wipers dont work.
Last edited by willardgoobody; 04-30-07 at 03:47 PM.
#4
Full Member
Thread Starter
Join Date: Apr 2007
Location: raleigh
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Suiicidalpenguin
Mustn't be the switch then. Follow the wires on the harness connecting to the switch, they may have worn out and grounded.. or even be broken in general.
i could probably figure it out a little easier if i had some idea why 'Low Speed' works and the rest don't
not so sure i appreciate the FAQ here alluding to replacing the switch when there are a ton of people here selling parts either
#7
Senior Member
Join Date: Mar 2007
Location: USA/Mass
Posts: 310
Likes: 0
Received 0 Likes
on
0 Posts
I havn't gone over that harness so far but , assumingly, each speed should be on a different wire. Which if there is a problem with thus wires would just stop it all together. (And I know the whole Ebay thing :-\ baught a saposedly "perfect" window switch... the board was cracked, side was melted, and the words and shyte where worn down. Blah some curtain rod holders, wire snips, and some heat... yay all better! )
Trending Topics
#8
Full Member
Thread Starter
Join Date: Apr 2007
Location: raleigh
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Suiicidalpenguin
I havn't gone over that harness so far but , assumingly, each speed should be on a different wire. Which if there is a problem with thus wires would just stop it all together. (And I know the whole Ebay thing :-\ baught a saposedly "perfect" window switch... the board was cracked, side was melted, and the words and shyte where worn down. Blah some curtain rod holders, wire snips, and some heat... yay all better! )
but i am leaning towards this dumbass sold me a bullshit non-working switch.
coz of the 3 things i've bought on ebay so far this month 2 of them were bullshit
i've got a full set of cylinders and latches supposedly in full working order and for any fc3 and the driver side cylinder is just as shot as mine was last month before it died completely, and the ignition switch while it's nice and tight does *NOT* work on any FC3 because it's not compatible with the car alarm models
and the only thing that was probably straight legit was 2 side power mirrors white non-aero and some dipshit who didnt participate in the entire auction for a week bought them nefariously in the last 120 seconds when i had no possibility of bidding again, who i am praying every day for his entire car to ******* die and his *** to bleed out with hemorroids no joke
#9
Former Moderator. RIP Icemark.
probably a bad switch, send it too me and I'll confirm it just for the cost of shipping it back to you...
Or I can rebuild it for you... send me both and I'll knock off the $25 the price to rebuild one and send you back a rebuilt working switch.
If it really is anything else... it would be the wiper motor.
There are two speeds to a wiper motor. Fast and Slow.
The switch however uses High, Low and intermittent. Intermittent and Fast use the same wire at the motor, while slow uses a different wire.
Or I can rebuild it for you... send me both and I'll knock off the $25 the price to rebuild one and send you back a rebuilt working switch.
If it really is anything else... it would be the wiper motor.
There are two speeds to a wiper motor. Fast and Slow.
The switch however uses High, Low and intermittent. Intermittent and Fast use the same wire at the motor, while slow uses a different wire.
#10
Full Member
Thread Starter
Join Date: Apr 2007
Location: raleigh
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Icemark
There are two speeds to a wiper motor. Fast and Slow.
The switch however uses High, Low and intermittent. Intermittent and Fast use the same wire at the motor, while slow uses a different wire.
The switch however uses High, Low and intermittent. Intermittent and Fast use the same wire at the motor, while slow uses a different wire.
checked the same thing for continuity on B terminal and was getting random numbers from about 20 to 100 ohmish
tried checking the rear circuit but not sure which of the three settings the middle switch needs to be in.... bottom middle or top? to have both front and rear activated
already paid $56 for the new switch plus $12 shipping and the guy didnt even send 4 pieces of it so its not a full set regardless of whether it works lying pos (name will be forthcoming as soon as i figure out for sure its a bad switch)
#11
Former Moderator. RIP Icemark.
The switch is only one piece and a cover. Not sure what you mean by the 4 pieces of it unless you are thinking the ***** are part of the switch (which they are not- you need to order them separate from the switch if buying a switch from Mazda).
I have ***** as well, though, if you need those.
I have ***** as well, though, if you need those.
#12
Full Member
Thread Starter
Join Date: Apr 2007
Location: raleigh
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
nah the guy put a pic up of the entire thing including ***** ie: misrepresentation
not to mention one of the metal lock-in fasteners was missing which isn't a part of the buttons its a part of the switch
besides, who the hell scraps cars and keeps some of the useless parts?
my door handles i bought didnt even include the nuts to secure them in place
i think either all mechanics are freakin retards or they drink too much smoke too much weed or have shitty taste in women and hence hate life and ruin everything for everyone else too
not to mention one of the metal lock-in fasteners was missing which isn't a part of the buttons its a part of the switch
besides, who the hell scraps cars and keeps some of the useless parts?
my door handles i bought didnt even include the nuts to secure them in place
i think either all mechanics are freakin retards or they drink too much smoke too much weed or have shitty taste in women and hence hate life and ruin everything for everyone else too
#14
Full Member
Thread Starter
Join Date: Apr 2007
Location: raleigh
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Sideways7
Generally speaking, people only keep the main parts with the assumption that the buyer still has the nuts to attach it. Not trying to be mean, just saying how it works. I parted a car and didn't keep any of the nuts, at least not with the part.
still need someone to verify that i'm use the multimeter right, as i have no freakin clue first time
#16
Rotary $ > AMG $
iTrader: (7)
Originally Posted by so-mars
i think either all mechanics are freakin retards or they drink too much smoke too much weed or have shitty taste in women and hence hate life and ruin everything for everyone else too
And that's all I have to say about that.
#18
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Sorry, but the wiper motor is looking for a ground from the switch to make it work. Power is always there. See the wiper diagram and it makes sense.
Like the man said, there are two wires, that when a gnd is applied to them, makes the wiper motor work. One wire is Blue/White the other is in the wiring diagrams. See free online FSM for its color.
Like the man said, there are two wires, that when a gnd is applied to them, makes the wiper motor work. One wire is Blue/White the other is in the wiring diagrams. See free online FSM for its color.
#20
Full Member
Thread Starter
Join Date: Apr 2007
Location: raleigh
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by HAILERS
Sorry, but the wiper motor is looking for a ground from the switch to make it work. Power is always there. See the wiper diagram and it makes sense.
Like the man said, there are two wires, that when a gnd is applied to them, makes the wiper motor work. One wire is Blue/White the other is in the wiring diagrams. See free online FSM for its color.
Like the man said, there are two wires, that when a gnd is applied to them, makes the wiper motor work. One wire is Blue/White the other is in the wiring diagrams. See free online FSM for its color.
the front harness has i think 6 slots and 5 wires... i tested two of them as i stated up above but i dont know if those results are accurate?
how do i test the other 3 wires?
and how do i apply 12V w/o killing myself or destroying something considering i have no clue?
i need to test this a.s.a.p. so i can send this switch back to this damn fool this week and deal with either getting my money back or flying out to texas to torch his car
#21
Full Member
Thread Starter
Join Date: Apr 2007
Location: raleigh
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by HAILERS
By the way, both wiper switches are bad due to the same relay being bad inside them. Have someone fix the switch/switches or buy a new one.
i can only torch it if i think my karma wont get hit in the process heh
#22
Full Member
Thread Starter
Join Date: Apr 2007
Location: raleigh
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
ok so im looking at the Circuit Diagram... which is cracked out and mostly useless :|
but can someone help me with this so i dont wreck something... what kind of wire should i use to hook to the battery?
but can someone help me with this so i dont wreck something... what kind of wire should i use to hook to the battery?
#23
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Yeah that picture makes sense.
That view is looking into the wiper jack with the plug off.
If you look at the plug, the BLUE wire is the source of power. THat would be the bottom far right position.
Then the ground(s) are the wire just above the Blue. That gnd wire is colored Blue with a White stripe.
The other ground is the one next to the LW (blue/white). It's color is BLUE with a RED stripe.
So if you have power gong to the BLUE and then put a gnd on the L/R OR L/W wires, the motor will whip back and forth.
Frankly it's best if you remove the wipers from their arms when you do this OR lift the arms up so they rest in mid air. If left to run across a dry window its hard to tell which is faster, putting a gnd on the L/W or the L/R. If left in mid air you can hear and see them move distincly faster in one position vs the other.
What I've done in the past is leave the plug on the motor. Turn the key to ON. Then using a spare piece of wire that is bolted to a good chassis ground, I insert the other bare end of that wire into the L/R or the L/W sockets of the plug with THE PLUG STILL CONNECTED TO THE MOTOR.
In other words backprobe the L/W and the L/R one at a time and watch the wiper blades move back/forth.
I never have pulled the plug off then attach a power wire to the bottom right pin on the motor and then apply a ground to either the pin just above the power position and then later apply the gnd wire to the one next to it. It should work like that. Maybe I need to read the manual someday.
That view is looking into the wiper jack with the plug off.
If you look at the plug, the BLUE wire is the source of power. THat would be the bottom far right position.
Then the ground(s) are the wire just above the Blue. That gnd wire is colored Blue with a White stripe.
The other ground is the one next to the LW (blue/white). It's color is BLUE with a RED stripe.
So if you have power gong to the BLUE and then put a gnd on the L/R OR L/W wires, the motor will whip back and forth.
Frankly it's best if you remove the wipers from their arms when you do this OR lift the arms up so they rest in mid air. If left to run across a dry window its hard to tell which is faster, putting a gnd on the L/W or the L/R. If left in mid air you can hear and see them move distincly faster in one position vs the other.
What I've done in the past is leave the plug on the motor. Turn the key to ON. Then using a spare piece of wire that is bolted to a good chassis ground, I insert the other bare end of that wire into the L/R or the L/W sockets of the plug with THE PLUG STILL CONNECTED TO THE MOTOR.
In other words backprobe the L/W and the L/R one at a time and watch the wiper blades move back/forth.
I never have pulled the plug off then attach a power wire to the bottom right pin on the motor and then apply a ground to either the pin just above the power position and then later apply the gnd wire to the one next to it. It should work like that. Maybe I need to read the manual someday.
#24
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

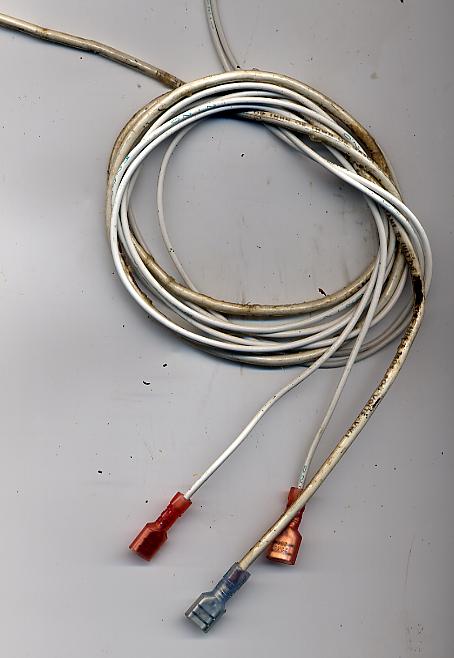

I just grabbed three pieces of spare wire and crimped on three female connectors and then put the wires on the wiper motors jack like in the picute. I used a set of jumper cables to supply the wires with pwr and a gnd.
Wet the windshield down and applied the gnd to the LW then the LR. There is a noticable difference. The LR is the fast speed. Be sure to wet the windshield down. Key to ON.
Wet the windshield down and applied the gnd to the LW then the LR. There is a noticable difference. The LR is the fast speed. Be sure to wet the windshield down. Key to ON.
