Why do the oil injectors need vacuum to run?
#1
I live in an igloo
Thread Starter
Join Date: Jul 2004
Location: calgary alberta
Posts: 2,546
Likes: 0
Received 0 Likes
on
0 Posts
Why do the oil injectors need vacuum to run?
I don't get it?
Also, it says in the haynes that you should not be able to blow into the injector from the vacuum hookup, only suck air.
I can blow a little bit of air, is this normal?
thx
Also, it says in the haynes that you should not be able to blow into the injector from the vacuum hookup, only suck air.
I can blow a little bit of air, is this normal?
thx
#2
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
pulls the air out of the line so as not to inject air? Just a thought.
Sounds like a checkvalve is leaking. if you can blow through it-- or it could be designed that way, not sure.
Sounds like a checkvalve is leaking. if you can blow through it-- or it could be designed that way, not sure.
#3
I R SAD PANDA W/O BAW
The oil injectors are supposed to only flow one way like a check valve. The test in the FSM just tells you to blow in it and air is only supposed to come be able to be blown out of one side.
#5
ERTW
iTrader: (1)
Join Date: Oct 2002
Location: Ottawa, Canada
Posts: 4,328
Likes: 0
Received 0 Likes
on
0 Posts
only on RX7club.com do we have people sucking on potentially hazardous materials
but anyways, if you think about it vacuum is smart. the MOP will open a certain amount and the main mechanism for ensuring oil flow is VACUUM. a lot better than pumping (positive pressure) or gravity by itself...of course it is hard to rely on vacuum unless you are dealing with a relatively small quanity that needs to be delivered, such as oil in this case
but anyways, if you think about it vacuum is smart. the MOP will open a certain amount and the main mechanism for ensuring oil flow is VACUUM. a lot better than pumping (positive pressure) or gravity by itself...of course it is hard to rely on vacuum unless you are dealing with a relatively small quanity that needs to be delivered, such as oil in this case
#6
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by coldfire
only on RX7club.com do we have people sucking on potentially hazardous materials
Extended exposure may cause cancer.
but anyways, if you think about it vacuum is smart. the MOP will open a certain amount and the main mechanism for ensuring oil flow is VACUUM.
The oil system is posetive pressurized. I was under the assumption the lines were pressure fed, and the VAC lines were to accomadate bleeding only?
#7
I live in an igloo
Thread Starter
Join Date: Jul 2004
Location: calgary alberta
Posts: 2,546
Likes: 0
Received 0 Likes
on
0 Posts
No, the lines (im pretty sure) go into the dynamic chamber and exit IN THE DIRECTION of incoming air, creating a vacuum. The other vac line on the dynamic chamber is a positive source, as its entrance connects up with the front of the TB, that little hole inside just before the butterflys, air flys into that, via vacuum hose, via the lower manifold.
Trending Topics
#8
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by BlaCkPlaGUE
No, the lines (im pretty sure) go into the dynamic chamber and exit IN THE DIRECTION of incoming air, creating a vacuum. The other vac line on the dynamic chamber is a positive source, as its entrance connects up with the front of the TB, that little hole inside just before the butterflys, air flys into that, via vacuum hose, via the lower manifold.
#9
Need an E6x
Join Date: Aug 2001
Location: Phoenix, AZ
Posts: 842
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kenteth
All that time I spent laying in auto tranny fluid working on my 5spd swap w/o lift.
Extended exposure may cause cancer.
Extended exposure may cause cancer.
In my hair, on my neck on my back just all freakin over.
and boy did i smell pretty when a girl came to see how the work was coming
Matt
#10
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
The oil nozzle vac lines do indeed have vacuum in them, but the air is flowing in the opposite direction to what most people think. The vacuum is coming from the engine side of the nozzle. The vacuum in the chamber itself sucks air through the oil nozzle. The rubber lines simply connect the nozzles to the intake ahead of the throttles so that only filtered and metered air enters the engine.
The extra air most likely helps "vapourise" the oil (not really the right word) in the same way the injector air bleeds help vapourise the fuel as it leaves the injectors.
The extra air most likely helps "vapourise" the oil (not really the right word) in the same way the injector air bleeds help vapourise the fuel as it leaves the injectors.
#11
I live in an igloo
Thread Starter
Join Date: Jul 2004
Location: calgary alberta
Posts: 2,546
Likes: 0
Received 0 Likes
on
0 Posts
here how about this one
"atomizes"?
heh...
Thats intersting cause now that I read the manual again, and see the picture, it says that the valves should not be sucking in any air at all! Am I missing something?
They say that you should be able to pass air through the tip, to the part where the oil comes out, but not the other way around. huh?
maybe its becuase its 5:30am, I got to be at work in about 3 hours, and havent slept yet that im not getting this...
"atomizes"?
heh...
Thats intersting cause now that I read the manual again, and see the picture, it says that the valves should not be sucking in any air at all! Am I missing something?
They say that you should be able to pass air through the tip, to the part where the oil comes out, but not the other way around. huh?
maybe its becuase its 5:30am, I got to be at work in about 3 hours, and havent slept yet that im not getting this...
#12
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by BlaCkPlaGUE
They say that you should be able to pass air through the tip, to the part where the oil comes out, but not the other way around.
#13
TANSTAFL
iTrader: (13)
so, during intake air is pulled from the upper intake through the check valve andpushes oil through the fittings. then, aren't there contradictory vacuum forces on each side of the system? i know there's a check valve, but couldn't air more freely move/push out oil into the fittings if the lines weren't connected to vacuum on both sides?
#18
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Originally Posted by alexdimen
so, during intake air is pulled from the upper intake through the check valve andpushes oil through the fittings. then, aren't there contradictory vacuum forces on each side of the system? i know there's a check valve, but couldn't air more freely move/push out oil into the fittings if the lines weren't connected to vacuum on both sides?
It's what NZ stated.

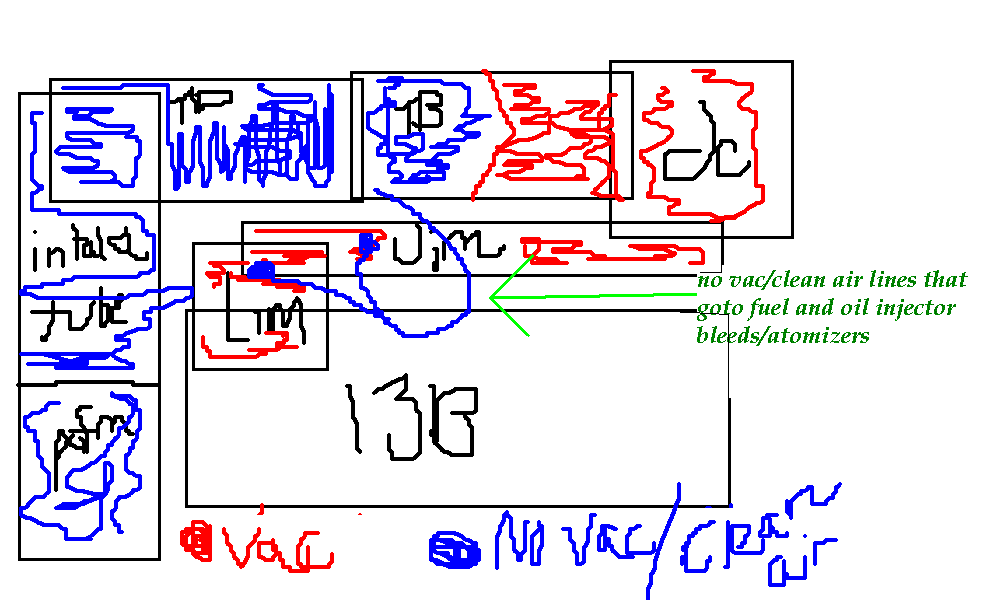

If the engine was running, and you could pull the hose off oil injector spider, you would NOT feel any vacuum on the hose that comes from the direction of the throttle body. None, zip, zero, nadda.
If you then put your finger on the top of any of the oil injectors, you'd feel a vacuum.
The vacuum comes FROM the engine side of the oil injector. Caused by the intake stroke.
The hose that goes to the throttle body has no vac. Its path thru the throttle body terminates in front of the throttle plates. It's that quarter inch hole you see in the middle of the throttle body when viewing the throttle plates. Ain' t no vacuum there to speak of.
That's more or less what NZ said and I'm sure he said it better........but then again, maybe he's one of the people who have no clue! I gotta get that NO CLUE list so I can ignore any post made by them. humor, please.
#20
Rotary Enthusiast
Join Date: Oct 2002
Location: California, Bay Area
Posts: 1,165
Likes: 0
Received 0 Likes
on
0 Posts
lol, thats perfect.
Think about it people, injector air BLEEDS not injector air VACUME. Bleeding something usually implies realeasing it to atmospheric pressure,.. and if you have vacume before the throttle plates like some of you seem to think you have a SERIOUIS problem with your car.
Think about it people, injector air BLEEDS not injector air VACUME. Bleeding something usually implies realeasing it to atmospheric pressure,.. and if you have vacume before the throttle plates like some of you seem to think you have a SERIOUIS problem with your car.
#21
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Originally Posted by MichaelFregoe
You people have no clue
#25
Banned. I got OWNED!!!
Originally Posted by Kenteth
All that time I spent laying in auto tranny fluid working on my 5spd swap w/o lift.
Extended exposure may cause cancer.
Extended exposure may cause cancer.
