Where is this vaccum should be connected to?
#1
Senior Member
Thread Starter
Join Date: Aug 2003
Location: Kiev, UKRAINE
Posts: 255
Likes: 0
Received 0 Likes
on
0 Posts
Where is this vaccum should be connected to?
Hi everyone!

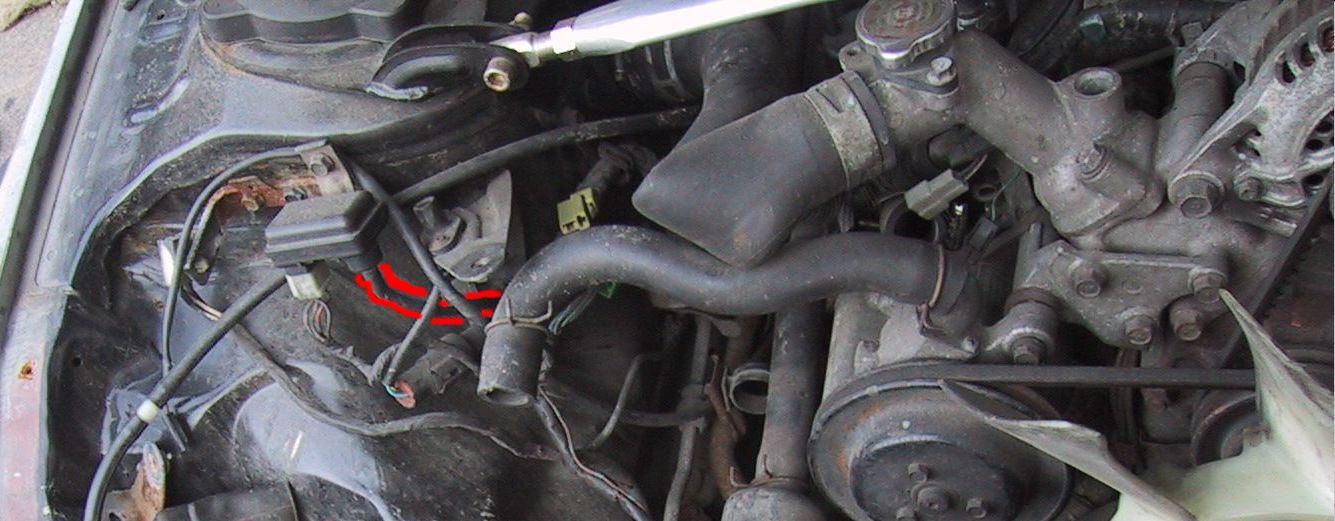

I almost assembled my car after swithching the bodies of two RX-7s after last serious accident... But i can't find where a vacuum from vacuum sensor should be connected to? See attachment for a pic... I remember that it should be connected to a lower intake maniold, but can't find the exact plug and can't understand nothing from vacuum wiring diagram :-(
Please help me with this!
I almost assembled my car after swithching the bodies of two RX-7s after last serious accident... But i can't find where a vacuum from vacuum sensor should be connected to? See attachment for a pic... I remember that it should be connected to a lower intake maniold, but can't find the exact plug and can't understand nothing from vacuum wiring diagram :-(
Please help me with this!
#4
Old Fart Young at Heart
iTrader: (6)
On the S4 there is a nipple in the middle of the LIM, near the top, that's where the pressure sensor connects too. That particular vacumme line also has a restictor 'pill' in it. The original vacumme hose should have a bit of red tape wrapped around the end of the line that has the 'pill'.
#5
My job is to blow **** up
iTrader: (8)
trochoid, when i was replacing mine it had no pill, not sure what it is you are refurring too..
as for the nipple, it should be almost paralle to the air pump and towards the forward aux port auctator, just a bit above it.
as for the nipple, it should be almost paralle to the air pump and towards the forward aux port auctator, just a bit above it.
Last edited by lastphaseofthis; 04-15-05 at 03:47 PM.
#6
CLIPPERNATION
iTrader: (12)
Join Date: Feb 2005
Location: el monte, spanish for...the monte
Posts: 2,023
Likes: 0
Received 0 Likes
on
0 Posts
that's from the pressure sensor, it should go into a T line with the other end going to the bypass valve, and the other end...ummmm, yeah i think to the LIM like said above
#7
Old Fart Young at Heart
iTrader: (6)
Originally Posted by lastphaseofthis
trochoid, when i was replacing mine it had no pill, not sure what it is you are refurring too..
as for the nipple, it should be almost paralle to the air pump and towards the forward aux port auctator, just a bit above it.
as for the nipple, it should be almost paralle to the air pump and towards the forward aux port auctator, just a bit above it.
Trending Topics
#10
Carter 2.0
You don't need a pic. just listen to what has been said. There are four brass looking nipples that come out of the LIM. Two are pointing straight out and two are coming out at a 45° angle. The 45° angle ones are the ones you need. The one closest to the front of the car should be hooked to your sensor. The back one is plugged.
You can't easily see the nipple becuase your top radiator hose is bent backwards over the spot where the nipple is.
You can't easily see the nipple becuase your top radiator hose is bent backwards over the spot where the nipple is.
