Where does this wire go (pics)

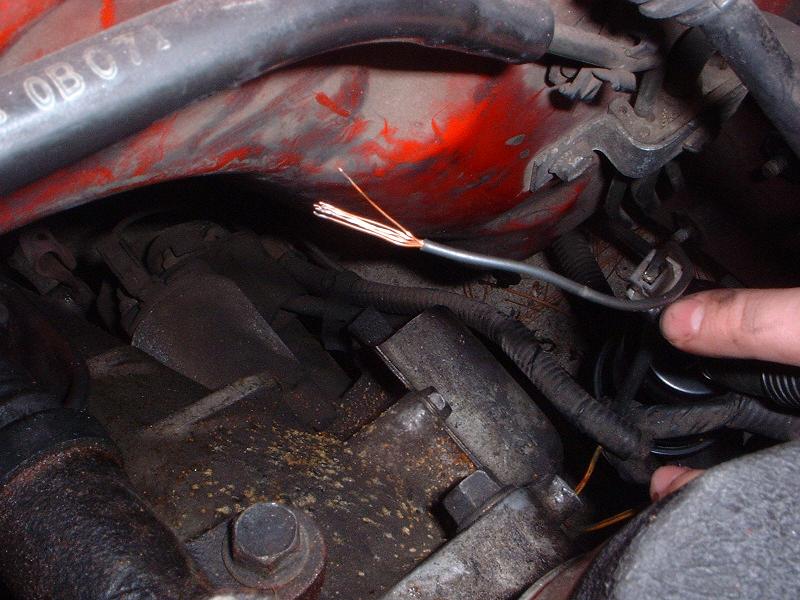

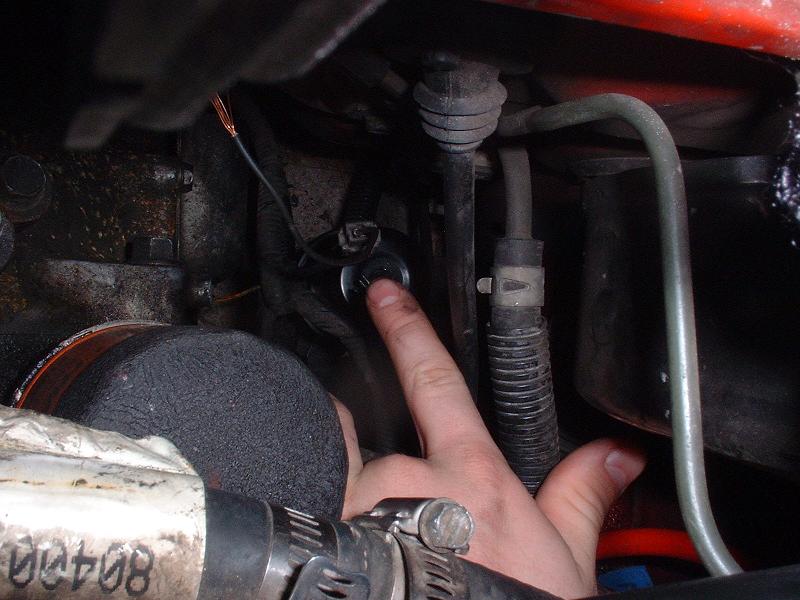

Hey guys i was looking in my engine bay today and noticed a wire that wasent connected and couldnt find where it was supposed to be connected to of where the other end was so i would apreceate any help thx in advance.
#7
The Brap is Back
iTrader: (3)
Originally Posted by emmanuel
ummm is this importaint because ive been driving with it unconnected...dont fix whats not broke?
Trending Topics
#9
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Pure Black wire????? If it's a Black/Red wire I'd go along and say it's part of the SubZero Start System (Oil Pan Switch).....................but that wire comes out of a plug in that area not the harness.
#11
Full Member
Thread Starter
Join Date: Sep 2005
Location: Colorado
Posts: 108
Likes: 0
Received 0 Likes
on
0 Posts
yes it comes out of the harness and i was thinking firewall ground also...but im not sure...would it be safe to ground it to c if it fixes the problem of would this be a big no no...?
#14
Banned. I got OWNED!!!
Join Date: Jun 2005
Location: Vallejo, CA
Posts: 759
Likes: 0
Received 0 Likes
on
0 Posts
Well, since I didn't hear back, I guess that I will just guess. It's not a ground, period. Depending on the year and model, I would say that it is the level sensor. If the sensor is faulty, or you are low on oil, it lights up an idiot light, and buzzer sounds. Probably is faulty, or someone didn't replace it, but disconnected wire. It is attached to a male end
connector, going into female plug , correct?
PEACE THE DOG
connector, going into female plug , correct?
PEACE THE DOG
#16
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The oil level sensor uses a RED/WHITE wire. It comes from a six socket connector that mates b/t the Engine harness and the Front harness. It's located somewhat below the trail coil assy by about a foot.
What color is the wire? Does it have a stripe on it?
What color is the wire? Does it have a stripe on it?
Last edited by HAILERS; 12-05-05 at 09:14 AM.
#18
Iraqi's Hate Me
Join Date: Nov 2005
Location: From: Phoenix\Stationed: Germany
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
What side of the car is it located??? If it is on the drivers side then i would agree with driften8ez....If it is coming from the passenger side, it looks like it might be the connecting end of your oxygen sensor.
