what does this plug into?

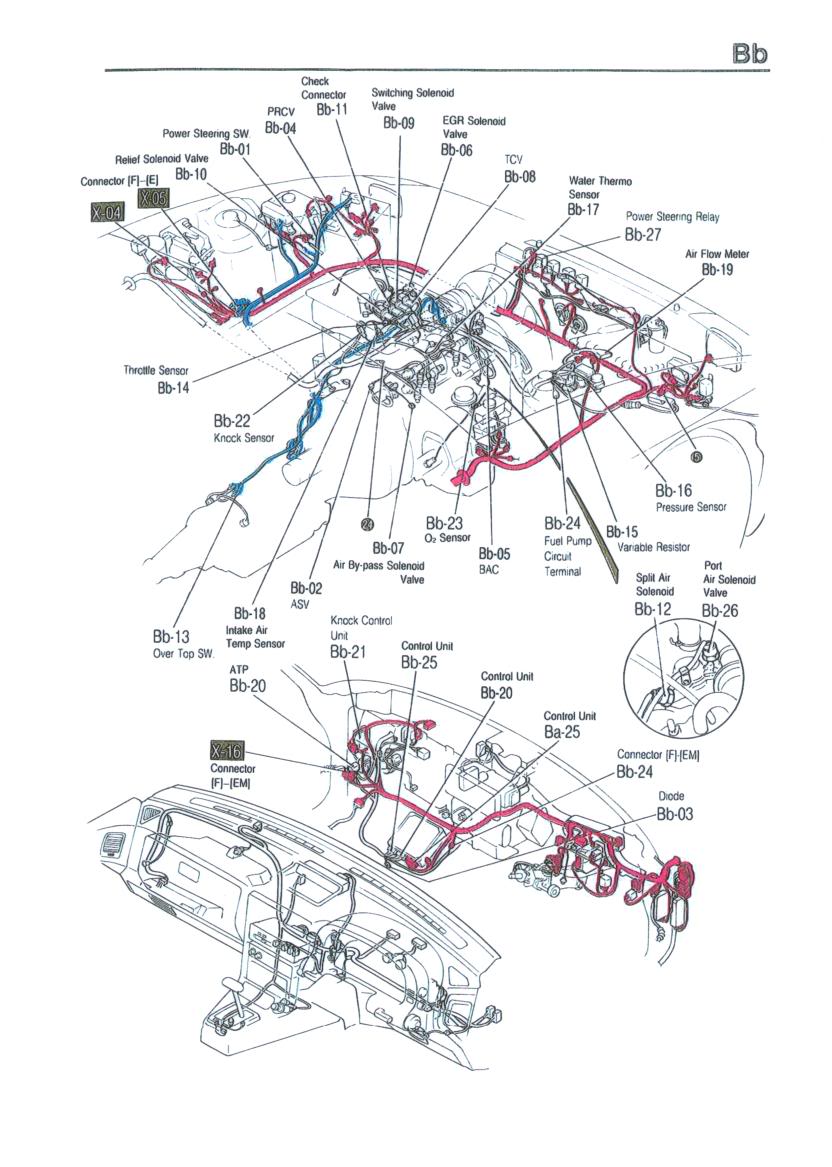

the plug all the way to the right.
Under the text "Bb-03", not Bb-03 though.
been looking through wiring diagrams and this is the closest i could find to it. it doesnt look like its plugged into anything, wanna make sure im not chasin wires for no reason.
Under the text "Bb-03", not Bb-03 though.
been looking through wiring diagrams and this is the closest i could find to it. it doesnt look like its plugged into anything, wanna make sure im not chasin wires for no reason.
09-25-13, 10:54 PM
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
You know that "chunk of black Hash" with the Eyelet in it..that connects to the Firewall/Ground?(sometimes connects to one of the Clutch slave bolts)
that is IT.
EDIT:
It is the Condenser,capacitor,diode..Whatever you wish to call it.. for the oil gauge.
actually,I just found a thread with a pic..just posted.
https://www.rx7club.com/2nd-generati...-wire-1047267/
that is IT.
EDIT:
It is the Condenser,capacitor,diode..Whatever you wish to call it.. for the oil gauge.
actually,I just found a thread with a pic..just posted.
https://www.rx7club.com/2nd-generati...-wire-1047267/
Last edited by misterstyx69; 09-25-13 at 11:14 PM.
09-26-13, 07:16 AM
#3
Penis Healthy
Thread Starter
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 794 Likes
on
452 Posts
You know that "chunk of black Hash" with the Eyelet in it..that connects to the Firewall/Ground?(sometimes connects to one of the Clutch slave bolts)
that is IT.
EDIT:
It is the Condenser,capacitor,diode..Whatever you wish to call it.. for the oil gauge.
actually,I just found a thread with a pic..just posted.
https://www.rx7club.com/2nd-generati...-wire-1047267/
that is IT.
EDIT:
It is the Condenser,capacitor,diode..Whatever you wish to call it.. for the oil gauge.
actually,I just found a thread with a pic..just posted.
https://www.rx7club.com/2nd-generati...-wire-1047267/
Yellow.
09-26-13, 07:51 AM
#5
Penis Healthy
Thread Starter
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 794 Likes
on
452 Posts
I just realized this is a diagram of the wrong harness. Im talking the engine harness. The first plug past the 2 ecu plugs. Looks like about 12 or 14 wires
09-26-13, 08:45 AM
#6
There is no Engine harness plug near the ECU of that size. You must be referring to either the Front harness or the Emission Harness and likely the Front harness. In the FSM wiring diagram there is an illustration of each harness at the very end of the document.
09-26-13, 09:09 AM
#7
Penis Healthy
Thread Starter
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 794 Likes
on
452 Posts
Yeah I found out its the connector to the dash harness. Im tryin to find a pinout of the s4 connectors as well as the s5 connector, but im not having any luck. I havent found anyone on this forum that has done this repin...
Trending Topics
09-26-13, 10:52 AM
#8
Penis Healthy
Thread Starter
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 794 Likes
on
452 Posts
I got it. The dash plug for an s5 goes to fem 1 and 2. Now I gotta chase all these wires back. Strange nobody has done a write up on this yet. I guess people like to take the easy route out. I wanna use this s5 ecu so im gonna go for it.
