e-shaft thermo-pellet install problems - there's nothing there!
#1
e-shaft thermo-pellet install problems - there's nothing there!
so Im trying to install the thermo pellet plug in the eshaft on my 88 TII. It has a Bruce Turrentine/rotaryaviation rebuild with about 50k miles on it.
ive been having low oil pressure at idle when warmed up (zero at idle, ~45psi at 3k+rpm), so i figured it wouldnt hurt to install the plug and if it fixes my problem, then all the better
so im looking at this guide:
http://fc3spro.com/TECH/HOWTO/OTB/otb.html
and i cant make sense of what im seeing where the e-shaft bolt went. There is no thermo pellet that I can see, but there is no plug either. I compared the bolt to what came out of a spare S5 n/a motor and the turbo bolt is shorter, smaller, and doesnt have a hollow end for the thermo pellet. Take a look:
heres what the eshaft looks like after taking out the bolt:
Does my TII not have a thermo pellet? Im so confused
ive been having low oil pressure at idle when warmed up (zero at idle, ~45psi at 3k+rpm), so i figured it wouldnt hurt to install the plug and if it fixes my problem, then all the better
so im looking at this guide:
http://fc3spro.com/TECH/HOWTO/OTB/otb.html
and i cant make sense of what im seeing where the e-shaft bolt went. There is no thermo pellet that I can see, but there is no plug either. I compared the bolt to what came out of a spare S5 n/a motor and the turbo bolt is shorter, smaller, and doesnt have a hollow end for the thermo pellet. Take a look:
heres what the eshaft looks like after taking out the bolt:
Does my TII not have a thermo pellet? Im so confused
#2
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Look down the eccentric shaft hole and see if it's a dead end or if htere's a oil feed hole there or not.

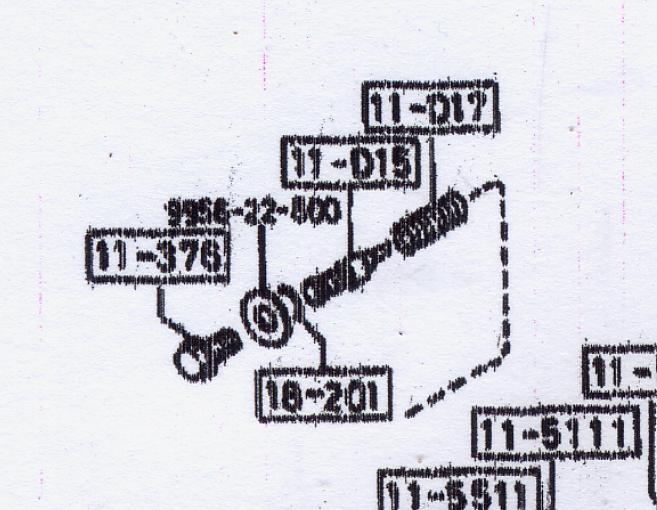

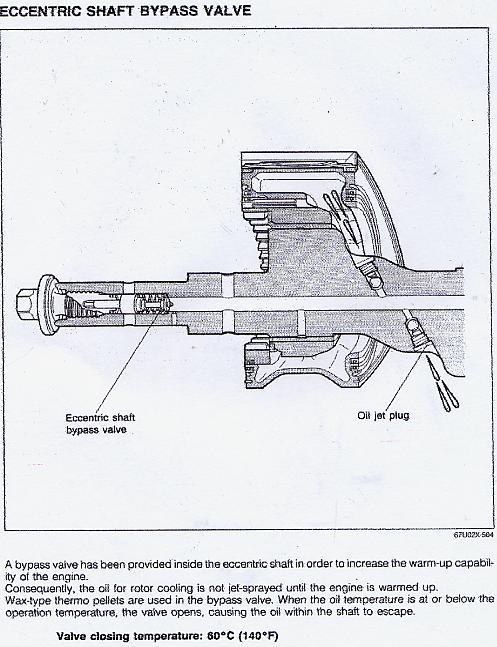

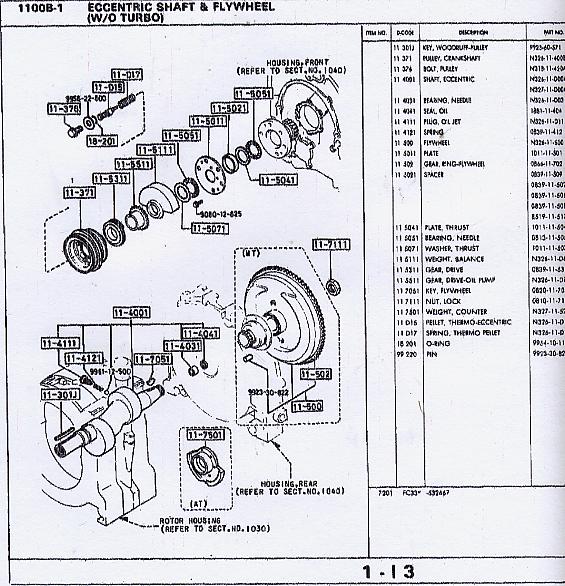

All series four and five had the oil bypass valve. See the attached jpg out of the Training Manual and also go to the parts fische and see for yourself.
I wonder a bit if using a older model (first gen?) eccentric shaft would bugger up the balance????? Ask the guy who built the engine for you. Bruce T???????
https://www.mazdamotorsports.com/web...servlet/PubRX7
All series four and five had the oil bypass valve. See the attached jpg out of the Training Manual and also go to the parts fische and see for yourself.
I wonder a bit if using a older model (first gen?) eccentric shaft would bugger up the balance????? Ask the guy who built the engine for you. Bruce T???????
https://www.mazdamotorsports.com/web...servlet/PubRX7
Last edited by HAILERS; 05-07-07 at 09:03 AM.
#3
well i stuck a piece of vacuum hose in the hole to measure how far down the "plug" you see in the pic goes, and i compared it to the S5 n/a e-shaft, and it seems to stop just short of the pellet drain hole.. I guess ill shoot RA an email and ask them whats up
#5
well from looking at the part numbers, all the FC's used the same e-shaft bolt (P/N N318-11-420A).
The strange thing is, i have an e-shaft bolt out of an S5 n/a and my TII e-shaft bolt is completely different.. its a lot smaller
where the jspec engines different?
The strange thing is, i have an e-shaft bolt out of an S5 n/a and my TII e-shaft bolt is completely different.. its a lot smaller
where the jspec engines different?
#7
cool yah i was a lil worryed looking at this but yah i hat that bolt s5 n/a looking one i just put the racing beat bypass pellet dont kno which shft it is hope is doesnt starv the engine
Trending Topics
#8
Senior Member
iTrader: (17)
so Im trying to install the thermo pellet plug in the eshaft on my 88 TII. It has a Bruce Turrentine/rotaryaviation rebuild with about 50k miles on it.
ive been having low oil pressure at idle when warmed up (zero at idle, ~45psi at 3k+rpm), so i figured it wouldnt hurt to install the plug and if it fixes my problem, then all the better
so im looking at this guide:
FC3S Pro v2.0:  HOW-TO - Oil Thermo Bypass Pellet Shim Procedure
and i cant make sense of what im seeing where the e-shaft bolt went. There is no thermo pellet that I can see, but there is no plug either. I compared the bolt to what came out of a spare S5 n/a motor and the turbo bolt is shorter, smaller, and doesnt have a hollow end for the thermo pellet. Take a look:
heres what the eshaft looks like after taking out the bolt:
Does my TII not have a thermo pellet? Im so confused
ive been having low oil pressure at idle when warmed up (zero at idle, ~45psi at 3k+rpm), so i figured it wouldnt hurt to install the plug and if it fixes my problem, then all the better
so im looking at this guide:
FC3S Pro v2.0:  HOW-TO - Oil Thermo Bypass Pellet Shim Procedure
and i cant make sense of what im seeing where the e-shaft bolt went. There is no thermo pellet that I can see, but there is no plug either. I compared the bolt to what came out of a spare S5 n/a motor and the turbo bolt is shorter, smaller, and doesnt have a hollow end for the thermo pellet. Take a look:
heres what the eshaft looks like after taking out the bolt:
Does my TII not have a thermo pellet? Im so confused
Has your oil pressure stayed consistent since the pellet mod?
