Warm up device on second gen...
There's this warm up device I heard that was in the engines. When you start the car, the engine immediately shoots up to 2000 RPM then as it warms up, it goes down until you hit idle point. I heard it can be removed. What's the device called?
#3
#4
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
If you are talking about the 3K startup and the AWS solenoid, then it can be easily disabled by jumping the wires connected to the thermoswitch at the bottom drivers side of the rad.
If you are talking about the cold start cam thermowax assembly that gives you the 1500RPM high cold idle, then my advice is to keep it.
If you are talking about the cold start cam thermowax assembly that gives you the 1500RPM high cold idle, then my advice is to keep it.
#5
Strength and Honor
Join Date: Apr 2006
Location: CA bay area
Posts: 391
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Aaron Cake
...If you are talking about the cold start cam thermowax assembly that gives you the 1500RPM high cold idle, then my advice is to keep it.
#6
i'll blow YOUR valve off
Join Date: May 2004
Location: KC MF MO
Posts: 1,064
Likes: 0
Received 0 Likes
on
0 Posts
We're not talking about keeping the device that Mazda issued a factory service bulletin instructing dealers to remove are we? If we are, look in the ARCHIVE for a thread on how to take it out because i'm 99% sure there's gotta be one in there. Otherwise, check out the search button.
#7
Banned. I got OWNED!!!
Join Date: Aug 2006
Location: Comstock Park, MI 49321
Posts: 3,717
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by powrdby13B
We're not talking about keeping the device that Mazda issued a factory service bulletin instructing dealers to remove are we? If we are, look in the ARCHIVE for a thread on how to take it out because i'm 99% sure there's gotta be one in there. Otherwise, check out the search button.
my mazda dealer denys that claim
Trending Topics
#8
i'll blow YOUR valve off
Join Date: May 2004
Location: KC MF MO
Posts: 1,064
Likes: 0
Received 0 Likes
on
0 Posts
my mazda dealer was unfamiliar with parts like "oil metering pump" and "rotor oil seal"
But now I know a guy that works there and he has a sick rx7 so I can't be askin for head gaskets and camshafts and all that anymore.
There's a thread in the archives about making a fast NA without spending money.. I think it's from back in like 04 or 05 but it should have either instructions or a link.
But now I know a guy that works there and he has a sick rx7 so I can't be askin for head gaskets and camshafts and all that anymore.
There's a thread in the archives about making a fast NA without spending money.. I think it's from back in like 04 or 05 but it should have either instructions or a link.
#9
Former Moderator. RIP Icemark.
There are three "warm up devices" on 49 state FC's.
There is the Cold Start Assist (which is what Aaron was talking about with the throttle plates and 1200-1500 idle when cold).
There is the AWS (Accelerated warm-up system) which when you start the car cold and in Neutral the RPMS jump up to 3000 for a few seconds then drop to the cold idle speed.
And there is the Sub-Zero Assist system, which injects coolant into the intake on below freezing starts. This system was never on California Emissions spec vehicles and has the TSB to remove if the dealer is servicing the car for emissions reasons in the 49 states.
There is the Cold Start Assist (which is what Aaron was talking about with the throttle plates and 1200-1500 idle when cold).
There is the AWS (Accelerated warm-up system) which when you start the car cold and in Neutral the RPMS jump up to 3000 for a few seconds then drop to the cold idle speed.
And there is the Sub-Zero Assist system, which injects coolant into the intake on below freezing starts. This system was never on California Emissions spec vehicles and has the TSB to remove if the dealer is servicing the car for emissions reasons in the 49 states.
#10
Rotaries confuse me
iTrader: (7)
Originally Posted by Icemark
There are three "warm up devices" on 49 state FC's.
There is the Cold Start Assist (which is what Aaron was talking about with the throttle plates and 1200-1500 idle when cold).
There is the AWS (Accelerated warm-up system) which when you start the car cold and in Neutral the RPMS jump up to 3000 for a few seconds then drop to the cold idle speed.
And there is the Sub-Zero Assist system, which injects coolant into the intake on below freezing starts. This system was never on California Emissions spec vehicles and has the TSB to remove if the dealer is servicing the car for emissions reasons in the 49 states.
There is the Cold Start Assist (which is what Aaron was talking about with the throttle plates and 1200-1500 idle when cold).
There is the AWS (Accelerated warm-up system) which when you start the car cold and in Neutral the RPMS jump up to 3000 for a few seconds then drop to the cold idle speed.
And there is the Sub-Zero Assist system, which injects coolant into the intake on below freezing starts. This system was never on California Emissions spec vehicles and has the TSB to remove if the dealer is servicing the car for emissions reasons in the 49 states.
#11
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
There's no reason to keep the AWS. It's one of the few "helper" systems on the car I tell people to ditch. The best way to do this is jumper the switch as I mentioned. That way you can keep the AWS solenoid as it provides extra air to the engine when the power steering loads it. The cold start assist (thermowax and cam) makes the car a hell of a lot easier to drive when the engine is cold, and there's no real reason to remove it...
#12
Rotaries confuse me
iTrader: (7)
Originally Posted by Aaron Cake
There's no reason to keep the AWS. It's one of the few "helper" systems on the car I tell people to ditch. The best way to do this is jumper the switch as I mentioned. That way you can keep the AWS solenoid as it provides extra air to the engine when the power steering loads it. The cold start assist (thermowax and cam) makes the car a hell of a lot easier to drive when the engine is cold, and there's no real reason to remove it...
#13
Former Moderator. RIP Icemark.
Originally Posted by My5ABaby
So, would you recommend just keeping the CSA or the CSA and AWS?
As far as the AWS, I personally start my car with the transmission in 1st gear and holding the clutch in, so the AWS is bypassed anyway. The exception to that is when remote starting (Yes I have a remote start system with neutral safety hooked up on all my cars), and when starting with remote start, the 3000 RPM spike is perfect for kicking in the motor for remote starting.
As a side note, on my vert that is now running a megasquirt, of course I don't have the AWS.
#14
Semper
iTrader: (3)
Join Date: Feb 2006
Location: Alabama
Posts: 1,354
Likes: 0
Received 0 Likes
on
0 Posts
you know now that it is getting colder ive kinda thought about getting a remote starter to help warm the engine in the morning.....Ice could you send me a pm on what kind of starter you use and what the specs, price are...
mine also does the rpm jump but it only goes to 2k..i noticed it today when it was damn cold
mine also does the rpm jump but it only goes to 2k..i noticed it today when it was damn cold
#16
Former Moderator. RIP Icemark.
Originally Posted by Aaron Cake
Remote starters are so evil...Just get in the car, start it, put your seatbelt on and drive away...
I actually heard a few years back that some providence in Canada was trying to ban remote starts because some family died when the car remote started and didn't shut off after its pre-set time and flooded the house with CO
Of course the DEI (viper/Python/Hornet/Clifford) remote starters that I use, have programable time up to 24 minutes run time, and neutral safety, so that the car would never start in gear (only starts when the tranny is in neutral).
#17
Rotaries confuse me
iTrader: (7)
Originally Posted by Icemark
My vert has remote start, stock and aftermarket security, remote keyless entry, air conditioning and heated seats... is that extra evil??? Or only when I remote start with the top down and drive around with the top down and air condition on???
I actually heard a few years back that some providence in Canada was trying to ban remote starts because some family died when the car remote started and didn't shut off after its pre-set time and flooded the house with CO
Of course the DEI (viper/Python/Hornet/Clifford) remote starters that I use, have programable time up to 24 minutes run time, and neutral safety, so that the car would never start in gear (only starts when the tranny is in neutral).
I actually heard a few years back that some providence in Canada was trying to ban remote starts because some family died when the car remote started and didn't shut off after its pre-set time and flooded the house with CO
Of course the DEI (viper/Python/Hornet/Clifford) remote starters that I use, have programable time up to 24 minutes run time, and neutral safety, so that the car would never start in gear (only starts when the tranny is in neutral).
#18
Not Even Foo
iTrader: (13)
Join Date: Oct 2006
Location: South Bay, CA
Posts: 8,999
Likes: 0
Received 0 Likes
on
0 Posts
ahhh.
no wonder when i start my car, and add a little gas then i let go,
it goes high for a couple of seconds, then drops to where it supposed to be.
750-800RPM.
i guess it's the AWS.
no wonder when i start my car, and add a little gas then i let go,
it goes high for a couple of seconds, then drops to where it supposed to be.
750-800RPM.
i guess it's the AWS.
#19
Rotary Enthusiast
iTrader: (1)
Join Date: Aug 2003
Location: USA
Posts: 992
Likes: 0
Received 0 Likes
on
0 Posts
Here's my shitty deal.
I start my car in cold temp. it will rev high about 2K and it will never come down unless the temp reaches normal. So I just drive the damn thing, which can be annoying if I hit a stop light., but usually I don't.
So, I've noticed this a lonnggg time ago without knowing about posts in here, that when I started the car in gear, it didn't rev high. Also when I did start the car without in gear, I'd just blip the throttle pedal a bit, and comes down to normal idle.
This method of blipping no longer works for me, but the START IN GEAR still works. However, if I start driving the car, or even just tap the throttle pedal, it will rev high again to 2K until the normal temp is reached.
So, I got rid of that crap the connects to the BAC/Stock Intercooler and the rev came down a bit lower now, but still annoys me. ( I know about idle adjustments -- a bit )
Now I pulled that lower piece 'plug' located on the driver's side radiator: Standing by the battery & looking down.
I have yet to test it when I get out of this place tonight.
How does this 'piece' work?
-- I guess it will connect something in there once a preset temp is reached, then sends that signal to "ecu?"
-- Do these 2 connectors need to be grounded? attached together or just left unplugged - (if unplugged from the 'piece'.)
I marked one of the connectors just in case I need to plug them back.
I will post back with the results.

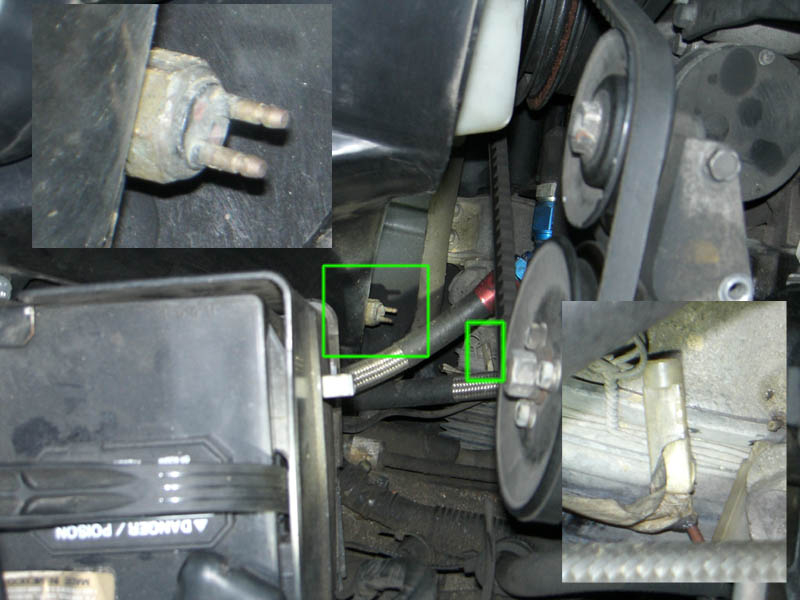

In the meantime, see pic: courtesy of Twofer. Also thanks for the advice Alex6969.
#20
Rotary Enthusiast
iTrader: (1)
Join Date: Aug 2003
Location: USA
Posts: 992
Likes: 0
Received 0 Likes
on
0 Posts
Ok, I drove off, but I wasnt sure if it made a difference unplugging the connectors from that lower 'piece' on the radiator.
I started the car in gear,.. nice idle then took off all the way home for 15 miles. by the time I hit a light, the car was all warmed up that it was back to perfect idle.
..but I think I stopped a moment and the idle went back up, not as bad as before, but not sure.
Do I need to ground these connectors? "Jump" them as In connect both connectors together?
Aaron Cake says Jump them, but not sure what that means..I must be thinking too hard...
#21
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Originally Posted by Icemark
My vert has remote start, stock and aftermarket security, remote keyless entry, air conditioning and heated seats... is that extra evil??? Or only when I remote start with the top down and drive around with the top down and air condition on???
I actually heard a few years back that some providence in Canada was trying to ban remote starts because some family died when the car remote started and didn't shut off after its pre-set time and flooded the house with CO
I actually heard a few years back that some providence in Canada was trying to ban remote starts because some family died when the car remote started and didn't shut off after its pre-set time and flooded the house with CO
Originally Posted by LAN
Do I need to ground these connectors? "Jump" them as In connect both connectors together?
#22
Rotary Enthusiast
iTrader: (1)
Join Date: Aug 2003
Location: USA
Posts: 992
Likes: 0
Received 0 Likes
on
0 Posts
Thanks,
It's a bit cold here now about 37`F.
Got that AWS yanked out a while back, and the connectors from the lower driver's side radiator piece. Jumped the wires, and it seems to not really help that much.
What the hell is going on here.
I have a perfect idle.. P e r f e c t once warmed up, but not during cold starts that won't last for a dam long time until ---completely-- warmed up. wtf.
#23
Rotary Power Information
Join Date: Aug 2003
Location: New Hampshire, Greenfield
Posts: 528
Likes: 0
Received 0 Likes
on
0 Posts
That way you can keep the AWS solenoid as it provides extra air to the engine when the power steering loads it.
#24
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Originally Posted by ViperDude152
Thats what the BACV does. The AWS is only used for the 3000 rpm warmup. Its an open or closed valve. It doesn't very the opening degree.
