Upgraded Oil Cooler Lines & opinions.
#1
7-Rex
Thread Starter
Join Date: Jan 2012
Location: NJ
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
Upgraded Oil Cooler Lines & opinions.
Hey,
Since im looking into replacing and upgrading my oil cooler lines, i would like to see everyones opinion's on these few i've found while searching today.
Yes I know they're just SS hoses and fittings, yes they will all work just fine, but i would like some feedback on these. Thanks and hope this will clear out any questions from other people on this subject of our vehicles.
For reference I'm running the OEM Oil Cooler in stock location. No i dont want fancy aftermarket coolers.
86-91 Mazda FC RX-7 SS Braided Oil Cooler Line/Hose Kit [HRI-FC3-OILCOOL] - $205.00 : Himni Racing, Turbocharger, Turbo, Garrett, Turbo Kit, GReddy, Mazda RX-7, HKS, Apexi, TiAL, TurboXS, TurboSmart, Flange, Turbonetics, Exhaust, Intercooler, ACT, In $205
FC3s Oil Cooler Lines $235
CORKSPORT Mazda Rx7 oil cooler lines $137
Oil Line Set for 86-92 RX-7 All - Racing Beat $236
Rotary Performance | FC Engine Cooling $199
Since im looking into replacing and upgrading my oil cooler lines, i would like to see everyones opinion's on these few i've found while searching today.
Yes I know they're just SS hoses and fittings, yes they will all work just fine, but i would like some feedback on these. Thanks and hope this will clear out any questions from other people on this subject of our vehicles.
For reference I'm running the OEM Oil Cooler in stock location. No i dont want fancy aftermarket coolers.
86-91 Mazda FC RX-7 SS Braided Oil Cooler Line/Hose Kit [HRI-FC3-OILCOOL] - $205.00 : Himni Racing, Turbocharger, Turbo, Garrett, Turbo Kit, GReddy, Mazda RX-7, HKS, Apexi, TiAL, TurboXS, TurboSmart, Flange, Turbonetics, Exhaust, Intercooler, ACT, In $205
FC3s Oil Cooler Lines $235
CORKSPORT Mazda Rx7 oil cooler lines $137
Oil Line Set for 86-92 RX-7 All - Racing Beat $236
Rotary Performance | FC Engine Cooling $199
#3
Eats, Sleeps, Dreams Rotary
iTrader: (1)
Because of the negatives with aftermarket lines, although expensive ($350), I went with the OE lines and no problems with installation.
I even went to a couple of shops that build hydraulic lines and when presented with the fittings on the OE lines, one couldn't or wouldn't do the job and the other was in the neighborhood of $300, rediculous, so OEM for me.
I even went to a couple of shops that build hydraulic lines and when presented with the fittings on the OE lines, one couldn't or wouldn't do the job and the other was in the neighborhood of $300, rediculous, so OEM for me.
#5
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
For the price?.Corksport.
everything else is like at 100 bucks per hose..that's nuts!
I am sure Corksport lines are what I have on the car.(almost 6 years now).I bought them used from..a Guy...(you know..Da Guy..lol!)
everything else is like at 100 bucks per hose..that's nuts!
I am sure Corksport lines are what I have on the car.(almost 6 years now).I bought them used from..a Guy...(you know..Da Guy..lol!)
Trending Topics
#9
7-Rex
Thread Starter
Join Date: Jan 2012
Location: NJ
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
Now that I've received validation from a few people on here regaurding the CorkSport product, I will be ordering them shortly when I get the chance. I was leaning towards the CorkSport lines as well.
Continue Reviewing the products you have used, the more feedback the greater it is for others to use this as reference to which product they should get based on budget + function. For something this important for our vehicles, its vital to have the best product to ensure of no problomatic oil issues for our vehicles engines. No Lube = No Rotations. Thanks for all of your input people!!
Stay Rotatin'!
Continue Reviewing the products you have used, the more feedback the greater it is for others to use this as reference to which product they should get based on budget + function. For something this important for our vehicles, its vital to have the best product to ensure of no problomatic oil issues for our vehicles engines. No Lube = No Rotations. Thanks for all of your input people!!
Stay Rotatin'!
#11
Information Regurgitator
This may not be relevant but Mazdatrix used to sell some that looked just like the Rotary Performance ones. I may have these on my car. To be honest I can't remember which ones I bought Mazdatrix or Rotary Performance. Either way it was around 2000 or 2001 and I haven't had any problems.
#12
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Maybe no-name China built fittings with O-rings of rubber compounds manufactured by scraping whatever is left over off the floor. Quality fittings will use Viton or equivalent O-rings and will be machined well enough to not wear those O-rings out. But I do agree, only use swivel fittings where necessary.
#14
Rotary Enthusiast
iTrader: (1)
I do not recommend push lock fittings and hose for oil pressure. I've had problems with them at work for track and time attack cars that see track use on the weekends. We even added clamps to them. it was the worst cleanup job at the track ever. Once we switched, we did not have any issues.
#15
Living on the North Coast
iTrader: (31)
I do not recommend push lock fittings and hose for oil pressure. I've had problems with them at work for track and time attack cars that see track use on the weekends. We even added clamps to them. it was the worst cleanup job at the track ever. Once we switched, we did not have any issues.

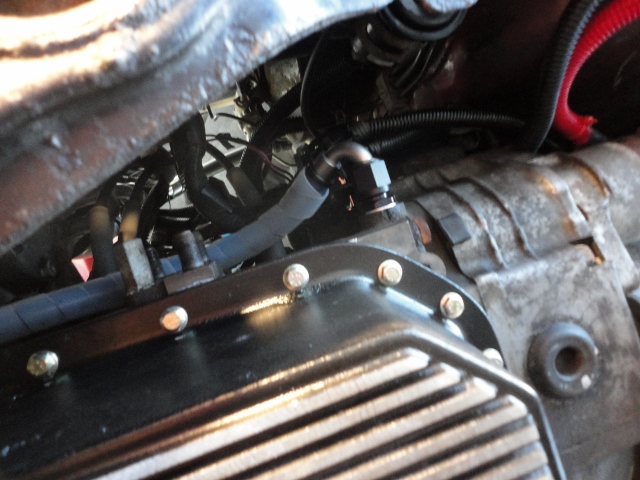

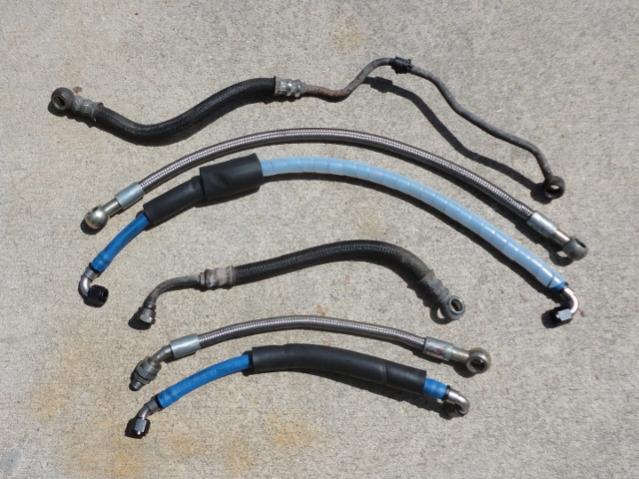

With the upgraded Racing Beat oil pressure regulator and front springs shim kit, the max oil pressure is 105-115 PSI. I used Parker-Hannifin PushLok High Temperature 836 hose that is rated for oil up to 302F degrees and 400 PSI, which is much better than the more common GoodYear AutoGrip that is only rated to 200F degree for oil and 300 PSI.
#16
Rotary Enthusiast
iTrader: (1)
Never put clamps (even those designed for silicone hose) over push-on hose at the fittings - it will cause the shark tooth barbs on the fittings to cut through the hose's inner liner layer. You also have to used a matched set of both top quality hose with the correct and recommended fittings. If you use cheap junk what you described will happen fairly quickly - even on the street.
With the upgraded Racing Beat oil pressure regulator and front springs shim kit, the max oil pressure is 105-115 PSI. I used Parker-Hannifin PushLok High Temperature 836 hose that is rated for oil up to 302F degrees and 400 PSI, which is much better than the more common GoodYear AutoGrip that is only rated to 200F degree for oil and 300 PSI.
With the upgraded Racing Beat oil pressure regulator and front springs shim kit, the max oil pressure is 105-115 PSI. I used Parker-Hannifin PushLok High Temperature 836 hose that is rated for oil up to 302F degrees and 400 PSI, which is much better than the more common GoodYear AutoGrip that is only rated to 200F degree for oil and 300 PSI.
Do you track your car? I just don't even want to chance it anymore after those experiences we had on 2 different cars. At the same time we also had a famous professional driver with over 10 years experience, maybe 20, say he had issues with it before. Besides just driving he knows and understands a lot about fine tuning cars. The push lock we were using came with a well known companies oil cooler kit. I rather not screw them over the internet.
it's good you are having good luck with it and will get that hose you are recommending if I ever use push lock for any application
#17
Fistful of steel
iTrader: (7)
John your implementation looks great, I just don't want to chance it with push lock hose either. I agree that push lock is more sensitive to hose and hose end brand than your typical AN stuff. I would only ever use top quality hose and the recommended fittings for said hose.
I use Russell Pro Classic hose with AN fittings for all of my oil related stuff. I have not had a single problem with it and I have been skimping slightly on fittings using Summit or equivalent hose ends.
I use Russell Pro Classic hose with AN fittings for all of my oil related stuff. I have not had a single problem with it and I have been skimping slightly on fittings using Summit or equivalent hose ends.
#18
Living on the North Coast
iTrader: (31)
Ashley - I fully understand your concerns. I just personally do not like using SS braided lines due to the abrasion issues and its a PITA to work with. Is it more durable, yes. It is 100% necessary on a track car, maybe depending on the rules. Is it absolutely needed on a street car that sees track time, maybe.
Now the newer fabric (nylon) braided lines that are rated up to 300 F degree and at least 350 PSI may be the trick setup. It is easier to work with, less likely to pinch and set, lighter weight and lower abrasion problems.
As always YMMV.
Now the newer fabric (nylon) braided lines that are rated up to 300 F degree and at least 350 PSI may be the trick setup. It is easier to work with, less likely to pinch and set, lighter weight and lower abrasion problems.
As always YMMV.
#20
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
In my experience, Push Lock style hoses are fine for dealing with pressure, but not heat. 200+ degree oil temps will soften the hose to the point the connection will fail. Clamping it is much, much worse.
