2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.

Tokico blue HP rear shocks top shaft nut issue

Thread Tools

Search this Thread

Old Jun 20, 2006 | 09:16 PM
  #1
Dinnercoat's Avatar
Thread Starter
Caramelldansen
Tenured Member 10 Years

Joined: May 2005
Posts: 1,182
Likes: 0
From: SF Bay Area, California
Tokico blue HP rear shocks top shaft nut issue

Looking for anyone else who has installed Tokico Blue HP rear shocks. I was wondering about the top shaft nut. It has like this wax stuff on the top so it won't go all the way down, it only goes down a bit but not all the way too the top mount, is this normal?

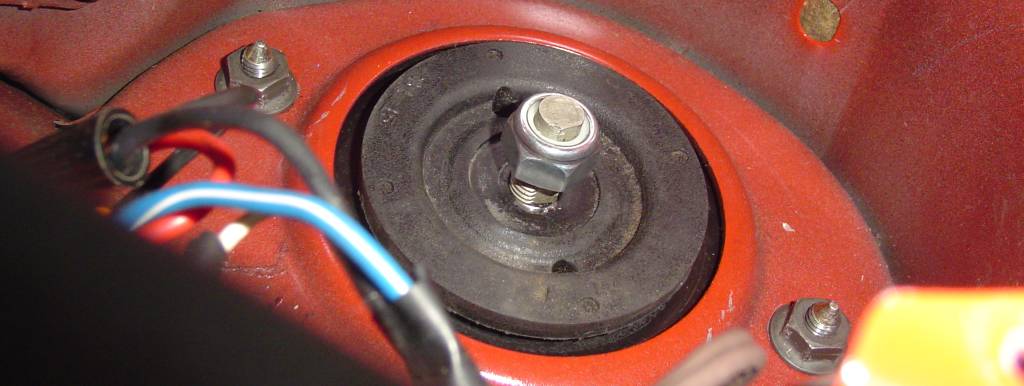

Picture of the gap.
Attached Thumbnails Tokico blue HP rear shocks top shaft nut issue-topnut.jpg

Last edited by Dinnercoat; Jun 20, 2006 at 09:24 PM.
Reply
Old Jun 20, 2006 | 09:45 PM
  #2
Jager's Avatar
Tear you apart
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (10)

Joined: Aug 2004
Posts: 5,891
Likes: 38
From: Bemidji Minnesota
Mine look nothing like that.
Reply
Old Jun 20, 2006 | 09:46 PM
  #3
HAILERS's Avatar
HAILERS
Tenured Member 10 Years

Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
That's a self locking nut and is supposed to be difficult to spin on/off.

See that black dics that the strut threads is going thru???? Say yes.

See the two holes in that piece???? Yes.

You need to make a tool to hold that black disk using those two holes. You hold that disk and then tighten the nut.

Did I say ALTERNATE WAY??? Yes. Take the self locking nut off and down to the auto store/where ever. Buy four nuts that are not self locking (same thread size, please). Now you can spin those on with your wrench. Tighten the lower one down first (snug), the the second one on top of that one to lock the lower one in place.

You bought four. Use the other two on the other strut in the same fashion.

Have the total weight of the car on the tires when you do this so the whole mess will be compressed so to speak.

By the way, while I'm here, I've a set of Tokico Blues and Eibach springs, all four that I'm letting go dirt cheap for anybody in the Ft Worth area. I do not ship and don't even remotely ever think about shipping for dirt cheap prices. Parts hardly used. Non adjustable Blues. Springs made out of real metal. Will deliver if it's an easy to find area and does not inconvienence me at all. Cash only. USA money. No checks. No Visa, No Master Card. No IOU nor half cash now and "I'll pay you the rest later" deals.

Last edited by HAILERS; Jun 20, 2006 at 09:54 PM.
Reply
Old Jun 20, 2006 | 11:21 PM
  #4
Dinnercoat's Avatar
Thread Starter
Caramelldansen
Tenured Member 10 Years

Joined: May 2005
Posts: 1,182
Likes: 0
From: SF Bay Area, California
Originally Posted by HAILERS
That's a self locking nut and is supposed to be difficult to spin on/off.

See that black dics that the strut threads is going thru???? Say yes.

See the two holes in that piece???? Yes.

You need to make a tool to hold that black disk using those two holes. You hold that disk and then tighten the nut.
Oh ok. Man I should've realized that. I just put a screw driver in there to hold it in place while I ratcheted it. Now I just need a deep socket 19mm and I'm good.

Thanks for the help everyone!
Reply
Old Jun 20, 2006 | 11:23 PM
  #5
RotaryEvolution's Avatar
Sharp Claws
Tenured Member 15 Years
iTrader: (30)

Joined: Oct 2003
Posts: 5,107
Likes: 50
From: Central Florida
or if you have access to an impact gun just zap it a few times and it should be good to go.
Reply
Old Jun 20, 2006 | 11:29 PM
  #6
Dinnercoat's Avatar
Thread Starter
Caramelldansen
Tenured Member 10 Years

Joined: May 2005
Posts: 1,182
Likes: 0
From: SF Bay Area, California
Originally Posted by Karack
or if you have access to an impact gun just zap it a few times and it should be good to go.
I tried that once, it just spun. I gots a torque wrench here I'm good, just need to get that deep socket.

Man doing all this **** has increased my tool collection like, a bunch-fold

EDIT: Oh yeah thats what I called you about earlier so don't worry about seeing that i called you

Last edited by Dinnercoat; Jun 20, 2006 at 11:32 PM.
Reply
Old Jun 21, 2006 | 10:14 AM
  #7
Jager's Avatar
Tear you apart
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (10)

Joined: Aug 2004
Posts: 5,891
Likes: 38
From: Bemidji Minnesota
Originally Posted by Karack
or if you have access to an impact gun just zap it a few times and it should be good to go.
That's actually what I did on mine.
Reply
Old Jun 21, 2006 | 11:30 AM
  #8
1SWEET7's Avatar
Now With 10th AE Fun!
Tenured Member 10 Years
iTrader: (1)

Joined: Jun 2005
Posts: 1,869
Likes: 1
From: CA
I used my original nut for each side and it worked fine.
Reply
