tips on installing strut-tower bar....
07-26-05, 12:23 PM
#1
- Make Haste -
Thread Starter
Join Date: Apr 2005
Location: Calgary, Alberta
Posts: 1,648
Likes: 0
Received 0 Likes
on
0 Posts
tips on installing strut-tower bar....
any tips on installing a strut-tower bar in an S5?...
i'm sure it's pretty simple and basic but always better to be safe then sorry....
i'm sure it's pretty simple and basic but always better to be safe then sorry....
07-26-05, 12:32 PM
#3
- Make Haste -
Thread Starter
Join Date: Apr 2005
Location: Calgary, Alberta
Posts: 1,648
Likes: 0
Received 0 Likes
on
0 Posts
yeah but how tight do i tighten them?...
whats with the bolt right on the bar, it can be tightened either way, towards the ends of the strut bar or towards the bar itself, i assume this just holds the bar in place the way i want it...?
whats with the bolt right on the bar, it can be tightened either way, towards the ends of the strut bar or towards the bar itself, i assume this just holds the bar in place the way i want it...?
Last edited by Archangels; 07-26-05 at 12:34 PM.
07-26-05, 12:51 PM
#4
IT LIVES!!
Join Date: Apr 2005
Location: Manhattan Beach, CA
Posts: 466
Likes: 0
Received 0 Likes
on
0 Posts
if you really wanna get fancy, jack the car up so the suspension hangs free and isnt preloaded. at least thats what the directions for my bar said.
try not to scratch it!
try not to scratch it!
Trending Topics
07-26-05, 01:16 PM
#8
- Make Haste -
Thread Starter
Join Date: Apr 2005
Location: Calgary, Alberta
Posts: 1,648
Likes: 0
Received 0 Likes
on
0 Posts
easier?... how so?...
i thought with it on the ground and it sitting the way it sits that it would be easier to install because nothing would move....
and thats how it would sit when the car's on the road....
ahh this is confusing....
i thought with it on the ground and it sitting the way it sits that it would be easier to install because nothing would move....
and thats how it would sit when the car's on the road....
ahh this is confusing....
07-26-05, 02:30 PM
#10
Seduced by the DARK SIDE
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
You jack the front to pre-load the bar some.
If it's the type that you have to remove all 4 bolts, jack it but leave just enough suspension pressure to keep the pillow mount from moving.
The brace makes more of a difference with an upgraded suspension than with a stock suspension.
Check the clearance at the top of the alternator.
You don't want it to hit when the engine torques over under acceleration.
If it's the type that you have to remove all 4 bolts, jack it but leave just enough suspension pressure to keep the pillow mount from moving.
The brace makes more of a difference with an upgraded suspension than with a stock suspension.
Check the clearance at the top of the alternator.
You don't want it to hit when the engine torques over under acceleration.
07-26-05, 03:13 PM
#12
- Make Haste -
Thread Starter
Join Date: Apr 2005
Location: Calgary, Alberta
Posts: 1,648
Likes: 0
Received 0 Likes
on
0 Posts
****, how much should i torque the bolts then?...
i was going to tighten them as bloody hard as i could by hand....
it's all good, i have full coil overs, this strut bar now and a sway-bar kit on it's way....
:P
handle like it's on rails?, i think so....
i was going to tighten them as bloody hard as i could by hand....
it's all good, i have full coil overs, this strut bar now and a sway-bar kit on it's way....
:P
handle like it's on rails?, i think so....
07-26-05, 07:04 PM
#13
Rotary Enthusiast
Just tighten them down good and tight. By hand though, don't get a rattle gun on there!
Check them a couple days later to make sure they're still tight, and you'll be fine.
EDIT: I had a quick look in the FSM, and the tightening torque for the 4 bolts at the top of the strut is 22-27 ft-lb. Hope that helps!
Check them a couple days later to make sure they're still tight, and you'll be fine.
EDIT: I had a quick look in the FSM, and the tightening torque for the 4 bolts at the top of the strut is 22-27 ft-lb. Hope that helps!
Last edited by S2-13BT; 07-26-05 at 07:09 PM.
07-26-05, 09:19 PM
#18
rawr
iTrader: (2)
Join Date: Feb 2001
Location: Silver City, NM
Posts: 2,331
Likes: 0
Received 0 Likes
on
0 Posts
its not hard, we installed the one in my wifes vert with it just sitting on the ground, we made it a tight fit from side to side, dont know if it makes a difference either way.
07-27-05, 01:31 AM
#19
- Make Haste -
Thread Starter
Join Date: Apr 2005
Location: Calgary, Alberta
Posts: 1,648
Likes: 0
Received 0 Likes
on
0 Posts
i installed it, will have pics soon....
i tightened everything as tight as i could, the mounts ( sides ) didnt really mount up flush, so i tightened the hell outa them and they "adapted" do the strut tower....
where the bar connets to those ends i tightened that as tight as i could too, the bar doesent move at all now....
i tightened everything as tight as i could, the mounts ( sides ) didnt really mount up flush, so i tightened the hell outa them and they "adapted" do the strut tower....
where the bar connets to those ends i tightened that as tight as i could too, the bar doesent move at all now....
07-27-05, 02:54 AM
#20
- Make Haste -
Thread Starter
Join Date: Apr 2005
Location: Calgary, Alberta
Posts: 1,648
Likes: 0
Received 0 Likes
on
0 Posts

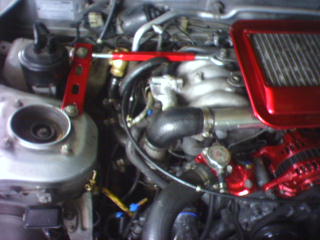

here's a pic i just took, it's 2am.... i swear my neighbors think i'm nuts....
the ends where the chrome bar connects to the black ends, i tightened those as tight as i could, they dont flex or move....
the ends where the chrome bar connects to the black ends, i tightened those as tight as i could, they dont flex or move....
07-27-05, 11:50 PM
#23
- Make Haste -
Thread Starter
Join Date: Apr 2005
Location: Calgary, Alberta
Posts: 1,648
Likes: 0
Received 0 Likes
on
0 Posts
to be honest with you dude, i have no idea....
it's VERY VERY shiney and shipped only cost me $60....
next time i go to their shop i'll check the brand for you, you get no instructions or anything, thats why i made this thread, hahaha....
it's VERY VERY shiney and shipped only cost me $60....
next time i go to their shop i'll check the brand for you, you get no instructions or anything, thats why i made this thread, hahaha....
07-27-05, 11:53 PM
#24
Junior Member
Join Date: Jan 2005
Location: Canada! eh!
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RXgirl7
if you really wanna get fancy, jack the car up so the suspension hangs free and isnt preloaded. at least thats what the directions for my bar said.
try not to scratch it!
try not to scratch it!
