Tail lights and front DRL stopped working
#51
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Well, that leads to somewhere obviously? Calm down and explain that instead.
If I don't have voltage at the light, which I can't obviously, since it doesn't work, I must check elsewhere in that circuit.
EDIT: Why is the glove box light linked to that switch? Does that make sense? Nope. But it still is. Does that make the headlight switch a less likely place to connect the spot? Nope.
If I don't have voltage at the light, which I can't obviously, since it doesn't work, I must check elsewhere in that circuit.
EDIT: Why is the glove box light linked to that switch? Does that make sense? Nope. But it still is. Does that make the headlight switch a less likely place to connect the spot? Nope.
Last edited by jimmydanny; 01-14-11 at 01:48 PM.
#52
Moderator
iTrader: (1)
Again, the only two wires involved are the power wire which is constant voltage and that would be the Blue/Red wire and the other wire is Green/White which is the ground source.
I made a mistake by saying the G/W wire is the ground for the spot light as the G/W wire is the ground for the door lock cylinder in addition to the ignition key cylinder. The ground for the spot light is Blue/White "if" the light comes on when the door is open otherwise the ground is provided by the body of the car.
I made a mistake by saying the G/W wire is the ground for the spot light as the G/W wire is the ground for the door lock cylinder in addition to the ignition key cylinder. The ground for the spot light is Blue/White "if" the light comes on when the door is open otherwise the ground is provided by the body of the car.
#53
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
That I know. I tested ground straight to the CD player as well, as that works.
So somewhere between the light and the room(?) fuse, I got something not working.
I guess the wire goes down the driver side A pillar and down to the fuse box, probably connecting to the rest of the stuff on the room fuse on the way
EDIT: As my time is running out for today, I will try 12V straight from the CD player to the light, and see what happens then. If that works, I know the 12V wire to the light is broken or something.
So somewhere between the light and the room(?) fuse, I got something not working.
I guess the wire goes down the driver side A pillar and down to the fuse box, probably connecting to the rest of the stuff on the room fuse on the way
EDIT: As my time is running out for today, I will try 12V straight from the CD player to the light, and see what happens then. If that works, I know the 12V wire to the light is broken or something.
Last edited by jimmydanny; 01-14-11 at 01:59 PM.
#54
Moderator
iTrader: (1)
The interior spot light works off of the Room fuse and the Room fuse is found in the interior fuse box which has two wires connected to it such that one wire powers the fuse and the other wire takes the voltage running through the fuse and delivers it to the proper circuits necessary. The Blue/Red wire comes from the Room fuse and travels up the A pillar to the roof level where it meanders to the spot light.
Just because the light does not work dos not mean it is w/o power. If you were to check for voltage on the Blue/Red wire "at" the spot light itself it would tell you the situation at hand. If you had a lamp by your bed, well that lamp socket has two wires running to it, where one wire is the voltage wire and the other wire is the ground. If you removed the ground wire from said socket then the light will not work even though the voltage wire is okay.
#55
Moderator
iTrader: (1)
Well, that leads to somewhere obviously? Calm down and explain that instead.
If I don't have voltage at the light, which I can't obviously, since it doesn't work, I must check elsewhere in that circuit.
EDIT: Why is the glove box light linked to that switch? Does that make sense? Nope. But it still is. Does that make the headlight switch a less likely place to connect the spot? Nope.
If I don't have voltage at the light, which I can't obviously, since it doesn't work, I must check elsewhere in that circuit.
EDIT: Why is the glove box light linked to that switch? Does that make sense? Nope. But it still is. Does that make the headlight switch a less likely place to connect the spot? Nope.
Have you attempted to check for voltage on the Blue/Red wire at the spot light yet? Sometimes it's best to go straight to the horse's mouth instead of assuming the Blue/Red wire is powerless at the spot light.
#56
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
The fuses that was blown was my own fault, not linked to the issues I got.
But PICS!

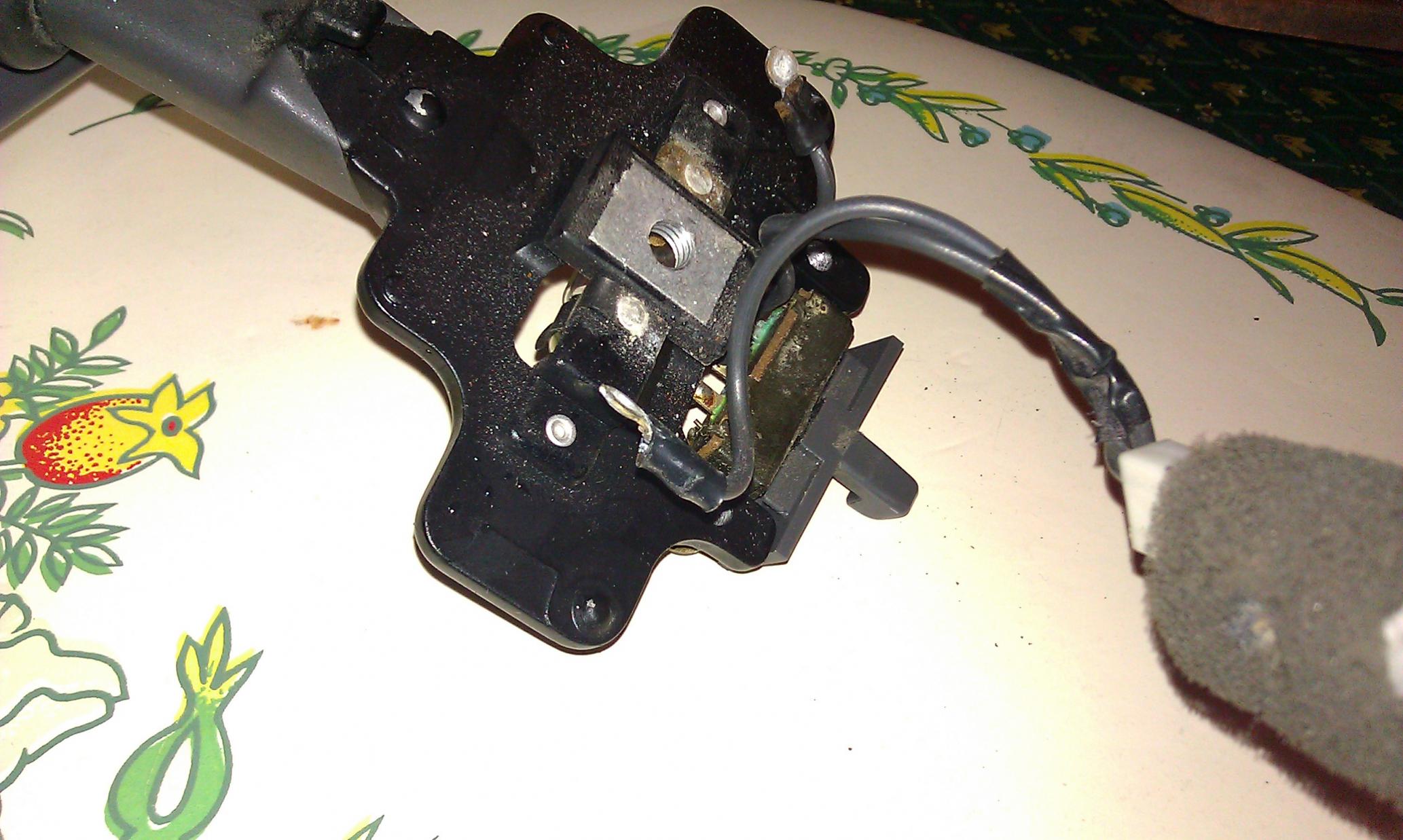

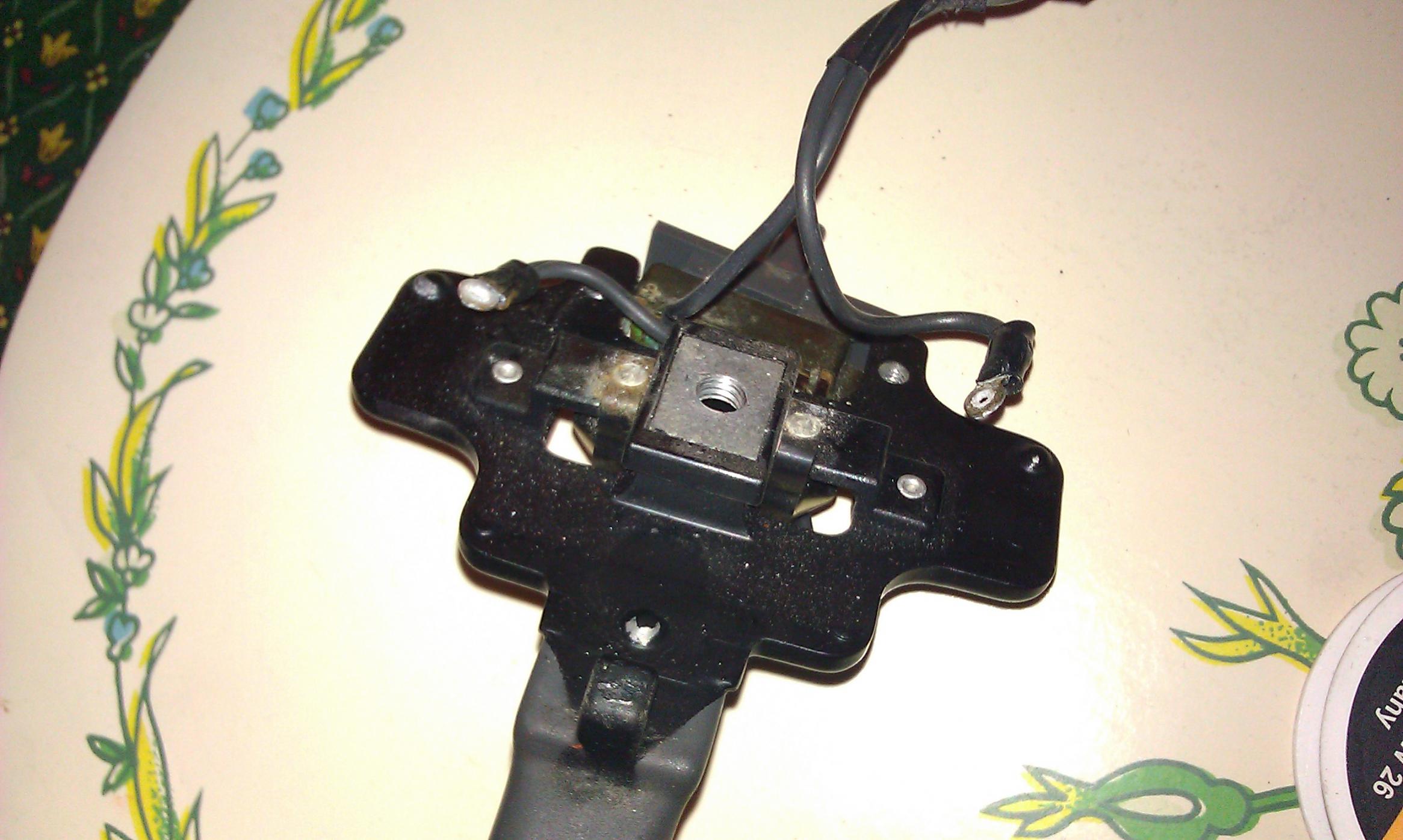

These two "plugs" were loose inside the mirror/light box. Where do these go? Into the blind rivets way to the side, or the metal circles closer to the middle?
EDIT: It seems that they go to the middle ones, but I dont wanna short another fuse, they cost enough for me to get broke on, if I continue like the last days. ^^,
But PICS!
These two "plugs" were loose inside the mirror/light box. Where do these go? Into the blind rivets way to the side, or the metal circles closer to the middle?
EDIT: It seems that they go to the middle ones, but I dont wanna short another fuse, they cost enough for me to get broke on, if I continue like the last days. ^^,
#59
Rotary Freak
You say when you turn the floodlight on the glove box light lights up. Right? Have you notice any other lights lighting up when you do that????? Do that. Make the glove box light up using the spotlight switch and then go look at your side lights on the exterior and see if they are also lighting up .......or not. Or does anyother light light up other than the glove box light???? Think about it a bit.
Some of this might be cause by a bungled up aftermarket radio installation. LIke the spot light backfeeding into a circuit that in stk config is not connected to the Room fuse but is now that the radio install has been bungled.
Some of this might be cause by a bungled up aftermarket radio installation. LIke the spot light backfeeding into a circuit that in stk config is not connected to the Room fuse but is now that the radio install has been bungled.
#60
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
I got it working, as the bulb socket wires weren't connected. But it stopped working again, think it might be some short circuit, gotta go check tomorrow after work
#61
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Well, some lamps may have ground AS WELL, but it would still work without
#63
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Hadn't done any work yet, I cleaned it and tried soldering, but it wouldn't stick no matter what I did, so I cheated a bit and put wire around the bulb terminals/holders, and soldered those to the wires from the switch. But one of those shorted, so gotta fix it again.
#64
Rotary Freak

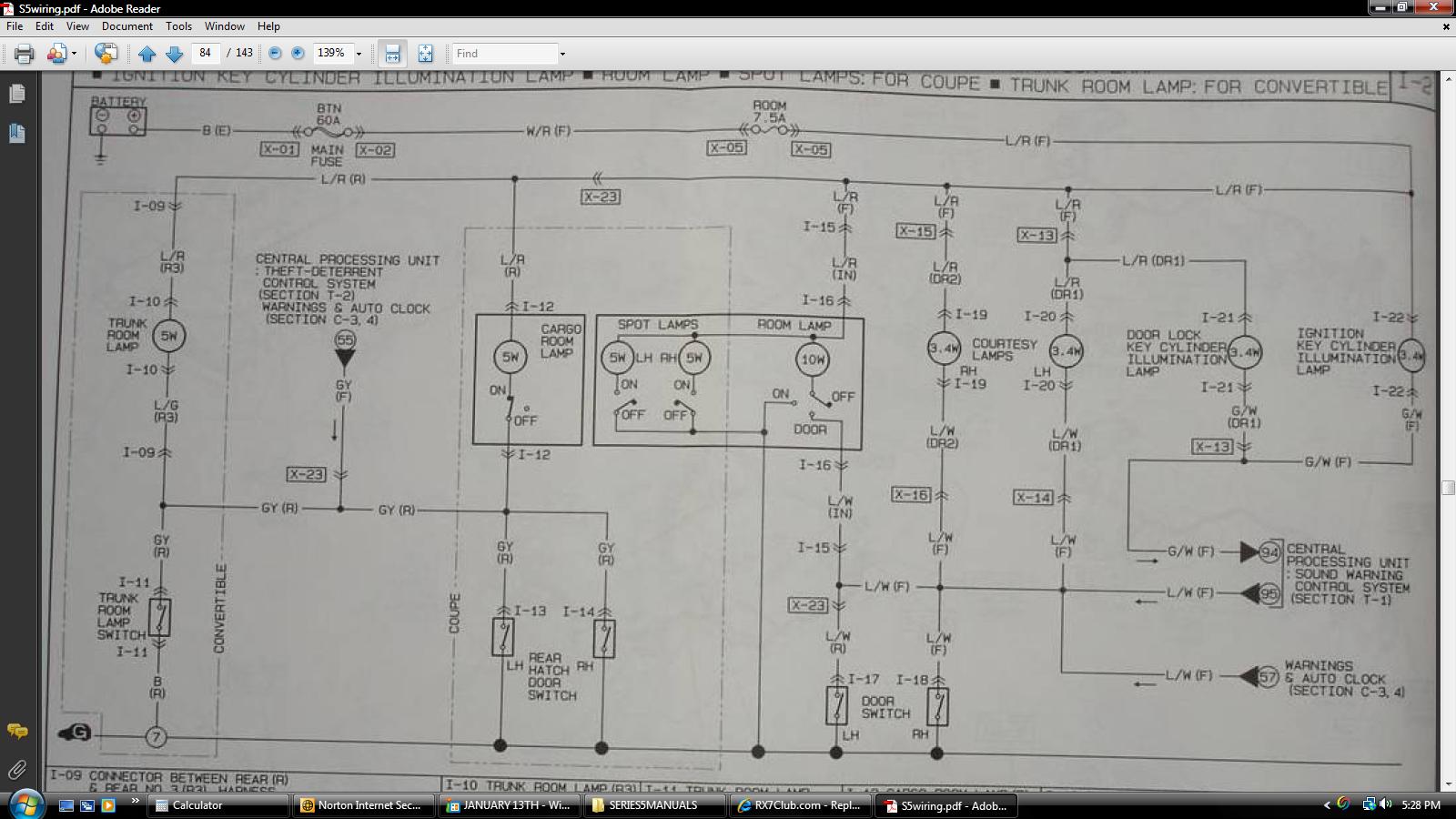

Interior and spot lights get their ground from the chassis (not talking about the open the door mode). The physical connection of the spot light assy to the metal roof is the ground for the lights (when not in the open the door mode). See diagrams in the post above.
