Tail lights and front DRL stopped working
#26
Here is a stab in the dark. I was having tail and brakelight issues that traced back to bad solder at the connectors on my CPU on the left side of the driver footwell. Replaced the solder at the large harness connections and all is well.
#27
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Well mine is torched, and looking @ the service manual from Mazda, it says that the wire that is torched is 12V for BTN, whatever that is. It goes on a 15A and 60A fuse, and goes around all relays.
This might be it, it seems like. It comes in from the E wire on the same plug, and is stated there as Panel Lamp Control.
Worth a shot?
This might be it, it seems like. It comes in from the E wire on the same plug, and is stated there as Panel Lamp Control.
Worth a shot?
#28
Moderator
iTrader: (1)
Okay, it wasn't the black/red wire, it was a white/black wire, last on the side where the clip is not, to say it that way.Does this mean anythign to you? Anyone got a scheme/pinout to help out?
EDIT: Also, if that doesn't have anything with the light issues, what else can cause this?
EDIT: Also, if that doesn't have anything with the light issues, what else can cause this?
#29
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts

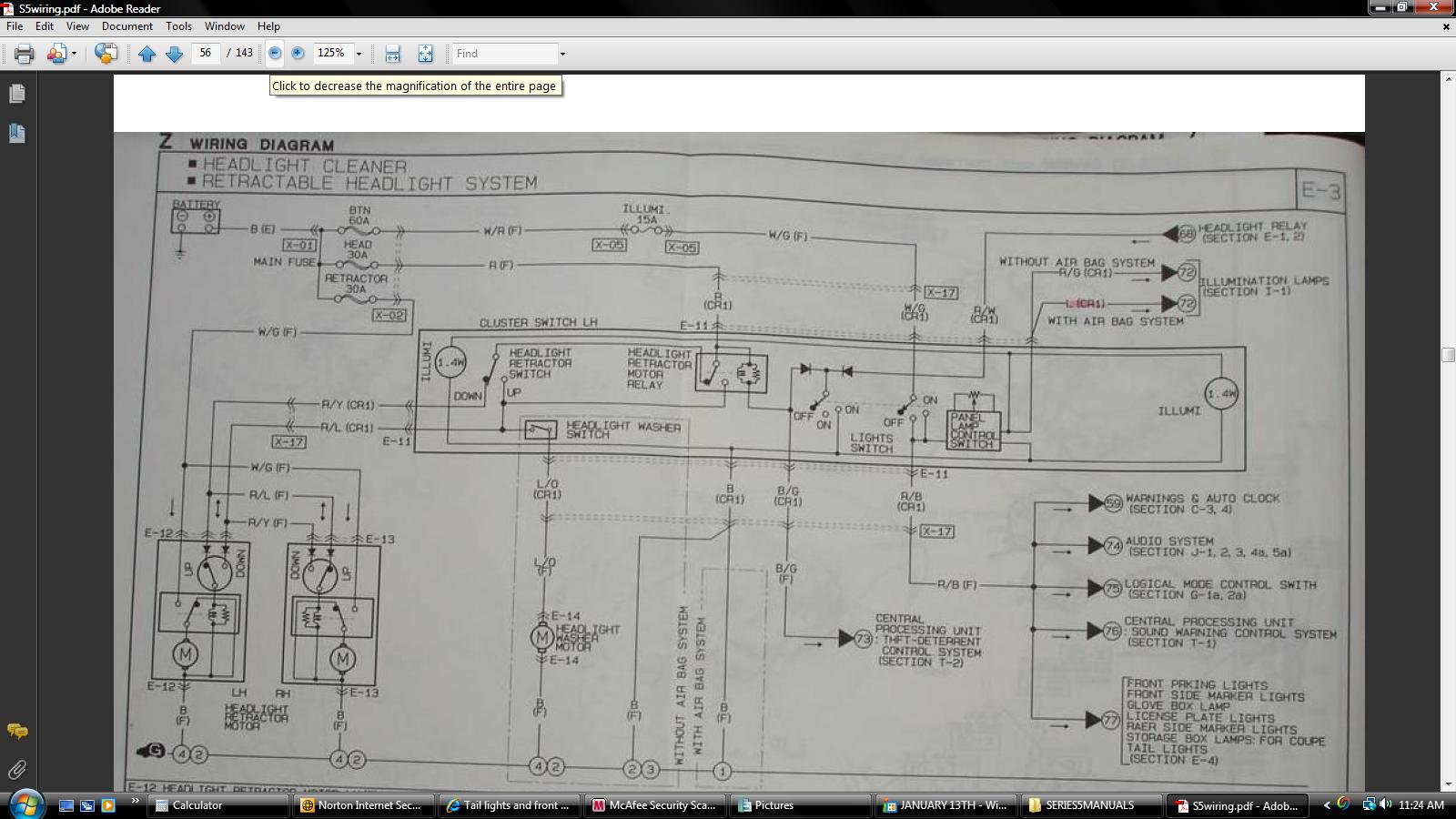

I don't know, the wire I am talking about is the one marked in red in the attachment.
It is as stated in the post above yours, BTN.
What this means, I dunno :P
It is as stated in the post above yours, BTN.
What this means, I dunno :P
#31
Right near Malloy
iTrader: (28)
Join Date: Dec 1999
Location: Behind a workbench, repairing FC Electronics.
Posts: 7,839
Received 505 Likes
on
342 Posts
Here is some info that will help with the repair:
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/headlight-switch-plug-928274/
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/headlight-switch-harness-burn-help-878824/
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/problem-headlight-switch-42081/
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/tail-lights-dont-work-brake-lights-do-870937/
https://www.rx7club.com/2nd-gen-archive-72/heavy-duty-light-switch-operation-how-too-prevent-burnout-164931/
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/headlight-switch-plug-928274/
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/headlight-switch-harness-burn-help-878824/
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/problem-headlight-switch-42081/
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/tail-lights-dont-work-brake-lights-do-870937/
https://www.rx7club.com/2nd-gen-archive-72/heavy-duty-light-switch-operation-how-too-prevent-burnout-164931/
#32
Moderator
iTrader: (1)
The Red/Black wire in the harness receives voltage from the White/Green wire when the headlight switch **** is turned on. The R/B wire is connected to the tail lights,parking lights....... and powers these lights.
#33
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Okay, from that info I got there, it seems that the white/Green is 12V to the parking lights and so on.
So if I put a regular switch and a relay there, I can manually turn on those lights until I get a new switch from the US?
So if I put a regular switch and a relay there, I can manually turn on those lights until I get a new switch from the US?
#35
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Okay, uhm.
I torched some fuse, but I can't find it. There is suddenly no power there.
I admit I used direct ground to test, which was stupid.
Buut, what fuse can that be? The 15A Illu fuse seemed okay. I cant believe I fried the 60A under the hood? :O
I torched some fuse, but I can't find it. There is suddenly no power there.
I admit I used direct ground to test, which was stupid.
Buut, what fuse can that be? The 15A Illu fuse seemed okay. I cant believe I fried the 60A under the hood? :O
#38
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Okay, it worked with a 16amp switch. But, i got no gauge lights, what wire do i need to tap into to get those on the same switch?
While im at it, i got both door lights working, but the ign key hole and the room light doesnt work. What are regular spots for these to fail except room fuse?
While im at it, i got both door lights working, but the ign key hole and the room light doesnt work. What are regular spots for these to fail except room fuse?
#39
Moderator
iTrader: (1)
Okay, it worked with a 16amp switch. But, i got no gauge lights, what wire do i need to tap into to get those on the same switch?
While im at it, i got both door lights working, but the ign key hole and the room light doesnt work. What are regular spots for these to fail except room fuse?
While im at it, i got both door lights working, but the ign key hole and the room light doesnt work. What are regular spots for these to fail except room fuse?
EDIT: The largest plug at the CPU, located towards the top of the CPU, has a Green/White wire which provides the ground signal for the door lock cylinder light as well as the ignition key cylinder light. Jumper this wire to ground and see if these lights turn on or not.
#40
Rotary Freak
Headlight switch is toast if the illumination fuse is good and the BTN fuse is good. Well maybe not the switch but the short harness is.
Pull the plug off the headlight switch and see if the white/green wire is toasted or not.
Pull the plug off the headlight switch and see if the white/green wire is toasted or not.
#41
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Okay, let me see, small recap:
White/green: 12V from 15A fuse
Red/black: ground via lights
Ren/green: Ill lights
Blue/red: Room/spot
All these @ the headlight switch
Green/white: Ign key illu
@ CPU
And, where is the CPU located? Never digged so deep in this car :P Ever..
Should I use the white/green as ground for the illu cable as well? So I can solder it straight into my new switch?
White/green: 12V from 15A fuse
Red/black: ground via lights
Ren/green: Ill lights
Blue/red: Room/spot
All these @ the headlight switch
Green/white: Ign key illu
@ CPU
And, where is the CPU located? Never digged so deep in this car :P Ever..
Should I use the white/green as ground for the illu cable as well? So I can solder it straight into my new switch?
#42
Moderator
iTrader: (1)
Okay, let me see, small recap:
White/green: 12V from 15A fuse
Red/black: ground via lightsRen/green: Ill lights
Blue/red: Room/spot
All these @ the headlight switch
Green/white: Ign key illu
@ CPU
And, where is the CPU located? Never digged so deep in this car :P Ever..
Should I use the white/green as ground for the illu cable as well? So I can solder it straight into my new switch?
White/green: 12V from 15A fuse
Red/black: ground via lightsRen/green: Ill lights
Blue/red: Room/spot
All these @ the headlight switch
Green/white: Ign key illu
@ CPU
And, where is the CPU located? Never digged so deep in this car :P Ever..
Should I use the white/green as ground for the illu cable as well? So I can solder it straight into my new switch?
White/Green at the harness headlight switch is a voltage wire and not a ground. I think you mean that the W/G wire should power up both the R/B and R/G wires. If this is the case then yes.
Red/Black is not a ground.
Green/White is the ground for the key and door lock illumination.
Blue/Red is the voltage wire for the key and door illumination.
#43
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Satch:
Red/black is ground, it must be, as long as white/green is 12V, becuase that is the other cable thru the switch going to the lights Same with the red/green then, ground to the illu lights in the dash.
White/green needs ground to test you said, doesnt that make it 12V?
Red/black is ground, it must be, as long as white/green is 12V, becuase that is the other cable thru the switch going to the lights Same with the red/green then, ground to the illu lights in the dash.
White/green needs ground to test you said, doesnt that make it 12V?
Last edited by jimmydanny; 01-14-11 at 09:16 AM. Reason: white/green green/white bah
#44
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Gauge lights are powered by the Red/Green wire. The interior spot lights (by the rearview mirror) are powered continuously by the Blue/Red wire. Easy thing to do here is to check for voltage on the Blue/Red wire!
#45
Rotary Freak
No. Look at the picture attached. The R/B or red/black goes TO various light bulbs and those bulbs get their ground from the socket they are attached to via a near by ground point near those bulbs.
If you pull the electrical plug off the light switch, and then with a spare piece of wire bare at each end, jumper the W/G to the R/B............all those light bulbs the R/B is attached to will light up. Proving there is nothing wrong on that side of the circuit.
If you pull the electrical plug off the light switch, and then with a spare piece of wire bare at each end, jumper the W/G to the R/B............all those light bulbs the R/B is attached to will light up. Proving there is nothing wrong on that side of the circuit.
#46
Moderator
iTrader: (1)
Satch:
Red/black is ground, it must be, as long as white/green is 12V, becuase that is the other cable thru the switch going to the lights Same with the red/green then, ground to the illu lights in the dash.
White/green needs ground to test you said, doesnt that make it 12V?
Red/black is ground, it must be, as long as white/green is 12V, becuase that is the other cable thru the switch going to the lights Same with the red/green then, ground to the illu lights in the dash.
White/green needs ground to test you said, doesnt that make it 12V?
In the headlight switch which is unrelated to the two small bulbs above, there is a W/G wire that provides the voltage to the switch. When the **** of the switch is turned the voltage on the W/G wire is then passed onto both the R/B wire so the tail lights come on and the R/G wire also receives power so the gauge and dash lights turn on. Any light that turns on because the R/B and R/G wire has voltage also has there own ground source connected to the light bulb so it illuminates properly.
#47
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Well, in theory then, it goes from the switch, to the bulb, then to the ground, so in a way, I was right ^^,
Quick EDIT: That is, from my view point of the switch, if you see it from the bulbs, you get 12V from the switch, and ground from the chassis.
But, my question remains, the roof spot, is that the red/green wire, and can I connect it to any random ground and make it work then?
Quick EDIT: That is, from my view point of the switch, if you see it from the bulbs, you get 12V from the switch, and ground from the chassis.
But, my question remains, the roof spot, is that the red/green wire, and can I connect it to any random ground and make it work then?
Last edited by jimmydanny; 01-14-11 at 12:11 PM.
#48
Moderator
iTrader: (1)
Well, in theory then, it goes from the switch, to the bulb, then to the ground, so in a way, I was right ^^,
Quick EDIT: That is, from my view point of the switch, if you see it from the bulbs, you get 12V from the switch, and ground from the chassis.
But, my question remains, the roof spot, is that the red/green wire, and can I connect it to any random ground and make it work then?
Quick EDIT: That is, from my view point of the switch, if you see it from the bulbs, you get 12V from the switch, and ground from the chassis.
But, my question remains, the roof spot, is that the red/green wire, and can I connect it to any random ground and make it work then?
#49
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Yeah I got that, but the problem is, where is this Blue/red wire? There are none in the headlight switch AREA at all.
So unless you forgot to say it is somewhere else, there is some different color coding on my car.
So unless you forgot to say it is somewhere else, there is some different color coding on my car.
#50
Moderator
iTrader: (1)
The answer is there is no Blue/Red wire at the headlight switch.
The Blue/Red wire which supplies voltage to the interior spot light is found............. at the interior spot light!
