Steering wheel help
So I bought a new wheel and hub adapter. my friend has poped my old wheel off when i was in my house and i came out to see that it was fubar. Meaning the alignment of everything is now messed up. Can anyone tell me the best way to get it all back to the place. I just need to know which way the arrows are spost to point on the flasher control unit with the 2 ***** and the hub arrow. If this has already been talked about im sorry. Just trying to finaly get my car up and running thank you
#3
Junior Member
Thread Starter
iTrader: (1)
Join Date: Aug 2007
Location: Washington
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
haha no i have a momo set i have bought one of those befor but i have a good momo now. As for what i posted i got it figured out but im curious if what teh best way to see if its 100% aligned
#5
(blank)
iTrader: (1)

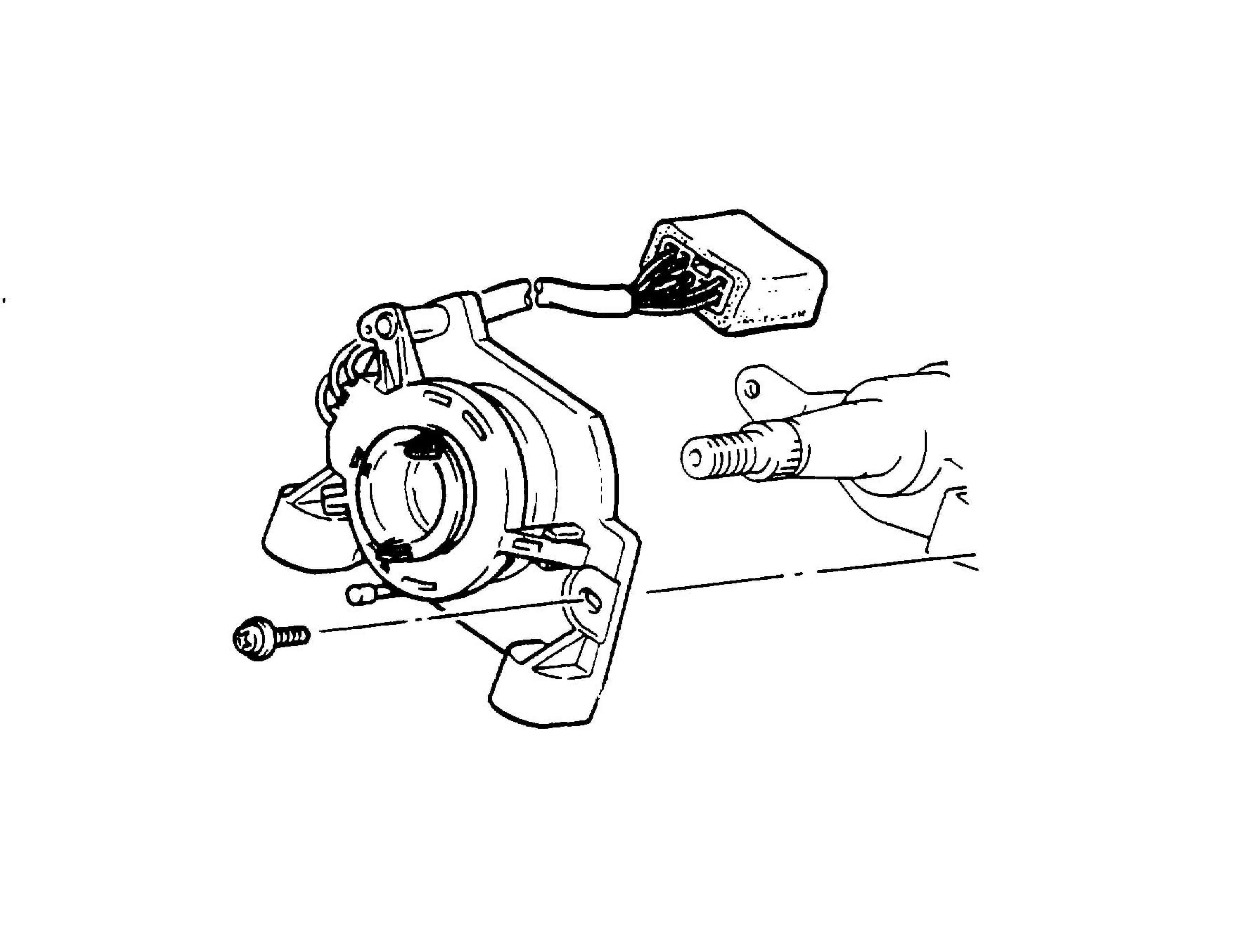

How to align steering angle sensor - picture from FSM
Hope this helps...align the arrows...one moves one doesn't...both should be at 9 o'clock when you're mounting the steering wheel on.
If you screw this up, the power steering computer (metal box about 7" x 7" mounted under the steering column) will beep a code like this:
b=beep
b.b.b.b.b.....b.b.b.b.b.....b.b.b.b.b.
See FSM for more info (see my signature for links), Body Electrical Chapter.
If you screw this up, the power steering computer (metal box about 7" x 7" mounted under the steering column) will beep a code like this:
b=beep
b.b.b.b.b.....b.b.b.b.b.....b.b.b.b.b.
See FSM for more info (see my signature for links), Body Electrical Chapter.
#7
Junior Member
Thread Starter
iTrader: (1)
Join Date: Aug 2007
Location: Washington
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Ok I lined the 2 arrows on the sensor alignement up at 9oclock and my wheel is still not strait. its just a tad off and if i move the arrows they wont be aligned anymore.
So if i have my wheel turned strait the car will drive to the side. the right side t be exact. So what should I do in this situation.
So if i have my wheel turned strait the car will drive to the side. the right side t be exact. So what should I do in this situation.
Trending Topics
#9
Senior Member
I am not sure how the aftermarket one is, but with my stock one, I would just pull the wheel off and rotate a degree or too, drive to see if it was straight, pull of and rotate a degree or two and repeat until it was straight. On mine, the arrows could line up and the steering wheel could be upside down.
#10
Junior Member
Thread Starter
iTrader: (1)
Join Date: Aug 2007
Location: Washington
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
ya i did just that i live on a hill so i ended up driving down to a flat parking lot and driving strait and parking then doing it all their and i got it pretty close not sure if it is dead on but it is deff close.
#12
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
If your Front wheels are Not Straight,then Jack up the Front of the car,so that you can just Grab a wheel and get the Front wheels straight with the Back wheels.then Put the hub AND steering wheel on as One unit.The steering wheel should be Close to center,If not Look at the Front wheels again and Line it up again.this time you don't Have to jack the car up,as you can just Pop the hub and Wheel off and align it More Precisely(one spline at a Time.)
#13
well...i dunno about steering angle sensor, i never looked into it, i had my s-wheel off, and when i put it back in.. i just make sure the lock to lock is even, then.. i do my alignment... with the tierod ends. i wanna be able to turn the steering wheel equal amounts left and right ofcourse. LOL.
to do a good, simple alignment, NOT for track use, but can get your steeringwheel straight as hell if done right... feels normal.
just make sure when you look down the side of your car.. your front of your front tire is line up with the rear of your front tire, and it looks to perfectly cover the front of your rear tire. if it dosent, adjust it a little and roll the car back and forth make sure the wheel is straight... then... look again.. repeat until good then testdrive!! you are good to go!
to do a good, simple alignment, NOT for track use, but can get your steeringwheel straight as hell if done right... feels normal.
just make sure when you look down the side of your car.. your front of your front tire is line up with the rear of your front tire, and it looks to perfectly cover the front of your rear tire. if it dosent, adjust it a little and roll the car back and forth make sure the wheel is straight... then... look again.. repeat until good then testdrive!! you are good to go!
